VELOS F5OS SNMP Monitoring and Alerting¶
SNMP support for F5OS will vary by release. In the initial F5OS-C 1.1.x versions, SNMP support was limited to IF-MIB support for the chassis partitions and SNMP trap support. F5OS v1.2.x added additional SNMP support, including Link Up/Down Traps for chassis partitions, and support for IF-MIB, EtherLike-MIB, and the PLATFORM-STATS-MIB. F5OS-C 1.5.x added additional SNMP MIB and trap coverage and F5OS-C 1.6.0 added SNMPv3 support. The F5-PLATFORM-STATS-MIB and F5-OS-SYSTEM-MIB were not supported on the system controllers until F5OS-C 1.6.0.
As of F5OS-C 1.8.0 the list of SNMP MIBs available are as follows:
VELOS System Controller MIBs
F5OS Controller MIBs:
F5-ALERT-DEF-MIB
F5-COMMON-SMI-MIB
F5-CTRLR-ALERT-NOTIF-MIB
F5-PLATFORM-STATS-MIB
F5-OS-SYSTEM-MIB
NetSNMP MIBs System Controller:
EtherLike-MIB
HOST-RESOURCES-MIB
IANAifType-MIB
IF-MIB
IPV6-TC
RFC1213-MIB
SNMP-COMMUNITY-MIB
SNMP-FRAMEWORK-MIB
SNMP-MPD-MIB
SNMP-NOTIFICATION-MIB
SNMP-TARGET-MIB
SNMP-USER-BASED-SM-MIB
SNMP-VIEW-BASED-ACM-MIB
SNMPv2-CONF
SNMPv2-MIB
SNMPv2-SMI
SNMPv2-TC
TRANSPORT-ADDRESS-MIB
VELOS Chassis Partition MIBs
F5OS Chassis Partition MIBs:
F5-PLATFORM-STATS-MIB
F5-PARTITION-ALERT-NOTIF-MIB
F5-OS-TENANT-MIB
F5-OS-SYSTEM-MIB
F5-OS-PLATFORM-SMI-MIB
F5-OS-LLDP-MIB
F5-COMMON-SMI-MIB
F5-ALERT-DEF-MIB
NetSNMP MIBs Chassis Partition:
EtherLike-MIB
HOST-RESOURCES-MIB
IANAifType-MIB
IF-MIB
IPV6-TC
RFC1213-MIB
SNMP-COMMUNITY-MIB
SNMP-FRAMEWORK-MIB
SNMP-MPD-MIB
SNMP-NOTIFICATION-MIB
SNMP-TARGET-MIB
SNMP-USER-BASED-SM-MIB
SNMP-VIEW-BASED-ACM-MIB
SNMPv2-CONF
SNMPv2-MIB
SNMPv2-SMI
SNMPv2-TC
TRANSPORT-ADDRESS-MIB
Downloading MIBs¶
SNMP MIBs can be downloaded directly from the F5OS layer starting in F5OS-C v1.5.x.
Downloading MIBs via webUI¶

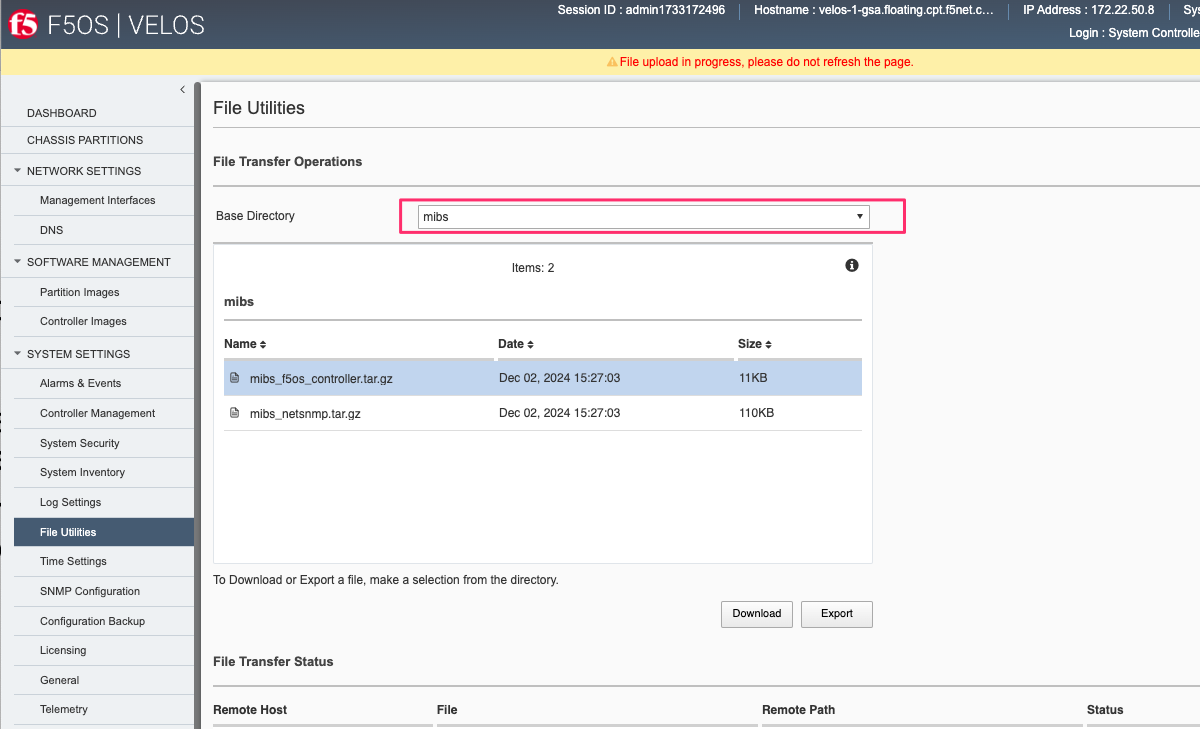

From the webUI of the system controller, you can go to the System Settings > File Utilities page. Then, from the Base Directory drop down box select the mibs directory to download the MIB files. There are two separate MIB files: NetSNMP and F5OS MIBs for the controller. Download both MIB files and extract them to see the individual MIB files.
You can then download the F5OS controller MIBS and the standard Net SNMP MIBS as seen above. Repeat the same process on one of the chassis partitions to download the chassis partition MIBs.
Uploading MIBs to a Remote Server via CLI¶
From the CLI, use the file export command to transfer the MIB files to a remote server. First, list the MIB files using the file list command as seen below.
syscon-1-active# file list path mibs/
entries {
name mibs_f5os_controller.tar.gz
date Thu Jan 25 07:29:49 UTC 2024
size 7.2KB
}
entries {
name mibs_netsnmp.tar.gz
date Thu Jan 25 07:29:49 UTC 2024
size 110KB
}
syscon-1-active#
To upload each of the files to a remote HTTPS server use the following command. You can also upload using SCP or SFTP by using the proper protocol option.
syscon-1-active# file export local-file mibs/mibs_f5os_controller.tar.gz remote-host 10.255.0.142 remote-file /upload/upload.php username corpuser insecure
Value for 'password' (<string>): ********
result File transfer is initiated.(mibs_f5os_controller.tar.gz)
syscon-1-active#
Repeat the same API call but change the filename to the mibs_netsnmp.tar.gz file.
syscon-1-active# file export local-file mibs/mibs_netsnmp.tar.gz remote-host 10.255.0.142 remote-file /upload/upload.php username corpuser insecure
Value for 'password' (<string>): ********
result File transfer is initiated.(mibs_netsnmp.tar.gz)
syscon-1-active#
To get the chassis partition MIBs repeat the same steps on one of your chassis partitions to get the file mibs_f5os_partition.tar.gz.
Downloading MIBs via API¶
You can utilize the F5OS API to download the MIB files directly to a client machine, or to upload to a remote server over HTTPS, SCP, or SFTP. First, list the contents of the mibs/ directory on the VELOS system controller using the following API call to get the filenames.
POST https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/f5-utils-file-transfer:file/list
In the body of the API call add the following:
{
"f5-utils-file-transfer:path": "mibs/"
}
This will list the contents of the mibs directory as seen below.
{
"f5-utils-file-transfer:output": {
"entries": [
{
"name": "mibs_f5os_controller.tar.gz",
"date": "Thu Jan 25 07:29:49 UTC 2024",
"size": "7.2KB"
},
{
"name": "mibs_netsnmp.tar.gz",
"date": "Thu Jan 25 07:29:49 UTC 2024",
"size": "110KB"
}
]
}
}
You’ll notice there are two separate MIB files, one is for Enterprise MIBs, while the other is for F5 specific MIBs. You’ll need to download both files and add them to your SNMP manager. Below are example API calls to download each of the SNMP MIB files.
POST https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/f5-utils-file-transfer:file/f5-file-download:download-file/f5-file-download:start-download

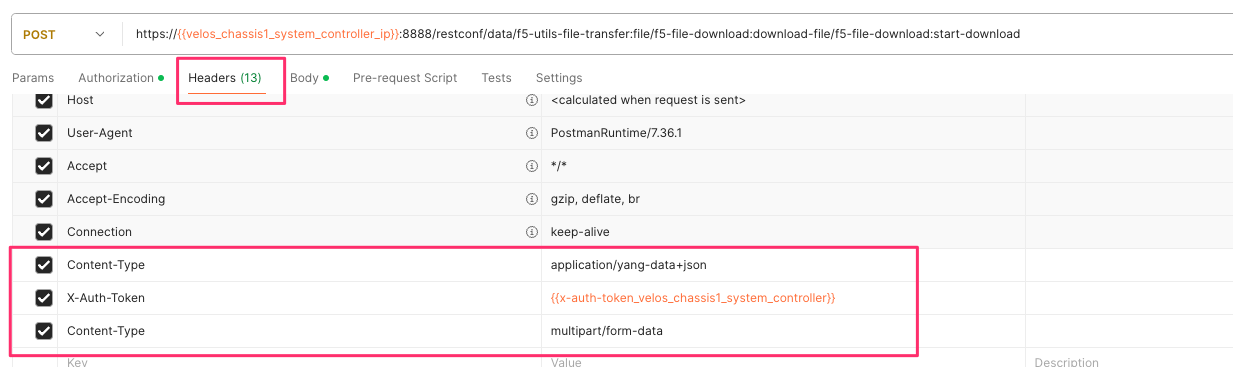

For the Headers section of the Postman request, be sure to add the following headers:

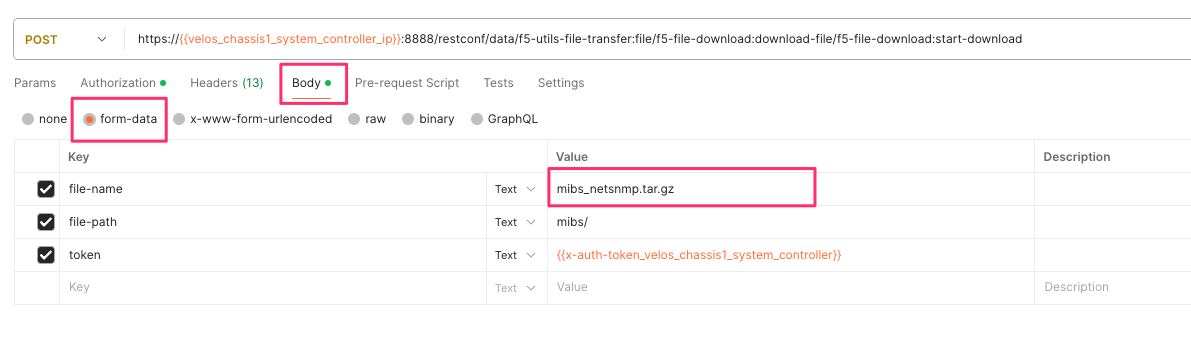

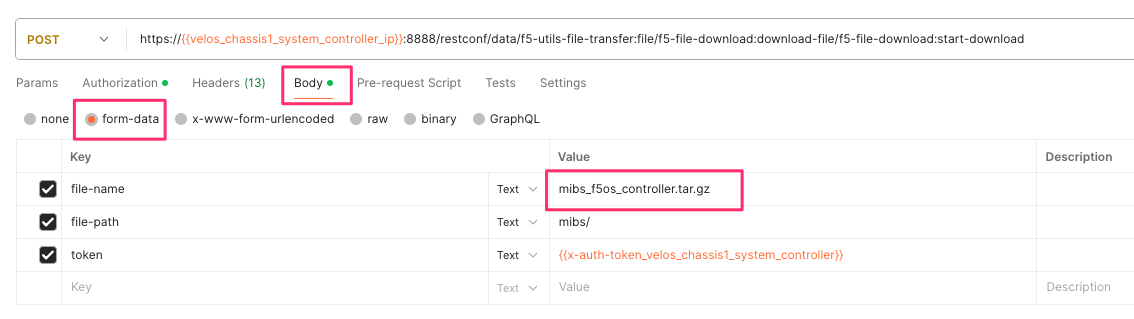

If you are using Postman, in the body of the API call select Body, then select form-data. Then enter the file-name, path, and token as seen below.
Repeat the same process for the other MIB file.

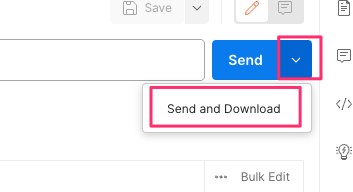

If you are using Postman, instead of clicking Send, click on the arrow next to Send, and then select Send and Download. You will then be prompted to save the file to your local file system.
Exporting MIBs to a Remote Server via the API¶
To copy the SNMP MIB files from VELOS to a remote HTTPS server use the following API call:
POST https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/f5-utils-file-transfer:file/export
In the body of the API call, add the remote server info and local file you want to export.
{
"f5-utils-file-transfer:insecure": "",
"f5-utils-file-transfer:protocol": "https",
"f5-utils-file-transfer:username": "corpuser",
"f5-utils-file-transfer:password": "password",
"f5-utils-file-transfer:remote-host": "10.255.0.142",
"f5-utils-file-transfer:remote-file": "/upload/upload.php",
"f5-utils-file-transfer:local-file": "mibs/mibs_f5os_controller.tar.gz"
}
You can then check on the status of the export via the following API call:
POST https://{{velos_chassis1_system_controller_ip}}:8888/restocnf/data/f5-utils-file-transfer:file/transfer-status
The output will show the status of the file export.
{
"f5-utils-file-transfer:output": {
"result": "\nS.No.|Operation |Protocol|Local File Path |Remote Host |Remote File Path |Status |Time \n1 |Export file|HTTPS |mibs/mibs_f5os_controller.tar.gz.gz |10.255.0.142 |/upload/upload.php | Completed|Thu Jan 20 05:11:44 2022"
}
}
Repeat the same steps to download the other MIB file. Then repeat the same steps to download the chassis partition MIB from one of your chassis partitions.
Adding Allowed IPs for SNMP¶
Adding Allowed IPs for SNMP via CLI¶
By default, SNMP queries are not allowed into the F5OS platform layer. Before enabling SNMP, you’ll need to open up the out-of-band management port on F5OS-C (on both the system controller and on all the chassis partitions) to allow SNMP queries from particular SNMP management endpoints. Below is an example of allowing any SNMP endpoint at 10.255.0.0 (prefix length of 24) to query the F5OS layer on port 161. The allowed-ip functionality is added in F5OS-C 1.6.0.
syscon-1-active(config)# system allowed-ips allowed-ip snmp config ipv4 address 10.255.0.0 prefix-length 24 port 161
syscon-1-active(config-allowed-ip-snmp)# commit
Commit complete.
syscon-1-active(config-allowed-ip-snmp)#
Currently you can add one IP address/port pair per allowed-ip name with an optional prefix length to specify a CIDR block containing multiple addresses. If you require more than one non-contiguous IP address, you can add it under another name as seen below.
syscon-1-active(config)# system allowed-ips allowed-ip SNMP-144 config ipv4 address 10.255.0.144 port 161
syscon-1-active(config-allowed-ip-SNMP-144)# commit
Commit complete.
syscon-1-active(config-allowed-ip-SNMP-144)# system allowed-ips allowed-ip SNMP-145 config ipv4 address 10.255.2.145 port 161
syscon-1-active(config-allowed-ip-SNMP-145)# commit
Commit complete.
syscon-1-active(config-allowed-ip-SNMP-145)#
Adding Allowed IPs for SNMP via API¶
By default, SNMP queries are not allowed into the F5OS layer. Before enabling SNMP. you’ll need to open up the out-of-band management port on F5OS-C to allow SNMP queries (on both the system controller and on all the chassis partitions). Below is an example of allowing multiple SNMP endpoints to access SNMP on the system on port 161.
POST https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/openconfig-system:system/f5-allowed-ips:allowed-ips
Within the body of the API call, specific IP address/port combinations can be added under a given name. In the current release, you are limited to one IP address/port per name.
{
"allowed-ip": [
{
"name": "SNMP",
"config": {
"ipv4": {
"address": "10.255.0.143",
"port": 161,
"prefix-length": 32
}
}
},
{
"name": "SNMP-WIN-10",
"config": {
"ipv4": {
"address": "10.255.0.144",
"port": 161,
"prefix-length": 32
}
}
},
{
"name": "SNMP2",
"config": {
"ipv4": {
"address": "10.254.0.0",
"port": 161,
"prefix-length": 16
}
}
}
]
}
To view the allowed IPs in the API, use the following call.
GET https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/openconfig-system:system/f5-allowed-ips:allowed-ips
The output will show the previously configured allowed-ip’s.
{
"f5-allowed-ips:allowed-ips": {
"allowed-ip": [
{
"name": "SNMP",
"config": {
"ipv4": {
"address": "10.255.0.143",
"prefix-length": 32,
"port": 161
}
}
},
{
"name": "SNMP-WIN-10",
"config": {
"ipv4": {
"address": "10.255.0.144",
"prefix-length": 32,
"port": 161
}
}
},
{
"name": "SNMP2",
"config": {
"ipv4": {
"address": "10.254.0.0",
"prefix-length": 16,
"port": 161
}
}
}
]
}
}
Adding Allowed IPs for SNMP via webUI¶

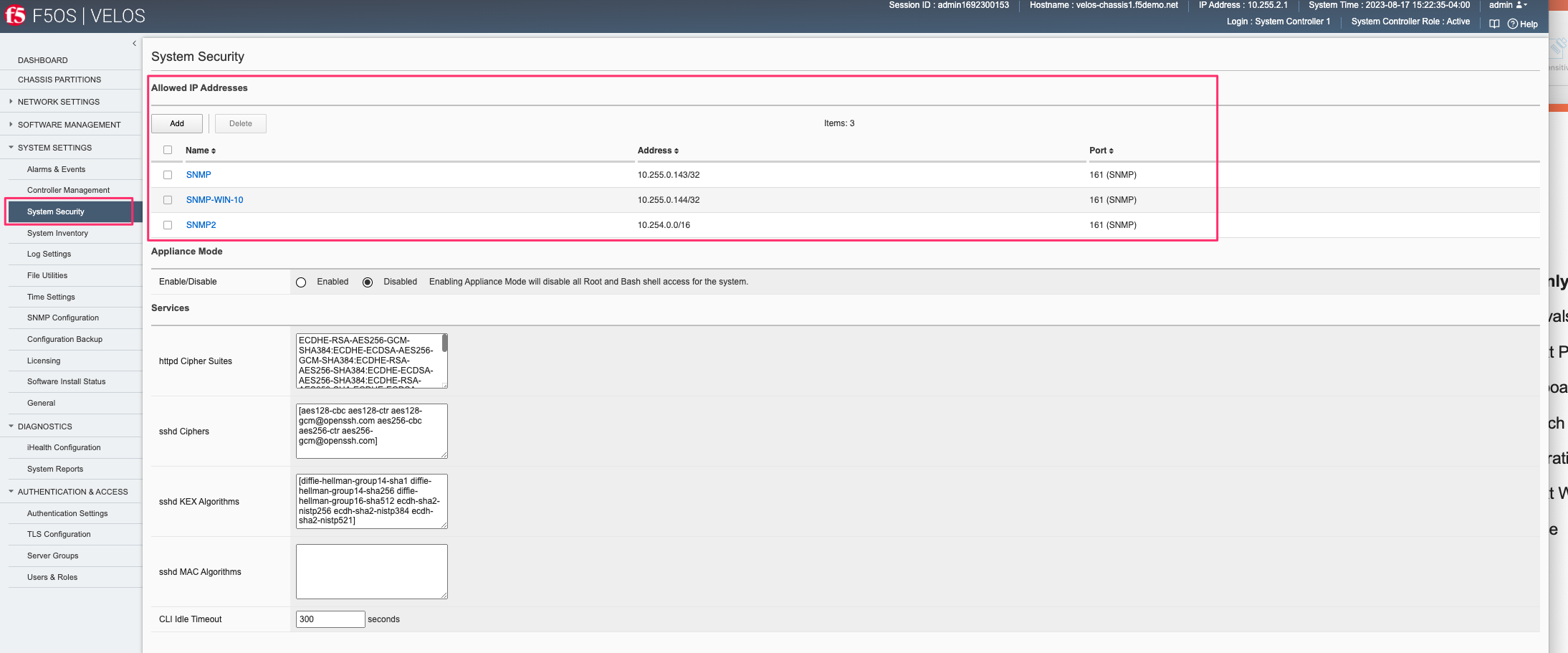

Configuration of the allowed-ip functionality was added to the webUI in F5OS-C 1.6.0. By default, SNMP queries are not allowed into the F5OS platform layer. Before enabling SNMP, you’ll need to open up the out-of-band management port on F5OS-C (on both the system controller and on all the chassis partitions) to allow SNMP queries from particular SNMP management endpoints. Below is an example of allowing a few SNMP endpoints to query the F5OS layer on port 161.
Adding Interface and LAG Descriptions¶
It is highly recommended that you put interface descriptions in your configuration, so that they will show up in the description field when using SNMP polling.
Adding Out-of-Band Interface and LAG Descriptions via CLI¶
To add descriptions for the out-of-band management ports on the system controllers in the CLI, follow the examples below.
syscon-1-active(config)# interfaces interface 1/mgmt0 config description "Interface 1/mgmt0"
syscon-1-active(config-interface-1/mgmt0)# exit
syscon-1-active(config)# interfaces interface 2/mgmt0 config description "Interface 2/mgmt0"
syscon-1-active(config-interface-2/mgmt0)# exit
syscon-1-active(config)# commit
Commit complete.
syscon-1-active(config)#
Adding Out-of-Band Interface and LAG Descriptions via API¶
To add descriptions for the out-of-band management ports on the system controllers via the API, follow the examples below. Use the following PATCH command to update the descriptions for both 1/mgmt0 and 2/mgmt0 out-of-band interfaces.
PATCH https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/
In the body of the API call, add the descriptions as seen below.
{
"openconfig-interfaces:interfaces": {
"interface": [
{
"name": "1/mgmt0",
"config": {
"description": "1/mgmt0"
}
},
{
"name": "2/mgmt0",
"config": {
"description": "2/mgmt0"
}
}
]
}
}
You can then issue the following GET API call to view each interfaces configuration including the new description. Note, the interface name must be encoded in Postman because of the special characters. The %2F will represent the slash in the interface name.
GET https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/openconfig-interfaces:interfaces/interface=1%2Fmgmt0/config
You should see a response like the one below.
{
"openconfig-interfaces:config": {
"name": "1/mgmt0",
"type": "iana-if-type:ethernetCsmacd",
"description": "1/mgmt0",
"enabled": true
}
}
You can then issue the same command with a different interface name for the second management interface.
GET https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/openconfig-interfaces:interfaces/interface=2%2Fmgmt0/config
You should see a response similar to the one below.
{
"openconfig-interfaces:config": {
"name": "2/mgmt0",
"type": "iana-if-type:ethernetCsmacd",
"description": "2/mgmt0",
"enabled": true
}
}
You cannot currently set the interface descriptions for the out-of-band management interfaces via the webUI. You’ll need to use either the API or CLI.
Adding Interface and LAG Descriptions for Chassis Partitions via CLI¶
Adding descriptions to the interfaces will make it easier to determine which interface you are monitoring when using SNMP. Below are examples of adding interface descriptions via CLI to interfaces within a chassis partition. You should repeat this for each chassis partition and all interfaces.
prod2-2(config)# interfaces interface 1/1.0 config description "Interface 1/1.0"
prod2-2(config-interface-1/1.0)# exit
prod2-2(config)# interfaces interface 1/2.0 config description "Interface 1/2.0"
prod2-2(config-interface-1/2.0)# exit
prod2-2(config)# interfaces interface 2/1.0 config description "Interface 2/1.0"
prod2-2(config-interface-2/1.0)# exit
prod2-2(config)# interfaces interface 2/2.0 config description "Interface 2/2.0"
prod2-2(config-interface-2/2.0)# exit
prod2-2(config)# commit
Commit complete.
prod2-2(config)#
If you are using Link Aggregation Groups (LAGs), then you can also add interface descriptions to the LAG interfaces within each chassis partition:
prod2-2(config)# interfaces interface Arista config description "Interface Arista LAG"
prod2-2(config-interface-Arista)# exit
prod2-2(config)# interfaces interface HA-Interconnect config description "Interface HA-Interconnect LAG"
prod2-2(config-interface-HA-Interconnect)# exit
prod2-2(config)# commit
Commit complete.
prod2-2(config)#

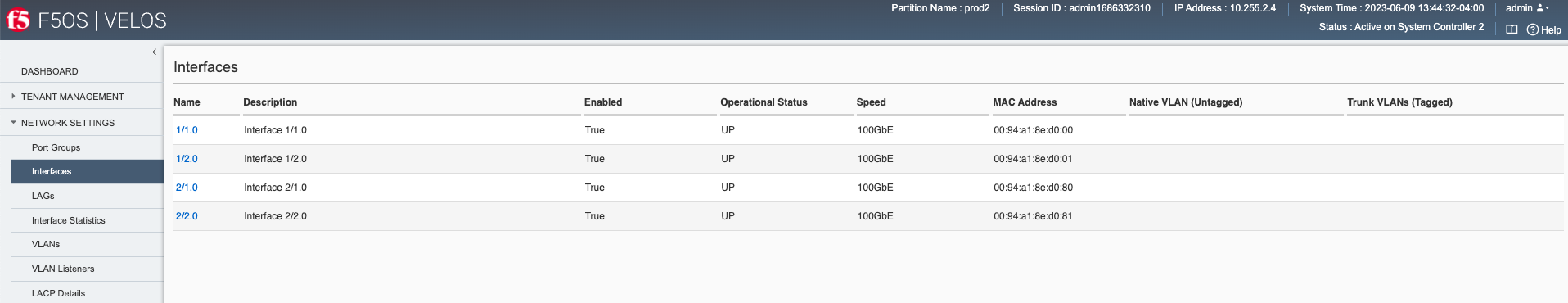

To view the interface descriptions, use the show running-config interfaces command.
prod2-2# show running-config interfaces
interfaces interface 1/1.0
config type ethernetCsmacd
config description "Interface 1/1.0"
config enabled
config forward-error-correction auto
ethernet config aggregate-id HA-Interconnect
!
interfaces interface 1/2.0
config type ethernetCsmacd
config description "Interface 1/2.0"
config enabled
config forward-error-correction auto
ethernet config aggregate-id Arista
!
interfaces interface 2/1.0
config type ethernetCsmacd
config description "Interface 2/1.0"
config enabled
config forward-error-correction auto
ethernet config aggregate-id Arista
!
interfaces interface 2/2.0
config type ethernetCsmacd
config description "Interface 2/2.0"
config enabled
config forward-error-correction auto
ethernet config aggregate-id HA-Interconnect
!
interfaces interface Arista
config type ieee8023adLag
config description "Interface Arista LAG"
aggregation config lag-type LACP
aggregation config distribution-hash src-dst-ipport
aggregation switched-vlan config trunk-vlans [ 3010 3011 ]
!
interfaces interface HA-Interconnect
config type ieee8023adLag
config description "Interface HA-Interconnect LAG"
aggregation config lag-type LACP
aggregation config distribution-hash src-dst-ipport
aggregation switched-vlan config trunk-vlans [ 500 501 502 503 510 511 ]
!
prod2-2#

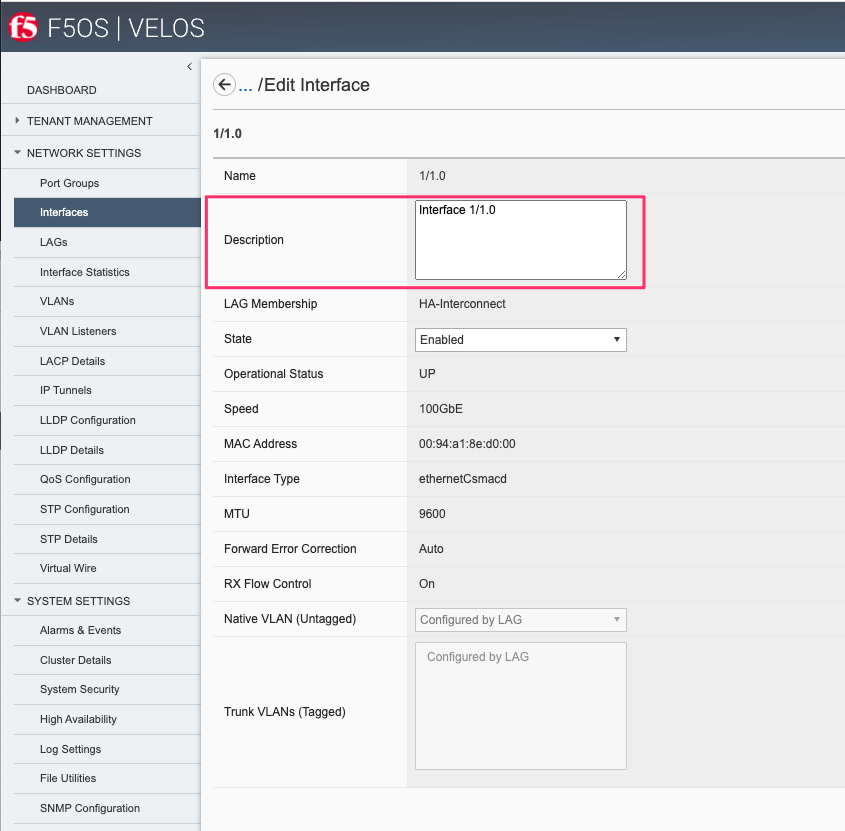

Adding Interface and LAG Descriptions for Chassis Partitions via webUI¶
You can also add interface descriptions for both interfaces and LAGs within the webUI. Go to the Network Settings -> Interfaces page and select an interface to modify.
Then edit the description and Save the change, then repeat for all the other interfaces within that chassis partition. Then repeat for other chassis partitions.

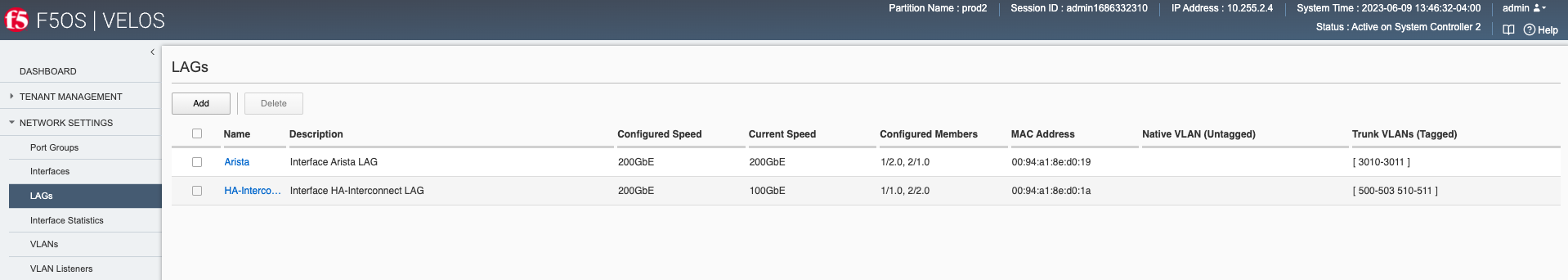

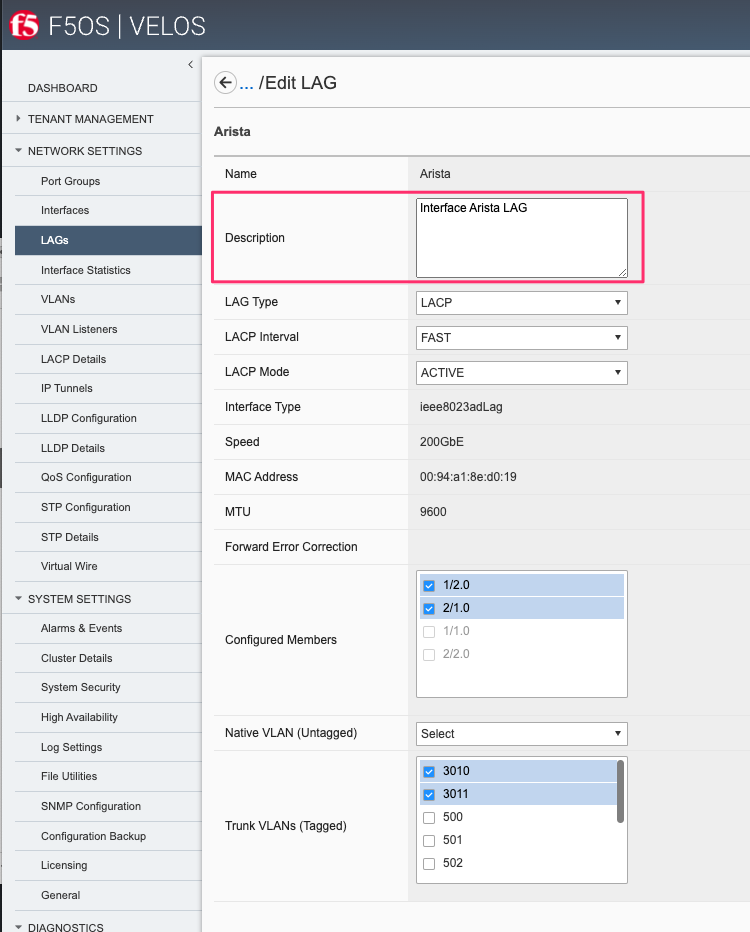

For Link Aggregation Groups go to the Network Settings -> LAGs page and select a LAG to modify.
Then edit the description and Save the change, then repeat for all the other LAG interfaces within that chassis partition. Then repeat for other chassis partitions.
Adding Interface and LAG Descriptions for Chassis Partitions via API¶
To add descriptions for both the in-band interfaces and LAGs in the CLI, follow the examples below. The API example below is sent to the chassis partition IP address.
PATCH https://{{velos_chassis1_chassis_partition1_ip}}:8888/restconf/data/
Below is the proper formatting for the body of the API call. You will need to adjust to the number and type of interfaces to match what is in your chassis partition.
{
"openconfig-interfaces:interfaces": {
"interface": [
{
"name": "1/1.0",
"config": {
"description": "VELOS Interface 1/1.0"
}
},
{
"name": "1/2.0",
"config": {
"description": "VELOS Interface 1/2.0"
}
},
{
"name": "2/1.0",
"config": {
"description": "VELOS Interface 2/1.0"
}
},
{
"name": "2/2.0",
"config": {
"description": "VELOS Interface 2/2.0"
}
}
]
}
}
If Link Aggregation Groups (LAGs) are configured, descriptions should be added to the LAG interfaces as well.
PATCH https://{{velos_chassis1_chassis_partition1_ip}}:8888/restconf/data/
The body of the API call should contain JSON data that includes the descriptions for each LAG.
{
"openconfig-interfaces:interfaces": {
"interface": [
{
"name": "Arista",
"config": {
"description": "VELOS Arista LAG Interface"
}
},
{
"name": "HA-Interconnect",
"config": {
"description": "VELOS HA-Interconnect Interface"
}
}
]
}
}
You may then view the LAG description via the following API call:
GET https://{{velos_chassis1_chassis_partition1_ip}}:8888/restconf/data/openconfig-interfaces:interfaces
The output below will show the LAG descriptions as well as all the other interfaces.
{
"openconfig-interfaces:interfaces": {
"interface": [
{
"name": "1/1.0",
"config": {
"name": "1/1.0",
"type": "iana-if-type:ethernetCsmacd",
"description": "VELOS Interface 1/1.0",
"enabled": true,
"f5-interface:forward-error-correction": "auto"
},
"state": {
"name": "1/1.0",
"type": "iana-if-type:ethernetCsmacd",
"mtu": 9600,
"enabled": true,
"oper-status": "UP",
"counters": {
"in-octets": "17514",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "0",
"in-multicast-pkts": "135",
"in-discards": "0",
"in-errors": "0",
"in-fcs-errors": "0",
"out-octets": "33431490",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "256908",
"out-discards": "0",
"out-errors": "0"
},
"f5-interface:forward-error-correction": "auto",
"f5-lacp:lacp_state": "LACP_DOWN"
},
"openconfig-if-ethernet:ethernet": {
"config": {
"openconfig-if-aggregate:aggregate-id": "HA-Interconnect"
},
"state": {
"port-speed": "openconfig-if-ethernet:SPEED_100GB",
"hw-mac-address": "00:94:a1:8e:d0:00",
"counters": {
"in-mac-control-frames": "0",
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-control-frames": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
},
"f5-if-ethernet:flow-control": {
"rx": "on"
}
}
}
},
{
"name": "1/2.0",
"config": {
"name": "1/2.0",
"type": "iana-if-type:ethernetCsmacd",
"description": "VELOS Interface 1/2.0",
"enabled": true,
"f5-interface:forward-error-correction": "auto"
},
"state": {
"name": "1/2.0",
"type": "iana-if-type:ethernetCsmacd",
"mtu": 9600,
"enabled": true,
"oper-status": "UP",
"counters": {
"in-octets": "34222124",
"in-unicast-pkts": "6",
"in-broadcast-pkts": "5",
"in-multicast-pkts": "258896",
"in-discards": "0",
"in-errors": "0",
"in-fcs-errors": "0",
"out-octets": "31820928",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "248601",
"out-discards": "0",
"out-errors": "0"
},
"f5-interface:forward-error-correction": "auto",
"f5-lacp:lacp_state": "LACP_UP"
},
"openconfig-if-ethernet:ethernet": {
"config": {
"openconfig-if-aggregate:aggregate-id": "Arista"
},
"state": {
"port-speed": "openconfig-if-ethernet:SPEED_100GB",
"hw-mac-address": "00:94:a1:8e:d0:01",
"counters": {
"in-mac-control-frames": "0",
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-control-frames": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
},
"f5-if-ethernet:flow-control": {
"rx": "on"
}
}
}
},
{
"name": "2/1.0",
"config": {
"name": "2/1.0",
"type": "iana-if-type:ethernetCsmacd",
"description": "VELOS Interface 2/1.0",
"enabled": true,
"f5-interface:forward-error-correction": "auto"
},
"state": {
"name": "2/1.0",
"type": "iana-if-type:ethernetCsmacd",
"mtu": 9600,
"enabled": true,
"oper-status": "UP",
"counters": {
"in-octets": "51072261",
"in-unicast-pkts": "9",
"in-broadcast-pkts": "18752",
"in-multicast-pkts": "383463",
"in-discards": "0",
"in-errors": "1",
"in-fcs-errors": "1",
"out-octets": "31832708",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "248701",
"out-discards": "0",
"out-errors": "0"
},
"f5-interface:forward-error-correction": "auto",
"f5-lacp:lacp_state": "LACP_UP"
},
"openconfig-if-ethernet:ethernet": {
"config": {
"openconfig-if-aggregate:aggregate-id": "Arista"
},
"state": {
"port-speed": "openconfig-if-ethernet:SPEED_100GB",
"hw-mac-address": "00:94:a1:8e:d0:80",
"counters": {
"in-mac-control-frames": "0",
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "1",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-control-frames": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
},
"f5-if-ethernet:flow-control": {
"rx": "on"
}
}
}
},
{
"name": "2/2.0",
"config": {
"name": "2/2.0",
"type": "iana-if-type:ethernetCsmacd",
"description": "VELOS Interface 2/2.0",
"enabled": true,
"f5-interface:forward-error-correction": "auto"
},
"state": {
"name": "2/2.0",
"type": "iana-if-type:ethernetCsmacd",
"mtu": 9600,
"enabled": true,
"oper-status": "UP",
"counters": {
"in-octets": "33026022",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "0",
"in-multicast-pkts": "256851",
"in-discards": "0",
"in-errors": "0",
"in-fcs-errors": "0",
"out-octets": "33430966",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "256916",
"out-discards": "0",
"out-errors": "0"
},
"f5-interface:forward-error-correction": "auto",
"f5-lacp:lacp_state": "LACP_UP"
},
"openconfig-if-ethernet:ethernet": {
"config": {
"openconfig-if-aggregate:aggregate-id": "HA-Interconnect"
},
"state": {
"port-speed": "openconfig-if-ethernet:SPEED_100GB",
"hw-mac-address": "00:94:a1:8e:d0:81",
"counters": {
"in-mac-control-frames": "0",
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-control-frames": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
},
"f5-if-ethernet:flow-control": {
"rx": "on"
}
}
}
},
{
"name": "Arista",
"config": {
"name": "Arista",
"type": "iana-if-type:ieee8023adLag",
"description": "Interface Arista LAG",
"enabled": true
},
"state": {
"name": "Arista",
"type": "iana-if-type:ieee8023adLag",
"mtu": 9600,
"enabled": true,
"oper-status": "UP"
},
"openconfig-if-aggregate:aggregation": {
"config": {
"lag-type": "LACP",
"f5-if-aggregate:distribution-hash": "src-dst-ipport"
},
"state": {
"lag-type": "LACP",
"lag-speed": 200,
"f5-if-aggregate:distribution-hash": "src-dst-ipport",
"f5-if-aggregate:members": {
"member": [
{
"member-name": "1/2.0",
"member-status": "UP"
},
{
"member-name": "2/1.0",
"member-status": "UP"
}
]
},
"f5-if-aggregate:mac-address": "00:94:a1:8e:d0:19",
"f5-if-aggregate:lagid": 1
},
"openconfig-vlan:switched-vlan": {
"config": {
"trunk-vlans": [
3010,
3011
]
}
}
}
},
{
"name": "HA-Interconnect",
"config": {
"name": "HA-Interconnect",
"type": "iana-if-type:ieee8023adLag",
"description": "Interface HA-Interconnect LAG",
"enabled": true
},
"state": {
"name": "HA-Interconnect",
"type": "iana-if-type:ieee8023adLag",
"mtu": 9600,
"enabled": true,
"oper-status": "UP"
},
"openconfig-if-aggregate:aggregation": {
"config": {
"lag-type": "LACP",
"f5-if-aggregate:distribution-hash": "src-dst-ipport"
},
"state": {
"lag-type": "LACP",
"lag-speed": 100,
"f5-if-aggregate:distribution-hash": "src-dst-ipport",
"f5-if-aggregate:members": {
"member": [
{
"member-name": "1/1.0",
"member-status": "DOWN"
},
{
"member-name": "2/2.0",
"member-status": "UP"
}
]
},
"f5-if-aggregate:mac-address": "00:94:a1:8e:d0:1a",
"f5-if-aggregate:lagid": 2
},
"openconfig-vlan:switched-vlan": {
"config": {
"trunk-vlans": [
500,
501,
502,
503,
510,
511
]
}
}
}
}
]
}
}
Enabling SNMP¶
You can enable SNMP individually at the system controller layer, and for each chassis partition.
Enabling SNMP via CLI prior to F5OS-C 1.5.x¶
Setting up SNMP can be done from the CLI by enabling an SNMP community such as public. Below is an example of enabling SNMP monitoring on a chassis partition, but the same configuration can be done on the system controller as well. The configuration in releases prior to F5OS-C 1.5.x is somewhat complicated and has been improved in F5OS-C 1.5.x and later. SNMPv3 support has also been added in F5OS-C 1.5.0. We recommend you use the later F5OS-C releases and the examples in the next section. This section is provided for reference for those that may still be running earlier versions of F5OS-C.
To enable SNMP on F5OS-C 1.4.x and earlier use the following CLI commands. If you are running F5OS-C 1.5.0 or later skip this section and move onto the next section.
You can configure the SNMP system parameters including the System Contact, System Location, and System Name as seen below:
Production-1(config)# SNMPv2-MIB system sysContact jim@f5.com sysLocation Boston sysName VELOS-Production
Production-1(config)# commit
Enabling SNMP can be done from the CLI by configuring the public SNMP community, and then configuring a Security Access Group. Below is an example of enabling SNMP monitoring at the F5OS layer. F5OS only supports read-only access for SNMP monitoring.
Production-1# config
Entering configuration mode terminal
Production-1(config)# SNMP-COMMUNITY-MIB snmpCommunityTable snmpCommunityEntry public snmpCommunityName public snmpCommunitySecurityName public
Production-1(config-snmpCommunityEntry-public)# exit
Production-1(config)# commit
Commit complete.
To configure a Security Group for both SNMPv1 and SNMPv2c.
Production-1(config)# SNMP-VIEW-BASED-ACM-MIB vacmSecurityToGroupTable vacmSecurityToGroupEntry 2 public vacmGroupName read-access
Production-1(config-vacmSecurityToGroupEntry-2/public)# exit
Production-1(config)# SNMP-VIEW-BASED-ACM-MIB vacmSecurityToGroupTable vacmSecurityToGroupEntry 1 public vacmGroupName read-access
Production-1(config-vacmSecurityToGroupEntry-1/public)# exit
Production-1(config)# commit
Commit complete.
Enabling SNMP via CLI for Releases F5OS-C 1.5.0 and Later¶
You can configure the SNMP System parameters including the System Contact, System Location, and System Name as seen below:
Production-1(config)# SNMPv2-MIB system sysContact jim@f5.com sysLocation Boston sysName VELOS-Production
Production-1(config)# commit
SNMP configuration was only available in the CLI and API prior to F5OS-C 1.5.0, and the CLI configuration was not intuitive. F5OS-C 1.5.0 has improved and streamlined SNMP configuration in the CLI and then configuration via the webUI was also added in F5OS-C 1.5.0. The example below is utilizing the new and improved SNMP CLI configuration for VELOS systems running F5OS-C 1.5.0 or later.
Enabling SNMP can be done from the CLI by configuring the public SNMP community, and then configuring a security-model. The command below sets up an SNMP community of public with v1 and v2c security models. You may choose to enable both of these security models or only one.
Production-1(config)# system snmp communities community public config security-model [ v1 v2c ]
Production-1(config-community-public)# commit
Commit complete.
Production-1(config-community-public)#
You can then display the SNMP community configuration using the show system snmp command.
Production-1(config)# do show system snmp
system snmp engine-id state engine-id 80:00:2f:f4:03:00:94:a1:8e:d0:ff
system snmp engine-id state type mac
SECURITY
NAME NAME MODEL
----------------------------
public public [ v1 v2c ]
Production-1(config)#
You may also configure SNMP users for SNMPv3 support, since SNMPv3 is a user-based security model. This provides additional support for authentication and privacy protocols. Authentication protocols of md5, sha, or none are supported. For privacy protocols aes, des, or none are supported. You’ll then be prompted to enter the privacy-password.
Production-1(config)# system snmp users user snmpv3user config authentication-protocol md5 privacy-protocol aes privacy-password
(<string, min: 8 chars, max: 32 chars>): **************
Production-1(config-user-snmpv3user)# commit
Commit complete.
Production-1(config-user-snmpv3user)#
You may display the SNMP user configuration by entering the command show system snmp users.
Production-1(config)# do show system snmp users
AUTHENTICATION PRIVACY
NAME NAME PROTOCOL PROTOCOL
--------------------------------------------------
snmpv3user snmpv3user md5 aes
Production-1(config)#
Enabling SNMP via webUI¶

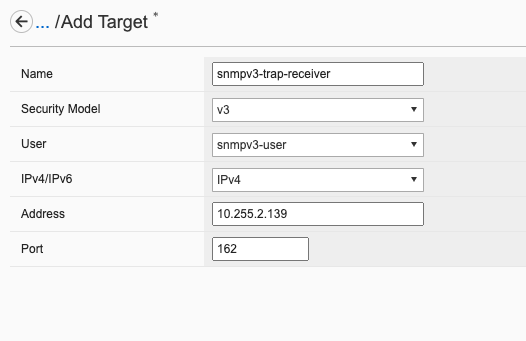

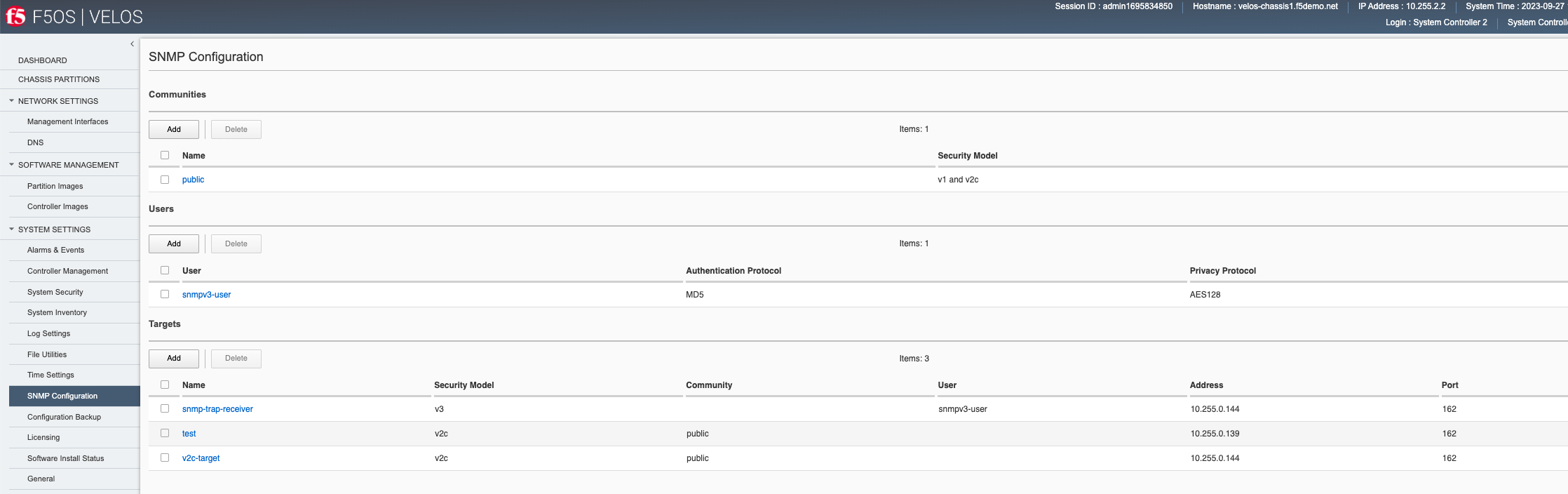

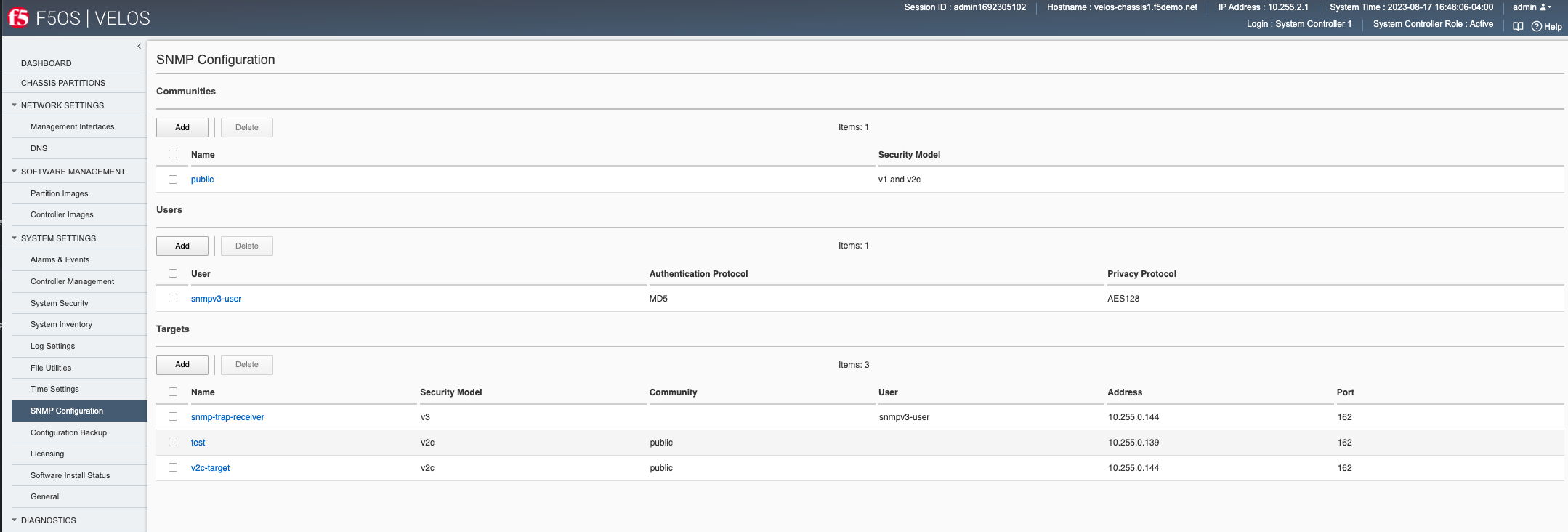

SNMP Communities, Users, and Targets can be setup on the System Settings -> SNMP Configuration page. Here, an admin can enable access for SNMP monitoring of the system through either communities for SNMPv1/v2c, or through users for SNMPv3. In addition, remote SNMP Trap receiver locations can be enabled for alerting.
Enabling SNMP via API¶
SNMP Communities, Users, and Targets can be setup via the API. An admin can enable access for SNMP monitoring of the system through either communities for SNMPv1/v2c, or through users for SNMPv3. In addition, remote SNMP Trap receiver locations can be enabled for alerting.
To configure the SNMP system parameters via API use the following API call:
PATCH https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/SNMPv2-MIB:SNMPv2-MIB/system
In the body of the API add the SNMP sysContact, sysName, and sysLocation.
{
"SNMPv2-MIB:system": {
"sysContact": "jim@f5.com",
"sysName": "velos-chassis1.f5demo.net",
"sysLocation": "Boston"
}
}
To view the SNMP system parameters use the following API call:
GET https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/SNMPv2-MIB:SNMPv2-MIB/system
A response similar to the one below will be displayed.
{
"SNMPv2-MIB:system": {
"sysDescr": "F5 VELOS-CX410 : Linux 3.10.0-1160.71.1.F5.1.el7_8.x86_64 : System controller services version 1.8.0-9671",
"sysObjectID": "1.3.6.1.4.1.12276.1.3.1.5",
"sysUpTime": 50894041,
"sysContact": "jim@f5.com",
"sysName": "velos-chassis1.f5demo.net",
"sysLocation": "Boston",
"sysServices": 72,
"sysORLastChange": 0
}
}
To create an SNMPv3 user use the following API call.
PATCH https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/openconfig-system:system/f5-system-snmp:snmp
Within the body of the API call, add the following JSON to add a user.
{
"f5-system-snmp:snmp": {
"users": {
"user": [
{
"name": "snmpv3-user3",
"config": {
"name": "snmpv3-user3",
"authentication-protocol": "md5",
"f5-system-snmp:authentication-password": "{{velos_system_controller_password}}",
"privacy-protocol": "aes",
"f5-system-snmp:privacy-password": "{{velos_system_controller_password}}"
}
}
]
}
}
}
If you are using SNMPv1/v2c then communities are the means of access. You can create an SNMP community via the API with the following API call:
PATCH https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/openconfig-system:system/f5-system-snmp:snmp
In the body of the API call, add the community name you want to use to allow access to SNMP on the VELOS system. In this case a community called public2 is being used to enable access.
{
"f5-system-snmp:snmp": {
"communities": {
"community": [
{
"name": "public2",
"config": {
"name": "public2",
"security-model": [
"v1",
"v2c"
]
}
}
]
}
}
}
To view the current SNMP configuration, issue the following API call:
GET https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/openconfig-system:system/f5-system-snmp:snmp
The output should appear similar to the example below.
{
"f5-system-snmp:snmp": {
"users": {
"user": [
{
"name": "snmpv3-user",
"config": {
"name": "snmpv3-user",
"authentication-protocol": "md5",
"privacy-protocol": "aes"
},
"state": {
"name": "snmpv3-user",
"authentication-protocol": "md5",
"privacy-protocol": "aes"
}
},
{
"name": "snmpv3-user2",
"config": {
"name": "snmpv3-user2",
"authentication-protocol": "md5",
"privacy-protocol": "aes"
},
"state": {
"name": "snmpv3-user2",
"authentication-protocol": "md5",
"privacy-protocol": "aes"
}
}
]
},
"targets": {
"target": [
{
"name": "snmp-trap-receiver",
"config": {
"name": "snmp-trap-receiver",
"user": "snmpv3-user",
"ipv4": {
"address": "10.255.0.144",
"port": 162
}
},
"state": {
"name": "snmp-trap-receiver",
"user": "snmpv3-user",
"ipv4": {
"address": "10.255.0.144",
"port": 162
}
}
},
{
"name": "test",
"config": {
"name": "test",
"community": "public",
"security-model": "v2c",
"ipv4": {
"address": "10.255.0.139",
"port": 162
}
},
"state": {
"name": "test",
"community": "public",
"security-model": "v2c",
"ipv4": {
"address": "10.255.0.139",
"port": 162
}
}
},
{
"name": "v2c-target",
"config": {
"name": "v2c-target",
"community": "public",
"security-model": "v2c",
"ipv4": {
"address": "10.255.0.144",
"port": 162
}
},
"state": {
"name": "v2c-target",
"community": "public",
"security-model": "v2c",
"ipv4": {
"address": "10.255.0.144",
"port": 162
}
}
}
]
},
"communities": {
"community": [
{
"name": "public",
"config": {
"name": "public",
"security-model": [
"v1",
"v2c"
]
},
"state": {
"name": "public",
"security-model": [
"v1",
"v2c"
]
}
}
]
},
"engine-id": {
"config": {
"value": "mac"
},
"state": {
"engine-id": "80:00:2f:f4:03:00:94:a1:8e:d0:00",
"type": "mac"
}
}
}
}
Polling SNMP Endpoints¶
Once SNMP is properly setup and allow-lists are enabled (in both the system controllers and chassis partitions), you can poll SNMP objects from remote endpoints. If you have an SNMP manager, it is recommended you download the appropriate MIBs from the VELOS chassis and compile them into you SNMP manager. Alternatively, you can use SNMP command line utilities from a remote client to validate the SNMP endpoints. You can then poll/query either the chassis partition or the system controller via SNMP to get stats from the system using the following SNMP OID’s:
System¶
You can view system parameters such as SysDescr, sysObjectID, sysUptime, sysContact, sysName, sysLocation, sysServices, sysORLastChange, sysORTable, sysDateAndTime by SNMP walking the following OID.
SNMP System OID: .1.3.6.1.2.1.1
Example output:
prompt% snmpwalk -ObenU -v2c -c public 10.255.2.3 .1.3.6.1.2.1.1
.1.3.6.1.2.1.1.1.0 = STRING: F5 VELOS-CX410 : Linux 3.10.0-1160.71.1.F5.1.el7_8.x86_64 : System controller services version 1.8.0-8738
.1.3.6.1.2.1.1.2.0 = OID: .1.3.6.1.4.1.12276.1.3.1.5
.1.3.6.1.2.1.1.3.0 = Timeticks: (25484697) 2 days, 22:47:26.97
.1.3.6.1.2.1.1.4.0 = STRING: jim@f5.com
.1.3.6.1.2.1.1.5.0 = STRING: velos-chassis1.f5demo.net
.1.3.6.1.2.1.1.6.0 = STRING: Boston
.1.3.6.1.2.1.1.7.0 = INTEGER: 72
.1.3.6.1.2.1.1.8.0 = Timeticks: (0) 0:00:00.00
prompt%
ifTable & ifXTable¶
You can poll the following SNMP OIDs to get detailed Interface stats for each physical port on the BX110 blades, and for Link Aggregation Groups that have been configured. Note, that you will only see interfaces and LAGs that are configured within the chassis partition you are monitoring. You will not have visibility into other chassis partition interfaces or LAGs unless you poll those chassis partitions directly. Below are the table views of the ifTable and ifXTable, you can poll individual interfaces if needed.
This MIB is supported on both the VELOS system controller and chassis partition layers.
SNMP ifTable OID: .1.3.6.1.2.1.2.2
Below is an example of the ifTable on the VELOS system controller.
prompt % snmptable -v 2c -c public -m ALL 10.255.2.3 ifTable
SNMP table: IF-MIB::ifTable
ifIndex ifDescr ifType ifMtu ifSpeed ifPhysAddress ifAdminStatus ifOperStatus ifLastChange ifInOctets ifInUcastPkts ifInNUcastPkts ifInDiscards ifInErrors ifInUnknownProtos ifOutOctets ifOutUcastPkts ifOutNUcastPkts ifOutDiscards ifOutErrors ifOutQLen ifSpecific
134217984 ? ethernetCsmacd ? 4294967295 0:94:a1:8e:d0:7d up up ? ? ? ? 2517 0 ? ? ? ? 16 0 ? ?
134218001 ? ethernetCsmacd ? 4294967295 5a:a5:5a:1:1:1 up up ? ? ? ? 6 0 ? ? ? ? 0 0 ? ?
134218002 ? ethernetCsmacd ? 4294967295 5a:a5:5a:1:1:2 up up ? ? ? ? 53 0 ? ? ? ? 0 0 ? ?
134218003 ? ethernetCsmacd ? 4294967295 5a:a5:5a:1:1:3 up up ? ? ? ? 189 0 ? ? ? ? 0 0 ? ?
134218004 ? ethernetCsmacd ? ? 5a:a5:5a:1:1:4 up down ? ? ? ? 0 0 ? ? ? ? 0 0 ? ?
134218005 ? ethernetCsmacd ? ? 5a:a5:5a:1:1:5 up down ? ? ? ? 0 0 ? ? ? ? 0 0 ? ?
134218006 ? ethernetCsmacd ? ? 5a:a5:5a:1:1:6 up down ? ? ? ? 0 0 ? ? ? ? 0 0 ? ?
134218007 ? ethernetCsmacd ? ? 5a:a5:5a:1:1:7 up down ? ? ? ? 0 0 ? ? ? ? 0 0 ? ?
134218008 ? ethernetCsmacd ? ? 5a:a5:5a:1:1:8 up down ? ? ? ? 0 0 ? ? ? ? 0 0 ? ?
134218018 ? ethernetCsmacd ? 4294967295 5a:a5:5a:1:2:2 up up ? ? ? ? 123430 0 ? ? ? ? 0 0 ? ?
134218019 ? ethernetCsmacd ? 4294967295 5a:a5:5a:1:2:3 up up ? ? ? ? 123384 0 ? ? ? ? 0 0 ? ?
134218020 ? ethernetCsmacd ? 4294967295 5a:a5:5a:1:2:4 up up ? ? ? ? 123633 0 ? ? ? ? 0 0 ? ?
134218021 ? ethernetCsmacd ? 4294967295 5a:a5:5a:1:2:5 up up ? ? ? ? 87 0 ? ? ? ? 0 0 ? ?
134218022 ? ethernetCsmacd ? 4294967295 5a:a5:5a:1:2:6 up up ? ? ? ? 25 0 ? ? ? ? 0 0 ? ?
134218033 ? ethernetCsmacd ? ? 5a:a5:5a:1:3:1 up up ? ? ? ? 2905895 0 ? ? ? ? 0 0 ? ?
134218034 ? ethernetCsmacd ? ? 5a:a5:5a:1:3:2 up up ? ? ? ? 0 0 ? ? ? ? 0 0 ? ?
134218035 ? ethernetCsmacd ? ? 5a:a5:5a:1:3:3 up up ? ? ? ? 294605 0 ? ? ? ? 0 0 ? ?
134218036 ? ethernetCsmacd ? ? 5a:a5:5a:1:3:4 up down ? ? ? ? 0 0 ? ? ? ? 0 0 ? ?
134218037 ? ethernetCsmacd ? ? 5a:a5:5a:1:3:5 up down ? ? ? ? 0 0 ? ? ? ? 0 0 ? ?
134218038 ? ethernetCsmacd ? ? 5a:a5:5a:1:3:6 up down ? ? ? ? 0 0 ? ? ? ? 0 0 ? ?
134218039 ? ethernetCsmacd ? ? 5a:a5:5a:1:3:7 up down ? ? ? ? 0 0 ? ? ? ? 0 0 ? ?
134218040 ? ethernetCsmacd ? ? 5a:a5:5a:1:3:8 up down ? ? ? ? 0 0 ? ? ? ? 0 0 ? ?
134218049 ? ethernetCsmacd ? 4294967295 5a:a5:5a:1:4:1 up up ? ? ? ? 1 0 ? ? ? ? 0 0 ? ?
134218240 ? ethernetCsmacd ? 4294967295 0:94:a1:8e:d0:7e up up ? ? ? ? 2521 0 ? ? ? ? 0 0 ? ?
134218257 ? ethernetCsmacd ? 4294967295 5a:a5:5a:2:1:1 up up ? ? ? ? 6 0 ? ? ? ? 0 0 ? ?
134218258 ? ethernetCsmacd ? 4294967295 5a:a5:5a:2:1:2 up up ? ? ? ? 35 0 ? ? ? ? 0 0 ? ?
134218259 ? ethernetCsmacd ? 4294967295 5a:a5:5a:2:1:3 up up ? ? ? ? 6 0 ? ? ? ? 0 0 ? ?
134218260 ? ethernetCsmacd ? ? 5a:a5:5a:2:1:4 up down ? ? ? ? 0 0 ? ? ? ? 0 0 ? ?
134218261 ? ethernetCsmacd ? ? 5a:a5:5a:2:1:5 up down ? ? ? ? 0 0 ? ? ? ? 0 0 ? ?
134218262 ? ethernetCsmacd ? ? 5a:a5:5a:2:1:6 up down ? ? ? ? 0 0 ? ? ? ? 0 0 ? ?
134218263 ? ethernetCsmacd ? ? 5a:a5:5a:2:1:7 up down ? ? ? ? 0 0 ? ? ? ? 0 0 ? ?
134218264 ? ethernetCsmacd ? ? 5a:a5:5a:2:1:8 up down ? ? ? ? 0 0 ? ? ? ? 0 0 ? ?
134218274 ? ethernetCsmacd ? 4294967295 5a:a5:5a:2:2:2 up up ? ? ? ? 134473 0 ? ? ? ? 0 0 ? ?
134218275 ? ethernetCsmacd ? 4294967295 5a:a5:5a:2:2:3 up up ? ? ? ? 134441 0 ? ? ? ? 0 0 ? ?
134218276 ? ethernetCsmacd ? 4294967295 5a:a5:5a:2:2:4 up up ? ? ? ? 134273 0 ? ? ? ? 0 0 ? ?
134218277 ? ethernetCsmacd ? 4294967295 5a:a5:5a:2:2:5 up up ? ? ? ? 77 0 ? ? ? ? 0 0 ? ?
134218278 ? ethernetCsmacd ? 4294967295 5a:a5:5a:2:2:6 up up ? ? ? ? 79 0 ? ? ? ? 0 0 ? ?
134218289 ? ethernetCsmacd ? ? 5a:a5:5a:2:3:1 up up ? ? ? ? 3205615 0 ? ? ? ? 0 0 ? ?
134218290 ? ethernetCsmacd ? ? 5a:a5:5a:2:3:2 up up ? ? ? ? 0 0 ? ? ? ? 0 0 ? ?
134218291 ? ethernetCsmacd ? ? 5a:a5:5a:2:3:3 up up ? ? ? ? 3129748 0 ? ? ? ? 0 0 ? ?
134218292 ? ethernetCsmacd ? ? 5a:a5:5a:2:3:4 up down ? ? ? ? 0 0 ? ? ? ? 0 0 ? ?
134218293 ? ethernetCsmacd ? ? 5a:a5:5a:2:3:5 up down ? ? ? ? 0 0 ? ? ? ? 0 0 ? ?
134218294 ? ethernetCsmacd ? ? 5a:a5:5a:2:3:6 up down ? ? ? ? 0 0 ? ? ? ? 0 0 ? ?
134218295 ? ethernetCsmacd ? ? 5a:a5:5a:2:3:7 up down ? ? ? ? 0 0 ? ? ? ? 0 0 ? ?
134218296 ? ethernetCsmacd ? ? 5a:a5:5a:2:3:8 up down ? ? ? ? 0 0 ? ? ? ? 0 0 ? ?
134218305 ? ethernetCsmacd ? 4294967295 5a:a5:5a:2:4:1 up up ? ? ? ? 1 0 ? ? ? ? 0 0 ? ?
prompt %
Below is an example of the ifTable on the VELOS chassis partition.
prompt% snmptable -v 2c -c public -m ALL 10.255.2.4 ifTable
SNMP table: IF-MIB::ifTable
ifIndex ifDescr ifType ifMtu ifSpeed ifPhysAddress ifAdminStatus ifOperStatus ifLastChange ifInOctets ifInUcastPkts ifInNUcastPkts ifInDiscards ifInErrors ifInUnknownProtos ifOutOctets ifOutUcastPkts ifOutNUcastPkts ifOutDiscards ifOutErrors ifOutQLen ifSpecific
33554445 VELOS Interface 1/1.0 ethernetCsmacd 9600 4294967295 0:94:a1:8e:d0:0 up down ? ? ? ? 0 364 ? ? ? ? 0 0 ? ?
33554449 VELOS Interface 2/1.0 ethernetCsmacd 9600 4294967295 0:94:a1:8e:d0:80 up up ? ? ? ? 0 0 ? ? ? ? 0 0 ? ?
33554450 VELOS Interface 2/2.0 ethernetCsmacd 9600 4294967295 0:94:a1:8e:d0:81 up down ? ? ? ? 0 0 ? ? ? ? 0 0 ? ?
67108865 Interface Arista LAG ieee8023adLag 9600 4294967295 0:94:a1:8e:d0:19 up up ? ? ? ? 0 0 ? ? ? ? 0 0 ? ?
67108866 Interface HA-Interconnect LAG ieee8023adLag 9600 0 0:94:a1:8e:d0:1a up down ? ? ? ? 0 364 ? ? ? ? 0 0 ? ?
prompt%
SNMP ifXTable OID: .1.3.6.1.2.1.31.1.1
Below is an example of the ifXTable on the VELOS chassis partition.
prompt% snmptable -v 2c -c public -m ALL 10.255.2.4 ifXTable
SNMP table: IF-MIB::ifXTable
ifName ifInMulticastPkts ifInBroadcastPkts ifOutMulticastPkts ifOutBroadcastPkts ifHCInOctets ifHCInUcastPkts ifHCInMulticastPkts ifHCInBroadcastPkts ifHCOutOctets ifHCOutUcastPkts ifHCOutMulticastPkts ifHCOutBroadcastPkts ifLinkUpDownTrapEnable ifHighSpeed ifPromiscuousMode ifConnectorPresent ifAlias ifCounterDiscontinuityTime
1/1.0 ? ? ? ? 460216 0 3479 0 11302515 0 77018 0 ? 100000 ? ? ? ?
2/1.0 ? ? ? ? 0 0 0 0 0 0 0 0 ? 100000 ? ? ? ?
2/2.0 ? ? ? ? 0 0 0 0 0 0 0 0 ? 100000 ? ? ? ?
Arista ? ? ? ? 72771870 0 559045 1834 45967104 0 359118 0 ? 552894464 ? ? ? ?
HA-Interconnect ? ? ? ? 460216 0 3479 0 11302515 0 77018 0 ? 0 ? ? ? ?
prompt %
Below is an example of the ifXTable on the VELOS system controller.
prompt% snmptable -v 2c -Cl -CB -Ci -OX -Cb -Cc 16 -Cw 384 -c public 10.255.2.3 ifXTable
SNMP table: IF-MIB::ifXTable
Name InMulticastPkts InBroadcastPkts OutMulticastPkt OutBroadcastPkt HCInOctets HCInUcastPkts HCInMulticastPk HCInBroadcastPk HCOutOctets HCOutUcastPkts HCOutMulticastP HCOutBroadcastP LinkUpDownTrapE HighSpeed PromiscuousMode ConnectorPresen Alias CounterDisconti
index: [134217984]
1/mgmt0 ? ? ? ? 5256447951 26117830 3199633 11958654 1284746094 12249665 3754677 2822129 ? 1000 ? ? ? ?
index: [134218001]
1/1.1 ? ? ? ? 261779722836 604212954 74323736 15322929 207926430337 471079523 10414149 73420322 ? 10000 ? ? ? ?
index: [134218002]
1/1.2 ? ? ? ? 28838246661 138497259 3732736 3695 70500241214 296539589 81022690 74640975 ? 10000 ? ? ? ?
index: [134218003]
1/1.3 ? ? ? ? 22146223413 40899308 3652100 3641 15225553533 143001922 10414132 59378141 ? 10000 ? ? ? ?
index: [134218004]
1/1.4 ? ? ? ? 0 0 0 0 0 0 0 0 ? ? ? ? ? ?
index: [134218005]
1/1.5 ? ? ? ? 0 0 0 0 0 0 0 0 ? ? ? ? ? ?
index: [134218006]
1/1.6 ? ? ? ? 0 0 0 0 0 0 0 0 ? ? ? ? ? ?
index: [134218007]
1/1.7 ? ? ? ? 0 0 0 0 0 0 0 0 ? ? ? ? ? ?
index: [134218008]
1/1.8 ? ? ? ? 0 0 0 0 0 0 0 0 ? ? ? ? ? ?
index: [134218018]
1/2.2 ? ? ? ? 355245442939 971329076 85 19168869 621694386364 1309594382 74058406 125142614 ? 10000 ? ? ? ?
index: [134218019]
1/2.3 ? ? ? ? 355481740189 971503869 87 19156691 561428589029 1063693447 7 39 ? 10000 ? ? ? ?
index: [134218020]
1/2.4 ? ? ? ? 355531739556 971484256 89 19153502 573883917574 1023613049 11 33 ? 10000 ? ? ? ?
index: [134218021]
1/2.5 ? ? ? ? 1727422530414 3159484769 1671945 88157276 1137069381464 2569256766 71577584 72821761 ? 25000 ? ? ? ?
index: [134218022]
1/2.6 ? ? ? ? 1186128412 12597315 436289 9696545 1971917206 19283845 372886 11575733 ? 25000 ? ? ? ?
index: [134218033]
1/3.1 ? ? ? ? 59926647230288 705018820503 413684 173 59926337516501 705015208994 319360 233846 ? ? ? ? ? ?
index: [134218034]
1/3.2 ? ? ? ? 59926337596401 705015209893 319360 233846 59926400309453 705015915595 413684 173 ? ? ? ? ? ?
index: [134218035]
1/3.3 ? ? ? ? 33739155 294652 60540 233958 0 0 0 0 ? ? ? ? ? ?
index: [134218036]
1/3.4 ? ? ? ? 0 0 0 0 0 0 0 0 ? ? ? ? ? ?
index: [134218037]
1/3.5 ? ? ? ? 0 0 0 0 0 0 0 0 ? ? ? ? ? ?
index: [134218038]
1/3.6 ? ? ? ? 0 0 0 0 0 0 0 0 ? ? ? ? ? ?
index: [134218039]
1/3.7 ? ? ? ? 0 0 0 0 0 0 0 0 ? ? ? ? ? ?
index: [134218040]
1/3.8 ? ? ? ? 0 0 0 0 0 0 0 0 ? ? ? ? ? ?
index: [134218049]
1/4.1 ? ? ? ? 114 1 1 0 0 0 0 0 ? 10000 ? ? ? ?
index: [134218240]
2/mgmt0 ? ? ? ? 8492534662 28123574 2246292 12499684 1456103313 11723154 3513257 2748 ? 1000 ? ? ? ?
index: [134218257]
2/1.1 ? ? ? ? 45158149931 335891800 3670791 7031 262343095350 556163732 3514571 2161857 ? 10000 ? ? ? ?
index: [134218258]
2/1.2 ? ? ? ? 47778945263 161419401 3652777 14105413 179226043162 221980951 3514995 2162145 ? 10000 ? ? ? ?
index: [134218259]
2/1.3 ? ? ? ? 19278691083 109372485 3733349 14105207 24803211900 62880670 3514581 2160163 ? 10000 ? ? ? ?
index: [134218260]
2/1.4 ? ? ? ? 0 0 0 0 0 0 0 0 ? ? ? ? ? ?
index: [134218261]
2/1.5 ? ? ? ? 0 0 0 0 0 0 0 0 ? ? ? ? ? ?
index: [134218262]
2/1.6 ? ? ? ? 0 0 0 0 0 0 0 0 ? ? ? ? ? ?
index: [134218263]
2/1.7 ? ? ? ? 0 0 0 0 0 0 0 0 ? ? ? ? ? ?
index: [134218264]
2/1.8 ? ? ? ? 0 0 0 0 0 0 0 0 ? ? ? ? ? ?
index: [134218274]
2/2.2 ? ? ? ? 614994539260 1039229986 96 19189667 327746681079 1053203293 74059777 125117686 ? 10000 ? ? ? ?
index: [134218275]
2/2.3 ? ? ? ? 614704695105 1039015065 90 19184746 300923198304 868146419 8 13 ? 10000 ? ? ? ?
index: [134218276]
2/2.4 ? ? ? ? 614767925027 1039083864 74 19183370 287301628581 848312641 4 8 ? 10000 ? ? ? ?
index: [134218277]
2/2.5 ? ? ? ? 1137089236634 2969440399 71577662 72824101 1727431047527 2346222975 1672069 88157747 ? 25000 ? ? ? ?
index: [134218278]
2/2.6 ? ? ? ? 1972381831 19285046 372927 11576404 1186170267 12597599 436314 9696846 ? 25000 ? ? ? ?
index: [134218289]
2/3.1 ? ? ? ? 69053336213017 775775728931 775686247756 3061716 69037152661741 775702419290 775613848272 7894 ? ? ? ? ? ?
index: [134218290]
2/3.2 ? ? ? ? 69037152688708 775702419592 775613848574 7894 69053063762986 775772523623 775683042450 3061714 ? ? ? ? ? ?
index: [134218291]
2/3.3 ? ? ? ? 259297071 3129752 59889 3069663 0 0 0 0 ? ? ? ? ? ?
index: [134218292]
2/3.4 ? ? ? ? 0 0 0 0 0 0 0 0 ? ? ? ? ? ?
index: [134218293]
2/3.5 ? ? ? ? 0 0 0 0 0 0 0 0 ? ? ? ? ? ?
index: [134218294]
2/3.6 ? ? ? ? 0 0 0 0 0 0 0 0 ? ? ? ? ? ?
index: [134218295]
2/3.7 ? ? ? ? 0 0 0 0 0 0 0 0 ? ? ? ? ? ?
index: [134218296]
2/3.8 ? ? ? ? 0 0 0 0 0 0 0 0 ? ? ? ? ? ?
index: [134218305]
2/4.1 ? ? ? ? 114 1 1 0 0 0 0 0 ? 10000 ? ? ? ?
prompt%
CPU Processor Stats¶
The CPU Processor Stats Table provides details on the Intel CPU processors which are running in the BX110 line card or on the system controller, depending on where the SNMP request is sent. It displays the core and thread counts, as well as the cache size, frequency, and model number.
F5-PLATFORM-STATS-MIB:cpuProcessorStatsTable OID: .1.3.6.1.4.1.12276.1.2.1.1.1
This MIB is supported on both the VELOS system controller and chassis partition layers.
Below is an example polling the F5-PLATFORM-STATS-MIB:cpuProcessorStatsTable on the VELOS system controller.
prompt% snmptable -v 2c -c public -m ALL 10.255.2.3 F5-PLATFORM-STATS-MIB:cpuProcessorStatsTable
SNMP table: F5-PLATFORM-STATS-MIB::cpuProcessorStatsTable
index cpuIndex cpuCacheSize cpuCoreCnt cpuFreq cpuStepping cpuThreadCnt cpuModelName
controller-1 1 2048(KB) 8 2200.000(MHz) 1 8 Intel(R) Atom(TM) CPU C3758 @ 2.20GHz
controller-2 1 2048(KB) 8 2200.000(MHz) 1 8 Intel(R) Atom(TM) CPU C3758 @ 2.20GHz
prompt%
Below is an example polling the F5-PLATFORM-STATS-MIB:cpuProcessorStatsTable on the VELOS chassis partition. Note how each BX110 blade has 14 CPU cores which are hyperthreaded, so there are 28 cpuThreadCnt per blade.
prompt% snmptable -v 2c -c public -m ALL 10.255.2.24 F5-PLATFORM-STATS-MIB:cpuProcessorStatsTable
SNMP table: F5-PLATFORM-STATS-MIB::cpuProcessorStatsTable
index cpuIndex cpuCacheSize cpuCoreCnt cpuFreq cpuStepping cpuThreadCnt cpuModelName
blade-1 0 19712(KB) 14 2112.103(MHz) 4 28 Intel(R) Xeon(R) D-2177NT CPU @ 1.90GHz
blade-2 0 19712(KB) 14 1908.929(MHz) 4 28 Intel(R) Xeon(R) D-2177NT CPU @ 1.90GHz
prompt%
CPU Utilization Stats Table¶
The table below shows the total CPU utilization per blade within a chassis partition or on the system controllers over 5 seconds, 1 minute, and 5 minutes averages as well as the current value.
This MIB is supported on both the VELOS system controller and chassis partition layers.
F5-PLATFORM-STATS-MIB:cpuUtilizationStatsTable OID: .1.3.6.1.4.1.12276.1.2.1.1.2
Below is an example of an SNMP response from the system controller.
prompt% snmptable -v 2c -c public -m ALL 10.255.2.3 F5-PLATFORM-STATS-MIB:cpuUtilizationStatsTable
SNMP table: F5-PLATFORM-STATS-MIB::cpuUtilizationStatsTable
cpuCore cpuCurrent cpuTotal5secAvg cpuTotal1minAvg cpuTotal5minAvg
cpu 37 percentage 49 percentage 52 percentage 47 percentage
cpu 49 percentage 37 percentage 42 percentage 39 percentage
prompt%
Below is an example of an SNMP response from a chassis partition.
prompt% snmptable -v 2c -c public -m ALL 10.255.2.24 F5-PLATFORM-STATS-MIB:cpuUtilizationStatsTable
SNMP table: F5-PLATFORM-STATS-MIB::cpuUtilizationStatsTable
cpuCore cpuCurrent cpuTotal5secAvg cpuTotal1minAvg cpuTotal5minAvg
cpu 11 percentage 10 percentage 9 percentage 10 percentage
cpu 2 percentage 3 percentage 3 percentage 3 percentage
CPU Core Stats Table¶
The CPU Core Stats Table shows the total CPU utilization per CPU within a chassis partition or system controller over 5 seconds, 1 minute, and 5 minutes averages.
This MIB is supported on both the VELOS system controller and chassis partition layers.
F5-PLATFORM-STATS-MIB:cpuCoreStatsTable OID: .1.3.6.1.4.1.12276.1.2.1.1.3
Below is an example SNMP response from the system controllers. There are two system controllers, and each have 8 CPUs.
prompt% snmptable -v 2c -c public -m ALL 10.255.2.3 F5-PLATFORM-STATS-MIB:cpuCoreStatsTable
SNMP table: F5-PLATFORM-STATS-MIB::cpuCoreStatsTable
coreIndex coreName coreCurrent coreTotal5secAvg coreTotal1minAvg coreTotal5minAvg
0 cpu0 51 percentage 46 percentage 45 percentage 48 percentage
1 cpu1 43 percentage 51 percentage 43 percentage 47 percentage
2 cpu2 38 percentage 43 percentage 43 percentage 46 percentage
3 cpu3 41 percentage 51 percentage 45 percentage 48 percentage
4 cpu4 22 percentage 48 percentage 45 percentage 48 percentage
5 cpu5 47 percentage 50 percentage 43 percentage 46 percentage
6 cpu6 18 percentage 48 percentage 45 percentage 49 percentage
7 cpu7 47 percentage 50 percentage 44 percentage 47 percentage
0 cpu0 38 percentage 34 percentage 36 percentage 37 percentage
1 cpu1 32 percentage 38 percentage 38 percentage 40 percentage
2 cpu2 47 percentage 42 percentage 36 percentage 40 percentage
3 cpu3 39 percentage 67 percentage 41 percentage 39 percentage
4 cpu4 37 percentage 33 percentage 39 percentage 39 percentage
5 cpu5 98 percentage 57 percentage 38 percentage 39 percentage
6 cpu6 42 percentage 42 percentage 39 percentage 40 percentage
7 cpu7 49 percentage 47 percentage 38 percentage 39 percentage
prompt%
Below is an example SNMP response from a chassis partition. In this example there is a 2-blade chassis partition. Each blade has 28 vCPUs.
prompt% snmptable -v 2c -c public -m ALL 10.255.2.24 F5-PLATFORM-STATS-MIB:cpuCoreStatsTable
SNMP table: F5-PLATFORM-STATS-MIB::cpuCoreStatsTable
coreIndex coreName coreCurrent coreTotal5secAvg coreTotal1minAvg coreTotal5minAvg
0 cpu0 9 percentage 8 percentage 12 percentage 11 percentage
1 cpu1 8 percentage 6 percentage 8 percentage 5 percentage
2 cpu2 9 percentage 12 percentage 11 percentage 11 percentage
3 cpu3 15 percentage 11 percentage 10 percentage 11 percentage
4 cpu4 4 percentage 6 percentage 8 percentage 5 percentage
5 cpu5 4 percentage 4 percentage 7 percentage 4 percentage
6 cpu6 6 percentage 4 percentage 8 percentage 5 percentage
7 cpu7 2 percentage 3 percentage 7 percentage 5 percentage
8 cpu8 8 percentage 6 percentage 6 percentage 4 percentage
9 cpu9 12 percentage 8 percentage 11 percentage 11 percentage
10 cpu10 10 percentage 10 percentage 12 percentage 11 percentage
11 cpu11 7 percentage 6 percentage 6 percentage 6 percentage
12 cpu12 6 percentage 6 percentage 6 percentage 6 percentage
13 cpu13 5 percentage 6 percentage 6 percentage 6 percentage
14 cpu14 6 percentage 5 percentage 14 percentage 13 percentage
15 cpu15 6 percentage 7 percentage 7 percentage 5 percentage
16 cpu16 7 percentage 10 percentage 13 percentage 13 percentage
17 cpu17 13 percentage 8 percentage 13 percentage 14 percentage
18 cpu18 7 percentage 9 percentage 8 percentage 5 percentage
19 cpu19 1 percentage 5 percentage 6 percentage 4 percentage
20 cpu20 5 percentage 3 percentage 5 percentage 4 percentage
21 cpu21 1 percentage 2 percentage 6 percentage 4 percentage
22 cpu22 10 percentage 6 percentage 6 percentage 4 percentage
23 cpu23 10 percentage 6 percentage 14 percentage 13 percentage
24 cpu24 8 percentage 6 percentage 11 percentage 12 percentage
25 cpu25 16 percentage 12 percentage 21 percentage 21 percentage
26 cpu26 25 percentage 20 percentage 23 percentage 22 percentage
27 cpu27 15 percentage 11 percentage 24 percentage 23 percentage
0 cpu0 4 percentage 2 percentage 2 percentage 2 percentage
1 cpu1 2 percentage 2 percentage 3 percentage 3 percentage
2 cpu2 2 percentage 2 percentage 3 percentage 3 percentage
3 cpu3 3 percentage 2 percentage 3 percentage 3 percentage
4 cpu4 4 percentage 2 percentage 2 percentage 3 percentage
5 cpu5 4 percentage 2 percentage 2 percentage 2 percentage
6 cpu6 4 percentage 3 percentage 2 percentage 2 percentage
7 cpu7 2 percentage 2 percentage 3 percentage 3 percentage
8 cpu8 7 percentage 3 percentage 2 percentage 2 percentage
9 cpu9 3 percentage 3 percentage 3 percentage 2 percentage
10 cpu10 3 percentage 2 percentage 2 percentage 2 percentage
11 cpu11 7 percentage 7 percentage 7 percentage 7 percentage
12 cpu12 6 percentage 7 percentage 7 percentage 7 percentage
13 cpu13 7 percentage 6 percentage 6 percentage 6 percentage
14 cpu14 0 percentage 0 percentage 3 percentage 3 percentage
15 cpu15 2 percentage 1 percentage 4 percentage 3 percentage
16 cpu16 0 percentage 1 percentage 4 percentage 2 percentage
17 cpu17 9 percentage 9 percentage 3 percentage 2 percentage
18 cpu18 1 percentage 1 percentage 1 percentage 2 percentage
19 cpu19 1 percentage 1 percentage 1 percentage 3 percentage
20 cpu20 1 percentage 1 percentage 1 percentage 2 percentage
21 cpu21 0 percentage 1 percentage 3 percentage 3 percentage
22 cpu22 0 percentage 1 percentage 3 percentage 5 percentage
23 cpu23 0 percentage 0 percentage 2 percentage 2 percentage
24 cpu24 0 percentage 0 percentage 2 percentage 2 percentage
25 cpu25 3 percentage 3 percentage 6 percentage 6 percentage
26 cpu26 5 percentage 3 percentage 8 percentage 6 percentage
27 cpu27 2 percentage 2 percentage 5 percentage 6 percentage
prompt%
Disk Info Table¶
The following table displays information about the disks installed on each blade in the current chassis partition or on the system controllers in the VELOS system.
F5-PLATFORM-STATS-MIB:diskInfoTable OID: .1.3.6.1.4.1.12276.1.2.1.2.1
This MIB is supported on both the VELOS system controller and chassis partition layers.
Below is an example of an SNMP response from the system controllers.
prompt% snmptable -v 2c -c public -m ALL 10.255.2.3 F5-PLATFORM-STATS-MIB:diskInfoTable
SNMP table: F5-PLATFORM-STATS-MIB::diskInfoTable
diskName diskModel diskVendor diskVersion diskSerialNo diskSize diskType
nvme0n1 SAMSUNG MZ1LB960HAJQ-00007 Samsung EDA7602Q S435NE0MA00234 683.00GB nvme
nvme0n1 SAMSUNG MZ1LB960HAJQ-00007 Samsung EDA7602Q S435NE0MA00209 683.00GB nvme
prompt%
Below is an example of an SNMP response from a chassis partition.
prompt% snmptable -v 2c -c public -m ALL 10.255.2.4 F5-PLATFORM-STATS-MIB:diskInfoTable
SNMP table: F5-PLATFORM-STATS-MIB::diskInfoTable
diskName diskModel diskVendor diskVersion diskSerialNo diskSize diskType
nvme0n1 SAMSUNG MZ1LB960HAJQ-00007 Samsung EDA7602Q S435NE0MA02828 733.00GB nvme
nvme0n1 SAMSUNG MZ1LB960HAJQ-00007 Samsung EDA7602Q S435NE0MA00227 733.00GB nvme
prompt%
Disk Utilization Stats Table¶
The table below shows the current disk utilization and performance of the disk on each BX110 blade within the current chassis partition or within the system controller.
This MIB is supported on both the VELOS system controller and chassis partition layers.
F5-PLATFORM-STATS-MIB:diskUtilizationStatsTable OID: .1.3.6.1.4.1.12276.1.2.1.2.2
Below is an example of an SNMP response from the system controllers.
prompt% snmptable -v 2c -c public -m ALL 10.255.2.23 F5-PLATFORM-STATS-MIB:diskUtilizationStatsTable
SNMP table: F5-PLATFORM-STATS-MIB::diskUtilizationStatsTable
diskPercentageUsed diskTotalIops diskReadIops diskReadMerged diskReadBytes diskReadLatencyMs diskWriteIops diskWriteMerged diskWriteBytes diskWriteLatencyMs
12 percentage 0 IOPs 204 IOPs 0 8749056 bytes 185 ms 0 IOPs 0 0 bytes 0 ms
12 percentage 0 IOPs 666228 IOPs 1115473 10110011392 bytes 272411 ms 2118902 IOPs 2351220 28983360512 bytes 5512882 ms
17 percentage 0 IOPs 201 IOPs 0 8355840 bytes 182 ms 0 IOPs 0 0 bytes 0 ms
17 percentage 0 IOPs 547803 IOPs 858905 8188963328 bytes 80584 ms 1404623 IOPs 1786639 22982436864 bytes 2349522 ms
prompt %
Below is an example of an SNMP response from a chassis partition.
prompt% snmptable -v 2c -c public -m ALL 10.255.2.24 F5-PLATFORM-STATS-MIB:diskUtilizationStatsTable
SNMP table: F5-PLATFORM-STATS-MIB::diskUtilizationStatsTable
diskPercentageUsed diskTotalIops diskReadIops diskReadMerged diskReadBytes diskReadLatencyMs diskWriteIops diskWriteMerged diskWriteBytes diskWriteLatencyMs
3 percentage 0 IOPs 119946 IOPs 0 4526585856 bytes 86491 ms 189810 IOPs 187943 6725282304 bytes 3824236 ms
3 percentage 0 IOPs 127245 IOPs 0 4551145472 bytes 87063 ms 193734 IOPs 193829 6859720192 bytes 6429589 ms
prompt%
Host Resources Storage Table¶
The table below shows the current file system utilization on an VELOS chassis.
hrStorageTable OID: 1.3.6.1.2.1.25.2.3
The table below is from a VELOS System Controller:
prompt% snmptable -v 2c -c public -m ALL 10.255.2.23 hrStorageTable
SNMP table: HOST-RESOURCES-MIB::hrStorageTable
hrStorageIndex hrStorageType hrStorageDescr hrStorageAllocationUnits hrStorageSize hrStorageUsed hrStorageAllocationFailures
65537 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-1 /dev 4096 Bytes 4085896 0 ?
65538 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-1 /dev/shm 4096 Bytes 4100923 0 ?
65539 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-1 /run 4096 Bytes 4100923 5725 ?
65540 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-1 /sys/fs/cgroup 4096 Bytes 4100923 0 ?
65541 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-1 /sysroot 4096 Bytes 118410536 14566508 ?
65542 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-1 /boot 4096 Bytes 121909 36321 ?
65543 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-1 /boot/efi 4096 Bytes 127930 3218 ?
65544 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-1 /var/export/chassis 4096 Bytes 90050865 21728365 ?
65545 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-1 /var/F5/partition1 4096 Bytes 2618880 8274 ?
65546 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-1 /var/F5/partition1/IMAGES 4096 Bytes 3929600 8260 ?
65547 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-1 /var/F5/partition1/shared 4096 Bytes 2618880 8260 ?
65548 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-1 /var/F5/partition2 4096 Bytes 2618880 37687 ?
65549 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-1 /var/F5/partition2/IMAGES 4096 Bytes 3929600 1509948 ?
65550 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-1 /var/F5/partition2/shared 4096 Bytes 2618880 8303 ?
65551 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-1 /var/F5/partition3 4096 Bytes 2618880 38662 ?
65552 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-1 /var/F5/partition3/IMAGES 4096 Bytes 3929600 1067005 ?
65553 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-1 /var/F5/partition3/shared 4096 Bytes 2618880 8303 ?
131073 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-2 /dev 4096 Bytes 4085896 0 ?
131074 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-2 /dev/shm 4096 Bytes 4100923 0 ?
131075 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-2 /run 4096 Bytes 4100923 5815 ?
131076 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-2 /sys/fs/cgroup 4096 Bytes 4100923 0 ?
131077 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-2 /sysroot 4096 Bytes 86403125 15398397 ?
131078 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-2 /boot 4096 Bytes 121909 36316 ?
131079 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-2 /boot/efi 4096 Bytes 127930 3218 ?
131080 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-2 /var/export/chassis 4096 Bytes 66054144 17751119 ?
131081 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-2 /var/F5/partition1 4096 Bytes 2618880 8248 ?
131082 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-2 /var/F5/partition1/IMAGES 4096 Bytes 3929600 8260 ?
131083 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-2 /var/F5/partition1/shared 4096 Bytes 2618880 8260 ?
131084 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-2 /var/F5/partition2 4096 Bytes 2618880 37808 ?
131085 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-2 /var/F5/partition2/IMAGES 4096 Bytes 3929600 1509956 ?
131086 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-2 /var/F5/partition2/shared 4096 Bytes 2618880 8303 ?
131087 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-2 /var/F5/partition3 4096 Bytes 2618880 37752 ?
131088 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-2 /var/F5/partition3/IMAGES 4096 Bytes 3929600 1067013 ?
131089 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-2 /var/F5/partition3/shared 4096 Bytes 2618880 8303 ?
prompt%
It can also be run against a VELOS chassis partition:
prompt% snmptable -v 2c -c public -m ALL 10.255.2.24 hrStorageTable
SNMP table: HOST-RESOURCES-MIB::hrStorageTable
hrStorageIndex hrStorageType hrStorageDescr hrStorageAllocationUnits hrStorageSize hrStorageUsed hrStorageAllocationFailures
65537 HOST-RESOURCES-TYPES::hrStorageFixedDisk blade-1 /dev 4096 Bytes 16432028 0 ?
65538 HOST-RESOURCES-TYPES::hrStorageFixedDisk blade-1 /dev/shm 4096 Bytes 16447028 0 ?
65539 HOST-RESOURCES-TYPES::hrStorageFixedDisk blade-1 /run 4096 Bytes 16447028 14531 ?
65540 HOST-RESOURCES-TYPES::hrStorageFixedDisk blade-1 /sys/fs/cgroup 4096 Bytes 16447028 0 ?
65541 HOST-RESOURCES-TYPES::hrStorageFixedDisk blade-1 /sysroot 4096 Bytes 239039335 7523014 ?
65542 HOST-RESOURCES-TYPES::hrStorageFixedDisk blade-1 /boot 4096 Bytes 121909 36037 ?
65543 HOST-RESOURCES-TYPES::hrStorageFixedDisk blade-1 /boot/efi 4096 Bytes 127930 5256 ?
131073 HOST-RESOURCES-TYPES::hrStorageFixedDisk blade-2 /dev 4096 Bytes 16432028 0 ?
131074 HOST-RESOURCES-TYPES::hrStorageFixedDisk blade-2 /dev/shm 4096 Bytes 16447028 0 ?
131075 HOST-RESOURCES-TYPES::hrStorageFixedDisk blade-2 /run 4096 Bytes 16447028 14865 ?
131076 HOST-RESOURCES-TYPES::hrStorageFixedDisk blade-2 /sys/fs/cgroup 4096 Bytes 16447028 0 ?
131077 HOST-RESOURCES-TYPES::hrStorageFixedDisk blade-2 /sysroot 4096 Bytes 239039335 11878572 ?
131078 HOST-RESOURCES-TYPES::hrStorageFixedDisk blade-2 /boot 4096 Bytes 121909 36041 ?
131079 HOST-RESOURCES-TYPES::hrStorageFixedDisk blade-2 /boot/efi 4096 Bytes 127930 5256 ?
6619137 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-1 /var/F5/partition2 4096 Bytes 2618880 37294 ?
6619138 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-1 /var/F5/partition2/IMAGES 4096 Bytes 3929600 1509948 ?
6619139 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-1 /var/F5/partition2/shared 4096 Bytes 2618880 8303 ?
6684673 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-2 /var/F5/partition2 4096 Bytes 2618880 37821 ?
6684674 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-2 /var/F5/partition2/IMAGES 4096 Bytes 3929600 1509956 ?
6684675 HOST-RESOURCES-TYPES::hrStorageFixedDisk controller-2 /var/F5/partition2/shared 4096 Bytes 2618880 8303 ?
prompt%
Componenent Info Table¶
The table below shows the current VELOS component information for the chassis level or partition level.
This MIB is supported on both the VELOS system controller and chassis partition layers.
F5-PLATFORM-STATS-MIB:componentInfoTable OID: .1.3.6.1.4.1.12276.1.2.1.8.1
Below is the component info table from the system controller layer.
prompt% snmptable -v 2c -c public -m ALL 10.255.2.23 F5-PLATFORM-STATS-MIB:componentInfoTable
SNMP table: F5-PLATFORM-STATS-MIB::componentInfoTable
serialNo model baudRate
sub0811g000m ? ?
19010BPJ0038 ? ?
19010BPJ0020 ? ?
bld424257s BX110 ?
bld424258s BX110 ?
bld422437s BX110 ?
chs600148s CX410 ?
Sub0772g001b ? ?
bld424389s SX410 19200
bld424501s SX410 19200
sub0759g0014 ? ?
sub0759g000z ? ?
prompt%
You can also walk the F5-PLATFORM-STATS-MIB:componentInfoTable and each component and its coresponding serial number will be displayed.
prompt% snmpwalk -v 2c -c public -m ALL 10.255.2.23 F5-PLATFORM-STATS-MIB:componentInfoTable
F5-PLATFORM-STATS-MIB::serialNo."lcd" = STRING: sub0811g000m
F5-PLATFORM-STATS-MIB::serialNo."psu-1" = STRING: 19010BPJ0038
F5-PLATFORM-STATS-MIB::serialNo."psu-2" = STRING: 19010BPJ0020
F5-PLATFORM-STATS-MIB::serialNo."blade-1" = STRING: bld424257s
F5-PLATFORM-STATS-MIB::serialNo."blade-2" = STRING: bld424258s
F5-PLATFORM-STATS-MIB::serialNo."blade-3" = STRING: bld422437s
F5-PLATFORM-STATS-MIB::serialNo."chassis" = STRING: chs600148s
F5-PLATFORM-STATS-MIB::serialNo."fantray-1" = STRING: Sub0772g001b
F5-PLATFORM-STATS-MIB::serialNo."controller-1" = STRING: bld424389s
F5-PLATFORM-STATS-MIB::serialNo."controller-2" = STRING: bld424501s
F5-PLATFORM-STATS-MIB::serialNo."psu-controller-1" = STRING: sub0759g0014
F5-PLATFORM-STATS-MIB::serialNo."psu-controller-2" = STRING: sub0759g000z
F5-PLATFORM-STATS-MIB::model."blade-1" = STRING: BX110
F5-PLATFORM-STATS-MIB::model."blade-2" = STRING: BX110
F5-PLATFORM-STATS-MIB::model."blade-3" = STRING: BX110
F5-PLATFORM-STATS-MIB::model."chassis" = STRING: CX410
F5-PLATFORM-STATS-MIB::baudRate."controller-1" = INTEGER: 19200
F5-PLATFORM-STATS-MIB::baudRate."controller-2" = INTEGER: 19200
prompt%
Below is the component info table from the chassis partition layer.
prompt% snmptable -v 2c -c public -m ALL 10.255.2.24 F5-PLATFORM-STATS-MIB:componentInfoTable
SNMP table: F5-PLATFORM-STATS-MIB::componentInfoTable
serialNo model baudRate
bld424257s BX110 ?
bld424258s BX110 ?
prompt%
You can also walk the F5-PLATFORM-STATS-MIB:componentInfoTable within the chassis partition and each blade and its coresponding serial number will be displayed.
prompt% snmpwalk -v 2c -c public -m ALL 10.255.2.24 F5-PLATFORM-STATS-MIB:componentInfoTable
F5-PLATFORM-STATS-MIB::serialNo."blade-1" = STRING: bld424257s
F5-PLATFORM-STATS-MIB::serialNo."blade-2" = STRING: bld424258s
prompt%
Power Supply Unit Stats Table¶
The table below shows the current status and health of the VELOS power supply units. This MIB is added in F5OS-C 1.8.0.
This MIB is supported on the VELOS system controller layer.
F5-PLATFORM-STATS-MIB:psuStatsTable OID: .1.3.6.1.4.1.12276.1.2.1.9.1
prompt% snmptable -v 2c -c public -m ALL 10.255.2.3 F5-PLATFORM-STATS-MIB:psuStatsTable
SNMP table: F5-PLATFORM-STATS-MIB::psuStatsTable
psuName psuSerialNo psuPartNo psuCurrentIn psuCurrentOut psuVoltageIn psuVoltageOut psuTemperature1 psuTemperature2 psuTemperature3 psuFan1Speed psuFan2Speed psuPowerIn psuPowerOut
psu-1 19331BPJ0075 SPAFFIV-07 2.097 mA 33.375 mA 206.750 mV 12.340 mV 17.0 °C 32.5 °C 31.2 °C 7520 RPM 7040 RPM 443.000 mW 412.000 mW
psu-2 19332BPJ0129 SPAFFIV-07 2.207 mA 34.187 mA 206.750 mV 12.337 mV 16.2 °C 32.0 °C 30.5 °C 7328 RPM 7008 RPM 455.000 mW 430.500 mW
prompt %
Temperature Stats Table¶
The table below shows the temperature stats for the current chassis partition or system controller depending on where the SNMP query is sent.
This MIB is supported on both the VELOS system controller and chassis partition layers.
F5-PLATFORM-STATS-MIB:temperatureStatsTable OID: .1.3.6.1.4.1.12276.1.2.1.3.1
Below is an example of an SNMP response from the system controllers.
prompt% snmptable -v 2c -c public -m ALL 10.255.2.3 F5-PLATFORM-STATS-MIB:temperatureStatsTable
SNMP table: F5-PLATFORM-STATS-MIB::temperatureStatsTable
tempCurrent tempAverage tempMinimum tempMaximum
10.4 centigrade 10.4 centigrade 9.7 centigrade 13.1 centigrade
19.3 centigrade 19.2 centigrade 18.5 centigrade 22.3 centigrade
prompt%
You can also walk the F5-PLATFORM-STATS-MIB:temperatureStatsTable and each component and its corresponding temperature reading will be displayed.
prompt% snmpwalk -v 2c -c public -m ALL 10.255.2.23 F5-PLATFORM-STATS-MIB:temperatureStatsTable
F5-PLATFORM-STATS-MIB::tempCurrent."controller-1" = INTEGER: 18.1 centigrade
F5-PLATFORM-STATS-MIB::tempCurrent."controller-2" = INTEGER: 16.6 centigrade
F5-PLATFORM-STATS-MIB::tempAverage."controller-1" = INTEGER: 16.4 centigrade
F5-PLATFORM-STATS-MIB::tempAverage."controller-2" = INTEGER: 15.1 centigrade
F5-PLATFORM-STATS-MIB::tempMinimum."controller-1" = INTEGER: 15.7 centigrade
F5-PLATFORM-STATS-MIB::tempMinimum."controller-2" = INTEGER: 14.3 centigrade
F5-PLATFORM-STATS-MIB::tempMaximum."controller-1" = INTEGER: 18.8 centigrade
F5-PLATFORM-STATS-MIB::tempMaximum."controller-2" = INTEGER: 18.0 centigrade
prompt%
Below is an example of an SNMP response from a chassis partition and each blade and its corresponding temperature reading will be displayed.
prompt% snmptable -v 2c -c public -m ALL 10.255.2.24 F5-PLATFORM-STATS-MIB:temperatureStatsTable
SNMP table: F5-PLATFORM-STATS-MIB::temperatureStatsTable
tempCurrent tempAverage tempMinimum tempMaximum
29.0 centigrade 28.8 centigrade 28.0 centigrade 31.0 centigrade
27.0 centigrade 26.0 centigrade 25.0 centigrade 29.0 centigrade
prompt%
You can also walk the F5-PLATFORM-STATS-MIB:temperatureStatsTable within a chassis partition and each blade within the partition and its corresponding temperature reading will be displayed.
prompt% snmpwalk -v 2c -c public -m ALL 10.255.2.24 F5-PLATFORM-STATS-MIB:temperatureStatsTable
F5-PLATFORM-STATS-MIB::tempCurrent."blade-1" = INTEGER: 21.0 centigrade
F5-PLATFORM-STATS-MIB::tempCurrent."blade-2" = INTEGER: 19.0 centigrade
F5-PLATFORM-STATS-MIB::tempAverage."blade-1" = INTEGER: 19.9 centigrade
F5-PLATFORM-STATS-MIB::tempAverage."blade-2" = INTEGER: 18.6 centigrade
F5-PLATFORM-STATS-MIB::tempMinimum."blade-1" = INTEGER: 19.0 centigrade
F5-PLATFORM-STATS-MIB::tempMinimum."blade-2" = INTEGER: 18.0 centigrade
F5-PLATFORM-STATS-MIB::tempMaximum."blade-1" = INTEGER: 23.0 centigrade
F5-PLATFORM-STATS-MIB::tempMaximum."blade-2" = INTEGER: 21.0 centigrade
prompt%
Memory Stats Table¶
This MIB displays the memory utilization for the system controllers as well as the chassis partitions. Below is the table view for the system ccontrollers:
F5-PLATFORM-STATS-MIB:memoryStatsTable OID:.1.3.6.1.4.1.12276.1.2.1.4.1
prompt% snmptable -v 2c -c public -m ALL 10.255.2.23 F5-PLATFORM-STATS-MIB:memoryStatsTable
SNMP table: F5-PLATFORM-STATS-MIB::memoryStatsTable
memAvailable memFree memPercentageUsed memPlatformTotal memPlatformUsed
24210726912 bytes 761626624 bytes 28 percentage 33594761216 bytes 12607877120 bytes
23474733056 bytes 468787200 bytes 30 percentage 33594761216 bytes 13459021824 bytes
prompt%
You can also walk the F5-PLATFORM-STATS-MIB:memoryStatsTable within a system controller and each controller and its corresponding memory readings will be displayed.
prompt% snmpwalk -v 2c -c public -m ALL 10.255.2.23 F5-PLATFORM-STATS-MIB:memoryStatsTable
F5-PLATFORM-STATS-MIB::memAvailable."controller-1" = Counter64: 25858002944 bytes
F5-PLATFORM-STATS-MIB::memAvailable."controller-2" = Counter64: 25343537152 bytes
F5-PLATFORM-STATS-MIB::memFree."controller-1" = Counter64: 696377344 bytes
F5-PLATFORM-STATS-MIB::memFree."controller-2" = Counter64: 288727040 bytes
F5-PLATFORM-STATS-MIB::memPercentageUsed."controller-1" = INTEGER: 23 percentage
F5-PLATFORM-STATS-MIB::memPercentageUsed."controller-2" = INTEGER: 24 percentage
F5-PLATFORM-STATS-MIB::memPlatformTotal."controller-1" = Counter64: 33594761216 bytes
F5-PLATFORM-STATS-MIB::memPlatformTotal."controller-2" = Counter64: 33594761216 bytes
F5-PLATFORM-STATS-MIB::memPlatformUsed."controller-1" = Counter64: 9703399424 bytes
F5-PLATFORM-STATS-MIB::memPlatformUsed."controller-2" = Counter64: 10094477312 bytes
prompt%
Below is a table view of the memory consumption for all the blades within a chassis partition. In the example below there are two blades.
prompt% snmptable -v 2c -c public -m ALL 10.255.2.24 F5-PLATFORM-STATS-MIB:memoryStatsTable
SNMP table: F5-PLATFORM-STATS-MIB::memoryStatsTable
memAvailable memFree memPercentageUsed memPlatformTotal memPlatformUsed
19053563904 bytes 15529746432 bytes 85 percentage 26843971584 bytes 7043231744 bytes
18955780096 bytes 15364800512 bytes 85 percentage 26843971584 bytes 7147962368 bytes
prompt%
You can also walk the F5-PLATFORM-STATS-MIB:memoryStatsTable within a chassis partition and each blade within the partition and its corresponding memory readings will be displayed.
prompt% snmpwalk -v 2c -c public -m ALL 10.255.2.24 F5-PLATFORM-STATS-MIB:memoryStatsTable
F5-PLATFORM-STATS-MIB::memAvailable."blade-1" = Counter64: 19054059520 bytes
F5-PLATFORM-STATS-MIB::memAvailable."blade-2" = Counter64: 18947096576 bytes
F5-PLATFORM-STATS-MIB::memFree."blade-1" = Counter64: 15540944896 bytes
F5-PLATFORM-STATS-MIB::memFree."blade-2" = Counter64: 15365103616 bytes
F5-PLATFORM-STATS-MIB::memPercentageUsed."blade-1" = INTEGER: 85 percentage
F5-PLATFORM-STATS-MIB::memPercentageUsed."blade-2" = INTEGER: 85 percentage
F5-PLATFORM-STATS-MIB::memPlatformTotal."blade-1" = Counter64: 26843971584 bytes
F5-PLATFORM-STATS-MIB::memPlatformTotal."blade-2" = Counter64: 26843971584 bytes
F5-PLATFORM-STATS-MIB::memPlatformUsed."blade-1" = Counter64: 7042252800 bytes
F5-PLATFORM-STATS-MIB::memPlatformUsed."blade-2" = Counter64: 7156518912 bytes
prompt%
FPGA Stats Table¶
The FPGA Stats table shows the current FPGA versions. There are two different FPGAs on each BX110 line card: the ATSE (Application Traffic Service Engine) and the VQF (VELOS Queuing FPGA). This MIB is only supported on the chassis partition layer. Below is the table view.
F5-PLATFORM-STATS-MIB:fpgaTable OID: .1.3.6.1.4.1.12276.1.2.1.5.1
prompt% snmptable -v 2c -c public -m ALL 10.255.2.24 F5-PLATFORM-STATS-MIB:fpgaTable
SNMP table: F5-PLATFORM-STATS-MIB::fpgaTable
fpgaIndex fpgaVersion
vqf_0 8.9.5
atse_0 7.10.2
vqf_0 8.9.5
atse_0 7.10.2
prompt%
You can also walk the MIB to get more information.
prompt% snmpwalk -v 2c -c public -m ALL 10.255.2.24 F5-PLATFORM-STATS-MIB:fpgaTable
F5-PLATFORM-STATS-MIB::fpgaIndex."blade-1"."vqf_0" = STRING: vqf_0
F5-PLATFORM-STATS-MIB::fpgaIndex."blade-1"."atse_0" = STRING: atse_0
F5-PLATFORM-STATS-MIB::fpgaIndex."blade-2"."vqf_0" = STRING: vqf_0
F5-PLATFORM-STATS-MIB::fpgaIndex."blade-2"."atse_0" = STRING: atse_0
F5-PLATFORM-STATS-MIB::fpgaVersion."blade-1"."vqf_0" = STRING: 8.10.0
F5-PLATFORM-STATS-MIB::fpgaVersion."blade-1"."atse_0" = STRING: 7.10.6
F5-PLATFORM-STATS-MIB::fpgaVersion."blade-2"."vqf_0" = STRING: 8.10.0
F5-PLATFORM-STATS-MIB::fpgaVersion."blade-2"."atse_0" = STRING: 7.10.6
prompt%
Firmware Table¶
This MIB provides the current firmware status and version for all subsystems. This MIB is supported at both the system controller and chassis partition layers.
Below is an example of an SNMP response from the system controllers.
F5-PLATFORM-STATS-MIB:fwTable OID: .1.3.6.1.4.1.12276.1.2.1.6.1
prompt% snmptable -v 2c -c public -m ALL 10.255.2.23 F5-PLATFORM-STATS-MIB:fwTable
SNMP table: F5-PLATFORM-STATS-MIB::fwTable
fwName fwVersion configurable fwUpdateStatus
fw-version-bios 2.02.170.1 false none
fw-version-cpld 01.03.0A false none
fw-version-sirr 1.1.52 false none
fw-version-drive VCV10301 false none
fw-version-bios-me 4.0.4.705 false none
fw-version-lcd-app 2.02.141.00.1 false none
fw-version-lop-app 2.01.1276.0.1 false none
fw-version-lcd-bootloader 2.01.109.00.1 false none
fw-version-lop-bootloader 1.02.1019.0.1 false none
fw-version-vfc-app-fanCtrl1 2.00.1008.0.1 false none
fw-version-vpc-app-psuCtrl1 2.00.875.0.1 false none
fw-version-vpc-app-psuCtrl2 2.00.875.0.1 false none
fw-version-vfc-bootloader-fanCtrl1 1.02.798.0.1 false none
fw-version-vpc-bootloader-psuCtrl1 1.02.669.0.1 false none
fw-version-vpc-bootloader-psuCtrl2 1.02.669.0.1 false none
fw-version-bios 2.02.170.1 false none
fw-version-cpld 01.03.0A false none
fw-version-sirr 1.1.52 false none
fw-version-drive EDA7602Q false none
fw-version-bios-me 4.0.4.705 false none
fw-version-lcd-app 2.02.141.00.1 false none
fw-version-lop-app 2.01.1282.0.1 false ?
fw-version-lcd-bootloader 2.01.109.00.1 false none
fw-version-lop-bootloader 1.02.1019.0.1 false none
fw-version-vfc-app-fanCtrl1 2.00.1008.0.1 false none
fw-version-vpc-app-psuCtrl1 2.00.875.0.1 false none
fw-version-vpc-app-psuCtrl2 2.00.875.0.1 false none
fw-version-vfc-bootloader-fanCtrl1 1.02.798.0.1 false none
fw-version-vpc-bootloader-psuCtrl1 1.02.669.0.1 false none
fw-version-vpc-bootloader-psuCtrl2 1.02.669.0.1 false none
prompt%
Below is an example of an SNMP response from the chassis partition.
prompt% snmptable -v 2c -c public -m ALL 10.255.2.24 F5-PLATFORM-STATS-MIB:fwTable
SNMP table: F5-PLATFORM-STATS-MIB::fwTable
fwName fwVersion configurable fwUpdateStatus
QAT0 Lewisburg C62X Crypto/Compression false ?
QAT1 Lewisburg C62X Crypto/Compression false ?
QAT2 Lewisburg C62X Crypto/Compression false ?
fw-version-bios 3.00.222.1 false none
fw-version-cpld 04.03.02 false none
fw-version-sirr 1.1.58 false none
fw-version-bios-me 4.0.4.736 false none
fw-version-lop-app 2.00.1053.0.1 false ?
fw-version-drives-nvme0n1 ? false none
fw-version-lop-bootloader 1.02.868.0.1 false none
QAT0 Lewisburg C62X Crypto/Compression false ?
QAT1 Lewisburg C62X Crypto/Compression false ?
QAT2 Lewisburg C62X Crypto/Compression false ?
fw-version-bios 3.00.222.1 false none
fw-version-cpld 04.03.02 false none
fw-version-sirr 1.1.58 false none
fw-version-bios-me 4.0.4.736 false none
fw-version-lop-app 2.00.1053.0.1 false ?
fw-version-drives-nvme0n1 ? false none
fw-version-lop-bootloader 1.02.868.0.1 false none
prompt%
Fantray Stats Table¶
Query the following SNMP OID to get detailed fan speeds.
F5-PLATFORM-STATS-MIB:fantrayStatsTable OID: .1.3.6.1.4.1.12276.1.2.1.7.1
prompt% snmptable -v 2c -c public -m ALL 10.255.2.23 F5-PLATFORM-STATS-MIB:fantrayStatsTable
SNMP table: F5-PLATFORM-STATS-MIB::fantrayStatsTable
fan-1-speed fan-2-speed fan-3-speed fan-4-speed fan-5-speed fan-6-speed fan-7-speed fan-8-speed fan-9-speed fan-10-speed fan-11-speed fan-12-speed fantray-temperature inlet-fan-1-speed inlet-fan-2-speed inlet-fan-3-speed exhaust-fan-1-speed exhaust-fan-2-speed exhaust-fan-3-speed
? ? ? ? ? ? ? ? ? ? ? ? 18.0 °C 6570 RPM 6560 RPM 6516 RPM 6534 RPM 6538 RPM 6538 RPM
prompt%
Licensing Info¶
Query the following SNMP OID to get detailed licensing information.
F5-OS-SYSTEM-MIB:licenseActiveModuleTable OID: 1.3.6.1.4.1.12276.1.3.3.9
The licenseActiveModuleTable will display all actively licensed modules.
prompt% snmptable -v2c -c public -m ALL 10.255.2.23 F5-OS-SYSTEM-MIB:licenseActiveModuleTable
SNMP table: F5-OS-SYSTEM-MIB::licenseActiveModuleTable
activeModule
Best Bundle, CX410|Y307926-5850731|Max Compression, CX410|Rate Shaping|Max SSL, CX410|DNS, Max QPS, CX410|Advanced Web Application Firewall, CX410|Access Policy Manager, Base, CX410|Advanced Firewall Manager, CX410|Carrier Grade NAT (AFM ONLY)|Advanced Routing, CX410
prompt%
You can also snmpwalk from the OID 1.3.6.1.4.1.12276.1.3 to get more licensing details:
prompt% snmpwalk -ObenU -v2c -c public 10.255.2.23 1.3.6.1.4.1.12276.1.3
.1.3.6.1.4.1.12276.1.3.3.1.0 = STRING: "1.6.2"
.1.3.6.1.4.1.12276.1.3.3.2.0 = STRING: "S7446-04251-28413-73770-4543519"
.1.3.6.1.4.1.12276.1.3.3.3.0 = STRING: "2024/08/21"
.1.3.6.1.4.1.12276.1.3.3.4.0 = STRING: "2024/04/08"
.1.3.6.1.4.1.12276.1.3.3.5.0 = STRING: "2024/09/20"
.1.3.6.1.4.1.12276.1.3.3.6.0 = STRING: "2024/08/21"
.1.3.6.1.4.1.12276.1.3.3.7.0 = STRING: "F101"
.1.3.6.1.4.1.12276.1.3.3.8.0 = STRING: "chs600148s"
.1.3.6.1.4.1.12276.1.3.3.9.1.2.1 = STRING: "Best Bundle, CX410|Y307926-5850731|Max Compression, CX410|Rate Shaping|Max SSL, CX410|DNS, Max QPS, CX410|Advanced Web Application Firewall, CX410|Access Policy Manager, Base, CX410|Advanced Firewall Manager, CX410|Carrier Grade NAT (AFM ONLY)|Advanced Routing, CX410"
prompt%
LLDP Configuration Table¶
Query the following SNMP OID to get detailed LLDP configuration table. LLDP is only supported on the VELOS chassis partition interfaces, and not on the system controller management ports.
F5-OS-LLDP-MIB:lldpIfConfigTable OID: 1.3.6.1.4.1.12276.1.4.1.1.3.1
prompt% snmptable -v 2c -c public -m ALL 10.255.2.24 F5-OS-LLDP-MIB:lldpIfConfigTable
SNMP table: F5-OS-LLDP-MIB::lldpIfConfigTable
lldpIfName lldpIfEnabled lldpIfTlvAdvertisement lldpIfTlvmap
1/1.0 true txrx 130943
1/2.0 true txrx 130943
2/1.0 true txrx 130943
2/2.0 true txrx 130943
prompt%
LLDP Neighbors Table¶
Query the following SNMP OID to get detailed LLDP neighbors table.
F5-OS-LLDP-MIB:lldpNeighborsTable OID: 1.3.6.1.4.1.12276.1.4.1.1.4.1
prompt% snmptable -v 2c -c public -m ALL 10.255.2.24 F5-OS-LLDP-MIB:lldpNeighborsTable
SNMP table: F5-OS-LLDP-MIB::lldpNeighborsTable
lldpLocalInterface lldpNeighborPortId lldpNeighborChassisId lldpNeighborPortDesc lldpNeighborSysName lldpNeighborSysDesc lldpNeighborSysCap lldpNeighborMgmtAddr lldpNeighborPvid lldpNeighborPpvid lldpNeighborVlanName lldpNeighborVlanTag lldpNeighborProtocolIdentity lldpNeighborAutoNego lldpNeighborPmd lldpNeighborMau lldpNeighborAggStatus lldpNeighborAggPortid lldpNeighborMfs lldpNeighborF5ProductModel
1/2.0 Ethernet30/1 98:5d:82:1d:2c:a9 \"Port Channel to VELOS#2 Chassis Partition1\" BOSPDTSTB0401.pdbos.f5net.com Arista Networks EOS version 4.26.5M running on an Arista Networks DCS-7170-32C 1310724 10.39.0.3 1 0 ? 0 0 0 0 0 3 75 9236 ?
2/1.0 Ethernet29/1 98:5d:82:1d:2c:a9 \"Port Channel to VELOS#2 Chassis Partition1\" BOSPDTSTB0401.pdbos.f5net.com Arista Networks EOS version 4.26.5M running on an Arista Networks DCS-7170-32C 1310724 10.39.0.3 1 0 ? 0 0 0 0 0 3 75 9236 ?
prompt%
Tenant State Table¶
Query the following SNMP OID to get detailed tenant status.
F5-OS-TENANT-MIB:tenantStateTable OID: 1.3.6.1.4.1.12276.1.5.1.1.1
prompt% snmptable -v 2c -c public -m ALL 10.255.2.24 F5-OS-TENANT-MIB:tenantStateTable
SNMP table: F5-OS-TENANT-MIB::tenantStateTable
tenantName tenantType tenantImage tenantDeploymentFile tenantMgmtIP tenantPrefixLength tenantDagIPv6PrefixLength tenantGateway tenantCryptos tenantVcpuCoresPerNode tenantMemory tenantStorageSize tenantRunningState tenantMacDataSize tenantApplianceMode tenantUnitKeyHash tenantFloatingAddress tenantHAState tenantNameSpace tenantPrimarySlot tenantQatVFCount tenantImageVersion tenantStatus tenantTargetDeploymentFile tenantTargetImage tenantUpgradeStatus tenantBaseMac tenantMgmtMac
mtb-test1 bigip BIGIP-17.1.1.2-0.0.10.ALL-F5OS.qcow2.zip.bundle ? 10.1.1.2 24 128 10.1.1.1 enabled 22 90000 MB 700 GB configured 16 disabled Cc48+QSpnn/7NlSasw9+iLFhqako4baE/IaNMb0gemVHEDNoxXwdx85n9qz4o61UgVH2X5qp/p1GvyeOIZEzvw== ? ? ? ? 33 ? Configured ? ? ? 0:94:a1:8e:58:1c ?
tenant1-f5demo-net bigipnext BIG-IP-Next-20.2.1-2.430.2+0.0.37 BIG-IP-Next-20.2.1-2.430.2+0.0.37.yaml 10.255.2.15 24 128 10.255.2.252 enabled 4 14848 MB 25 GB deployed 1 disabled iIld1ZOJRAQ0J68/2h8tsWDyl/vL6BJtuPcoEMrBAsg7Lm52bEL3lyXPBMgfh2UwvRzgUx1qeC9hz+Pz2BwbHA== ? standalone ? ? 8 ? Running ? ? notstarted 0:94:a1:8e:58:9 ?
tenant2-f5demo-net bigipnext BIG-IP-Next-20.2.1-2.430.2+0.0.48 BIG-IP-Next-20.2.1-2.430.2+0.0.48.yaml 10.255.2.14 24 128 10.255.2.252 enabled 4 14848 MB 25 GB deployed 1 disabled uIc2yU238abhyqSDm1N0T7sltuN9YFbQumYzYgXFnk/YXaX8cGoMrMVbvAJgqNK7fzKogP/XvpZtNAZwZFbNfw== ? standalone ? ? 8 ? Running ? ? notstarted 0:94:a1:8e:58:c ?
prompt%
Tenant VLANs Table¶
Query the following SNMP OID to get detailed tenant status.
F5-OS-TENANT-MIB:tenantVlansTable OID: 1.3.6.1.4.1.12276.1.5.1.3.1
prompt% snmptable -v 2c -c public -m ALL 10.255.2.24 F5-OS-TENANT-MIB:tenantVlansTable
SNMP table: F5-OS-TENANT-MIB::tenantVlansTable
tenantVlan
500
3010
3011
3010
3011
prompt%
Tenant CPU Allocation Table¶
Query the following SNMP OID to get detailed tenant status.
F5-OS-TENANT-MIB:tenantCPUAllocationsStateTable OID: 1.3.6.1.4.1.12276.1.5.1.5.1
prompt% snmptable -v 2c -c public -m ALL 10.255.2.24 F5-OS-TENANT-MIB:tenantCPUAllocationsStateTable
SNMP table: F5-OS-TENANT-MIB::tenantCPUAllocationsStateTable
tenantCPU
11
17
35
41
7
9
31
33
prompt%
Tenant Instances Table¶
Query the following SNMP OID to get detailed tenant status.
F5-OS-TENANT-MIB:tenantInstancesStateTable OID: 1.3.6.1.4.1.12276.1.5.1.7.1
prompt% snmptable -v 2c -c public -m ALL 10.255.2.24 F5-OS-TENANT-MIB:tenantInstancesStateTable
SNMP table: F5-OS-TENANT-MIB::tenantInstancesStateTable
tenantPodName tenantInstanceId tenantInstanceSlot tenantInstancePhase tenantInstanceCreationTime tenantInstanceReadyTime tenantInstanceStatus tenantInstanceMgmtMac
tenant1-f5demo-net-f5-avcl 1 ? Running 2024-08-21T23:10:53Z 2024-08-21T23:11:45Z Started tenant instance ?
tenant1-f5demo-net-f5-dssm 1 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:11:38Z Started tenant instance ?
tenant1-f5demo-net-data-store 1 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:11:56Z Started tenant instance ?
tenant1-f5demo-net-f5-appsvcs 1 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:11:33Z Started tenant instance ?
tenant1-f5demo-net-f5-cmsg-mq 1 ? Running 2024-08-21T23:10:53Z 2024-08-21T23:11:18Z Started tenant instance ?
tenant1-f5demo-net-f5-csm-icb 1 ? Running 2024-08-21T23:10:53Z 2024-08-21T23:13:08Z Started tenant instance ?
tenant1-f5demo-net-f5-fsm-tmm 1 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:12:25Z Started tenant instance ?
tenant1-f5demo-net-f5-csm-bird 1 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:11:07Z Started tenant instance ?
tenant1-f5demo-net-f5-fcdn-sync 1 ? Running 2024-08-21T23:11:26Z 2024-08-21T23:11:39Z Started tenant instance ?
tenant1-f5demo-net-f5-csm-qkview 1 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:11:49Z Started tenant instance ?
tenant1-f5demo-net-f5-eesv-vault 1 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:12:15Z Started tenant instance ?
tenant1-f5demo-net-f5-onboarding 1 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:11:27Z Started tenant instance ?
tenant1-f5demo-net-f5-access-apmd 1 ? Running 2024-08-21T23:10:53Z 2024-08-21T23:11:13Z Started tenant instance ?
tenant1-f5demo-net-f5-toda-server 1 ? Running 2024-08-21T23:11:06Z 2024-08-21T23:11:13Z Started tenant instance ?
tenant1-f5demo-net-f5-toda-logpull 1 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:11:26Z Started tenant instance ?
tenant1-f5demo-net-f5-toda-observer 1 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:11:41Z Started tenant instance ?
tenant1-f5demo-net-f5-csm-api-engine 1 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:13:12Z Started tenant instance ?
tenant1-f5demo-net-f5-eesv-licensing 1 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:11:12Z Started tenant instance ?
tenant1-f5demo-net-f5-platform-agent 1 ? Running 2024-08-21T23:10:53Z 2024-08-21T23:14:01Z Started tenant instance ?
tenant1-f5demo-net-f5-access-renderer 1 ? Running 2024-08-21T23:10:53Z 2024-08-21T23:11:21Z Started tenant instance ?
tenant1-f5demo-net-f5-toda-otel-collector 1 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:11:34Z Started tenant instance ?
tenant1-f5demo-net-f5-asec-ip-intelligence 1 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:10:59Z Started tenant instance ?
tenant1-f5demo-net-f5-asec-policy-compiler 1 ? Running 2024-08-21T23:10:53Z 2024-08-21T23:11:08Z Started tenant instance ?
tenant1-f5demo-net-f5-access-session-manager 1 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:11:18Z Started tenant instance ?
tenant1-f5demo-net-f5-asec-clientside-js-obfuscator 1 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:11:30Z Started tenant instance ?
tenant2-f5demo-net-1 1 ? Pending ? ? 0/5 nodes are available: 2 node(s) didn't match node selector, 3 node(s) were not ready, 3 node(s) were out of disk space. ?
tenant2-f5demo-net-f5-avcl 2 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:11:42Z Started tenant instance ?
tenant2-f5demo-net-f5-dssm 2 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:11:25Z Started tenant instance ?
tenant2-f5demo-net-data-store 2 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:12:15Z Started tenant instance ?
tenant2-f5demo-net-f5-appsvcs 2 ? Running 2024-08-21T23:10:53Z 2024-08-21T23:11:43Z Started tenant instance ?
tenant2-f5demo-net-f5-cmsg-mq 2 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:11:07Z Started tenant instance ?
tenant2-f5demo-net-f5-csm-icb 2 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:13:04Z Started tenant instance ?
tenant2-f5demo-net-f5-fsm-tmm 2 ? Running 2024-08-21T23:10:54Z 2024-08-21T23:12:22Z Started tenant instance ?
tenant2-f5demo-net-f5-csm-bird 2 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:11:09Z Started tenant instance ?
tenant2-f5demo-net-f5-fcdn-sync 2 ? Running 2024-08-21T23:10:56Z 2024-08-21T23:11:13Z Started tenant instance ?
tenant2-f5demo-net-f5-csm-qkview 2 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:12:04Z Started tenant instance ?
tenant2-f5demo-net-f5-eesv-vault 2 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:12:22Z Started tenant instance ?
tenant2-f5demo-net-f5-onboarding 2 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:11:27Z Started tenant instance ?
tenant2-f5demo-net-f5-access-apmd 2 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:11:01Z Started tenant instance ?
tenant2-f5demo-net-f5-toda-server 2 ? Running 2024-08-21T23:11:38Z 2024-08-21T23:11:44Z Started tenant instance ?
tenant2-f5demo-net-f5-toda-logpull 2 ? Running 2024-08-21T23:10:53Z 2024-08-21T23:11:29Z Started tenant instance ?
tenant2-f5demo-net-f5-toda-observer 2 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:11:33Z Started tenant instance ?
tenant2-f5demo-net-f5-csm-api-engine 2 ? Running 2024-08-21T23:10:53Z 2024-08-21T23:13:10Z Started tenant instance ?
tenant2-f5demo-net-f5-eesv-licensing 2 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:11:01Z Started tenant instance ?
tenant2-f5demo-net-f5-platform-agent 2 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:14:46Z Started tenant instance ?
tenant2-f5demo-net-f5-access-renderer 2 ? Running 2024-08-21T23:10:53Z 2024-08-21T23:11:02Z Started tenant instance ?
tenant2-f5demo-net-f5-toda-otel-collector 2 ? Running 2024-08-21T23:10:53Z 2024-08-21T23:11:24Z Started tenant instance ?
tenant2-f5demo-net-f5-asec-ip-intelligence 2 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:11:27Z Started tenant instance ?
tenant2-f5demo-net-f5-asec-policy-compiler 2 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:11:13Z Started tenant instance ?
tenant2-f5demo-net-f5-access-session-manager 2 ? Running 2024-08-21T23:10:53Z 2024-08-21T23:11:03Z Started tenant instance ?
tenant2-f5demo-net-f5-asec-clientside-js-obfuscator 2 ? Running 2024-08-21T23:10:52Z 2024-08-21T23:11:17Z Started tenant instance ?
prompt%
Tenant MAC Table¶
Query the following SNMP OID to get detailed tenant status.
F5-OS-TENANT-MIB:tenantMacBlockStateTable OID: 1.3.6.1.4.1.12276.1.5.1.8.1
prompt% snmptable -v 2c -c public -m ALL 10.255.2.24 F5-OS-TENANT-MIB:tenantMacBlockStateTable
SNMP table: F5-OS-TENANT-MIB::tenantMacBlockStateTable
tenantMAC
00:94:a1:8e:58:1c
00:94:a1:8e:58:1d
00:94:a1:8e:58:1e
00:94:a1:8e:58:1f
00:94:a1:8e:58:20
00:94:a1:8e:58:21
00:94:a1:8e:58:22
00:94:a1:8e:58:23
00:94:a1:8e:58:24
00:94:a1:8e:58:25
00:94:a1:8e:58:26
00:94:a1:8e:58:27
00:94:a1:8e:58:28
00:94:a1:8e:58:29
00:94:a1:8e:58:2a
00:94:a1:8e:58:2b
00:94:a1:8e:58:09
00:94:a1:8e:58:0c
prompt%
SNMP Trap Support in F5OS¶
You can enable SNMP traps for F5OS-C in both the system controllers and within each chassis partition. The F5-CTRLR-ALERT-NOTIF-MIB & the F5-PARTITION-ALERT-NOTIF-MIB provide details of supported system controller and chassis partition SNMP traps. Below is the current full list of traps supported as of F5OS-C 1.8.x.
NOTE: the file will contain alerts for both F5OS-A (rSeries appliances) and F5OS-C (VELOS chassis). You only need to rely on one file if you are using both platforms. Some traps may be specific to one platform or the other.
For the system controllers, the following SNMP Traps are supported as of F5OS 1.8.x as defined in the F5-CTRLR-ALERT-NOTIF-MIB.txt.
SNMP Trap events that note a fault should also trigger an alert that can be viewed in the show alerts in the CLI, webUI, and API. Once a clear SNMP Trap is sent, it should clear the event from the show events output.
Alert |
OID |
|---|---|
hardware-device-fault |
.1.3.6.1.4.1.12276.1.1.1.65536 |
firmware-fault |
.1.3.6.1.4.1.12276.1.1.1.65537 |
unknown-alarm |
.1.3.6.1.4.1.12276.1.1.1.65538 |
memory-fault |
.1.3.6.1.4.1.12276.1.1.1.65539 |
drive-fault |
.1.3.6.1.4.1.12276.1.1.1.65540 |
cpu-fault |
.1.3.6.1.4.1.12276.1.1.1.65541 |
pcie-fault |
.1.3.6.1.4.1.12276.1.1.1.65542 |
aom-fault |
.1.3.6.1.4.1.12276.1.1.1.65543 |
drive-capacity-fault |
.1.3.6.1.4.1.12276.1.1.1.65544 |
power-fault |
.1.3.6.1.4.1.12276.1.1.1.65545 |
thermal-fault |
.1.3.6.1.4.1.12276.1.1.1.65546 |
drive-thermal-throttle |
.1.3.6.1.4.1.12276.1.1.1.65547 |
blade-thermal-fault |
.1.3.6.1.4.1.12276.1.1.1.65548 |
blade-hardware-fault |
.1.3.6.1.4.1.12276.1.1.1.65549 |
firmware-update-status |
.1.3.6.1.4.1.12276.1.1.1.65550 |
drive-utilization |
.1.3.6.1.4.1.12276.1.1.1.65551 |
partition1-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65553 |
partition2-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65554 |
partition3-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65555 |
partition4-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65556 |
partition5-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65557 |
partition6-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65558 |
partition7-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65559 |
partition8-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65560 |
partition9-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65580 |
partition10-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65581 |
partition11-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65582 |
partition12-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65583 |
partition13-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65584 |
partition14-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65585 |
partition15-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65586 |
partition16-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65587 |
partition17-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65588 |
partition18-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65589 |
partition19-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65590 |
partition20-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65591 |
partition21-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65592 |
partition22-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65593 |
partition23-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65594 |
partition24-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65595 |
partition25-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65596 |
partition26-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65597 |
partition27-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65598 |
partition28-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65599 |
partition29-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65600 |
partition30-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65601 |
partition31-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65602 |
partition32-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65603 |
partition1-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65561 |
partition2-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65562 |
partition3-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65563 |
partition4-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65564 |
partition5-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65565 |
partition6-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65566 |
partition7-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65567 |
partition8-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65568 |
partition9-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65604 |
partition10-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65605 |
partition11-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65606 |
partition12-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65607 |
partition13-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65608 |
partition14-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65609 |
partition15-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65610 |
partition16-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65611 |
partition17-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65612 |
partition18-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65613 |
partition19-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65614 |
partition20-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65615 |
partition21-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65616 |
partition22-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65617 |
partition23-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65618 |
partition24-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65619 |
partition25-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65620 |
partition26-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65621 |
partition27-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65622 |
partition28-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65623 |
partition29-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65624 |
partition30-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65625 |
partition31-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65626 |
partition32-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65627 |
partition1-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65569 |
partition2-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65570 |
partition3-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65571 |
partition4-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65572 |
partition5-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65573 |
partition6-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65574 |
partition7-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65575 |
partition8-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65576 |
partition9-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65628 |
partition10-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65629 |
partition11-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65630 |
partition12-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65631 |
partition13-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65632 |
partition14-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65633 |
partition15-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65634 |
partition16-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65635 |
partition17-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65636 |
partition18-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65637 |
partition19-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65638 |
partition20-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65639 |
partition21-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65640 |
partition22-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65641 |
partition23-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65642 |
partition24-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65643 |
partition25-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65644 |
partition26-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65645 |
partition27-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65646 |
partition28-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65647 |
partition29-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65648 |
partition30-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65649 |
partition31-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65650 |
partition32-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65651 |
sensor-fault |
.1.3.6.1.4.1.12276.1.1.1.65577 |
datapath-fault |
.1.3.6.1.4.1.12276.1.1.1.65578 |
boot-time-integrity-status |
.1.3.6.1.4.1.12276.1.1.1.65579 |
lcd-fault |
.1.3.6.1.4.1.12276.1.1.1.65792 |
psu-fault |
.1.3.6.1.4.1.12276.1.1.1.65793 |
module-present |
.1.3.6.1.4.1.12276.1.1.1.65794 |
module-communication-error |
.1.3.6.1.4.1.12276.1.1.1.65795 |
psu-redundancy-fault |
.1.3.6.1.4.1.12276.1.1.1.65796 |
psu-controller-fault |
.1.3.6.1.4.1.12276.1.1.1.65797 |
fan-controller-fault |
.1.3.6.1.4.1.12276.1.1.1.65798 |
arbitration-state |
.1.3.6.1.4.1.12276.1.1.1.66048 |
switch-status |
.1.3.6.1.4.1.12276.1.1.1.66049 |
link-state |
.1.3.6.1.4.1.12276.1.1.1.66050 |
nebsEnabled |
.1.3.6.1.4.1.12276.1.1.1.131072 |
nebsDisabled |
.1.3.6.1.4.1.12276.1.1.1.131073 |
systemControllerNebsMismatch |
.1.3.6.1.4.1.12276.1.1.1.131929 |
bladeNebsMismatch |
.1.3.6.1.4.1.12276.1.1.1.131329 |
fipsError |
.1.3.6.1.4.1.12276.1.1.1.196608 |
core-dump |
.1.3.6.1.4.1.12276.1.1.1.327680 |
reboot |
.1.3.6.1.4.1.12276.1.1.1.327681 |
incompatible-image |
.1.3.6.1.4.1.12276.1.1.1.327682 |
login-failed |
.1.3.6.1.4.1.12276.1.1.1.327683 |
openshiftCertsExpWithinNinetyDays |
.1.3.6.1.4.1.12276.1.1.1.458752 |
openshiftCertificatesExpiring |
.1.3.6.1.4.1.12276.1.1.1.458753 |
openshiftUpgradeNeeded |
.1.3.6.1.4.1.12276.1.1.1.459008 |
coldStart |
.1.3.6.1.6.3.1.1.5.1 |
For the chassis partitions the following SNMP Traps are supported as of F5OS 1.8.x as defined in the F5-PARTITION-ALERT-NOTIF-MIB.txt:
Alert |
OID |
|---|---|
linkDown |
.1.3.6.1.6.3.1.1.5.3 |
linkUp |
.1.3.6.1.6.3.1.1.5.4 |
hardware-device-fault |
.1.3.6.1.4.1.12276.1.1.1.65536 |
firmware-fault |
.1.3.6.1.4.1.12276.1.1.1.65537 |
unknown-alarm |
.1.3.6.1.4.1.12276.1.1.1.65538 |
memory-fault |
.1.3.6.1.4.1.12276.1.1.1.65539 |
drive-fault |
.1.3.6.1.4.1.12276.1.1.1.65540 |
cpu-fault |
.1.3.6.1.4.1.12276.1.1.1.65541 |
pcie-fault |
.1.3.6.1.4.1.12276.1.1.1.65542 |
aom-fault |
.1.3.6.1.4.1.12276.1.1.1.65543 |
drive-capacity-fault |
.1.3.6.1.4.1.12276.1.1.1.65544 |
power-fault |
.1.3.6.1.4.1.12276.1.1.1.65545 |
thermal-fault |
.1.3.6.1.4.1.12276.1.1.1.65546 |
drive-thermal-throttle |
.1.3.6.1.4.1.12276.1.1.1.65547 |
blade-thermal-fault |
.1.3.6.1.4.1.12276.1.1.1.65548 |
blade-hardware-fault |
.1.3.6.1.4.1.12276.1.1.1.65549 |
firmware-update-status |
.1.3.6.1.4.1.12276.1.1.1.65550 |
drive-utilization |
.1.3.6.1.4.1.12276.1.1.1.65551 |
partition1-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65553 |
partition2-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65554 |
partition3-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65555 |
partition4-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65556 |
partition5-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65557 |
partition6-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65558 |
partition7-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65559 |
partition8-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65560 |
partition9-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65580 |
partition10-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65581 |
partition11-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65582 |
partition12-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65583 |
partition13-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65584 |
partition14-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65585 |
partition15-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65586 |
partition16-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65587 |
partition17-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65588 |
partition18-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65589 |
partition19-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65590 |
partition20-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65591 |
partition21-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65592 |
partition22-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65593 |
partition23-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65594 |
partition24-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65595 |
partition25-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65596 |
partition26-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65597 |
partition27-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65598 |
partition28-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65599 |
partition29-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65600 |
partition30-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65601 |
partition31-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65602 |
partition32-image-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65603 |
partition1-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65561 |
partition2-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65562 |
partition3-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65563 |
partition4-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65564 |
partition5-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65565 |
partition6-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65566 |
partition7-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65567 |
partition8-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65568 |
partition9-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65604 |
partition10-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65605 |
partition11-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65606 |
partition12-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65607 |
partition13-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65608 |
partition14-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65609 |
partition15-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65610 |
partition16-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65611 |
partition17-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65612 |
partition18-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65613 |
partition19-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65614 |
partition20-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65615 |
partition21-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65616 |
partition22-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65617 |
partition23-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65618 |
partition24-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65619 |
partition25-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65620 |
partition26-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65621 |
partition27-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65622 |
partition28-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65623 |
partition29-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65624 |
partition30-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65625 |
partition31-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65626 |
partition32-shared-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65627 |
partition1-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65569 |
partition2-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65570 |
partition3-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65571 |
partition4-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65572 |
partition5-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65573 |
partition6-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65574 |
partition7-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65575 |
partition8-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65576 |
partition9-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65628 |
partition10-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65629 |
partition11-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65630 |
partition12-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65631 |
partition13-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65632 |
partition14-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65633 |
partition15-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65634 |
partition16-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65635 |
partition17-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65636 |
partition18-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65637 |
partition19-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65638 |
partition20-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65639 |
partition21-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65640 |
partition22-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65641 |
partition23-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65642 |
partition24-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65643 |
partition25-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65644 |
partition26-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65645 |
partition27-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65646 |
partition28-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65647 |
partition29-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65648 |
partition30-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65649 |
partition31-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65650 |
partition32-config-volume-utilization |
.1.3.6.1.4.1.12276.1.1.1.65651 |
sensor-fault |
.1.3.6.1.4.1.12276.1.1.1.65577 |
datapath-fault |
.1.3.6.1.4.1.12276.1.1.1.65578 |
boot-time-integrity-status |
.1.3.6.1.4.1.12276.1.1.1.65579 |
fipsError |
.1.3.6.1.4.1.12276.1.1.1.196608 |
core-dump |
.1.3.6.1.4.1.12276.1.1.1.327680 |
reboot |
.1.3.6.1.4.1.12276.1.1.1.327681 |
incompatible-image |
.1.3.6.1.4.1.12276.1.1.1.327682 |
login-failed |
.1.3.6.1.4.1.12276.1.1.1.327683 |
backplane |
.1.3.6.1.4.1.12276.1.1.1.262144 |
txPwr |
.1.3.6.1.4.1.12276.1.1.1.262400 |
rxPwr |
.1.3.6.1.4.1.12276.1.1.1.262401 |
txBias |
.1.3.6.1.4.1.12276.1.1.1.262402 |
ddmTemp |
.1.3.6.1.4.1.12276.1.1.1.262403 |
ddmVcc |
.1.3.6.1.4.1.12276.1.1.1.262404 |
initialization |
.1.3.6.1.4.1.12276.1.1.1.262656 |
ePVA |
.1.3.6.1.4.1.12276.1.1.1.262912 |
be2Training |
.1.3.6.1.4.1.12276.1.1.1.262913 |
up |
.1.3.6.1.4.1.12276.1.1.1.263168 |
down |
.1.3.6.1.4.1.12276.1.1.1.263169 |
speed |
.1.3.6.1.4.1.12276.1.1.1.263170 |
disabled |
.1.3.6.1.4.1.12276.1.1.1.263171 |
lacp-mac-failure |
.1.3.6.1.4.1.12276.1.1.1.590081 |
mac-exhaustion |
.1.3.6.1.4.1.12276.1.1.1.590082 |
inaccessibleMemory |
.1.3.6.1.4.1.12276.1.1.1.458752 |
Enabling SNMP Traps¶
Enabling SNMP Traps in the CLI¶
Enabling SNMP Traps in the CLI for F5OS-C 1.5.0 or Later¶
The SNMP trap CLI configuration has been simplified in the F5OS-A 1.2.0 release and later. Use the system snmp target command to configure the SNMP trap destination. The example below uses SNMP v2c and a community string.
syscon-1-active(config)# system snmp targets target v2c-target config community public security-model v2c ipv4 address 10.255.0.144 port 162
syscon-1-active(config-target-v2c-target)# commit
Commit complete.
syscon-1-active(config-target-v2c-target)#
This example below uses SNMPv3 and uses an SNMP user instead of a community string. First, create the SNMPv3 user that can then be used to setup a snmp-trap-receiver.
syscon-1-active(config)# system snmp users user snmpv3-user config authentication-protocol md5 privacy-protocol aes
syscon-1-active(config-user-snmpv3-user)# exit
syscon-1-active(config)# system snmp targets target snmp-trap-receiver config user snmpv3-user ipv4 address 10.255.0.144 port 162
syscon-1-active(config-target-snmp-trap-receiver)# commit
Commit complete.
syscon-1-active(config-target-snmp-trap-receiver)#
You can then view the current SNMP configuration with the show system snmp targets command.
syscon-1-active# show system snmp targets
SECURITY
NAME NAME USER COMMUNITY MODEL ADDRESS PORT ADDRESS PORT
-------------------------------------------------------------------------------------------------------------
snmp-trap-receiver snmp-trap-receiver snmpv3-user - - 10.255.0.144 162 - -
test test - public v2c 10.255.0.139 162 - -
v2c-target v2c-target - public v2c 10.255.0.144 162 - -
syscon-1-active#
Enabling SNMP Traps in the CLI for Releases Prior to F5OS-C 1.5.0¶
Enter config mode and enter the following commands to enable SNMP traps. Specify your SNMP trap receiver’s IP address and port after the snmpTargetAddrTAddress field. Make sure to commit any changes.
Note: The snmpTargetAddrTAddress is currently unintuitive and is easier to configure in F5OS-C 1.5.0 and later. The Trap target IP configuration for SNMP is ip + port. The calculation for port 2 octet conversion is 1st octet port >> 8 and 2nd octet is port & 255. For a typical 161 UDP port trap receiver, the 1st octet is 161 >> 8 = 0, and 2nd octet 161 & 255 = 161. The IP address configuration for an IP address of 10.255.0.139 & 161 UDP port is “10.255.0.139.0.161”.
syscon-1-active(config)# SNMP-NOTIFICATION-MIB snmpNotifyTable snmpNotifyEntry v2_trap snmpNotifyTag v2_trap snmpNotifyType trap snmpNotifyStorageType nonVolatile
syscon-1-active(config-snmpNotifyEntry-v2_trap)# exit
syscon-1-active(config)# SNMP-TARGET-MIB snmpTargetAddrTable snmpTargetAddrEntry group2 snmpTargetAddrTDomain 1.3.6.1.6.1.1 snmpTargetAddrTAddress 10.255.0.139.0.161 snmpTargetAddrTimeout 1500 snmpTargetAddrRetryCount 3 snmpTargetAddrTagList v2_trap snmpTargetAddrParams group2 snmpTargetAddrStorageType nonVolatile snmpTargetAddrEngineID "" snmpTargetAddrTMask "" snmpTargetAddrMMS 2048 enabled
syscon-1-active(config-snmpTargetAddrEntry-group2)# exit
syscon-1-active(config)# SNMP-TARGET-MIB snmpTargetParamsTable snmpTargetParamsEntry group2 snmpTargetParamsMPModel 1 snmpTargetParamsSecurityModel 2 snmpTargetParamsSecurityName public snmpTargetParamsSecurityLevel noAuthNoPriv snmpTargetParamsStorageType nonVolatile
syscon-1-active(config-snmpTargetParamsEntry-group2)# exit
syscon-1-active(config)# commit
Commit complete.
syscon-1-active(config)#
There are various SNMP show commands in the CLI to provide configuration and stats.
syscon-1-active# show SNMP-FRAMEWORK-MIB
SNMP-FRAMEWORK-MIB snmpEngine snmpEngineID 80:00:61:81:05:01
SNMP-FRAMEWORK-MIB snmpEngine snmpEngineBoots 26
SNMP-FRAMEWORK-MIB snmpEngine snmpEngineTime 15215
SNMP-FRAMEWORK-MIB snmpEngine snmpEngineMaxMessageSize 50000
syscon-1-active# show SNMP-MPD-MIB
SNMP-MPD-MIB snmpMPDStats snmpUnknownSecurityModels 0
SNMP-MPD-MIB snmpMPDStats snmpInvalidMsgs 0
SNMP-MPD-MIB snmpMPDStats snmpUnknownPDUHandlers 0
syscon-1-active# show SNMP-TARGET-MIB
SNMP-TARGET-MIB snmpTargetObjects snmpUnavailableContexts 0
SNMP-TARGET-MIB snmpTargetObjects snmpUnknownContexts 0
syscon-1-active# show SNMP-USER-BASED-SM-MIB
SNMP-USER-BASED-SM-MIB usmStats usmStatsUnsupportedSecLevels 0
SNMP-USER-BASED-SM-MIB usmStats usmStatsNotInTimeWindows 0
SNMP-USER-BASED-SM-MIB usmStats usmStatsUnknownUserNames 0
SNMP-USER-BASED-SM-MIB usmStats usmStatsUnknownEngineIDs 0
SNMP-USER-BASED-SM-MIB usmStats usmStatsWrongDigests 0
SNMP-USER-BASED-SM-MIB usmStats usmStatsDecryptionErrors 0
syscon-1-active# show SNMPv2-MIB
SNMPv2-MIB system sysDescr "Linux 3.10.0-1160.71.1.F5.1.el7_8.x86_64 : System controller services version 1.6.0-14544"
SNMPv2-MIB system sysObjectID 1.3.6.1.4.1.12276.1.3.1.5
SNMPv2-MIB system sysUpTime 311278314
SNMPv2-MIB system sysServices 72
SNMPv2-MIB system sysORLastChange 0
SNMPv2-MIB snmp snmpInPkts 0
SNMPv2-MIB snmp snmpInBadVersions 0
SNMPv2-MIB snmp snmpInBadCommunityNames 0
SNMPv2-MIB snmp snmpInBadCommunityUses 0
SNMPv2-MIB snmp snmpInASNParseErrs 0
SNMPv2-MIB snmp snmpSilentDrops 0
SNMPv2-MIB snmp snmpProxyDrops 0
SNMPv2-MIB snmpSet snmpSetSerialNo 195289254
Enabling SNMP Traps in the webUI¶
As of F5OS-C version 1.6.0 you can enable SNMP traps in the webUI. Go to the System Settings page, and then select SNMP Configuration. Under the Targets section, select Add. If you are going to use SNMPv3, you should setup an SNMP user first.
Enter the Security Model, IP Address and Port of the SNMP Trap receiver. You’ll be required to add an SNMP User when selecting SNMPv3 as the security model.
Enabling SNMP Traps in the API¶
To enable SNMP traps via the API, use the following PATCH API call.
PATCH https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/openconfig-system:system/f5-system-snmp:snmp
In the body of the API call add the SNMP trap target along with the IP address/port and optional user.
{
"f5-system-snmp:snmp": {
"targets": {
"target": {
"name": "snmp-trap-receiver2",
"config": {
"name": "snmp-trap-receiver2",
"user": "snmpv3-user",
"ipv4": {
"address": "10.255.0.143",
"port": 162
}
}
}
}
}
}
To view the current SNMP configuration, issue the following API call:
GET https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/openconfig-system:system/f5-system-snmp:snmp/targets
The output should appear similar to the example below.
{
"f5-system-snmp:targets": {
"target": [
{
"name": "snmp-trap-receiver",
"config": {
"name": "snmp-trap-receiver",
"user": "snmpv3-user",
"ipv4": {
"address": "10.255.0.144",
"port": 162
}
},
"state": {
"name": "snmp-trap-receiver",
"user": "snmpv3-user",
"ipv4": {
"address": "10.255.0.144",
"port": 162
}
}
},
{
"name": "snmp-trap-receiver2",
"config": {
"name": "snmp-trap-receiver2",
"user": "snmpv3-user",
"ipv4": {
"address": "10.255.0.143",
"port": 162
}
},
"state": {
"name": "snmp-trap-receiver2",
"user": "snmpv3-user",
"ipv4": {
"address": "10.255.0.143",
"port": 162
}
}
},
{
"name": "test",
"config": {
"name": "test",
"community": "public",
"security-model": "v2c",
"ipv4": {
"address": "10.255.0.139",
"port": 162
}
},
"state": {
"name": "test",
"community": "public",
"security-model": "v2c",
"ipv4": {
"address": "10.255.0.139",
"port": 162
}
}
},
{
"name": "v2c-target",
"config": {
"name": "v2c-target",
"community": "public",
"security-model": "v2c",
"ipv4": {
"address": "10.255.0.144",
"port": 162
}
},
"state": {
"name": "v2c-target",
"community": "public",
"security-model": "v2c",
"ipv4": {
"address": "10.255.0.144",
"port": 162
}
}
}
]
}
}
SNMP Trap Details¶
This section provides examples of SNMP traps and their associated log messages, and what troubleshooting steps are recommended. Traps will be sent with either an assert when an alarm occurs, a clear when the alarm is cleared, or an event which is providing an update to a raised alarm event.
assert(1) is reported in alertEffect when alarm is raised.
clear(0) is reported in alertEffect when alarm is cleared.
event(2) is updated in alertEffect when event notification is reported.
As an example, the following set of traps are from an LCD failure and recovery on an F5OS based rSeries device, but similar concepts would apply to VELOS. Note, that first there are a bunch of alarms being raised noted by (INTEGER alertEffect=1). Then there are follow-on events, which provide additional updates to those alarms that have been raised noted by (INTEGER alertEffect=2). Finally, the alarms are cleared as noted by (INTEGER alertEffect=0), as well as additional informational events related to the clear noted by (INTEGER alertEffect=2).
r10900-1# file show log/system/snmp.log | include 11-Jul-2022::06:32
<INFO> 11-Jul-2022::06:32:03.334 appliance-1 confd[127]: snmp snmpv2-trap reqid=1257440809 10.255.0.145:161 (TimeTicks sysUpTime=24905)(OBJECT IDENTIFIER snmpTrapOID=module-communication-error)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=1)(INTEGER alertSeverity=3)(OCTET STRING alertTimeStamp=2022-07-11 06:32:03.331289309 UTC)(OCTET STRING alertDescription=Module communication error detected)
<INFO> 11-Jul-2022::06:32:03.335 appliance-1 confd[127]: snmp snmpv2-trap reqid=1257440809 10.255.0.144:161 (TimeTicks sysUpTime=24905)(OBJECT IDENTIFIER snmpTrapOID=module-communication-error)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=1)(INTEGER alertSeverity=3)(OCTET STRING alertTimeStamp=2022-07-11 06:32:03.331289309 UTC)(OCTET STRING alertDescription=Module communication error detected)
<INFO> 11-Jul-2022::06:32:03.384 appliance-1 confd[127]: snmp snmpv2-trap reqid=1257440810 10.255.0.145:161 (TimeTicks sysUpTime=24910)(OBJECT IDENTIFIER snmpTrapOID=module-communication-error)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-07-11 06:32:03.331305808 UTC)(OCTET STRING alertDescription=LCD module communication error detected)
<INFO> 11-Jul-2022::06:32:03.384 appliance-1 confd[127]: snmp snmpv2-trap reqid=1257440810 10.255.0.144:161 (TimeTicks sysUpTime=24910)(OBJECT IDENTIFIER snmpTrapOID=module-communication-error)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-07-11 06:32:03.331305808 UTC)(OCTET STRING alertDescription=LCD module communication error detected)
<INFO> 11-Jul-2022::06:32:03.434 appliance-1 confd[127]: snmp snmpv2-trap reqid=1257440811 10.255.0.145:161 (TimeTicks sysUpTime=24915)(OBJECT IDENTIFIER snmpTrapOID=lcd-fault)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-07-11 06:32:03.335454678 UTC)(OCTET STRING alertDescription=LCD Health is Not OK)
<INFO> 11-Jul-2022::06:32:03.434 appliance-1 confd[127]: snmp snmpv2-trap reqid=1257440811 10.255.0.144:161 (TimeTicks sysUpTime=24915)(OBJECT IDENTIFIER snmpTrapOID=lcd-fault)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-07-11 06:32:03.335454678 UTC)(OCTET STRING alertDescription=LCD Health is Not OK)
<INFO> 11-Jul-2022::06:32:07.371 appliance-1 confd[127]: snmp snmpv2-trap reqid=1257440812 10.255.0.145:161 (TimeTicks sysUpTime=25309)(OBJECT IDENTIFIER snmpTrapOID=linkUp)(INTEGER ifIndex.0.=33554447)(INTEGER ifAdminStatus.0.=1)(INTEGER ifOperStatus.0.=1)
<INFO> 11-Jul-2022::06:32:07.371 appliance-1 confd[127]: snmp snmpv2-trap reqid=1257440812 10.255.0.144:161 (TimeTicks sysUpTime=25309)(OBJECT IDENTIFIER snmpTrapOID=linkUp)(INTEGER ifIndex.0.=33554447)(INTEGER ifAdminStatus.0.=1)(INTEGER ifOperStatus.0.=1)
<INFO> 11-Jul-2022::06:32:23.884 appliance-1 confd[127]: snmp snmpv2-trap reqid=1257440813 10.255.0.145:161 (TimeTicks sysUpTime=26960)(OBJECT IDENTIFIER snmpTrapOID=linkUp)(INTEGER ifIndex.0.=33554448)(INTEGER ifAdminStatus.0.=1)(INTEGER ifOperStatus.0.=1)
<INFO> 11-Jul-2022::06:32:23.884 appliance-1 confd[127]: snmp snmpv2-trap reqid=1257440813 10.255.0.144:161 (TimeTicks sysUpTime=26960)(OBJECT IDENTIFIER snmpTrapOID=linkUp)(INTEGER ifIndex.0.=33554448)(INTEGER ifAdminStatus.0.=1)(INTEGER ifOperStatus.0.=1)
<INFO> 11-Jul-2022::06:32:52.025 appliance-1 confd[127]: snmp snmpv2-trap reqid=1257440814 10.255.0.145:161 (TimeTicks sysUpTime=29774)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-07-11 06:32:52.020011073 UTC)(OCTET STRING alertDescription=Firmware update completed for lcd app)
<INFO> 11-Jul-2022::06:32:52.025 appliance-1 confd[127]: snmp snmpv2-trap reqid=1257440814 10.255.0.144:161 (TimeTicks sysUpTime=29774)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-07-11 06:32:52.020011073 UTC)(OCTET STRING alertDescription=Firmware update completed for lcd app)
<INFO> 11-Jul-2022::06:32:53.291 appliance-1 confd[127]: snmp snmpv2-trap reqid=1257440815 10.255.0.145:161 (TimeTicks sysUpTime=29901)(OBJECT IDENTIFIER snmpTrapOID=module-communication-error)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=0)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-07-11 06:32:53.287950254 UTC)(OCTET STRING alertDescription=Module communication error detected)
<INFO> 11-Jul-2022::06:32:53.291 appliance-1 confd[127]: snmp snmpv2-trap reqid=1257440815 10.255.0.144:161 (TimeTicks sysUpTime=29901)(OBJECT IDENTIFIER snmpTrapOID=module-communication-error)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=0)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-07-11 06:32:53.287950254 UTC)(OCTET STRING alertDescription=Module communication error detected)
<INFO> 11-Jul-2022::06:32:53.341 appliance-1 confd[127]: snmp snmpv2-trap reqid=1257440816 10.255.0.145:161 (TimeTicks sysUpTime=29906)(OBJECT IDENTIFIER snmpTrapOID=module-communication-error)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-07-11 06:32:53.287969529 UTC)(OCTET STRING alertDescription=LCD module communication is OK)
<INFO> 11-Jul-2022::06:32:53.341 appliance-1 confd[127]: snmp snmpv2-trap reqid=1257440816 10.255.0.144:161 (TimeTicks sysUpTime=29906)(OBJECT IDENTIFIER snmpTrapOID=module-communication-error)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-07-11 06:32:53.287969529 UTC)(OCTET STRING alertDescription=LCD module communication is OK)
<INFO> 11-Jul-2022::06:32:53.391 appliance-1 confd[127]: snmp snmpv2-trap reqid=1257440817 10.255.0.145:161 (TimeTicks sysUpTime=29911)(OBJECT IDENTIFIER snmpTrapOID=lcd-fault)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-07-11 06:32:53.292347336 UTC)(OCTET STRING alertDescription=LCD Health is OK)
<INFO> 11-Jul-2022::06:32:53.391 appliance-1 confd[127]: snmp snmpv2-trap reqid=1257440817 10.255.0.144:161 (TimeTicks sysUpTime=29911)(OBJECT IDENTIFIER snmpTrapOID=lcd-fault)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-07-11 06:32:53.292347336 UTC)(OCTET STRING alertDescription=LCD Health is OK)
Generic SNMP Traps¶
coldStart 1.3.6.1.6.3.1.1.5.1
A coldStart trap signifies that the SNMP entity,supporting a notification originator application, is reinitializing itself and that its configuration may have been altered. This trap can come from both the system controllers and the chassis partitions.
<INFO> 15-Mar-2024::12:34:38.428 partition2 confd[102]: snmp snmpv2-trap reqid=1834217795 10.255.0.139:162 (TimeTicks sysUpTime=717)(OBJECT IDENTIFIER snmpTrapOID=coldStart)
<INFO> 23-Jul-2024::12:37:14.929 controller-1 confd[658]: snmp snmpv2-trap reqid=2109934136 10.255.80.251:162 (TimeTicks sysUpTime=2751)(OBJECT IDENTIFIER snmpTrapOID=coldStart)
link down 1.3.6.1.6.3.1.1.5.3
A linkDown trap signifies that the SNMP entity, acting in an agent role, has detected that the ifOperStatus object for one of its communication links is about to enter the down state from some other state (but not from the notPresent state). This other state is indicated by the included value of ifOperStatus.
<INFO> 15-Mar-2024::13:44:56.045 partition2 confd[112]: snmp snmpv2-trap reqid=1524445192 10.255.0.139:162 (TimeTicks sysUpTime=296420)(OBJECT IDENTIFIER snmpTrapOID=linkDown)(INTEGER ifIndex.0.=33554445)(INTEGER ifAdminStatus.0.=1)(INTEGER ifOperStatus.0.=2)
down .1.3.6.1.4.1.12276.1.1.1.263169
In F5OS-C 1.8.0 an additional F5OS enterprise trap has been added that will trigger in parallel with the generic linkup/down traps. The enterprise up/down traps adds a human readable interface name as seen below.
<INFO> 30-Apr-2024::15:14:38.582 partition2 confd[123]: snmp snmpv2-trap reqid=677841658 10.255.80.251:162 (TimeTicks sysUpTime=49704)(OBJECT IDENTIFIER snmpTrapOID=linkDown)(INTEGER ifIndex.0.=33554450)(INTEGER ifAdminStatus.0.=1)(INTEGER ifOperStatus.0.=2)
<INFO> 30-Apr-2024::15:14:38.577 partition2 confd[123]: snmp snmpv2-trap reqid=677841657 10.255.80.251:162 (TimeTicks sysUpTime=49704)(OBJECT IDENTIFIER snmpTrapOID=down)(OCTET STRING alertSource=interface-1/2.0)(INTEGER alertEffect=1)(INTEGER alertSeverity=4)(OCTET STRING alertTimeStamp=2024-04-30 19:14:38.516399590 UTC)(OCTET STRING alertDescription=Interface down)
link up 1.3.6.1.6.3.1.1.5.4
A linkUp trap signifies that the SNMP entity, acting in an agent role, has detected that the ifOperStatus object for one of its communication links left the down state and transitioned into some other state (but not into the notPresent state). This other state is indicated by the included value of ifOperStatus.
<INFO> 15-Mar-2024::13:44:53.737 partition2 confd[112]: snmp snmpv2-trap reqid=1524445191 10.255.0.139:162 (TimeTicks sysUpTime=296189)(OBJECT IDENTIFIER snmpTrapOID=linkUp)(INTEGER ifIndex.0.=33554445)(INTEGER ifAdminStatus.0.=1)(INTEGER ifOperStatus.0.=1)
up .1.3.6.1.4.1.12276.1.1.1.263168
In F5OS-C 1.8.0 an additional F5OS enterprise trap has been added that will trigger in parallel with the generic linkup/down traps. The enterprise up/down traps adds a human readable interface name as seen below.
<INFO> 30-Apr-2024::15:14:51.956 partition2 confd[123]: snmp snmpv2-trap reqid=677841662 10.255.80.251:162 (TimeTicks sysUpTime=51041)(OBJECT IDENTIFIER snmpTrapOID=linkUp)(INTEGER ifIndex.0.=33554450)(INTEGER ifAdminStatus.0.=1)(INTEGER ifOperStatus.0.=1)
<INFO> 30-Apr-2024::15:14:51.995 partition2 confd[123]: snmp snmpv2-trap reqid=677841663 10.255.80.251:162 (TimeTicks sysUpTime=51045)(OBJECT IDENTIFIER snmpTrapOID=up)(OCTET STRING alertSource=interface-1/2.0)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-04-30 19:14:51.909205675 UTC)(OCTET STRING alertDescription=Interface up)
test1-1#
F5OS Specific Traps¶
Device Fault Traps¶
hardware-device-fault .1.3.6.1.4.1.12276.1.1.1.65536
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
ASSERT |
Hardware device fault detected |
EVENT |
<< Asserted | Deasserted >> : << hardware sensor or machine error >> Example: Asserted: CPU machine check error |
CLEAR |
Hardware device fault detected |
This set of taps may indicate a fault with various hardware components on the VELOS chassis like CPUs or fans. Examine the trap for specific details of what subsystem has failed to determine the proper troubleshooting steps to pursue.
syscon-1-active# file show log/confd/snmp.log | include hardware-device-fault
<INFO> 3-Oct-2022::09:34:13.421 controller-1 confd[437]: snmp snmpv2-trap reqid=64689659 10.255.0.143:162 (TimeTicks sysUpTime=1395)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:04.622109597 UTC)(OCTET STRING alertDescription=Deasserted: CPU FIVR fault)
<INFO> 3-Oct-2022::09:34:13.912 controller-1 confd[437]: snmp snmpv2-trap reqid=64689664 10.255.0.143:162 (TimeTicks sysUpTime=1444)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:04.682054038 UTC)(OCTET STRING alertDescription=Deasserted: CPU machine check error)
<INFO> 3-Oct-2022::09:34:14.012 controller-1 confd[437]: snmp snmpv2-trap reqid=64689665 10.255.0.143:162 (TimeTicks sysUpTime=1454)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:04.695492799 UTC)(OCTET STRING alertDescription=Deasserted: CPU internal error)
<INFO> 3-Oct-2022::09:34:14.163 controller-1 confd[437]: snmp snmpv2-trap reqid=64689667 10.255.0.143:162 (TimeTicks sysUpTime=1469)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:04.796639804 UTC)(OCTET STRING alertDescription=Deasserted: TPM Provisioning failed)
<INFO> 3-Oct-2022::09:34:14.214 controller-1 confd[437]: snmp snmpv2-trap reqid=64689668 10.255.0.143:162 (TimeTicks sysUpTime=1474)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:04.801036565 UTC)(OCTET STRING alertDescription=Deasserted: Failure to discover boot device)
<INFO> 3-Oct-2022::09:34:24.721 controller-1 confd[437]: snmp snmpv2-trap reqid=64689695 10.255.0.143:162 (TimeTicks sysUpTime=2525)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:10.601938407 UTC)(OCTET STRING alertDescription=Deasserted: CPU fatal error)
<INFO> 3-Oct-2022::09:34:25.190 controller-1 confd[437]: snmp snmpv2-trap reqid=64689700 10.255.0.143:162 (TimeTicks sysUpTime=2572)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:13.532229145 UTC)(OCTET STRING alertDescription=Deasserted: CPU non-fatal error)
<INFO> 3-Oct-2022::09:34:28.698 controller-1 confd[437]: snmp snmpv2-trap reqid=64689714 10.255.0.143:162 (TimeTicks sysUpTime=2923)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:05.476303188 UTC)(OCTET STRING alertDescription=Deasserted: CPU HW correctable error)
<INFO> 3-Oct-2022::09:34:29.069 controller-1 confd[437]: snmp snmpv2-trap reqid=64689720 10.255.0.143:162 (TimeTicks sysUpTime=2959)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:05.650739661 UTC)(OCTET STRING alertDescription=Deasserted: TPM Randomization failed)
<INFO> 3-Oct-2022::09:34:30.674 controller-1 confd[437]: snmp snmpv2-trap reqid=64689739 10.255.0.143:162 (TimeTicks sysUpTime=3120)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:05.848924465 UTC)(OCTET STRING alertDescription=Deasserted: TPM Provisioning failed)
<INFO> 3-Oct-2022::09:34:31.170 controller-1 confd[437]: snmp snmpv2-trap reqid=64689743 10.255.0.143:162 (TimeTicks sysUpTime=3170)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:05.870864370 UTC)(OCTET STRING alertDescription=Deasserted: CPU thermal trip fault)
<INFO> 3-Oct-2022::09:34:31.450 controller-1 confd[437]: snmp snmpv2-trap reqid=64689746 10.255.0.143:162 (TimeTicks sysUpTime=3198)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:05.983601044 UTC)(OCTET STRING alertDescription=Deasserted: CPU hot fault)
<INFO> 3-Oct-2022::09:34:31.547 controller-1 confd[437]: snmp snmpv2-trap reqid=64689748 10.255.0.143:162 (TimeTicks sysUpTime=3207)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:05.996008252 UTC)(OCTET STRING alertDescription=Deasserted: Failure to discover boot device)
<INFO> 3-Oct-2022::09:34:31.866 controller-1 confd[437]: snmp snmpv2-trap reqid=64689751 10.255.0.143:162 (TimeTicks sysUpTime=3239)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:06.012085416 UTC)(OCTET STRING alertDescription=Deasserted: CPU FIVR fault)
<INFO> 3-Oct-2022::09:34:32.476 controller-1 confd[437]: snmp snmpv2-trap reqid=64689757 10.255.0.143:162 (TimeTicks sysUpTime=3300)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:06.047575870 UTC)(OCTET STRING alertDescription=Deasserted: CPU machine check error)
<INFO> 3-Oct-2022::09:34:32.577 controller-1 confd[437]: snmp snmpv2-trap reqid=64689758 10.255.0.143:162 (TimeTicks sysUpTime=3310)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:06.071956117 UTC)(OCTET STRING alertDescription=Deasserted: CPU internal error)
<INFO> 3-Oct-2022::09:34:33.368 controller-1 confd[437]: snmp snmpv2-trap reqid=64689765 10.255.0.143:162 (TimeTicks sysUpTime=3390)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:08.684787453 UTC)(OCTET STRING alertDescription=Deasserted: CPU HW correctable error)
<INFO> 3-Oct-2022::09:34:33.725 controller-1 confd[437]: snmp snmpv2-trap reqid=64689771 10.255.0.143:162 (TimeTicks sysUpTime=3425)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:08.783020614 UTC)(OCTET STRING alertDescription=Deasserted: TPM Randomization failed)
<INFO> 3-Oct-2022::09:34:35.380 controller-1 confd[437]: snmp snmpv2-trap reqid=64689791 10.255.0.143:162 (TimeTicks sysUpTime=3591)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:09.055593697 UTC)(OCTET STRING alertDescription=Deasserted: TPM Provisioning failed)
<INFO> 3-Oct-2022::09:34:35.831 controller-1 confd[437]: snmp snmpv2-trap reqid=64689795 10.255.0.143:162 (TimeTicks sysUpTime=3636)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:09.075155728 UTC)(OCTET STRING alertDescription=Deasserted: CPU thermal trip fault)
<INFO> 3-Oct-2022::09:34:36.107 controller-1 confd[437]: snmp snmpv2-trap reqid=64689798 10.255.0.143:162 (TimeTicks sysUpTime=3663)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:09.137071629 UTC)(OCTET STRING alertDescription=Deasserted: CPU hot fault)
firmware-fault .1.3.6.1.4.1.12276.1.1.1.65537
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
EVENT |
<<ARM Exception data available | Heap running low | Task stack usage warning | Watchdog timer warning >> |
This set of taps may indicate a fault or temporary warning with the firmware upgrade process. Monitor the firmware upgrade process via SNMP traps, or via the CLI, API, or webUI alerts. These may occur as part of a software update to F5OS. Not every upgrade requires firmware to be updated. You may see different components having their firmware upgraded such as (lcd, bios, cpld, lop app, sirr, atse, nvme0, nvme1). It is important not to interrupt the firmware upgrade process. If you see a firmware update alert raised for a specific component, you should not make any changes to the system until each component returns a Firmware update completed message. In newer versions of F5OS, the webUI will display a banner at the top of the page while firmware updates run and will disappear when they complete. The banner will have a link to the Alarms and Events page which will show the current status of the firmware updates as seen below.
syscon-1-active# file show log/confd/snmp.log | include firmware-fault
<INFO> 3-Oct-2022::09:34:14.060 controller-1 confd[437]: snmp snmpv2-trap reqid=64689666 10.255.0.143:162 (TimeTicks sysUpTime=1459)(OBJECT IDENTIFIER snmpTrapOID=firmware-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:04.738518251 UTC)(OCTET STRING alertDescription=Deasserted: ARM exception available)
<INFO> 3-Oct-2022::09:34:14.274 controller-1 confd[437]: snmp snmpv2-trap reqid=64689669 10.255.0.143:162 (TimeTicks sysUpTime=1480)(OBJECT IDENTIFIER snmpTrapOID=firmware-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:04.809201547 UTC)(OCTET STRING alertDescription=Deasserted: Watchdog timer warning)
<INFO> 3-Oct-2022::09:34:14.317 controller-1 confd[437]: snmp snmpv2-trap reqid=64689670 10.255.0.143:162 (TimeTicks sysUpTime=1484)(OBJECT IDENTIFIER snmpTrapOID=firmware-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:04.813164991 UTC)(OCTET STRING alertDescription=Deasserted: Task stack warning)
<INFO> 3-Oct-2022::09:34:14.366 controller-1 confd[437]: snmp snmpv2-trap reqid=64689671 10.255.0.143:162 (TimeTicks sysUpTime=1489)(OBJECT IDENTIFIER snmpTrapOID=firmware-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:05.423496350 UTC)(OCTET STRING alertDescription=Deasserted: Heap running low)
<INFO> 3-Oct-2022::09:34:19.425 controller-1 confd[437]: snmp snmpv2-trap reqid=64689682 10.255.0.143:162 (TimeTicks sysUpTime=1995)(OBJECT IDENTIFIER snmpTrapOID=firmware-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:05.257249161 UTC)(OCTET STRING alertDescription=Deasserted: Heap running low)
<INFO> 3-Oct-2022::09:34:23.941 controller-1 confd[437]: snmp snmpv2-trap reqid=64689686 10.255.0.143:162 (TimeTicks sysUpTime=2447)(OBJECT IDENTIFIER snmpTrapOID=firmware-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:08.538532436 UTC)(OCTET STRING alertDescription=Deasserted: ARM exception available)
<INFO> 3-Oct-2022::09:34:23.992 controller-1 confd[437]: snmp snmpv2-trap reqid=64689687 10.255.0.143:162 (TimeTicks sysUpTime=2452)(OBJECT IDENTIFIER snmpTrapOID=firmware-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:10.511604856 UTC)(OCTET STRING alertDescription=Deasserted: ARM exception available)
<INFO> 3-Oct-2022::09:34:28.960 controller-1 confd[437]: snmp snmpv2-trap reqid=64689719 10.255.0.143:162 (TimeTicks sysUpTime=2949)(OBJECT IDENTIFIER snmpTrapOID=firmware-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:05.629288197 UTC)(OCTET STRING alertDescription=Deasserted: Watchdog timer warning)
<INFO> 3-Oct-2022::09:34:30.568 controller-1 confd[437]: snmp snmpv2-trap reqid=64689738 10.255.0.143:162 (TimeTicks sysUpTime=3109)(OBJECT IDENTIFIER snmpTrapOID=firmware-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:05.843882824 UTC)(OCTET STRING alertDescription=Deasserted: Task stack warning)
<INFO> 3-Oct-2022::09:34:31.496 controller-1 confd[437]: snmp snmpv2-trap reqid=64689747 10.255.0.143:162 (TimeTicks sysUpTime=3202)(OBJECT IDENTIFIER snmpTrapOID=firmware-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:05.989205994 UTC)(OCTET STRING alertDescription=Deasserted: Heap running low)
<INFO> 3-Oct-2022::09:34:32.628 controller-1 confd[437]: snmp snmpv2-trap reqid=64689759 10.255.0.143:162 (TimeTicks sysUpTime=3315)(OBJECT IDENTIFIER snmpTrapOID=firmware-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:06.079544774 UTC)(OCTET STRING alertDescription=Deasserted: Watchdog timer warning)
unknown-alarm .1.3.6.1.4.1.12276.1.1.1.65538
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
EVENT |
Unregistered alarm detected.
syscon-1-active# file show log/confd/snmp.log | include unknown-alarm
<INFO> 3-May-2023::15:57:28.590 controller-1 confd[608]: snmp snmpv2-trap reqid=306728665 10.255.0.143:162 (TimeTicks sysUpTime=10501)(OBJECT IDENTIFIER snmpTrapOID=unknown-alarm)(OCTET STRING alertSource=blade-3)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-05-03 15:57:11.750307435 UTC)(OCTET STRING alertDescription=Asserted: host power)
<INFO> 3-May-2023::15:57:28.704 controller-1 confd[608]: snmp snmpv2-trap reqid=306728666 10.255.0.143:162 (TimeTicks sysUpTime=10512)(OBJECT IDENTIFIER snmpTrapOID=unknown-alarm)(OCTET STRING alertSource=blade-3)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-05-03 15:57:11.764398034 UTC)(OCTET STRING alertDescription=Deasserted: host reset)
<INFO> 3-May-2023::15:57:52.052 controller-1 confd[608]: snmp snmpv2-trap reqid=306728691 10.255.0.143:162 (TimeTicks sysUpTime=12847)(OBJECT IDENTIFIER snmpTrapOID=unknown-alarm)(OCTET STRING alertSource=blade-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-05-03 15:57:29.819260230 UTC)(OCTET STRING alertDescription=Asserted: host power)
<INFO> 3-May-2023::15:58:02.125 controller-1 confd[608]: snmp snmpv2-trap reqid=306728727 10.255.0.143:162 (TimeTicks sysUpTime=13854)(OBJECT IDENTIFIER snmpTrapOID=unknown-alarm)(OCTET STRING alertSource=blade-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-05-03 15:57:30.252735664 UTC)(OCTET STRING alertDescription=Deasserted: host reset)
<INFO> 3-May-2023::15:58:02.129 controller-1 confd[608]: snmp snmpv2-trap reqid=306728729 10.255.0.143:162 (TimeTicks sysUpTime=13855)(OBJECT IDENTIFIER snmpTrapOID=unknown-alarm)(OCTET STRING alertSource=blade-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-05-03 15:57:30.272300685 UTC)(OCTET STRING alertDescription=Asserted: host power)
<INFO> 3-May-2023::15:58:02.149 controller-1 confd[608]: snmp snmpv2-trap reqid=306728740 10.255.0.143:162 (TimeTicks sysUpTime=13857)(OBJECT IDENTIFIER snmpTrapOID=unknown-alarm)(OCTET STRING alertSource=blade-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-05-03 15:57:35.313579115 UTC)(OCTET STRING alertDescription=Deasserted: host reset)
<INFO> 3-May-2023::15:58:22.209 controller-1 confd[608]: snmp snmpv2-trap reqid=306728761 10.255.0.143:162 (TimeTicks sysUpTime=15863)(OBJECT IDENTIFIER snmpTrapOID=unknown-alarm)(OCTET STRING alertSource=blade-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-05-03 15:57:45.521213877 UTC)(OCTET STRING alertDescription=Asserted: host power)
<INFO> 3-May-2023::15:58:32.300 controller-1 confd[608]: snmp snmpv2-trap reqid=306728796 10.255.0.143:162 (TimeTicks sysUpTime=16872)(OBJECT IDENTIFIER snmpTrapOID=unknown-alarm)(OCTET STRING alertSource=blade-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-05-03 15:57:45.951590859 UTC)(OCTET STRING alertDescription=Deasserted: host reset)
<INFO> 3-May-2023::15:58:32.305 controller-1 confd[608]: snmp snmpv2-trap reqid=306728801 10.255.0.143:162 (TimeTicks sysUpTime=16872)(OBJECT IDENTIFIER snmpTrapOID=unknown-alarm)(OCTET STRING alertSource=blade-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-05-03 15:57:47.762723656 UTC)(OCTET STRING alertDescription=Asserted: host power)
memory-fault .1.3.6.1.4.1.12276.1.1.1.65539
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
EVENT |
file show log/confd/snmp.log | include memory-fault
drive-fault .1.3.6.1.4.1.12276.1.1.1.65540
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
ASSERT |
Fault in drive detected |
EVENT |
Event can either of these below issues:
Clear descriptions:
|
CLEAR |
Fault in drive detected |
file show log/confd/snmp.log | include drive-fault
cpu-fault .1.3.6.1.4.1.12276.1.1.1.65541
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
EVENT |
syscon-1-active# file show log/confd/snmp.log | include cpu-fault
pcie-fault .1.3.6.1.4.1.12276.1.1.1.65542
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
EVENT |
syscon-1-active# file show log/confd/snmp.log | include pcie-fault
aom-fault .1.3.6.1.4.1.12276.1.1.1.65543
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
ASSERT |
Fault detected in the AOM |
EVENT |
<< Asserted | Deasserted >>: <<sensor name>> Sensor names include: I2C-1 PEL EEPROM Ack Fault I2C-1 CPLD EEPROM Ack Fault I2C-1 Platform EEPROM Ack Fault I2C-3 TMP421 Outlet Ack Fault I2C-3 MAX31730 VQF Ack Fault I2C-3 TMP423 Ack Fault I2C-3 MAX31730 ATSE1 Ack Fault I2C-3 MAX31730 ATSE2 Ack Fault I2C-3 LM25066 Hotswap Controller Ack Fault I2C-4 TMP468 ATSE Ack Fault I2C-4 TMP421 Inlet Ack Fault I2C-1 Stuck Bus Fault I2C-2 Stuck Bus Fault I2C-3 Stuck Bus Fault I2C-4 Stuck Bus Fault LOP FIT Forced Bad Health Blade-LOP NC-SI / RMII Failure Power-On Self Test (POST) failure |
CLEAR |
Fault detected in the AOM |
The example logs below are from a VELOS system controller.
velos-1-gsa-2-active# file show log/confd/snmp.log | include aom-fault
<INFO> 3-Jan-2024::14:05:47.699 controller-2 confd[571]: snmp snmpv2-trap reqid=638913575 10.255.0.139:162 (TimeTicks sysUpTime=82582)(OBJECT IDENTIFIER snmpTrapOID=aom-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-01-03 19:04:57.008547624 UTC)(OCTET STRING alertDescription=Attribute health reset)
<INFO> 3-Jan-2024::14:05:47.700 controller-2 confd[571]: snmp snmpv2-trap reqid=638913575 10.255.0.144:162 (TimeTicks sysUpTime=82582)(OBJECT IDENTIFIER snmpTrapOID=aom-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-01-03 19:04:57.008547624 UTC)(OCTET STRING alertDescription=Attribute health reset)
<INFO> 3-Jan-2024::14:05:47.702 controller-2 confd[571]: snmp snmpv2-trap reqid=638913576 10.255.0.144:162 (TimeTicks sysUpTime=82582)(OBJECT IDENTIFIER snmpTrapOID=aom-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-01-03 19:04:57.008547624 UTC)(OCTET STRING alertDescription=Attribute health reset)
<INFO> 3-Jan-2024::14:05:47.703 controller-2 confd[571]: snmp snmpv2-trap reqid=638913576 10.255.0.143:162 (TimeTicks sysUpTime=82582)(OBJECT IDENTIFIER snmpTrapOID=aom-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-01-03 19:04:57.008547624 UTC)(OCTET STRING alertDescription=Attribute health reset)
<INFO> 16-Feb-2024::01:17:44.032 controller-2 confd[583]: snmp snmpv2-trap reqid=338839460 10.255.80.251:162 (TimeTicks sysUpTime=62379)(OBJECT IDENTIFIER snmpTrapOID=aom-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-02-16 06:15:59.868305865 UTC)(OCTET STRING alertDescription=LOP is receiving health reports from all installed VFC cards)
<INFO> 5-Mar-2024::15:16:16.696 controller-2 confd[581]: snmp snmpv2-trap reqid=220801582 10.255.80.251:162 (TimeTicks sysUpTime=21586)(OBJECT IDENTIFIER snmpTrapOID=aom-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=1)(INTEGER alertSeverity=3)(OCTET STRING alertTimeStamp=2024-03-05 20:16:16.605975998 UTC)(OCTET STRING alertDescription=Fault detected in the AOM)
<INFO> 5-Mar-2024::15:16:16.732 controller-2 confd[581]: snmp snmpv2-trap reqid=220801583 10.255.80.251:162 (TimeTicks sysUpTime=21590)(OBJECT IDENTIFIER snmpTrapOID=aom-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-03-05 20:16:16.606020613 UTC)(OCTET STRING alertDescription=LOP is not receiving health reports from all installed VPC cards)
<INFO> 5-Mar-2024::15:16:16.784 controller-2 confd[581]: snmp snmpv2-trap reqid=220801584 10.255.80.251:162 (TimeTicks sysUpTime=21595)(OBJECT IDENTIFIER snmpTrapOID=aom-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=0)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-03-05 20:16:16.643891161 UTC)(OCTET STRING alertDescription=Fault detected in the AOM)
<INFO> 5-Mar-2024::15:16:16.834 controller-2 confd[581]: snmp snmpv2-trap reqid=220801585 10.255.80.251:162 (TimeTicks sysUpTime=21600)(OBJECT IDENTIFIER snmpTrapOID=aom-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-03-05 20:16:16.643912339 UTC)(OCTET STRING alertDescription=LOP is not receiving health reports from all installed VPC cards)
<INFO> 5-Mar-2024::15:23:15.878 controller-2 confd[581]: snmp snmpv2-trap reqid=220801597 10.255.80.251:162 (TimeTicks sysUpTime=63505)(OBJECT IDENTIFIER snmpTrapOID=aom-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-03-05 20:21:35.736268196 UTC)(OCTET STRING alertDescription=Attribute health reset)
velos-1-gsa-2-active#
drive-capacity-fault .1.3.6.1.4.1.12276.1.1.1.65544
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
ASSERT |
Running out of drive capacity |
EVENT |
<< value >> percent of drive capacity left Drive capacity is available Example: Ten percent of drive capacity left Three percent of drive capacity left Fifteen percent of drive capacity left Drive capacity is available |
CLEAR |
Running out of drive capacity |
The output below is from an rSeries appliance:
syscon-1-active# file show log/confd/snmp.log | include drive-capacity-fault
<INFO> 12-Apr-2023::11:54:10.563 appliance-1 confd[116]: snmp snmpv2-trap reqid=608130731 10.255.8.22:6011 (TimeTicks sysUpTime=87079)(OBJECT IDENTIFIER snmpTrapOID=drive-capacity-fault)(OCTET STRING alertSource=appliance)(INTEGER alertEffect=1)(INTEGER alertSeverity=2)(OCTET STRING alertTimeStamp=2023-04-12 11:54:10.558711877 UTC)(OCTET STRING alertDescription=Running out of drive capacity)
<INFO> 12-Apr-2023::11:54:10.613 appliance-1 confd[116]: snmp snmpv2-trap reqid=608130732 10.255.8.22:6011 (TimeTicks sysUpTime=87084)(OBJECT IDENTIFIER snmpTrapOID=drive-capacity-fault)(OCTET STRING alertSource=appliance)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-04-12 11:54:10.558725204 UTC)(OCTET STRING alertDescription=Drive usage exceeded 97%, used=100%)
<INFO> 12-Apr-2023::11:54:35.167 appliance-1 confd[116]: snmp snmpv2-trap reqid=608130733 10.255.8.22:6011 (TimeTicks sysUpTime=89540)(OBJECT IDENTIFIER snmpTrapOID=drive-capacity-fault)(OCTET STRING alertSource=appliance)(INTEGER alertEffect=0)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-04-12 11:54:35.162718848 UTC)(OCTET STRING alertDescription=Running out of drive capacity)
<INFO> 12-Apr-2023::11:54:35.217 appliance-1 confd[116]: snmp snmpv2-trap reqid=608130734 10.255.8.22:6011 (TimeTicks sysUpTime=89545)(OBJECT IDENTIFIER snmpTrapOID=drive-capacity-fault)(OCTET STRING alertSource=appliance)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-04-12 11:54:35.162734807 UTC)(OCTET STRING alertDescription=Drive usage with in range, used=54%)
power-fault .1.3.6.1.4.1.12276.1.1.1.65545
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
ASSERT |
Power fault detected in hardware |
EVENT |
<< Asserted | Deasserted >>: <<sensor name>> Example: Asserted: +5.0V_STBY power fault |
CLEAR |
Power fault detected in hardware |
Power fault detected in hardware.
syscon-1-active# file show log/confd/snmp.log | include power-fault | more
<INFO> 3-Oct-2022::09:34:13.191 controller-1 confd[437]: snmp snmpv2-trap reqid=64689657 10.255.0.143:162 (TimeTicks sysUpTime=1372)(OBJECT IDENTIFIER snmpTrapOID=power-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:02.814789677 UTC)(OCTET STRING alertDescription=Deasserted: +1.2V_VCC_DNV power fault)
<INFO> 3-Oct-2022::09:34:13.291 controller-1 confd[437]: snmp snmpv2-trap reqid=64689658 10.255.0.143:162 (TimeTicks sysUpTime=1382)(OBJECT IDENTIFIER snmpTrapOID=power-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:04.617772204 UTC)(OCTET STRING alertDescription=Deasserted: +1.88V_BCM power fault)
<INFO> 3-Oct-2022::09:34:13.498 controller-1 confd[437]: snmp snmpv2-trap reqid=64689660 10.255.0.143:162 (TimeTicks sysUpTime=1402)(OBJECT IDENTIFIER snmpTrapOID=power-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:04.646154531 UTC)(OCTET STRING alertDescription=Deasserted: +1.24V_VCCREF_DNV power fault)
<INFO> 3-Oct-2022::09:34:13.601 controller-1 confd[437]: snmp snmpv2-trap reqid=64689661 10.255.0.143:162 (TimeTicks sysUpTime=1413)(OBJECT IDENTIFIER snmpTrapOID=power-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:04.659925020 UTC)(OCTET STRING alertDescription=Deasserted: +1.2V_VCCRAM_DNV power fault)
<INFO> 3-Oct-2022::09:34:13.710 controller-1 confd[437]: snmp snmpv2-trap reqid=64689662 10.255.0.143:162 (TimeTicks sysUpTime=1424)(OBJECT IDENTIFIER snmpTrapOID=power-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:04.670031354 UTC)(OCTET STRING alertDescription=Deasserted: +3.3V_BCM power fault)
<INFO> 3-Oct-2022::09:34:13.808 controller-1 confd[437]: snmp snmpv2-trap reqid=64689663 10.255.0.143:162 (TimeTicks sysUpTime=1433)(OBJECT IDENTIFIER snmpTrapOID=power-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:04.675692802 UTC)(OCTET STRING alertDescription=Deasserted: +1.27V_BCM power fault)
<INFO> 3-Oct-2022::09:34:24.045 controller-1 confd[437]: snmp snmpv2-trap reqid=64689688 10.255.0.143:162 (TimeTicks sysUpTime=2457)(OBJECT IDENTIFIER snmpTrapOID=power-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:10.523503631 UTC)(OCTET STRING alertDescription=Asserted: inlet hot swap controller power-good)
<INFO> 3-Oct-2022::09:34:24.145 controller-1 confd[437]: snmp snmpv2-trap reqid=64689689 10.255.0.143:162 (TimeTicks sysUpTime=2467)(OBJECT IDENTIFIER snmpTrapOID=power-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:10.528169243 UTC)(OCTET STRING alertDescription=Deasserted: inlet hot swap controller fault)
<INFO> 3-Oct-2022::09:34:24.194 controller-1 confd[437]: snmp snmpv2-trap reqid=64689690 10.255.0.143:162 (TimeTicks sysUpTime=2472)(OBJECT IDENTIFIER snmpTrapOID=power-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:10.542592525 UTC)(OCTET STRING alertDescription=Asserted: exhaust hot swap controller power-good)
<INFO> 3-Oct-2022::09:34:24.306 controller-1 confd[437]: snmp snmpv2-trap reqid=64689691 10.255.0.143:162 (TimeTicks sysUpTime=2483)(OBJECT IDENTIFIER snmpTrapOID=power-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:10.550460202 UTC)(OCTET STRING alertDescription=Deasserted: exhaust hot swap controller fault)
<INFO> 3-Oct-2022::09:34:24.507 controller-1 confd[437]: snmp snmpv2-trap reqid=64689693 10.255.0.143:162 (TimeTicks sysUpTime=2503)(OBJECT IDENTIFIER snmpTrapOID=power-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:10.585489227 UTC)(OCTET STRING alertDescription=Deasserted: +1.2V_VDDQ_DNV power fault)
<INFO> 3-Oct-2022::09:34:24.618 controller-1 confd[437]: snmp snmpv2-trap reqid=64689694 10.255.0.143:162 (TimeTicks sysUpTime=2514)(OBJECT IDENTIFIER snmpTrapOID=power-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:10.592594910 UTC)(OCTET STRING alertDescription=Deasserted: +1.0V_A_FAB_BCM power fault)
<INFO> 3-Oct-2022::09:34:24.918 controller-1 confd[437]: snmp snmpv2-trap reqid=64689697 10.255.0.143:162 (TimeTicks sysUpTime=2544)(OBJECT IDENTIFIER snmpTrapOID=power-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:13.480445771 UTC)(OCTET STRING alertDescription=Deasserted: +0.6V_VTT_DNV power fault)
<INFO> 3-Oct-2022::09:34:25.089 controller-1 confd[437]: snmp snmpv2-trap reqid=64689699 10.255.0.143:162 (TimeTicks sysUpTime=2562)(OBJECT IDENTIFIER snmpTrapOID=power-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:13.513588350 UTC)(OCTET STRING alertDescription=Deasserted: +1.25V_BCM power fault)
<INFO> 3-Oct-2022::09:34:28.549 controller-1 confd[437]: snmp snmpv2-trap reqid=64689712 10.255.0.143:162 (TimeTicks sysUpTime=2908)(OBJECT IDENTIFIER snmpTrapOID=power-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:05.402307735 UTC)(OCTET STRING alertDescription=Deasserted: +1.05V_DNV power fault)
thermal-fault .1.3.6.1.4.1.12276.1.1.1.65546
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
ASSERT |
Thermal fault detected in hardware |
EVENT |
<< Thermal sensor >> at <<temperature>> Example: VQF at +38.1 degC |
CLEAR |
Thermal fault detected in hardware |
Thermal fault detected in hardware.
syscon-1-active# file show log/confd/snmp.log | include thermal-fault | more
<INFO> 3-Oct-2022::09:34:18.464 controller-1 confd[437]: snmp snmpv2-trap reqid=64689672 10.255.0.143:162 (TimeTicks sysUpTime=1899)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:07.193382129 UTC)(OCTET STRING alertDescription=outlet at +25.0 degC)
<INFO> 3-Oct-2022::09:34:23.915 controller-1 confd[437]: snmp snmpv2-trap reqid=64689685 10.255.0.143:162 (TimeTicks sysUpTime=2444)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:07.062324532 UTC)(OCTET STRING alertDescription=outlet at +25.0 degC)
<INFO> 3-Oct-2022::09:34:24.406 controller-1 confd[437]: snmp snmpv2-trap reqid=64689692 10.255.0.143:162 (TimeTicks sysUpTime=2493)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:33:10.575319872 UTC)(OCTET STRING alertDescription=inlet at +21.9 degC)
<INFO> 3-Oct-2022::09:34:37.876 controller-1 confd[437]: snmp snmpv2-trap reqid=64689817 10.255.0.143:162 (TimeTicks sysUpTime=3840)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:28.186029642 UTC)(OCTET STRING alertDescription=inlet at +22.6 degC)
<INFO> 3-Oct-2022::09:34:45.984 controller-1 confd[437]: snmp snmpv2-trap reqid=64689904 10.255.0.143:162 (TimeTicks sysUpTime=4651)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:30.509114926 UTC)(OCTET STRING alertDescription=inlet at +22.7 degC)
<INFO> 3-Oct-2022::09:34:53.802 controller-1 confd[437]: snmp snmpv2-trap reqid=64689983 10.255.0.143:162 (TimeTicks sysUpTime=5433)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:32.698845784 UTC)(OCTET STRING alertDescription=inlet at +22.7 degC)
<INFO> 3-Oct-2022::09:35:00.787 controller-1 confd[437]: snmp snmpv2-trap reqid=64690058 10.255.0.143:162 (TimeTicks sysUpTime=6131)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:34.352761479 UTC)(OCTET STRING alertDescription=inlet at +22.9 degC)
<INFO> 3-Oct-2022::09:35:07.146 controller-1 confd[437]: snmp snmpv2-trap reqid=64690120 10.255.0.143:162 (TimeTicks sysUpTime=6767)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:36.082246447 UTC)(OCTET STRING alertDescription=CPU TCTL-Delta at -43.0 degC)
<INFO> 3-Oct-2022::09:35:07.394 controller-1 confd[437]: snmp snmpv2-trap reqid=64690124 10.255.0.143:162 (TimeTicks sysUpTime=6792)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:13.942248080 UTC)(OCTET STRING alertDescription=CPU TCTL-Delta at -44.0 degC)
<INFO> 3-Oct-2022::09:35:08.144 controller-1 confd[437]: snmp snmpv2-trap reqid=64690134 10.255.0.143:162 (TimeTicks sysUpTime=6867)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:36.303747160 UTC)(OCTET STRING alertDescription=inlet at +23.0 degC)
<INFO> 3-Oct-2022::09:35:17.798 controller-1 confd[437]: snmp snmpv2-trap reqid=64690204 10.255.0.143:162 (TimeTicks sysUpTime=7833)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:39.303937649 UTC)(OCTET STRING alertDescription=CPU TCTL-Delta at -44.0 degC)
<INFO> 3-Oct-2022::09:35:19.489 controller-1 confd[437]: snmp snmpv2-trap reqid=64690221 10.255.0.143:162 (TimeTicks sysUpTime=8002)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:23.790713729 UTC)(OCTET STRING alertDescription=CPU TCTL-Delta at -44.0 degC)
<INFO> 3-Oct-2022::09:35:20.656 controller-1 confd[437]: snmp snmpv2-trap reqid=64690240 10.255.0.143:162 (TimeTicks sysUpTime=8118)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:23.879523051 UTC)(OCTET STRING alertDescription=outlet at +26.0 degC)
<INFO> 3-Oct-2022::09:35:20.766 controller-1 confd[437]: snmp snmpv2-trap reqid=64690241 10.255.0.143:162 (TimeTicks sysUpTime=8129)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:23.895240153 UTC)(OCTET STRING alertDescription=inlet at +22.4 degC)
<INFO> 3-Oct-2022::09:35:21.010 controller-1 confd[437]: snmp snmpv2-trap reqid=64690243 10.255.0.143:162 (TimeTicks sysUpTime=8154)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:41.928077278 UTC)(OCTET STRING alertDescription=outlet at +27.0 degC)
<INFO> 3-Oct-2022::09:35:21.660 controller-1 confd[437]: snmp snmpv2-trap reqid=64690252 10.255.0.143:162 (TimeTicks sysUpTime=8219)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=blade-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:42.252968050 UTC)(OCTET STRING alertDescription=outlet at +23.0 degC)
<INFO> 3-Oct-2022::09:35:21.814 controller-1 confd[437]: snmp snmpv2-trap reqid=64690254 10.255.0.143:162 (TimeTicks sysUpTime=8234)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=blade-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:42.315340541 UTC)(OCTET STRING alertDescription=Deasserted: memory channel A/B VDDQ VR hot)
<INFO> 3-Oct-2022::09:35:26.436 controller-1 confd[437]: snmp snmpv2-trap reqid=64690291 10.255.0.143:162 (TimeTicks sysUpTime=8696)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:25.774487181 UTC)(OCTET STRING alertDescription=CPU TCTL-Delta at -44.0 degC)
<INFO> 3-Oct-2022::09:35:26.943 controller-1 confd[437]: snmp snmpv2-trap reqid=64690299 10.255.0.143:162 (TimeTicks sysUpTime=8747)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:26.108861730 UTC)(OCTET STRING alertDescription=outlet at +26.0 degC)
drive-thermal-throttle .1.3.6.1.4.1.12276.1.1.1.65547
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
ASSERT |
Drive has entered a thermal throttle condition |
EVENT |
Drive’s thermal throttling is more than <<value>> percent Drive has entered a thermal throttle condition Examples: Drive’s thermal throttling is more than 15 percent Drive’s thermal throttling is more than 80 percent Drive has entered a thermal throttle condition |
CLEAR |
Drive has entered a thermal throttle condition |
Drive has entered a thermal throttle condition.
syscon-1-active# file show log/confd/snmp.log | include drive-thermal-throttle | more
blade-thermal-fault .1.3.6.1.4.1.12276.1.1.1.65548
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
ASSERT |
Thermal fault detected in blade |
EVENT |
Drive Temperature has exceeded threshold Drive Sensor Temperature is outside operating range Drive Temperature is as expected Drive Sensor Temperature is within normal range |
CLEAR |
Thermal fault detected in blade |
This SNMP Trap is for the VELOS system, and it monitors various temperature sensors on each VELOS blade. The sensors monitor CPU, FGPA, and memory temperatures and will warn if the temperature goes beyond recommended guidelines. If a thermal fault occurs, you can verify if it has cleared due to a temporary condition. You can also check the system fans to ensure they are operating properly in the VELOS system via the command show components component fantray-1. You can also check the environment in which the VELOS system is running to ensure the data center is not operating at too high temperature.
syscon-2-active# show components component fantray-1
components component fantray-1
state firmware-version 1.02.798.0.1
state software-version 2.00.960.0.1
state serial-no sub0772g006w
state part-no "SUB-0772-05 REV B"
state empty false
properties fantray-state fantray-temperature 23.0
properties fantray-state inlet-fan-1-speed 6768
properties fantray-state inlet-fan-2-speed 6699
properties fantray-state inlet-fan-3-speed 6743
properties fantray-state exhaust-fan-1-speed 6715
properties fantray-state exhaust-fan-2-speed 6744
properties fantray-state exhaust-fan-3-speed 6793
syscon-2-active#
syscon-2-active# file show log/confd/snmp.log | include blade-thermal-fault
blade-hardware-fault .1.3.6.1.4.1.12276.1.1.1.65549
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
ASSERT |
Hardware fault detected in blade |
EVENT |
<< Asserted | Deasserted >> : << ras error>> Ras errors list is: RAS AER correctable advisory non-fatal error RAS AER correctable BAD DLLP error RAS AER correctable BAD TLP error RAS AER correctable Receiver error RAS AER correctable RELAY_NUM rollover error RAS AER correctable replay timer timeout error RAS AER uncorrectable completer abort error RAS AER uncorrectable completion timeout error RAS AER uncorrectable data link protocol error RAS AER uncorrectable ECRC error RAS AER uncorrectable flow control protocol error RAS AER uncorrectable malformed TLP error RAS AER uncorrectable Poisoned TLP Error RAS AER uncorrectable receiver overflow error RAS AER uncorrectable unexpected completion error RAS AER uncorrectable unsupported request error RAS AER unknown error RAS Extlog invalid address error RAS Extlog master abort error RAS Extlog memory sparing error RAS Extlog mirror broken error RAS Extlog multi-bit ECC error RAS Extlog multi-symbol chipkill ECC error RAS Extlog no error RAS Extlog Parity error RAS Extlog physical memory map-out error RAS Extlog scrub corrected error RAS Extlog scrub uncorrected error RAS Extlog single-bit ECC error RAS Extlog single-symbol chipkill ECC error RAS Extlog target abort error RAS Extlog Unknown error RAS Extlog unknown type error RAS Extlog watchdog timeout error RAS MCE processor temperature throttling disabled error RAS MCE address/command error RAS MCE generic undefined request error RAS MCE memory read error RAS MCE memory scrubbing error RAS MCE memory write error RAS MCE unknown error RAS memory controller fatal event RAS memory controller uncorrected event |
CLEAR |
Hardware fault detected in blade |
Traps will be generated for blade-hardware-faults. A Reliability, Availability, and Servieability (RAS) monitoring system monitors blade hardware utilizing Advanced Error Reporting (AER) for PCIe devices.
syscon-1-active# file show log/confd/snmp.log | include blade-hardware-fault
<INFO> 3-Oct-2022::10:14:57.326 controller-1 confd[437]: snmp snmpv2-trap reqid=718708801 10.255.0.143:162 (TimeTicks sysUpTime=20291)(OBJECT IDENTIFIER snmpTrapOID=blade-hardware-fault)(OCTET STRING alertSource=blade-2)(INTEGER alertEffect=1)(INTEGER alertSeverity=3)(OCTET STRING alertTimeStamp=2022-10-03 10:13:27.747878684 UTC)(OCTET STRING alertDescription=Hardware fault detected in blade)
<INFO> 3-Oct-2022::10:14:57.376 controller-1 confd[437]: snmp snmpv2-trap reqid=718708802 10.255.0.143:162 (TimeTicks sysUpTime=20296)(OBJECT IDENTIFIER snmpTrapOID=blade-hardware-fault)(OCTET STRING alertSource=blade-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 10:13:27.747890598 UTC)(OCTET STRING alertDescription=RAS AER 'Completion Timeout' uncorrectable errors detected, count=1)
<INFO> 3-Oct-2022::11:18:23.314 controller-1 confd[437]: snmp snmpv2-trap reqid=718708827 10.255.0.143:162 (TimeTicks sysUpTime=400889)(OBJECT IDENTIFIER snmpTrapOID=blade-hardware-fault)(OCTET STRING alertSource=blade-2)(INTEGER alertEffect=0)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 11:18:23.298321034 UTC)(OCTET STRING alertDescription=Hardware fault detected in blade)
<INFO> 3-Oct-2022::11:18:23.363 controller-1 confd[437]: snmp snmpv2-trap reqid=718708828 10.255.0.143:162 (TimeTicks sysUpTime=400894)(OBJECT IDENTIFIER snmpTrapOID=blade-hardware-fault)(OCTET STRING alertSource=blade-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 11:18:23.298341759 UTC)(OCTET STRING alertDescription=No RAS AER 'Completion Timeout' uncorrectable errors detected)
<INFO> 18-Nov-2022::17:10:49.938 controller-1 confd[439]: snmp snmpv2-trap reqid=166056832 10.255.0.143:162 (TimeTicks sysUpTime=128600349)(OBJECT IDENTIFIER snmpTrapOID=blade-hardware-fault)(OCTET STRING alertSource=blade-2)(INTEGER alertEffect=1)(INTEGER alertSeverity=3)(OCTET STRING alertTimeStamp=2022-11-18 17:10:49.926326214 UTC)(OCTET STRING alertDescription=Hardware fault detected in blade)
<INFO> 18-Nov-2022::17:10:49.988 controller-1 confd[439]: snmp snmpv2-trap reqid=166056833 10.255.0.143:162 (TimeTicks sysUpTime=128600353)(OBJECT IDENTIFIER snmpTrapOID=blade-hardware-fault)(OCTET STRING alertSource=blade-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-11-18 17:10:49.926341579 UTC)(OCTET STRING alertDescription=RAS AER 'Completion Timeout' uncorrectable errors detected, count=1)
<INFO> 18-Nov-2022::18:15:48.355 controller-1 confd[439]: snmp snmpv2-trap reqid=166056834 10.255.0.143:162 (TimeTicks sysUpTime=128990190)(OBJECT IDENTIFIER snmpTrapOID=blade-hardware-fault)(OCTET STRING alertSource=blade-2)(INTEGER alertEffect=0)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-11-18 18:15:48.336108363 UTC)(OCTET STRING alertDescription=Hardware fault detected in blade)
<INFO> 18-Nov-2022::18:15:48.404 controller-1 confd[439]: snmp snmpv2-trap reqid=166056835 10.255.0.143:162 (TimeTicks sysUpTime=128990195)(OBJECT IDENTIFIER snmpTrapOID=blade-hardware-fault)(OCTET STRING alertSource=blade-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-11-18 18:15:48.336132387 UTC)(OCTET STRING alertDescription=No RAS AER 'Completion Timeout' uncorrectable errors detected)
syscon-1-active#
sensor-fault .1.3.6.1.4.1.12276.1.1.1.65577
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
ASSERT |
Sensor fault detected in hardware |
EVENT |
<< Asserted | Deasserted >> : sensor fault: <<sensor name>> |
CLEAR |
Sensor fault detected in hardware |
Traps will be generated for sensor faults or communication failures. In the example below, an Inlet Sensor fault was detetected (Asserted) and then cleared (Deasserted).
velos-chassis1-1-active# file show log/confd/snmp.log | include sensor-fault
<INFO> 9-Nov-2023::19:21:08.938 controller-1 confd[604]: snmp snmpv2-trap reqid=1548244105 10.255.0.139:162 (TimeTicks sysUpTime=271109396)(OBJECT IDENTIFIER snmpTrapOID=sensor-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=1)(INTEGER alertSeverity=3)(OCTET STRING alertTimeStamp=2023-11-10 00:21:08.927022179 UTC)(OCTET STRING alertDescription=Sensor fault detected in hardware)
<INFO> 9-Nov-2023::19:21:08.939 controller-1 confd[604]: snmp snmpv2-trap reqid=1548244105 10.255.0.144:162 (TimeTicks sysUpTime=271109396)(OBJECT IDENTIFIER snmpTrapOID=sensor-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=1)(INTEGER alertSeverity=3)(OCTET STRING alertTimeStamp=2023-11-10 00:21:08.927022179 UTC)(OCTET STRING alertDescription=Sensor fault detected in hardware)
<INFO> 9-Nov-2023::19:21:08.942 controller-1 confd[604]: snmp snmpv2-trap reqid=1548244106 10.255.0.144:162 (TimeTicks sysUpTime=271109396)(OBJECT IDENTIFIER snmpTrapOID=sensor-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=1)(INTEGER alertSeverity=3)(OCTET STRING alertTimeStamp=2023-11-10 00:21:08.927022179 UTC)(OCTET STRING alertDescription=Sensor fault detected in hardware)
<INFO> 9-Nov-2023::19:21:08.943 controller-1 confd[604]: snmp snmpv2-trap reqid=1548244106 10.255.0.143:162 (TimeTicks sysUpTime=271109396)(OBJECT IDENTIFIER snmpTrapOID=sensor-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=1)(INTEGER alertSeverity=3)(OCTET STRING alertTimeStamp=2023-11-10 00:21:08.927022179 UTC)(OCTET STRING alertDescription=Sensor fault detected in hardware)
<INFO> 9-Nov-2023::19:21:08.988 controller-1 confd[604]: snmp snmpv2-trap reqid=1548244107 10.255.0.139:162 (TimeTicks sysUpTime=271109401)(OBJECT IDENTIFIER snmpTrapOID=sensor-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-11-10 00:21:08.927133721 UTC)(OCTET STRING alertDescription=Asserted: sensor fault: Inlet)
<INFO> 9-Nov-2023::19:21:08.989 controller-1 confd[604]: snmp snmpv2-trap reqid=1548244107 10.255.0.144:162 (TimeTicks sysUpTime=271109401)(OBJECT IDENTIFIER snmpTrapOID=sensor-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-11-10 00:21:08.927133721 UTC)(OCTET STRING alertDescription=Asserted: sensor fault: Inlet)
<INFO> 9-Nov-2023::19:21:08.993 controller-1 confd[604]: snmp snmpv2-trap reqid=1548244108 10.255.0.144:162 (TimeTicks sysUpTime=271109401)(OBJECT IDENTIFIER snmpTrapOID=sensor-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-11-10 00:21:08.927133721 UTC)(OCTET STRING alertDescription=Asserted: sensor fault: Inlet)
<INFO> 9-Nov-2023::19:21:08.996 controller-1 confd[604]: snmp snmpv2-trap reqid=1548244108 10.255.0.143:162 (TimeTicks sysUpTime=271109401)(OBJECT IDENTIFIER snmpTrapOID=sensor-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-11-10 00:21:08.927133721 UTC)(OCTET STRING alertDescription=Asserted: sensor fault: Inlet)
<INFO> 9-Nov-2023::19:26:08.930 controller-1 confd[604]: snmp snmpv2-trap reqid=1548244111 10.255.0.139:162 (TimeTicks sysUpTime=271139395)(OBJECT IDENTIFIER snmpTrapOID=sensor-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=0)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-11-10 00:26:08.911277769 UTC)(OCTET STRING alertDescription=Sensor fault detected in hardware)
<INFO> 9-Nov-2023::19:26:08.931 controller-1 confd[604]: snmp snmpv2-trap reqid=1548244111 10.255.0.144:162 (TimeTicks sysUpTime=271139395)(OBJECT IDENTIFIER snmpTrapOID=sensor-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=0)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-11-10 00:26:08.911277769 UTC)(OCTET STRING alertDescription=Sensor fault detected in hardware)
<INFO> 9-Nov-2023::19:26:08.934 controller-1 confd[604]: snmp snmpv2-trap reqid=1548244112 10.255.0.144:162 (TimeTicks sysUpTime=271139395)(OBJECT IDENTIFIER snmpTrapOID=sensor-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=0)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-11-10 00:26:08.911277769 UTC)(OCTET STRING alertDescription=Sensor fault detected in hardware)
<INFO> 9-Nov-2023::19:26:08.935 controller-1 confd[604]: snmp snmpv2-trap reqid=1548244112 10.255.0.143:162 (TimeTicks sysUpTime=271139395)(OBJECT IDENTIFIER snmpTrapOID=sensor-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=0)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-11-10 00:26:08.911277769 UTC)(OCTET STRING alertDescription=Sensor fault detected in hardware)
<INFO> 9-Nov-2023::19:26:08.989 controller-1 confd[604]: snmp snmpv2-trap reqid=1548244113 10.255.0.139:162 (TimeTicks sysUpTime=271139401)(OBJECT IDENTIFIER snmpTrapOID=sensor-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-11-10 00:26:08.911332002 UTC)(OCTET STRING alertDescription=Deasserted: sensor fault: Inlet)
<INFO> 9-Nov-2023::19:26:08.990 controller-1 confd[604]: snmp snmpv2-trap reqid=1548244113 10.255.0.144:162 (TimeTicks sysUpTime=271139401)(OBJECT IDENTIFIER snmpTrapOID=sensor-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-11-10 00:26:08.911332002 UTC)(OCTET STRING alertDescription=Deasserted: sensor fault: Inlet)
<INFO> 9-Nov-2023::19:26:08.990 controller-1 confd[604]: snmp snmpv2-trap reqid=1548244114 10.255.0.144:162 (TimeTicks sysUpTime=271139401)(OBJECT IDENTIFIER snmpTrapOID=sensor-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-11-10 00:26:08.911332002 UTC)(OCTET STRING alertDescription=Deasserted: sensor fault: Inlet)
<INFO> 9-Nov-2023::19:26:08.991 controller-1 confd[604]: snmp snmpv2-trap reqid=1548244114 10.255.0.143:162 (TimeTicks sysUpTime=271139401)(OBJECT IDENTIFIER snmpTrapOID=sensor-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-11-10 00:26:08.911332002 UTC)(OCTET STRING alertDescription=Deasserted: sensor fault: Inlet)
module-present .1.3.6.1.4.1.12276.1.1.1.65794
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
EVENT |
<<module>> <<present|removed>> Example: blade1 removed |
Traps will be generated for componenents being present or removed. As an example, blades being inserted (present) or removed will generate traps. If the LCD panel is presenet or removed, or if the PeerCc (Peer Chassis Controller) is present or removed.
velos-chassis2-1-active# file show log/confd/snmp.log | include module | include trap
<INFO> 21-Aug-2024::22:38:55.801 controller-1 confd[656]: snmp snmpv2-trap reqid=174749112 10.255.80.251:162 (TimeTicks sysUpTime=29410)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:35:14.027630330 UTC)(OCTET STRING alertDescription=Blade1 present)
<INFO> 21-Aug-2024::22:38:55.848 controller-1 confd[656]: snmp snmpv2-trap reqid=174749113 10.255.80.251:162 (TimeTicks sysUpTime=29415)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:35:14.042131211 UTC)(OCTET STRING alertDescription=Blade2 present)
<INFO> 21-Aug-2024::22:38:55.899 controller-1 confd[656]: snmp snmpv2-trap reqid=174749114 10.255.80.251:162 (TimeTicks sysUpTime=29420)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:35:14.056767261 UTC)(OCTET STRING alertDescription=Blade3 present)
<INFO> 21-Aug-2024::22:38:56.362 controller-1 confd[656]: snmp snmpv2-trap reqid=174749120 10.255.80.251:162 (TimeTicks sysUpTime=29466)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:35:14.120668658 UTC)(OCTET STRING alertDescription=Vfc1 present)
<INFO> 21-Aug-2024::22:38:57.232 controller-1 confd[656]: snmp snmpv2-trap reqid=174749129 10.255.80.251:162 (TimeTicks sysUpTime=29553)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:35:15.184293249 UTC)(OCTET STRING alertDescription=Blade7 removed)
<INFO> 21-Aug-2024::22:38:57.282 controller-1 confd[656]: snmp snmpv2-trap reqid=174749130 10.255.80.251:162 (TimeTicks sysUpTime=29558)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:35:15.235227870 UTC)(OCTET STRING alertDescription=Blade8 removed)
<INFO> 21-Aug-2024::22:38:57.333 controller-1 confd[656]: snmp snmpv2-trap reqid=174749131 10.255.80.251:162 (TimeTicks sysUpTime=29563)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:35:15.264607555 UTC)(OCTET STRING alertDescription=Lcd present)
<INFO> 21-Aug-2024::22:38:57.384 controller-1 confd[656]: snmp snmpv2-trap reqid=174749132 10.255.80.251:162 (TimeTicks sysUpTime=29568)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:35:15.278798938 UTC)(OCTET STRING alertDescription=PeerCc present)
<INFO> 21-Aug-2024::22:39:02.079 controller-1 confd[656]: snmp snmpv2-trap reqid=174749159 10.255.80.251:162 (TimeTicks sysUpTime=30038)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:35:25.181560551 UTC)(OCTET STRING alertDescription=Blade6 removed)
<INFO> 21-Aug-2024::22:39:02.466 controller-1 confd[656]: snmp snmpv2-trap reqid=174749163 10.255.80.251:162 (TimeTicks sysUpTime=30077)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:35:25.211925968 UTC)(OCTET STRING alertDescription=Blade4 removed)
<INFO> 21-Aug-2024::22:39:02.528 controller-1 confd[656]: snmp snmpv2-trap reqid=174749164 10.255.80.251:162 (TimeTicks sysUpTime=30083)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:35:25.223983065 UTC)(OCTET STRING alertDescription=Blade5 removed)
<INFO> 21-Aug-2024::22:39:02.556 controller-1 confd[656]: snmp snmpv2-trap reqid=174749165 10.255.80.251:162 (TimeTicks sysUpTime=30086)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:35:25.241758596 UTC)(OCTET STRING alertDescription=Vpc1 present)
<INFO> 21-Aug-2024::22:39:02.603 controller-1 confd[656]: snmp snmpv2-trap reqid=174749166 10.255.80.251:162 (TimeTicks sysUpTime=30090)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:35:25.253807231 UTC)(OCTET STRING alertDescription=Vpc2 present)
<INFO> 21-Aug-2024::22:50:45.106 controller-1 confd[656]: snmp snmpv2-trap reqid=174749294 10.255.80.251:162 (TimeTicks sysUpTime=100340)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:51:13.433492411 UTC)(OCTET STRING alertDescription=Vfc1 present)
<INFO> 21-Aug-2024::22:50:45.900 controller-1 confd[656]: snmp snmpv2-trap reqid=174749303 10.255.80.251:162 (TimeTicks sysUpTime=100420)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:51:13.476539115 UTC)(OCTET STRING alertDescription=Blade7 removed)
<INFO> 21-Aug-2024::22:50:45.951 controller-1 confd[656]: snmp snmpv2-trap reqid=174749304 10.255.80.251:162 (TimeTicks sysUpTime=100425)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:51:13.488380932 UTC)(OCTET STRING alertDescription=Blade8 removed)
<INFO> 21-Aug-2024::22:50:46.001 controller-1 confd[656]: snmp snmpv2-trap reqid=174749305 10.255.80.251:162 (TimeTicks sysUpTime=100430)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:51:13.518108913 UTC)(OCTET STRING alertDescription=Lcd present)
<INFO> 21-Aug-2024::22:50:46.052 controller-1 confd[656]: snmp snmpv2-trap reqid=174749306 10.255.80.251:162 (TimeTicks sysUpTime=100435)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:51:14.178706661 UTC)(OCTET STRING alertDescription=PeerCc present)
<INFO> 21-Aug-2024::22:50:50.777 controller-1 confd[656]: snmp snmpv2-trap reqid=174749335 10.255.80.251:162 (TimeTicks sysUpTime=100908)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:51:22.927142786 UTC)(OCTET STRING alertDescription=Blade6 removed)
<INFO> 21-Aug-2024::22:50:51.192 controller-1 confd[656]: snmp snmpv2-trap reqid=174749339 10.255.80.251:162 (TimeTicks sysUpTime=100949)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:51:22.961800500 UTC)(OCTET STRING alertDescription=Blade4 removed)
<INFO> 21-Aug-2024::22:50:51.203 controller-1 confd[656]: snmp snmpv2-trap reqid=174749340 10.255.80.251:162 (TimeTicks sysUpTime=100950)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:51:22.974497119 UTC)(OCTET STRING alertDescription=Blade5 removed)
<INFO> 21-Aug-2024::22:50:51.271 controller-1 confd[656]: snmp snmpv2-trap reqid=174749341 10.255.80.251:162 (TimeTicks sysUpTime=100957)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:51:22.989681624 UTC)(OCTET STRING alertDescription=Vpc1 present)
<INFO> 21-Aug-2024::22:50:51.364 controller-1 confd[656]: snmp snmpv2-trap reqid=174749342 10.255.80.251:162 (TimeTicks sysUpTime=100966)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:51:23.001344462 UTC)(OCTET STRING alertDescription=Vpc2 present)
<INFO> 21-Aug-2024::22:50:51.614 controller-1 confd[656]: snmp snmpv2-trap reqid=174749346 10.255.80.251:162 (TimeTicks sysUpTime=100991)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:51:23.025348062 UTC)(OCTET STRING alertDescription=Blade1 present)
<INFO> 21-Aug-2024::22:50:51.680 controller-1 confd[656]: snmp snmpv2-trap reqid=174749347 10.255.80.251:162 (TimeTicks sysUpTime=100998)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:51:23.035809494 UTC)(OCTET STRING alertDescription=Blade2 present)
<INFO> 21-Aug-2024::22:50:51.725 controller-1 confd[656]: snmp snmpv2-trap reqid=174749348 10.255.80.251:162 (TimeTicks sysUpTime=101002)(OBJECT IDENTIFIER snmpTrapOID=module-present)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-21 22:51:23.048965786 UTC)(OCTET STRING alertDescription=Blade3 present)
psu-fault .1.3.6.1.4.1.12276.1.1.1.65793
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
ASSERT |
PSU fault detected |
EVENT |
<<< Asserted| Deasserted >>: PSU <<psu number>> << sensor that caused the issue>> Examples: Asserted: PSU 1 input under-voltage warning Deasserted: PSU 1 input under-voltage warning Sensor could be: input over-power warning input over-current warning input over-current fault unit off for low input voltage input under-voltage fault input under-voltage warning input over-voltage warning input over-voltage fault PSU present PSU input-ok PSU output-ok PSU unsupported PSU mismatch |
CLEAR |
PSU fault detected |
This set of SNMP traps will relate to the health of the power supplies in the VELOS chassis. You may see traps related to insertion or removal of power supplies, inputs, and voltage thresholds. It is best to determine if the trap was a temporary condition, and if not and an error state persists, then determine if the inputs of the power supplies have become disconnected or changed. If the problem only occurs on one power supply, then you can try swapping inputs/power supplies during a maintenance window to see if the issue follows the power supply or the input source.
syscon-1-active# file show log/confd/snmp.log | include psu-fault | more
<INFO> 3-Oct-2022::09:34:18.591 controller-1 confd[437]: snmp snmpv2-trap reqid=64689673 10.255.0.143:162 (TimeTicks sysUpTime=1912)(OBJECT IDENTIFIER snmpTrapOID=psu-fault)(OCTET STRING alertSource=psu-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:03.592794334 UTC)(OCTET STRING alertDescription=Asserted: PSU 1 output OK)
<INFO> 3-Oct-2022::09:34:18.667 controller-1 confd[437]: snmp snmpv2-trap reqid=64689674 10.255.0.143:162 (TimeTicks sysUpTime=1919)(OBJECT IDENTIFIER snmpTrapOID=psu-fault)(OCTET STRING alertSource=psu-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:06.362645427 UTC)(OCTET STRING alertDescription=Deasserted: PSU 1 unsupported)
<INFO> 3-Oct-2022::09:34:18.822 controller-1 confd[437]: snmp snmpv2-trap reqid=64689676 10.255.0.143:162 (TimeTicks sysUpTime=1935)(OBJECT IDENTIFIER snmpTrapOID=psu-fault)(OCTET STRING alertSource=psu-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:08.960634230 UTC)(OCTET STRING alertDescription=Deasserted: PSU 2 unsupported)
<INFO> 3-Oct-2022::09:34:18.871 controller-1 confd[437]: snmp snmpv2-trap reqid=64689677 10.255.0.143:162 (TimeTicks sysUpTime=1940)(OBJECT IDENTIFIER snmpTrapOID=psu-fault)(OCTET STRING alertSource=psu-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:08.972412243 UTC)(OCTET STRING alertDescription=Asserted: PSU 1 present)
<INFO> 3-Oct-2022::09:34:18.971 controller-1 confd[437]: snmp snmpv2-trap reqid=64689678 10.255.0.143:162 (TimeTicks sysUpTime=1950)(OBJECT IDENTIFIER snmpTrapOID=psu-fault)(OCTET STRING alertSource=psu-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:09.865116422 UTC)(OCTET STRING alertDescription=Asserted: PSU 1 input OK)
<INFO> 3-Oct-2022::09:34:19.076 controller-1 confd[437]: snmp snmpv2-trap reqid=64689679 10.255.0.143:162 (TimeTicks sysUpTime=1960)(OBJECT IDENTIFIER snmpTrapOID=psu-fault)(OCTET STRING alertSource=psu-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:11.134629861 UTC)(OCTET STRING alertDescription=Asserted: PSU 2 input OK)
<INFO> 3-Oct-2022::09:34:19.180 controller-1 confd[437]: snmp snmpv2-trap reqid=64689680 10.255.0.143:162 (TimeTicks sysUpTime=1971)(OBJECT IDENTIFIER snmpTrapOID=psu-fault)(OCTET STRING alertSource=psu-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:12.349240332 UTC)(OCTET STRING alertDescription=Asserted: PSU 2 output OK)
<INFO> 3-Oct-2022::09:34:19.228 controller-1 confd[437]: snmp snmpv2-trap reqid=64689681 10.255.0.143:162 (TimeTicks sysUpTime=1975)(OBJECT IDENTIFIER snmpTrapOID=psu-fault)(OCTET STRING alertSource=psu-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:12.387972373 UTC)(OCTET STRING alertDescription=Asserted: PSU 2 present)
<INFO> 3-Oct-2022::09:34:20.845 controller-1 confd[437]: snmp snmpv2-trap reqid=64689683 10.255.0.143:162 (TimeTicks sysUpTime=2137)(OBJECT IDENTIFIER snmpTrapOID=psu-fault)(OCTET STRING alertSource=psu-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:13.723877465 UTC)(OCTET STRING alertDescription=Deasserted: PSU 1 input under-voltage warning)
<INFO> 3-Oct-2022::09:34:23.572 controller-1 confd[437]: snmp snmpv2-trap reqid=64689684 10.255.0.143:162 (TimeTicks sysUpTime=2410)(OBJECT IDENTIFIER snmpTrapOID=psu-fault)(OCTET STRING alertSource=psu-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:16.190022658 UTC)(OCTET STRING alertDescription=Deasserted: PSU 1 input over-voltage warning)
<INFO> 3-Oct-2022::09:34:25.055 controller-1 confd[437]: snmp snmpv2-trap reqid=64689698 10.255.0.143:162 (TimeTicks sysUpTime=2558)(OBJECT IDENTIFIER snmpTrapOID=psu-fault)(OCTET STRING alertSource=psu-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:34:17.487691756 UTC)(OCTET STRING alertDescription=Deasserted: PSU 1 input over-voltage fault)
lcd-fault .1.3.6.1.4.1.12276.1.1.1.65792
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
ASSERT |
Fault detected in LCD module |
EVENT |
<<LCD is in fault state | LCD is in healthy state >> |
CLEAR |
Fault detected in LCD module |
This set of SNMP traps will relate to the health of the LCD subsystem on the VELOS chassis. You may notice lcd-fault traps as the firmware on the LCD is updated as part of an upgrade as seen below. These should be temporary states and eventually the system will generate an LCD Health is OK trap. If the system continues to show an LCD fault, a support case should be opened to determine if there is a legitimate hardware issue.
The output below is from an rSeries unit:
syscon-1-active# file show log/confd/snmp.log | include lcd-fault | more
<INFO> 15-Feb-2023::15:55:35.572 appliance-1 confd[126]: snmp snmpv2-trap reqid=1413418268 10.255.0.144:161 (TimeTicks sysUpTime=294)(OBJECT IDENTIFIER snmpTrapOID=lcd-fault)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=0)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-02-15 20:55:34.911681272 UTC)(OCTET STRING alertDescription=Fault detected in LCD module)
<INFO> 15-Feb-2023::15:55:38.088 appliance-1 confd[126]: snmp snmpv2-trap reqid=1413418272 10.255.0.144:161 (TimeTicks sysUpTime=545)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-02-15 20:55:38.055131188 UTC)(OCTET STRING alertDescription=Firmware update is running for lcd app)
<INFO> 15-Feb-2023::15:55:57.476 appliance-1 confd[126]: snmp snmpv2-trap reqid=1413418298 10.255.0.144:161 (TimeTicks sysUpTime=2484)(OBJECT IDENTIFIER snmpTrapOID=lcd-fault)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=1)(INTEGER alertSeverity=3)(OCTET STRING alertTimeStamp=2023-02-15 20:55:57.472258315 UTC)(OCTET STRING alertDescription=Fault detected in LCD module)
<INFO> 15-Feb-2023::15:55:57.526 appliance-1 confd[126]: snmp snmpv2-trap reqid=1413418299 10.255.0.144:161 (TimeTicks sysUpTime=2489)(OBJECT IDENTIFIER snmpTrapOID=lcd-fault)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-02-15 20:55:57.472273735 UTC)(OCTET STRING alertDescription=LCD Health is Not OK)
<INFO> 15-Feb-2023::15:58:42.071 appliance-1 confd[126]: snmp snmpv2-trap reqid=1413418313 10.255.0.144:161 (TimeTicks sysUpTime=18944)(OBJECT IDENTIFIER snmpTrapOID=module-communication-error)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=1)(INTEGER alertSeverity=3)(OCTET STRING alertTimeStamp=2023-02-15 20:58:42.066037341 UTC)(OCTET STRING alertDescription=Module communication error detected)
<INFO> 15-Feb-2023::15:58:42.120 appliance-1 confd[126]: snmp snmpv2-trap reqid=1413418314 10.255.0.144:161 (TimeTicks sysUpTime=18949)(OBJECT IDENTIFIER snmpTrapOID=module-communication-error)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-02-15 20:58:42.066055066 UTC)(OCTET STRING alertDescription=LCD module communication error detected)
<INFO> 15-Feb-2023::15:58:42.171 appliance-1 confd[126]: snmp snmpv2-trap reqid=1413418315 10.255.0.144:161 (TimeTicks sysUpTime=18954)(OBJECT IDENTIFIER snmpTrapOID=lcd-fault)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=0)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-02-15 20:58:42.068393086 UTC)(OCTET STRING alertDescription=Fault detected in LCD module)
<INFO> 15-Feb-2023::15:58:42.221 appliance-1 confd[126]: snmp snmpv2-trap reqid=1413418316 10.255.0.144:161 (TimeTicks sysUpTime=18959)(OBJECT IDENTIFIER snmpTrapOID=lcd-fault)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-02-15 20:58:42.068409568 UTC)(OCTET STRING alertDescription=LCD Health is Not OK)
<INFO> 15-Feb-2023::15:59:12.060 appliance-1 confd[126]: snmp snmpv2-trap reqid=1413418321 10.255.0.144:161 (TimeTicks sysUpTime=21943)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-02-15 20:59:12.056692654 UTC)(OCTET STRING alertDescription=Firmware update completed for lcd app)
<INFO> 15-Feb-2023::15:59:14.590 appliance-1 confd[126]: snmp snmpv2-trap reqid=1413418322 10.255.0.144:161 (TimeTicks sysUpTime=22196)(OBJECT IDENTIFIER snmpTrapOID=module-communication-error)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=0)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-02-15 20:59:14.579441541 UTC)(OCTET STRING alertDescription=Module communication error detected)
<INFO> 15-Feb-2023::15:59:14.635 appliance-1 confd[126]: snmp snmpv2-trap reqid=1413418323 10.255.0.144:161 (TimeTicks sysUpTime=22200)(OBJECT IDENTIFIER snmpTrapOID=module-communication-error)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-02-15 20:59:14.579463512 UTC)(OCTET STRING alertDescription=LCD module communication is OK)
<INFO> 15-Feb-2023::15:59:14.685 appliance-1 confd[126]: snmp snmpv2-trap reqid=1413418324 10.255.0.144:161 (TimeTicks sysUpTime=22205)(OBJECT IDENTIFIER snmpTrapOID=lcd-fault)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-02-15 20:59:14.588063311 UTC)(OCTET STRING alertDescription=LCD Health is OK)
module-communication-error .1.3.6.1.4.1.12276.1.1.1.65795
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
ASSERT |
Module communication error detected |
EVENT |
<<module>> communication error detected <<module>> communication is OK Example: lcd communication error detected. |
CLEAR |
Module communication error detected |
Power Supply Module
The output below is from an rSeries unit:
syscon-1-active# file show log/confd/snmp.log | include module-communication-error
<INFO> 12-Apr-2023::11:48:24.877 appliance-1 confd[116]: snmp snmpv2-trap reqid=608130717 10.255.8.22:6011 (TimeTicks sysUpTime=52511)(OBJECT IDENTIFIER snmpTrapOID=module-communication-error)(OCTET STRING alertSource=psu-1)(INTEGER alertEffect=1)(INTEGER alertSeverity=3)(OCTET STRING alertTimeStamp=2023-04-12 11:48:24.872113844 UTC)(OCTET STRING alertDescription=Module communication error detected)
<INFO> 12-Apr-2023::11:48:24.926 appliance-1 confd[116]: snmp snmpv2-trap reqid=608130718 10.255.8.22:6011 (TimeTicks sysUpTime=52516)(OBJECT IDENTIFIER snmpTrapOID=module-communication-error)(OCTET STRING alertSource=psu-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-04-12 11:48:24.872136218 UTC)(OCTET STRING alertDescription=PSU communication error detected)
<INFO> 12-Apr-2023::11:48:37.139 appliance-1 confd[116]: snmp snmpv2-trap reqid=608130719 10.255.8.22:6011 (TimeTicks sysUpTime=53737)(OBJECT IDENTIFIER snmpTrapOID=module-communication-error)(OCTET STRING alertSource=psu-1)(INTEGER alertEffect=0)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-04-12 11:48:37.136351907 UTC)(OCTET STRING alertDescription=Module communication error detected)
<INFO> 12-Apr-2023::11:48:37.189 appliance-1 confd[116]: snmp snmpv2-trap reqid=608130720 10.255.8.22:6011 (TimeTicks sysUpTime=53742)(OBJECT IDENTIFIER snmpTrapOID=module-communication-error)(OCTET STRING alertSource=psu-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-04-12 11:48:37.136369021 UTC)(OCTET STRING alertDescription=PSU communication is OK)
LCD Module
The output below is from an rSeries unit:
r10900-1# file show log/system/snmp.log | include module-communication-error
<INFO> 12-Apr-2023::11:51:32.363 appliance-1 confd[116]: snmp snmpv2-trap reqid=608130725 10.255.8.22:6011 (TimeTicks sysUpTime=71259)(OBJECT IDENTIFIER snmpTrapOID=module-communication-error)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=1)(INTEGER alertSeverity=3)(OCTET STRING alertTimeStamp=2023-04-12 11:51:32.359013061 UTC)(OCTET STRING alertDescription=Module communication error detected)
<INFO> 12-Apr-2023::11:51:32.413 appliance-1 confd[116]: snmp snmpv2-trap reqid=608130726 10.255.8.22:6011 (TimeTicks sysUpTime=71264)(OBJECT IDENTIFIER snmpTrapOID=module-communication-error)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-04-12 11:51:32.359032524 UTC)(OCTET STRING alertDescription=LCD module communication error detected)
<INFO> 12-Apr-2023::11:51:32.463 appliance-1 confd[116]: snmp snmpv2-trap reqid=608130727 10.255.8.22:6011 (TimeTicks sysUpTime=71269)(OBJECT IDENTIFIER snmpTrapOID=lcd-fault)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-04-12 11:51:32.361661313 UTC)(OCTET STRING alertDescription=LCD Health is Not OK)
<INFO> 12-Apr-2023::11:51:45.155 appliance-1 confd[116]: snmp snmpv2-trap reqid=608130728 10.255.8.22:6011 (TimeTicks sysUpTime=72538)(OBJECT IDENTIFIER snmpTrapOID=module-communication-error)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=0)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-04-12 11:51:45.150848562 UTC)(OCTET STRING alertDescription=Module communication error detected)
<INFO> 12-Apr-2023::11:51:45.205 appliance-1 confd[116]: snmp snmpv2-trap reqid=608130729 10.255.8.22:6011 (TimeTicks sysUpTime=72543)(OBJECT IDENTIFIER snmpTrapOID=module-communication-error)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-04-12 11:51:45.150869755 UTC)(OCTET STRING alertDescription=LCD module communication is OK)
<INFO> 12-Apr-2023::11:51:45.255 appliance-1 confd[116]: snmp snmpv2-trap reqid=608130730 10.255.8.22:6011 (TimeTicks sysUpTime=72549)(OBJECT IDENTIFIER snmpTrapOID=lcd-fault)(OCTET STRING alertSource=lcd)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-04-12 11:51:45.156764576 UTC)(OCTET STRING alertDescription=LCD Health is OK)
psu-redundancy-fault .1.3.6.1.4.1.12276.1.1.1.65796
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
ASSERT |
PSU redundancy fault detected |
EVENT |
Chassis doesnt have enough working power supplies Chassis has enough working power supplies |
CLEAR |
PSU redundancy fault detected |
PSU redundancy fault detected.
velos-1-gsa-2-active# file show log/confd/snmp.log | include psu-redundancy
<INFO> 28-Mar-2024::18:34:28.018 controller-2 confd[580]: snmp snmpv2-trap reqid=2022793870 10.255.80.251:162 (TimeTicks sysUpTime=7285919)(OBJECT IDENTIFIER snmpTrapOID=psu-redundancy-fault)(OCTET STRING alertSource=psu-controller)(INTEGER alertEffect=1)(INTEGER alertSeverity=4)(OCTET STRING alertTimeStamp=2024-03-28 22:34:27.973785605 UTC)(OCTET STRING alertDescription=PSU redundancy fault detected)
<INFO> 28-Mar-2024::18:34:28.076 controller-2 confd[580]: snmp snmpv2-trap reqid=2022793871 10.255.80.251:162 (TimeTicks sysUpTime=7285925)(OBJECT IDENTIFIER snmpTrapOID=psu-redundancy-fault)(OCTET STRING alertSource=psu-controller)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-03-28 22:34:27.973818601 UTC)(OCTET STRING alertDescription=Chassis doesnt have enough working power supplies)
<INFO> 28-Mar-2024::18:34:42.190 controller-2 confd[580]: snmp snmpv2-trap reqid=2022793874 10.255.80.251:162 (TimeTicks sysUpTime=7287337)(OBJECT IDENTIFIER snmpTrapOID=psu-redundancy-fault)(OCTET STRING alertSource=psu-controller)(INTEGER alertEffect=0)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-03-28 22:34:33.921191594 UTC)(OCTET STRING alertDescription=PSU redundancy fault detected)
<INFO> 28-Mar-2024::18:34:42.208 controller-2 confd[580]: snmp snmpv2-trap reqid=2022793875 10.255.80.251:162 (TimeTicks sysUpTime=7287338)(OBJECT IDENTIFIER snmpTrapOID=psu-redundancy-fault)(OCTET STRING alertSource=psu-controller)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-03-28 22:34:33.921257269 UTC)(OCTET STRING alertDescription=PSU Redundancy Failure: value=<nil>)
<INFO> 28-Mar-2024::18:34:43.911 controller-2 confd[580]: snmp snmpv2-trap reqid=2022793882 10.255.80.251:162 (TimeTicks sysUpTime=7287509)(OBJECT IDENTIFIER snmpTrapOID=psu-redundancy-fault)(OCTET STRING alertSource=psu-controller)(INTEGER alertEffect=1)(INTEGER alertSeverity=4)(OCTET STRING alertTimeStamp=2024-03-28 22:34:35.334525543 UTC)(OCTET STRING alertDescription=PSU redundancy fault detected)
<INFO> 28-Mar-2024::18:34:43.986 controller-2 confd[580]: snmp snmpv2-trap reqid=2022793883 10.255.80.251:162 (TimeTicks sysUpTime=7287516)(OBJECT IDENTIFIER snmpTrapOID=psu-redundancy-fault)(OCTET STRING alertSource=psu-controller)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-03-28 22:34:35.334552678 UTC)(OCTET STRING alertDescription=PSU Redundancy Failure: value=true)
psu-controller-fault .1.3.6.1.4.1.12276.1.1.1.65797
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
ASSERT |
Fault detected in PSU Controller health |
EVENT |
<<Asserted | Deasserted>>: <<PSU controller sensor>> |
CLEAR |
Fault detected in PSU Controller health |
Fault detected in PSU Controller health.
velos-1-gsa-2-active# file show log/confd/snmp.log | include psu-controller
<INFO> 23-Aug-2023::21:44:19.915 controller-2 confd[601]: snmp snmpv2-trap reqid=512560603 10.255.0.139:162 (TimeTicks sysUpTime=3729)(OBJECT IDENTIFIER snmpTrapOID=psu-fault)(OCTET STRING alertSource=psu-controller)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-08-24 01:44:02.977233231 UTC)(OCTET STRING alertDescription=Deasserted: PSU mismatch)
<INFO> 23-Aug-2023::21:44:19.916 controller-2 confd[601]: snmp snmpv2-trap reqid=512560603 10.255.0.144:162 (TimeTicks sysUpTime=3729)(OBJECT IDENTIFIER snmpTrapOID=psu-fault)(OCTET STRING alertSource=psu-controller)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-08-24 01:44:02.977233231 UTC)(OCTET STRING alertDescription=Deasserted: PSU mismatch)
<INFO> 1-Sep-2023::22:16:29.147 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960258 10.255.0.139:162 (TimeTicks sysUpTime=4636)(OBJECT IDENTIFIER snmpTrapOID=psu-fault)(OCTET STRING alertSource=psu-controller)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:16:13.545192309 UTC)(OCTET STRING alertDescription=Deasserted: PSU mismatch)
<INFO> 1-Sep-2023::22:16:29.148 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960258 10.255.0.144:162 (TimeTicks sysUpTime=4636)(OBJECT IDENTIFIER snmpTrapOID=psu-fault)(OCTET STRING alertSource=psu-controller)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:16:13.545192309 UTC)(OCTET STRING alertDescription=Deasserted: PSU mismatch)
<INFO> 1-Sep-2023::22:17:41.359 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960410 10.255.0.139:162 (TimeTicks sysUpTime=11857)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=psu-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:17:41.207837575 UTC)(OCTET STRING alertDescription=Firmware update is running for psuCtrl1 vpc app)
<INFO> 1-Sep-2023::22:17:41.362 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960410 10.255.0.144:162 (TimeTicks sysUpTime=11857)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=psu-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:17:41.207837575 UTC)(OCTET STRING alertDescription=Firmware update is running for psuCtrl1 vpc app)
<INFO> 1-Sep-2023::22:18:37.193 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960460 10.255.0.139:162 (TimeTicks sysUpTime=17441)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=psu-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:18:37.179600423 UTC)(OCTET STRING alertDescription=Firmware update completed for psuCtrl1 vpc app)
<INFO> 1-Sep-2023::22:18:37.195 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960460 10.255.0.144:162 (TimeTicks sysUpTime=17441)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=psu-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:18:37.179600423 UTC)(OCTET STRING alertDescription=Firmware update completed for psuCtrl1 vpc app)
<INFO> 1-Sep-2023::22:18:37.240 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960462 10.255.0.139:162 (TimeTicks sysUpTime=17445)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=psu-controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:18:37.193733447 UTC)(OCTET STRING alertDescription=Firmware update is running for psuCtrl2 vpc app)
<INFO> 1-Sep-2023::22:18:37.241 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960462 10.255.0.144:162 (TimeTicks sysUpTime=17445)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=psu-controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:18:37.193733447 UTC)(OCTET STRING alertDescription=Firmware update is running for psuCtrl2 vpc app)
<INFO> 1-Sep-2023::22:19:31.189 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960496 10.255.0.139:162 (TimeTicks sysUpTime=22840)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=psu-controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:19:31.182774440 UTC)(OCTET STRING alertDescription=Firmware update completed for psuCtrl2 vpc app)
<INFO> 1-Sep-2023::22:19:31.189 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960496 10.255.0.144:162 (TimeTicks sysUpTime=22840)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=psu-controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:19:31.182774440 UTC)(OCTET STRING alertDescription=Firmware update completed for psuCtrl2 vpc app)
<INFO> 3-Jan-2024::13:53:59.674 controller-2 confd[571]: snmp snmpv2-trap reqid=638913363 10.255.0.139:162 (TimeTicks sysUpTime=11780)(OBJECT IDENTIFIER snmpTrapOID=psu-fault)(OCTET STRING alertSource=psu-controller)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-01-03 18:53:39.134384549 UTC)(OCTET STRING alertDescription=Deasserted: PSU mismatch)
<INFO> 3-Jan-2024::13:53:59.675 controller-2 confd[571]: snmp snmpv2-trap reqid=638913363 10.255.0.144:162 (TimeTicks sysUpTime=11780)(OBJECT IDENTIFIER snmpTrapOID=psu-fault)(OCTET STRING alertSource=psu-controller)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-01-03 18:53:39.134384549 UTC)(OCTET STRING alertDescription=Deasserted: PSU mismatch)
<INFO> 3-Jan-2024::13:53:59.677 controller-2 confd[571]: snmp snmpv2-trap reqid=638913364 10.255.0.144:162 (TimeTicks sysUpTime=11780)(OBJECT IDENTIFIER snmpTrapOID=psu-fault)(OCTET STRING alertSource=psu-controller)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-01-03 18:53:39.134384549 UTC)(OCTET STRING alertDescription=Deasserted: PSU mismatch)
<INFO> 3-Jan-2024::13:53:59.678 controller-2 confd[571]: snmp snmpv2-trap reqid=638913364 10.255.0.143:162 (TimeTicks sysUpTime=11780)(OBJECT IDENTIFIER snmpTrapOID=psu-fault)(OCTET STRING alertSource=psu-controller)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-01-03 18:53:39.134384549 UTC)(OCTET STRING alertDescription=Deasserted: PSU mismatch)
fan-controller-fault .1.3.6.1.4.1.12276.1.1.1.65798
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
ASSERT |
Fault detected in Fan Controller health |
EVENT |
<<Asserted | Deasserted>>: <<Fan controller sensor>> |
CLEAR |
Fault detected in Fan Controller health |
Fault detected in Fan Controller health.
velos-1-gsa-2-active# file show log/confd/snmp.log | include fan-controller
<INFO> 1-Sep-2023::22:16:45.184 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960342 10.255.0.139:162 (TimeTicks sysUpTime=6240)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:16:45.177361163 UTC)(OCTET STRING alertDescription=Firmware update is running for fanCtrl1 vfc app)
<INFO> 1-Sep-2023::22:16:45.197 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960342 10.255.0.144:162 (TimeTicks sysUpTime=6240)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:16:45.177361163 UTC)(OCTET STRING alertDescription=Firmware update is running for fanCtrl1 vfc app)
<INFO> 1-Sep-2023::22:17:39.196 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960396 10.255.0.139:162 (TimeTicks sysUpTime=11641)(OBJECT IDENTIFIER snmpTrapOID=firmware-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:17:39.181260981 UTC)(OCTET STRING alertDescription=Deasserted: ARM exception available)
<INFO> 1-Sep-2023::22:17:39.197 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960396 10.255.0.144:162 (TimeTicks sysUpTime=11641)(OBJECT IDENTIFIER snmpTrapOID=firmware-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:17:39.181260981 UTC)(OCTET STRING alertDescription=Deasserted: ARM exception available)
<INFO> 1-Sep-2023::22:17:39.238 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960398 10.255.0.139:162 (TimeTicks sysUpTime=11645)(OBJECT IDENTIFIER snmpTrapOID=power-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:17:39.194192414 UTC)(OCTET STRING alertDescription=Asserted: inlet hot swap controller power-good)
<INFO> 1-Sep-2023::22:17:39.239 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960398 10.255.0.144:162 (TimeTicks sysUpTime=11645)(OBJECT IDENTIFIER snmpTrapOID=power-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:17:39.194192414 UTC)(OCTET STRING alertDescription=Asserted: inlet hot swap controller power-good)
<INFO> 1-Sep-2023::22:17:39.350 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960400 10.255.0.139:162 (TimeTicks sysUpTime=11656)(OBJECT IDENTIFIER snmpTrapOID=power-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:17:39.220085026 UTC)(OCTET STRING alertDescription=Deasserted: inlet hot swap controller fault)
<INFO> 1-Sep-2023::22:17:39.352 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960400 10.255.0.144:162 (TimeTicks sysUpTime=11656)(OBJECT IDENTIFIER snmpTrapOID=power-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:17:39.220085026 UTC)(OCTET STRING alertDescription=Deasserted: inlet hot swap controller fault)
<INFO> 1-Sep-2023::22:17:39.391 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960402 10.255.0.139:162 (TimeTicks sysUpTime=11660)(OBJECT IDENTIFIER snmpTrapOID=power-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:17:39.224447842 UTC)(OCTET STRING alertDescription=Asserted: exhaust hot swap controller power-good)
<INFO> 1-Sep-2023::22:17:39.392 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960402 10.255.0.144:162 (TimeTicks sysUpTime=11660)(OBJECT IDENTIFIER snmpTrapOID=power-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:17:39.224447842 UTC)(OCTET STRING alertDescription=Asserted: exhaust hot swap controller power-good)
<INFO> 1-Sep-2023::22:17:39.493 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960404 10.255.0.139:162 (TimeTicks sysUpTime=11671)(OBJECT IDENTIFIER snmpTrapOID=power-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:17:39.228607074 UTC)(OCTET STRING alertDescription=Deasserted: exhaust hot swap controller fault)
<INFO> 1-Sep-2023::22:17:39.495 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960404 10.255.0.144:162 (TimeTicks sysUpTime=11671)(OBJECT IDENTIFIER snmpTrapOID=power-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:17:39.228607074 UTC)(OCTET STRING alertDescription=Deasserted: exhaust hot swap controller fault)
<INFO> 1-Sep-2023::22:17:41.190 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960406 10.255.0.139:162 (TimeTicks sysUpTime=11840)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:17:41.184081838 UTC)(OCTET STRING alertDescription=Firmware update completed for fanCtrl1 vfc app)
<INFO> 1-Sep-2023::22:17:41.191 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960406 10.255.0.144:162 (TimeTicks sysUpTime=11840)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:17:41.184081838 UTC)(OCTET STRING alertDescription=Firmware update completed for fanCtrl1 vfc app)
<INFO> 1-Sep-2023::22:17:41.292 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960408 10.255.0.139:162 (TimeTicks sysUpTime=11851)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:17:41.196778865 UTC)(OCTET STRING alertDescription=Exhaust Fan 3 at 9199 RPM)
<INFO> 1-Sep-2023::22:17:41.293 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960408 10.255.0.144:162 (TimeTicks sysUpTime=11851)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:17:41.196778865 UTC)(OCTET STRING alertDescription=Exhaust Fan 3 at 9199 RPM)
<INFO> 1-Sep-2023::22:17:41.553 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960412 10.255.0.139:162 (TimeTicks sysUpTime=11877)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:17:41.264910284 UTC)(OCTET STRING alertDescription=Exhaust Fan 2 at 9273 RPM)
<INFO> 1-Sep-2023::22:17:41.553 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960412 10.255.0.144:162 (TimeTicks sysUpTime=11877)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:17:41.264910284 UTC)(OCTET STRING alertDescription=Exhaust Fan 2 at 9273 RPM)
<INFO> 1-Sep-2023::22:17:41.617 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960414 10.255.0.139:162 (TimeTicks sysUpTime=11883)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:17:41.285759139 UTC)(OCTET STRING alertDescription=Exhaust Fan 1 at 9279 RPM)
<INFO> 1-Sep-2023::22:17:41.621 controller-2 confd[603]: snmp snmpv2-trap reqid=1008960414 10.255.0.144:162 (TimeTicks sysUpTime=11883)(OBJECT IDENTIFIER snmpTrapOID=hardware-device-fault)(OCTET STRING alertSource=fan-controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-09-02 02:17:41.285759139 UTC)(OCTET STRING alertDescription=Exhaust Fan 1 at 9279 RPM)
arbitration-state .1.3.6.1.4.1.12276.1.1.1.66048
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
EVENT |
<<Asserted| Deasserted>> local arbitration health state |
EVENT |
<<Asserted| Deasserted>> local arbitration request-active state |
EVENT |
<<Asserted| Deasserted>> local arbitration grant-active state |
Change detected in System Controller Arbitration State.
<INFO> 23-Jul-2024::12:37:48.556 controller-1 confd[658]: snmp snmpv2-trap reqid=2109934181 10.255.80.251:162 (TimeTicks sysUpTime=6115)(OBJECT IDENTIFIER snmpTrapOID=arbitration-state)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-07-23 16:37:48.486553104 UTC)(OCTET STRING alertDescription=Deasserted: peer arbitration health state)
<INFO> 23-Jul-2024::12:46:18.548 controller-1 confd[658]: snmp snmpv2-trap reqid=2109934182 10.255.80.251:162 (TimeTicks sysUpTime=56476)(OBJECT IDENTIFIER snmpTrapOID=arbitration-state)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-07-23 16:46:18.541298567 UTC)(OCTET STRING alertDescription=Asserted: peer arbitration health state)
<INFO> 23-Jul-2024::12:47:06.505 controller-1 confd[658]: snmp snmpv2-trap reqid=2109934183 10.255.80.251:162 (TimeTicks sysUpTime=61318)(OBJECT IDENTIFIER snmpTrapOID=arbitration-state)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-07-23 16:46:16.607590924 UTC)(OCTET STRING alertDescription=Deasserted: local arbitration health state)
<INFO> 23-Jul-2024::12:47:06.668 controller-1 confd[658]: snmp snmpv2-trap reqid=2109934185 10.255.80.251:162 (TimeTicks sysUpTime=61335)(OBJECT IDENTIFIER snmpTrapOID=arbitration-state)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-07-23 16:46:25.798025854 UTC)(OCTET STRING alertDescription=Asserted: local arbitration health state)
switch-status .1.3.6.1.4.1.12276.1.1.1.66049
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
ASSERT |
Switch port status |
EVENT |
|
CLEAR |
Switch port status |
Switch port status.
<INFO> 23-Jul-2024::13:39:16.822 controller-1 confd[658]: snmp snmpv2-trap reqid=2109934234 10.255.80.251:162 (TimeTicks sysUpTime=374941)(OBJECT IDENTIFIER snmpTrapOID=switch-status)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-07-23 17:39:16.722021333 UTC)(OCTET STRING alertDescription=data plane switch port hg14 (blade2/bp0) has FEC uncorrected errors, value=1)
<INFO> 23-Jul-2024::13:39:46.879 controller-1 confd[658]: snmp snmpv2-trap reqid=2109934236 10.255.80.251:162 (TimeTicks sysUpTime=377947)(OBJECT IDENTIFIER snmpTrapOID=switch-status)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-07-23 17:39:46.771763998 UTC)(OCTET STRING alertDescription=data plane switch port hg14 (blade2/bp0) has no FEC uncorrected errors)
link-state .1.3.6.1.4.1.12276.1.1.1.66050
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
ASSERT |
Management link state is down |
EVENT |
Front-panel management port link status is <<down | up >> |
CLEAR |
Management link state is down |
Traps for the front panel system controller management port link state. Each system controller has a single 10Gb Ethernet port. Traps will be generated when these ports change status. The Source of the trap will either be controller-1 or controller-2, and the body of the trap will indicate the status of the port (up or down). Traps will be sent with either an assert when an alarm occurs, a clear when the alarm is cleared, or an event which is providing an update to a raised alarm event.
assert(1) is reported in alertEffect when alarm is raised.
clear(0) is reported in alertEffect when alarm is cleared.
event(2) is updated in alertEffect when event notification is reported.
As an example, the following set of traps are from a Link Down event on controller-1. The first trap has alertEffect=1 indicating an assert. The second trap has alertEffect=2 indicating an additional infromation about the assert. The 3rd trap is a clear event of the original alert indicated by the alertEffect=0. Fianlly addtional information is provided alertEffect=2 in the 4th trap, indicating the link is back up.
<INFO> 23-Jul-2024::23:50:08.503 controller-1 confd[658]: snmp snmpv2-trap reqid=2109934240 10.255.80.251:162 (TimeTicks sysUpTime=4040110)(OBJECT IDENTIFIER snmpTrapOID=link-state)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=1)(INTEGER alertSeverity=4)(OCTET STRING alertTimeStamp=2024-07-24 03:50:08.433629827 UTC)(OCTET STRING alertDescription=Management link state is down)
<INFO> 23-Jul-2024::23:50:08.516 controller-1 confd[658]: snmp snmpv2-trap reqid=2109934241 10.255.80.251:162 (TimeTicks sysUpTime=4040111)(OBJECT IDENTIFIER snmpTrapOID=link-state)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-07-24 03:50:08.433666735 UTC)(OCTET STRING alertDescription=Front-panel management port link status is down)
<INFO> 23-Jul-2024::23:51:08.493 controller-1 confd[658]: snmp snmpv2-trap reqid=2109934242 10.255.80.251:162 (TimeTicks sysUpTime=4046108)(OBJECT IDENTIFIER snmpTrapOID=link-state)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=0)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-07-24 03:51:08.471133766 UTC)(OCTET STRING alertDescription=Management link state is down)
<INFO> 23-Jul-2024::23:51:08.547 controller-1 confd[658]: snmp snmpv2-trap reqid=2109934243 10.255.80.251:162 (TimeTicks sysUpTime=4046114)(OBJECT IDENTIFIER snmpTrapOID=link-state)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-07-24 03:51:08.471162616 UTC)(OCTET STRING alertDescription=Front-panel management port link status is up)
datapath-fault .1.3.6.1.4.1.12276.1.1.1.65578
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
EVENT |
Hardware datapath fault.
boot-time-integrity-status .1.3.6.1.4.1.12276.1.1.1.65579
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
EVENT |
Boot time integrity failure detected |
Boot time integrity failure detected.
<INFO> 17-Jun-2024::17:06:12.992 controller-1 confd[651]: snmp snmpv2-trap reqid=1333239385 10.255.80.251:162 (TimeTicks sysUpTime=2588)(OBJECT IDENTIFIER snmpTrapOID=boot-time-integrity-status)(OCTET STRING alertSource=blade-3)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-06-17 21:05:40.038536850 UTC)(OCTET STRING alertDescription=Deasserted: OS boot time integrity check complete)
<INFO> 17-Jun-2024::17:06:13.121 controller-1 confd[651]: snmp snmpv2-trap reqid=1333239386 10.255.80.251:162 (TimeTicks sysUpTime=2601)(OBJECT IDENTIFIER snmpTrapOID=boot-time-integrity-status)(OCTET STRING alertSource=blade-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-06-17 21:05:40.044855786 UTC)(OCTET STRING alertDescription=Deasserted: OS boot time integrity check complete)
<INFO> 17-Jun-2024::17:06:13.237 controller-1 confd[651]: snmp snmpv2-trap reqid=1333239387 10.255.80.251:162 (TimeTicks sysUpTime=2613)(OBJECT IDENTIFIER snmpTrapOID=boot-time-integrity-status)(OCTET STRING alertSource=blade-3)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-06-17 21:05:40.052817609 UTC)(OCTET STRING alertDescription=Deasserted: OS boot time integrity check failure)
<INFO> 17-Jun-2024::17:06:13.383 controller-1 confd[651]: snmp snmpv2-trap reqid=1333239388 10.255.80.251:162 (TimeTicks sysUpTime=2627)(OBJECT IDENTIFIER snmpTrapOID=boot-time-integrity-status)(OCTET STRING alertSource=blade-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-06-17 21:05:40.058460353 UTC)(OCTET STRING alertDescription=Deasserted: OS boot time integrity check failure)
<INFO> 17-Jun-2024::17:06:13.559 controller-1 confd[651]: snmp snmpv2-trap reqid=1333239389 10.255.80.251:162 (TimeTicks sysUpTime=2645)(OBJECT IDENTIFIER snmpTrapOID=boot-time-integrity-status)(OCTET STRING alertSource=blade-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-06-17 21:05:40.074260559 UTC)(OCTET STRING alertDescription=Deasserted: OS boot time integrity check complete)
<INFO> 17-Jun-2024::17:06:13.711 controller-1 confd[651]: snmp snmpv2-trap reqid=1333239390 10.255.80.251:162 (TimeTicks sysUpTime=2660)(OBJECT IDENTIFIER snmpTrapOID=boot-time-integrity-status)(OCTET STRING alertSource=blade-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-06-17 21:05:40.078563910 UTC)(OCTET STRING alertDescription=Deasserted: OS boot time integrity check failure)
incompatible-image .1.3.6.1.4.1.12276.1.1.1.327682
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
EVENT |
Unsupported platform <Platform Type> import file <file path and name> removed incorrect file name import file <file path and name> removed File name has special characters Unexpected error processing Command ‘<command details>’ returned non-zero exit status 32. |
Trap notification when the platform incompatible image is imported.
login-failed .1.3.6.1.4.1.12276.1.1.1.327683
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
EVENT |
F5OS login attempt failed for the user: <username>, rhost: <remote host IP> |
An SNMP Trap will be generated for login failures to the F5OS interfaces. Below is an example of an authentication failure trap generated on a system controller.
velos-chassis2-1-active# file tail -f log/confd/snmp.log
<INFO> 22-Aug-2024::13:18:24.022 controller-1 confd[656]: snmp snmpv2-trap reqid=174749401 10.255.80.251:162 (TimeTicks sysUpTime=5306232)(OBJECT IDENTIFIER snmpTrapOID=login-failed)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-22 13:18:23.991872061 UTC)(OCTET STRING alertDescription=F5OS login attempt failed for the user: admin, rhost: 172.18.104.121)
<INFO> 22-Aug-2024::13:18:28.121 controller-1 confd[656]: snmp snmpv2-trap reqid=174749402 10.255.80.251:162 (TimeTicks sysUpTime=5306642)(OBJECT IDENTIFIER snmpTrapOID=login-failed)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-22 13:18:28.071075669 UTC)(OCTET STRING alertDescription=F5OS login attempt failed for the user: admin, rhost: 172.18.104.121)
<INFO> 22-Aug-2024::13:18:31.330 controller-1 confd[656]: snmp snmpv2-trap reqid=174749403 10.255.80.251:162 (TimeTicks sysUpTime=5306963)(OBJECT IDENTIFIER snmpTrapOID=login-failed)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-22 13:18:31.324417671 UTC)(OCTET STRING alertDescription=F5OS login attempt failed for the user: admin, rhost: 172.18.104.121)
Below is an example of an authentication failure trap generated on a chassis partition.
Production-2# file tail -f log/snmp.log
<INFO> 22-Aug-2024::13:00:33.112 partition2 confd[123]: snmp snmpv2-trap reqid=1289508594 10.255.80.251:162 (TimeTicks sysUpTime=5028649)(OBJECT IDENTIFIER snmpTrapOID=login-failed)(OCTET STRING alertSource=partition2(Production))(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-08-22 13:00:33.100340535 UTC)(OCTET STRING alertDescription=F5OS login attempt failed for the user: admin, rhost: 172.18.104.121)
nebsEnabled .1.3.6.1.4.1.12276.1.1.1.131072
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
EVENT |
Chassis is operating with NEBS temperature thresholds |
Chassis is operating with NEBS temperature thresholds.
nebsDisabled .1.3.6.1.4.1.12276.1.1.1.131073
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
EVENT |
Chassis is operating with non-NEBS temperature thresholds |
Chassis is operating with non-NEBS temperature thresholds.
systemControllerNebsMismatch .1.3.6.1.4.1.12276.1.1.1.131328
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
ASSERT |
Chassis operating with non-NEBS temperature thresholds non-NEBS system controller installed in a NEBS chassis |
CLEAR |
Chassis operating with non-NEBS temperature thresholds non-NEBS system controller installed in a NEBS chassis |
Chassis operating with non-NEBS temperature thresholds (non-NEBS system controller installed in a NEBS chassis).
bladeNebsMismatch .1.3.6.1.4.1.12276.1.1.1.131329
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
ASSERT |
Blade operating with non-NEBS temperature thresholds non-NEBS blade installed in a NEBS chassis |
CLEAR |
Blade operating with non-NEBS temperature thresholds non-NEBS blade installed in a NEBS chassis |
Blade operating with non-NEBS temperature thresholds (non-NEBS blade installed in a NEBS chassis).
openshiftCertsExpWithinNinetyDays .1.3.6.1.4.1.12276.1.1.1.458752
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
ASSERT |
One or more openshift certificates expiring within 90 days. |
CLEAR |
One or more openshift certificates expiring within 90 days. |
One or more openshift certificates expiring within 90 days.
openshiftCertificatesExpiring .1.3.6.1.4.1.12276.1.1.1.458753
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
ASSERT |
One or more openshift certificates has expired or is expiring. |
CLEAR |
One or more openshift certificates has expired or is expiring. |
One or more openshift certificates has expired or is expiring.
openshiftUpgradeNeeded .1.3.6.1.4.1.12276.1.1.1.459008
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
ASSERT |
The openshift cluster requires a manual rebuild to use the latest containers. |
CLEAR |
The openshift cluster requires a manual rebuild to use the latest containers. |
The openshift cluster requires a manual rebuild to use the latest containers.
velos-1-gsa-2-active# file show log/confd/snmp.log | include openshift
<INFO> 5-Mar-2024::15:20:13.849 controller-2 confd[581]: snmp snmpv2-trap reqid=220801593 10.255.80.251:162 (TimeTicks sysUpTime=45302)(OBJECT IDENTIFIER snmpTrapOID=openshiftUpgradeNeeded)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=1)(INTEGER alertSeverity=4)(OCTET STRING alertTimeStamp=2024-03-05 20:20:13.834972950 UTC)(OCTET STRING alertDescription=The openshift cluster requires a manual rebuild to use the latest containers.)
<INFO> 2-Apr-2024::21:49:23.796 controller-2 confd[579]: snmp snmpv2-trap reqid=968477049 10.255.80.251:162 (TimeTicks sysUpTime=1607910)(OBJECT IDENTIFIER snmpTrapOID=openshiftUpgradeNeeded)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=1)(INTEGER alertSeverity=4)(OCTET STRING alertTimeStamp=2024-04-03 01:49:23.765813382 UTC)(OCTET STRING alertDescription=The openshift cluster requires a manual rebuild to use the latest containers.)
velos-1-gsa-2-active#
initialization .1.3.6.1.4.1.12276.1.1.1.262656
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
EVENT |
Critical issue in fpga and datapath initialization process.
ePVA .1.3.6.1.4.1.12276.1.1.1.262912
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
EVENT |
Could not initialize ePVA.
speed .1.3.6.1.4.1.12276.1.1.1.263170
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
EVENT |
Port speed change event.
lacp-mac-failure .1.3.6.1.4.1.12276.1.1.1.590081
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
EVENT |
Failed to publish LACP MAC address to the database.
mac-exhaustion .1.3.6.1.4.1.12276.1.1.1.590082
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
EVENT |
Partition MAC pool is exhausted.
inaccessibleMemory .1.3.6.1.4.1.12276.1.1.1.458752
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
EVENT |
Notification indicating unusable hugepage memory.
Firmware Update Status Traps¶
firmware-update-status .1.3.6.1.4.1.12276.1.1.1.65550
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
EVENT |
Firmware update is <<running | completed >> for <<module>> Example: Firmware update is running for vqf 0 |

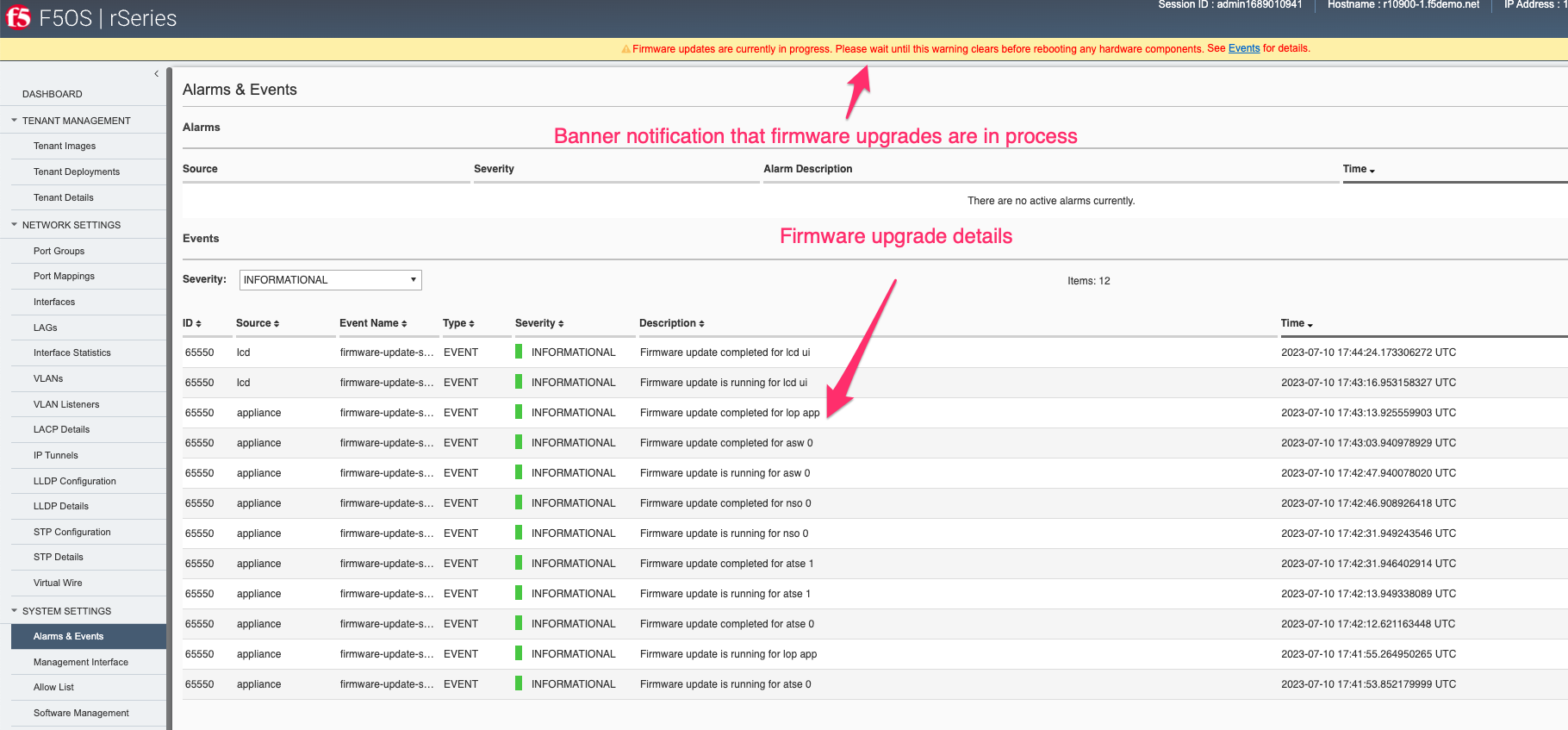

These traps provide indication of the beginning (Firmware update is running) and end (Firmware upgrade has completed) of firmware upgrades for different parts of the system. These may occur as part of a software update to F5OS. Not every upgrade requires firmware to be updated. You may see different components having their firmware upgraded such as (lcd, bios, cpld, lop app, sirr, atse, asw, nso, nvme0, nvme1). It is important not to interrupt the firmware upgrade process. If you see a firmware update alert raised for a specific component, you should not make any changes to the system until each component returns a Firmware update completed message. In newer versions of F5OS, the webUI will display a banner at the top of the page while firmware updates run and will disappear when they complete. The banner will have a link to the Alarms and Events page which will show the current status of the firmware updates as seen below.
The CLI command below shows how to filter the snmp.log file to only show firmware related events.
syscon-1-active# file show log/confd/snmp.log | include firmware-update-status | more
<INFO> 3-Oct-2022::09:37:44.393 controller-1 confd[437]: snmp snmpv2-trap reqid=64691707 10.255.0.143:162 (TimeTicks sysUpTime=22492)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=blade-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:35:48.870896214 UTC)(OCTET STRING alertDescription=Firmware update is running for atse 0)
<INFO> 3-Oct-2022::09:37:45.245 controller-1 confd[437]: snmp snmpv2-trap reqid=64691712 10.255.0.143:162 (TimeTicks sysUpTime=22577)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=blade-3)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:35:51.939545738 UTC)(OCTET STRING alertDescription=Firmware update is running for atse 0)
<INFO> 3-Oct-2022::09:37:46.942 controller-1 confd[437]: snmp snmpv2-trap reqid=64691729 10.255.0.143:162 (TimeTicks sysUpTime=22747)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=blade-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:36:00.925871290 UTC)(OCTET STRING alertDescription=Firmware update completed for atse 0)
<INFO> 3-Oct-2022::09:37:46.992 controller-1 confd[437]: snmp snmpv2-trap reqid=64691730 10.255.0.143:162 (TimeTicks sysUpTime=22752)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=blade-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:36:00.929282709 UTC)(OCTET STRING alertDescription=Firmware update is running for vqf 0)
<INFO> 3-Oct-2022::09:37:47.043 controller-1 confd[437]: snmp snmpv2-trap reqid=64691731 10.255.0.143:162 (TimeTicks sysUpTime=22757)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=blade-3)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:36:02.043180502 UTC)(OCTET STRING alertDescription=Firmware update completed for atse 0)
<INFO> 3-Oct-2022::09:37:47.093 controller-1 confd[437]: snmp snmpv2-trap reqid=64691732 10.255.0.143:162 (TimeTicks sysUpTime=22762)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=blade-3)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:36:02.046706053 UTC)(OCTET STRING alertDescription=Firmware update is running for vqf 0)
<INFO> 3-Oct-2022::09:37:47.144 controller-1 confd[437]: snmp snmpv2-trap reqid=64691733 10.255.0.143:162 (TimeTicks sysUpTime=22767)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=blade-3)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:36:10.044153041 UTC)(OCTET STRING alertDescription=Firmware update completed for vqf 0)
<INFO> 3-Oct-2022::09:37:47.196 controller-1 confd[437]: snmp snmpv2-trap reqid=64691734 10.255.0.143:162 (TimeTicks sysUpTime=22772)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=blade-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:36:10.104164703 UTC)(OCTET STRING alertDescription=Firmware update completed for vqf 0)
<INFO> 3-Oct-2022::09:37:47.705 controller-1 confd[437]: snmp snmpv2-trap reqid=64691736 10.255.0.143:162 (TimeTicks sysUpTime=22823)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=blade-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:36:30.054712423 UTC)(OCTET STRING alertDescription=Firmware update is running for atse 0)
<INFO> 3-Oct-2022::09:37:47.861 controller-1 confd[437]: snmp snmpv2-trap reqid=64691738 10.255.0.143:162 (TimeTicks sysUpTime=22839)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=blade-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:36:40.619282892 UTC)(OCTET STRING alertDescription=Firmware update completed for atse 0)
<INFO> 3-Oct-2022::09:37:47.915 controller-1 confd[437]: snmp snmpv2-trap reqid=64691739 10.255.0.143:162 (TimeTicks sysUpTime=22844)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=blade-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:36:42.005007447 UTC)(OCTET STRING alertDescription=Firmware update is running for vqf 0)
<INFO> 3-Oct-2022::09:37:47.959 controller-1 confd[437]: snmp snmpv2-trap reqid=64691740 10.255.0.143:162 (TimeTicks sysUpTime=22849)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=blade-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:36:50.005226389 UTC)(OCTET STRING alertDescription=Firmware update completed for vqf 0)
<INFO> 3-Oct-2022::09:37:48.008 controller-1 confd[437]: snmp snmpv2-trap reqid=64691741 10.255.0.143:162 (TimeTicks sysUpTime=22853)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=blade-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:37:05.068269087 UTC)(OCTET STRING alertDescription=Firmware update is running for atse 0)
<INFO> 3-Oct-2022::09:37:48.059 controller-1 confd[437]: snmp snmpv2-trap reqid=64691742 10.255.0.143:162 (TimeTicks sysUpTime=22859)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=blade-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:37:18.925139998 UTC)(OCTET STRING alertDescription=Firmware update completed for atse 0)
<INFO> 3-Oct-2022::09:38:14.931 controller-1 confd[437]: snmp snmpv2-trap reqid=64691743 10.255.0.143:162 (TimeTicks sysUpTime=25546)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=blade-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:38:14.926040195 UTC)(OCTET STRING alertDescription=Firmware update is running for atse 0)
<INFO> 3-Oct-2022::09:38:25.324 controller-1 confd[437]: snmp snmpv2-trap reqid=64691744 10.255.0.143:162 (TimeTicks sysUpTime=26585)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=blade-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 09:38:25.318148132 UTC)(OCTET STRING alertDescription=Firmware update completed for atse 0)
<INFO> 3-Oct-2022::10:14:55.183 controller-1 confd[437]: snmp snmpv2-trap reqid=718708783 10.255.0.143:162 (TimeTicks sysUpTime=20076)(OBJECT IDENTIFIER snmpTrapOID=firmware-update-status)(OCTET STRING alertSource=blade-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2022-10-03 10:13:23.217820626 UTC)(OCTET STRING alertDescription=Firmware update is running for atse 0)
Drive Utilization Traps¶
drive-utilization .1.3.6.1.4.1.12276.1.1.1.65551
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
ASSERT |
Drive utilization growth rate is high |
EVENT |
Drive usage growth rate exceeded 10%, growth={{.growthPercent}} Drive usage growth rate with in range, growth={{.growthPercent}}% |
CLEAR |
Drive utilization growth rate is high |
The system will monitor the storage utilization of the VELOS disks and warn if the disk usage gets too high. There are 3 levels of events that can occur as seen below:
drive-capacity:critical-limit - Drive Usage exceeded 97%
drive-capacity:failure-limit - Drive Usage exceeded 90%
drive-capacity:warning-limit - Drive Usage exceeded 85%
You can use the show system alarms CLI command to see if the drive is in an overutilized state.
appliance-1# show system alarms
ID RESOURCE SEVERITY TEXT TIME CREATED
--------------------------------------------------------------------------------------------------
65545 appliance EMERGENCY Power fault detected in hardware 2023-03-24 12:37:13.713715583 UTC
65544 appliance CRITICAL Running out of drive capacity 2023-03-27 15:41:37.847817761 UTC
65545 appliance EMERGENCY Power fault detected in hardware 2023-03-24 12:37:13.713715583 UTC
The show system events CLI command will provide more details of the drive events that have occurred.
appliance-1# show system events | more
system events event
log "65544 appliance drive-capacity-fault ASSERT CRITICAL \"Running out of drive capacity\" \"2023-03-27 15:41:37.847817761 UTC\""
system events event
log "65544 appliance drive-capacity-fault EVENT NA \"Drive usage exceeded 97%, used=100%\" \"2023-03-27 15:41:37.847831437 UTC\""
system events event
log "65544 appliance drive-capacity-fault CLEAR CRITICAL \"Running out of drive capacity\" \"2023-03-27 15:42:32.655591036 UTC\""
system events event
log "65544 appliance drive-capacity-fault EVENT NA \"Drive usage with in range, used=54%\" \"2023-03-27 15:42:32.655608659 UTC\""
You can also view the snmp.log file to see the SNMP traps that have been issued for drive-utilization.
The output below is from an rSeries unit:
syscon-1-active# file show log/confd/snmp.log | include drive-utilization
<INFO> 12-Apr-2023::12:00:00.042 appliance-1 confd[116]: snmp snmpv2-trap reqid=608130742 10.255.8.22:6011 (TimeTicks sysUpTime=122027)(OBJECT IDENTIFIER snmpTrapOID=drive-utilization)(OCTET STRING alertSource=appliance)(INTEGER alertEffect=1)(INTEGER alertSeverity=4)(OCTET STRING alertTimeStamp=2023-04-12 12:00:00.037547416 UTC)(OCTET STRING alertDescription=Drive utilization growth rate is high)
<INFO> 12-Apr-2023::12:00:00.092 appliance-1 confd[116]: snmp snmpv2-trap reqid=608130743 10.255.8.22:6011 (TimeTicks sysUpTime=122032)(OBJECT IDENTIFIER snmpTrapOID=drive-utilization)(OCTET STRING alertSource=appliance)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-04-12 12:00:00.037560232 UTC)(OCTET STRING alertDescription=Drive usage growth rate exceeded 10%, growth=13%)
<INFO> 12-Apr-2023::12:00:52.838 appliance-1 confd[116]: snmp snmpv2-trap reqid=608130745 10.255.8.22:6011 (TimeTicks sysUpTime=127307)(OBJECT IDENTIFIER snmpTrapOID=drive-utilization)(OCTET STRING alertSource=appliance)(INTEGER alertEffect=0)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-04-12 12:00:52.834736965 UTC)(OCTET STRING alertDescription=Drive utilization growth rate is high)
<INFO> 12-Apr-2023::12:00:52.888 appliance-1 confd[116]: snmp snmpv2-trap reqid=608130746 10.255.8.22:6011 (TimeTicks sysUpTime=127312)(OBJECT IDENTIFIER snmpTrapOID=drive-utilization)(OCTET STRING alertSource=appliance)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-04-12 12:00:52.834754109 UTC)(OCTET STRING alertDescription=Drive usage growth rate with in range, growth=-10268%)
System Event Traps¶
core-dump .1.3.6.1.4.1.12276.1.1.1.327680
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
EVENT |
Core dumped on Controller-<1|2>. process=<service name> location=<core file location> |
This trap will indicate that the system has generated a core-dump file. A support case should be opened to diagnose the failure and a qkview should be taken and uploaded to iHealth to capture the diagnostic information for F5 support to analyze. Below is an example of an SNMP trap indicating that the orchestration manager has generated a core dump Files.
syscon-1-active# file show log/confd/snmp.log | include core-dump
<INFO> 27-Jan-2023::17:42:38.805 controller-1 confd[442]: snmp snmpv2-trap reqid=2081038626 10.255.0.143:162 (TimeTicks sysUpTime=206883178)(OBJECT IDENTIFIER snmpTrapOID=core-dump)(OCTET STRING alertSource=Controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-01-27 17:42:27.132412331 UTC)(OCTET STRING alertDescription=Core dumped on Controller-2. process=vcc-chassis-man, location=/var/shared/core/container/core.vcc-chassis-ma.vcc-chassis-manager.12316.1674841342.core.gz)
<INFO> 3-May-2023::15:57:31.095 controller-1 confd[608]: snmp snmpv2-trap reqid=306728670 10.255.0.143:162 (TimeTicks sysUpTime=10751)(OBJECT IDENTIFIER snmpTrapOID=core-dump)(OCTET STRING alertSource=Controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-05-03 15:57:11.960474641 UTC)(OCTET STRING alertDescription=Core dumped on Controller-1. process=vcc-chassis-man, location=/var/shared/core/container/core..vcc-chassis-manager.23134.1683129427.core.gz)
<INFO> 3-May-2023::16:06:46.063 controller-1 confd[608]: snmp snmpv2-trap reqid=306728930 10.255.0.143:162 (TimeTicks sysUpTime=66248)(OBJECT IDENTIFIER snmpTrapOID=core-dump)(OCTET STRING alertSource=Controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-05-03 16:06:44.715885633 UTC)(OCTET STRING alertDescription=Core dumped on Controller-1. process=vcc-chassis-man, location=/var/shared/core/container/core..vcc-chassis-manager.60309.1683130000.core.gz)
<INFO> 15-May-2023::13:12:55.460 controller-1 confd[602]: snmp snmpv2-trap reqid=1448346415 10.255.0.143:162 (TimeTicks sysUpTime=2966)(OBJECT IDENTIFIER snmpTrapOID=core-dump)(OCTET STRING alertSource=Controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-05-15 13:12:40.087271132 UTC)(OCTET STRING alertDescription=Core dumped on Controller-1. process=vcc-chassis-man, location=/var/shared/core/container/core..vcc-chassis-manager.13051.1684156356.core.gz)
<INFO> 15-May-2023::13:13:01.846 controller-1 confd[602]: snmp snmpv2-trap reqid=1448346431 10.255.0.143:162 (TimeTicks sysUpTime=3605)(OBJECT IDENTIFIER snmpTrapOID=core-dump)(OCTET STRING alertSource=Controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-05-15 13:12:40.269591691 UTC)(OCTET STRING alertDescription=Core dumped on Controller-2. process=rsyslogd, location=/var/shared/core/container/core..rsyslogd.14019.1684156359.core.gz)
syscon-1-active#
reboot .1.3.6.1.4.1.12276.1.1.1.327681
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
EVENT |
reboot - controller-<1|2>.chassis.local F5OS-C controller version <Version> |
This trap will indicate that the system has rebooted. It’s possible this was a planned reboot initiated by the administrator. Below is an example of a reboot trap.
<INFO> 23-Jul-2024::12:47:06.710 controller-1 confd[658]: snmp snmpv2-trap reqid=2109934186 10.255.80.251:162 (TimeTicks sysUpTime=61339)(OBJECT IDENTIFIER snmpTrapOID=reboot)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2024-07-23 16:46:30.379710424 UTC)(OCTET STRING alertDescription=reboot - controller-2.chassis.local F5OS-C controller version 1.8.0-14453)
raid-event .1.3.6.1.4.1.12276.1.1.1.393216
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
EVENT |
r10900-1# file show log/system/snmp.log | include raid-event
backplane .1.3.6.1.4.1.12276.1.1.1.262144
AlertEffect |
Possible Description in SNMP Trap |
|---|---|
EVENT |
syscon-1-active# file show log/confd/snmp.log | include backplane
Troubleshooting SNMP¶
There are SNMP logs in the system controllers and within each chassis partition. SNMP information is captured in the snmp.log located within the log/confd directory of the system controller, and in the /log directory in the chassis partition. Below is an example using the system controller F5OS CLI to view the SNMP logs.
Note: The CLI and webUI abstract the full paths for logs so that they are easier to find; if using root access to the bash shell, then the full path to the system controller SNMP logs is **/var/confd/log/snmp.log.
syscon-1-active# file tail -n 20 log/confd/snmp.log
<INFO> 2-Aug-2023::19:18:44.933 controller-1 confd[603]: snmp snmpv2-trap reqid=651301557 10.255.0.139:162 (TimeTicks sysUpTime=182562762)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-2)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-08-02 23:18:43.918659285 UTC)(OCTET STRING alertDescription=inlet at +18.5 degC)
<INFO> 2-Aug-2023::19:18:45.152 controller-1 confd[603]: snmp snmpv2-trap reqid=651301558 10.255.0.139:162 (TimeTicks sysUpTime=182562784)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=blade-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-08-02 23:18:45.078005934 UTC)(OCTET STRING alertDescription=outlet at +45.0 degC)
<INFO> 2-Aug-2023::19:18:45.244 controller-1 confd[603]: snmp snmpv2-trap reqid=651301559 10.255.0.139:162 (TimeTicks sysUpTime=182562793)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=blade-3)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-08-02 23:18:45.127424977 UTC)(OCTET STRING alertDescription=outlet at +45.0 degC)
<INFO> 2-Aug-2023::19:18:45.349 controller-1 confd[603]: snmp snmpv2-trap reqid=651301560 10.255.0.139:162 (TimeTicks sysUpTime=182562804)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=blade-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-08-02 23:18:45.168637802 UTC)(OCTET STRING alertDescription=inlet at +23.0 degC)
<INFO> 2-Aug-2023::19:18:45.443 controller-1 confd[603]: snmp snmpv2-trap reqid=651301561 10.255.0.139:162 (TimeTicks sysUpTime=182562813)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-08-02 23:18:45.255147812 UTC)(OCTET STRING alertDescription=outlet at +28.0 degC)
<INFO> 2-Aug-2023::19:18:47.124 controller-1 confd[603]: snmp snmpv2-trap reqid=651301562 10.255.0.139:162 (TimeTicks sysUpTime=182562981)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-08-02 23:18:47.064438805 UTC)(OCTET STRING alertDescription=inlet at +9.9 degC)
<INFO> 3-Aug-2023::16:14:13.138 controller-1 confd[603]: snmp snmpv2-trap reqid=651301563 10.255.0.139:162 (TimeTicks sysUpTime=190095583)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-08-03 20:14:13.079245613 UTC)(OCTET STRING alertDescription=inlet at +10.0 degC)
<INFO> 5-Aug-2023::13:03:43.170 controller-1 confd[603]: snmp snmpv2-trap reqid=651301564 10.255.0.139:162 (TimeTicks sysUpTime=206232586)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-08-05 17:03:43.112461099 UTC)(OCTET STRING alertDescription=inlet at +9.3 degC)
<INFO> 7-Aug-2023::01:37:49.152 controller-1 confd[603]: snmp snmpv2-trap reqid=651301565 10.255.0.139:162 (TimeTicks sysUpTime=219397184)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-08-07 05:37:49.093715562 UTC)(OCTET STRING alertDescription=inlet at +9.7 degC)
<INFO> 7-Aug-2023::20:15:07.127 controller-1 confd[603]: snmp snmpv2-trap reqid=651301566 10.255.0.139:162 (TimeTicks sysUpTime=226100982)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-08-08 00:15:07.066042954 UTC)(OCTET STRING alertDescription=inlet at +10.2 degC)
<INFO> 8-Aug-2023::15:26:07.155 controller-1 confd[603]: snmp snmpv2-trap reqid=651301567 10.255.0.139:162 (TimeTicks sysUpTime=233006985)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-08-08 19:26:07.096245341 UTC)(OCTET STRING alertDescription=inlet at +9.4 degC)
<INFO> 9-Aug-2023::02:40:11.128 controller-1 confd[603]: snmp snmpv2-trap reqid=651301568 10.255.0.139:162 (TimeTicks sysUpTime=237051382)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-08-09 06:40:11.069561657 UTC)(OCTET STRING alertDescription=inlet at +8.5 degC)
<INFO> 9-Aug-2023::08:08:51.297 controller-1 confd[603]: snmp snmpv2-trap reqid=651301569 10.255.0.139:162 (TimeTicks sysUpTime=239023399)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-08-09 12:08:51.235393294 UTC)(OCTET STRING alertDescription=inlet at +9.0 degC)
<INFO> 9-Aug-2023::14:51:31.125 controller-1 confd[603]: snmp snmpv2-trap reqid=651301570 10.255.0.139:162 (TimeTicks sysUpTime=241439381)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-08-09 18:51:31.064364864 UTC)(OCTET STRING alertDescription=inlet at +8.4 degC)
<INFO> 9-Aug-2023::23:17:19.123 controller-1 confd[603]: snmp snmpv2-trap reqid=651301571 10.255.0.139:162 (TimeTicks sysUpTime=244474181)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-08-10 03:17:19.063597147 UTC)(OCTET STRING alertDescription=inlet at +9.2 degC)
<INFO> 10-Aug-2023::00:25:31.117 controller-1 confd[603]: snmp snmpv2-trap reqid=651301572 10.255.0.139:162 (TimeTicks sysUpTime=244883381)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-08-10 04:25:31.058598946 UTC)(OCTET STRING alertDescription=inlet at +9.5 degC)
<INFO> 10-Aug-2023::01:17:09.120 controller-1 confd[603]: snmp snmpv2-trap reqid=651301573 10.255.0.139:162 (TimeTicks sysUpTime=245193181)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-08-10 05:17:09.060294318 UTC)(OCTET STRING alertDescription=inlet at +9.4 degC)
<INFO> 10-Aug-2023::21:54:35.129 controller-1 confd[603]: snmp snmpv2-trap reqid=651301574 10.255.0.139:162 (TimeTicks sysUpTime=252617782)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-08-11 01:54:35.067191375 UTC)(OCTET STRING alertDescription=inlet at +9.0 degC)
<INFO> 12-Aug-2023::23:43:45.121 controller-1 confd[603]: snmp snmpv2-trap reqid=651301575 10.255.0.139:162 (TimeTicks sysUpTime=270552781)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-08-13 03:43:45.064105470 UTC)(OCTET STRING alertDescription=inlet at +10.0 degC)
<INFO> 15-Aug-2023::13:27:07.120 controller-1 confd[603]: snmp snmpv2-trap reqid=651301576 10.255.0.139:162 (TimeTicks sysUpTime=292772981)(OBJECT IDENTIFIER snmpTrapOID=thermal-fault)(OCTET STRING alertSource=controller-1)(INTEGER alertEffect=2)(INTEGER alertSeverity=8)(OCTET STRING alertTimeStamp=2023-08-15 17:27:07.060818625 UTC)(OCTET STRING alertDescription=inlet at +9.5 degC)
SNMP information is captured in the snmp.log located within the log directory of each chassis partition:
Note: The CLI and webUI abstract the full paths for logs so that they are easier to find, if using root access to the bash shell, then the full path to the chassis partition snmp logs is /var/F5/partition<id>/log/snmp.log
Production-1# file tail -n 20 log/snmp.log
<INFO> 24-Sep-2021::06:10:36.000 partition2 confd[103]: snmp get-next-request reqid=1512684928 172.18.104.29:50858 (INTEGER vacmAccessContextMatch.11.114.101.97.100.45.97.99.99.101.115.115.0.0.1)(OCTET STRING vacmAccessReadViewName.11.114.101.97.100.45.97.99.99.101.115.115.0.0.1)(OCTET STRING vacmAccessNotifyViewName.11.114.101.97.100.45.97.99.99.101.115.115.0.0.1)(INTEGER vacmAccessStorageType.11.114.101.97.100.45.97.99.99.101.115.115.0.0.1)(INTEGER vacmAccessStatus.11.114.101.97.100.45.97.99.99.101.115.115.0.0.1)
<INFO> 24-Sep-2021::06:10:36.003 partition2 confd[103]: snmp get-response reqid=1512684928 172.18.104.29:50858 (OCTET STRING vacmAccessReadViewName.11.114.101.97.100.45.97.99.99.101.115.115.0.0.1=internet)(OCTET STRING vacmAccessNotifyViewName.11.114.101.97.100.45.97.99.99.101.115.115.0.0.1=internet)(INTEGER vacmAccessStorageType.11.114.101.97.100.45.97.99.99.101.115.115.0.0.1=3)(INTEGER vacmAccessStatus.11.114.101.97.100.45.97.99.99.101.115.115.0.0.1=1)(INTEGER vacmViewSpinLock=1837836215)
<INFO> 24-Sep-2021::06:10:43.510 partition2 confd[103]: snmp get-next-request reqid=1512684931 172.18.104.29:50859 (OCTET STRING vacmViewTreeFamilyViewName.)(OBJECT IDENTIFIER vacmViewTreeFamilySubtree.)(OCTET STRING vacmViewTreeFamilyMask.)(INTEGER vacmViewTreeFamilyType.)(INTEGER vacmViewTreeFamilyStorageType.)(INTEGER vacmViewTreeFamilyStatus.)
<INFO> 24-Sep-2021::06:10:43.516 partition2 confd[103]: snmp get-response reqid=1512684931 172.18.104.29:50859 (OCTET STRING vacmViewTreeFamilyMask.8.105.110.116.101.114.110.101.116.4.1.3.6.1=)(OCTET STRING vacmViewTreeFamilyMask.8.105.110.116.101.114.110.101.116.4.1.3.6.1=)(OCTET STRING vacmViewTreeFamilyMask.8.105.110.116.101.114.110.101.116.4.1.3.6.1=)(INTEGER vacmViewTreeFamilyType.8.105.110.116.101.114.110.101.116.4.1.3.6.1=1)(INTEGER vacmViewTreeFamilyStorageType.8.105.110.116.101.114.110.101.116.4.1.3.6.1=3)(INTEGER vacmViewTreeFamilyStatus.8.105.110.116.101.114.110.101.116.4.1.3.6.1=1)
<INFO> 24-Sep-2021::06:10:43.532 partition2 confd[103]: snmp get-next-request reqid=1512684934 172.18.104.29:50859 (OCTET STRING vacmViewTreeFamilyMask.8.105.110.116.101.114.110.101.116.4.1.3.6.1)(INTEGER vacmViewTreeFamilyType.8.105.110.116.101.114.110.101.116.4.1.3.6.1)(INTEGER vacmViewTreeFamilyStorageType.8.105.110.116.101.114.110.101.116.4.1.3.6.1)(INTEGER vacmViewTreeFamilyStatus.8.105.110.116.101.114.110.101.116.4.1.3.6.1)
<INFO> 24-Sep-2021::06:10:43.533 partition2 confd[103]: snmp get-response reqid=1512684934 172.18.104.29:50859 (INTEGER vacmViewTreeFamilyType.8.105.110.116.101.114.110.101.116.4.1.3.6.1=1)(INTEGER vacmViewTreeFamilyStorageType.8.105.110.116.101.114.110.101.116.4.1.3.6.1=3)(INTEGER vacmViewTreeFamilyStatus.8.105.110.116.101.114.110.101.116.4.1.3.6.1=1)(OCTET STRING snmpCommunityName.98.111.121.97.112.97.116.105=boyapati)
<INFO> 24-Sep-2021::06:10:53.626 partition2 confd[103]: snmp get-next-request reqid=1512684937 172.18.104.29:50860 (OCTET STRING vacmContextName.)
<INFO> 24-Sep-2021::06:10:53.627 partition2 confd[103]: snmp get-response reqid=1512684937 172.18.104.29:50860 (OCTET STRING vacmContextName.0.=)
<INFO> 24-Sep-2021::06:10:53.640 partition2 confd[103]: snmp get-next-request reqid=1512684940 172.18.104.29:50860 (OCTET STRING vacmContextName.0.)
<INFO> 24-Sep-2021::06:10:53.644 partition2 confd[103]: snmp get-response reqid=1512684940 172.18.104.29:50860 (OCTET STRING vacmGroupName.1.8.98.111.121.97.112.97.116.105=read-access)
<INFO> 24-Sep-2021::06:11:16.645 partition2 confd[103]: snmp get-bulk-request reqid=1512684943 172.18.104.29:60019 non-repeaters=0 max-repetitions=10 (platformCPUGroup)
<INFO> 24-Sep-2021::06:11:16.649 partition2 confd[103]: snmp get-response reqid=1512684943 172.18.104.29:60019 (INTEGER snmpSetSerialNo=504343332)(OCTET STRING snmpEngineID=80:00:61:81:05:01)(INTEGER snmpEngineBoots=3)(INTEGER snmpEngineTime=52301)(INTEGER snmpEngineMaxMessageSize=50000)(Counter32 snmpUnknownSecurityModels=0)(Counter32 snmpInvalidMsgs=0)(Counter32 snmpUnknownPDUHandlers=0)(INTEGER snmpTargetSpinLock=888290400)(Counter32 snmpUnavailableContexts=0)
<INFO> 24-Sep-2021::06:11:27.761 partition2 confd[103]: snmp get-next-request reqid=1512684946 172.18.104.29:60020 (platformCPUGroup)
<INFO> 24-Sep-2021::06:11:27.762 partition2 confd[103]: snmp get-response reqid=1512684946 172.18.104.29:60020 (INTEGER snmpSetSerialNo=504343332)
<INFO> 24-Sep-2021::06:11:34.792 partition2 confd[103]: snmp get-bulk-request reqid=1512684949 172.18.104.29:60021 non-repeaters=0 max-repetitions=50 (platformCPUGroup)
<INFO> 24-Sep-2021::06:11:34.807 partition2 confd[103]: snmp get-response reqid=1512684949 172.18.104.29:60021 (INTEGER snmpSetSerialNo=504343332)(OCTET STRING snmpEngineID=80:00:61:81:05:01)(INTEGER snmpEngineBoots=3)(INTEGER snmpEngineTime=52319)(INTEGER snmpEngineMaxMessageSize=50000)(Counter32 snmpUnknownSecurityModels=0)(Counter32 snmpInvalidMsgs=0)(Counter32 snmpUnknownPDUHandlers=0)(INTEGER snmpTargetSpinLock=888290400)(Counter32 snmpUnavailableContexts=0)(Counter32 snmpUnknownContexts=0)(OCTET STRING vacmContextName.0.=)(OCTET STRING vacmGroupName.1.8.98.111.121.97.112.97.116.105=read-access)(OCTET STRING vacmGroupName.2.8.98.111.121.97.112.97.116.105=read-access)(INTEGER vacmSecurityToGroupStorageType.1.8.98.111.121.97.112.97.116.105=3)(INTEGER vacmSecurityToGroupStorageType.2.8.98.111.121.97.112.97.116.105=3)(INTEGER vacmSecurityToGroupStatus.1.8.98.111.121.97.112.97.116.105=1)(INTEGER vacmSecurityToGroupStatus.2.8.98.111.121.97.112.97.116.105=1)(INTEGER vacmAccessContextMatch.11.114.101.97.100.45.97.99.99.101.115.115.0.0.1=1)(OCTET STRING vacmAccessReadViewName.11.114.101.97.100.45.97.99.99.101.115.115.0.0.1=internet)(OCTET STRING vacmAccessNotifyViewName.11.114.101.97.100.45.97.99.99.101.115.115.0.0.1=internet)(INTEGER vacmAccessStorageType.11.114.101.97.100.45.97.99.99.101.115.115.0.0.1=3)(INTEGER vacmAccessStatus.11.114.101.97.100.45.97.99.99.101.115.115.0.0.1=1)(INTEGER vacmViewSpinLock=1837836215)(OCTET STRING vacmViewTreeFamilyMask.8.105.110.116.101.114.110.101.116.4.1.3.6.1=)(INTEGER vacmViewTreeFamilyType.8.105.110.116.101.114.110.101.116.4.1.3.6.1=1)(INTEGER vacmViewTreeFamilyStorageType.8.105.110.116.101.114.110.101.116.4.1.3.6.1=3)(INTEGER vacmViewTreeFamilyStatus.8.105.110.116.101.114.110.101.116.4.1.3.6.1=1)(OCTET STRING snmpCommunityName.98.111.121.97.112.97.116.105=boyapati)(OCTET STRING snmpCommunitySecurityName.98.111.121.97.112.97.116.105=boyapati)(OCTET STRING snmpCommunityContextEngineID.98.111.121.97.112.97.116.105=80:00:61:81:05:01)(OCTET STRING snmpCommunityContextName.98.111.121.97.112.97.116.105=)(OCTET STRING snmpCommunityTransportTag.98.111.121.97.112.97.116.105=)(INTEGER snmpCommunityStorageType.98.111.121.97.112.97.116.105=4)(INTEGER snmpCommunityStatus.98.111.121.97.112.97.116.105=1)(INTEGER snmpCommunityStatus.98.111.121.97.112.97.116.105=endOfMibView)
<INFO> 24-Sep-2021::17:33:16.445 partition2 confd[103]: snmp get-request reqid=6725531 172.23.81.81:42802 (OCTET STRING sysDescr)
<INFO> 24-Sep-2021::17:47:04.751 partition2 confd[103]: snmp get-request reqid=6728306 172.23.81.81:42172 (OCTET STRING sysDescr)
<INFO> 24-Sep-2021::17:47:14.754 partition2 confd[103]: snmp get-request reqid=6728306 172.23.81.81:42172 (OCTET STRING sysDescr)
<INFO> 24-Sep-2021::17:47:24.760 partition2 confd[103]: snmp get-request reqid=6728306 172.23.81.81:42172 (OCTET STRING sysDescr)
Production-1#
Downloading SNMP Logs from the API¶
You can download various logs from the F5OS layer using the F5OS API. The snmp.log file resides in the log/confd/ directory for the system controller snmp logs. To list the current log files in the log/confd/ directory, use the following API call against the system controller floating IP address.
POST https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/f5-utils-file-transfer:file/list
In the body of the API call, add the virtual path you want to list.
{
"f5-utils-file-transfer:path": "log/confd/"
}
The output will show other files, along with the snmp.log file.
{
"f5-utils-file-transfer:output": {
"entries": [
{
"name": "confd.log",
"date": "Thu Jan 25 07:30:50 UTC 2024",
"size": "6.9MB"
},
{
"name": "devel.log",
"date": "Fri Feb 16 02:00:51 UTC 2024",
"size": "874MB"
},
{
"name": "ext-auth-err.log",
"date": "Fri Feb 16 01:58:32 UTC 2024",
"size": "0B"
},
{
"name": "ext-val-err.log",
"date": "Fri Feb 16 02:00:51 UTC 2024",
"size": "0B"
},
{
"name": "snmp.log",
"date": "Thu Feb 15 16:29:29 UTC 2024",
"size": "14MB"
},
{
"name": "webui/",
"date": "Thu Jan 25 07:29:54 UTC 2024",
"size": "4.0KB"
}
]
}
}
To download the snmp.log file use the following API call.
POST https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/f5-utils-file-transfer:file/f5-file-download:download-file/f5-file-download:start-download
In the body of the API call select form-data, and then enter the key/value pairs as seen below. The example provided will download the snmp.log file that resides in the log/confd directory on the system controller.

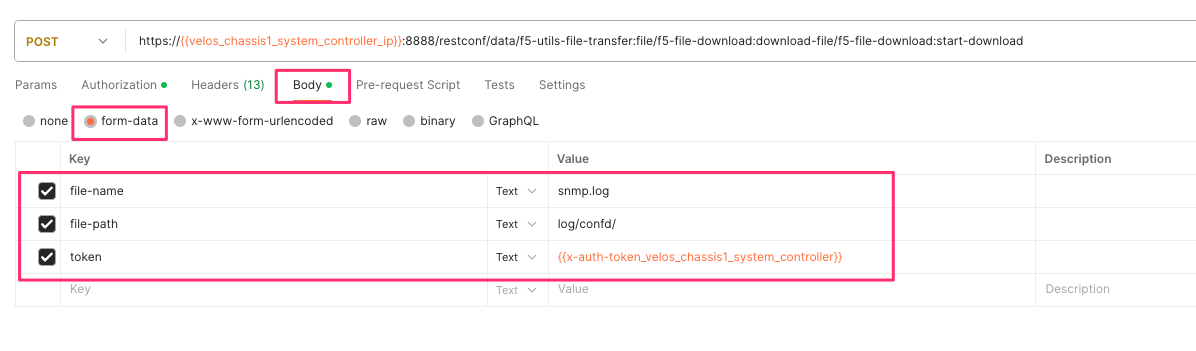

If you are using Postman, instead of clicking Send, click on the arrow next to Send, and then select Send and Download. You will then be prompted to save the file to your local file system.
