Initial Setup Within the Chassis Partition¶

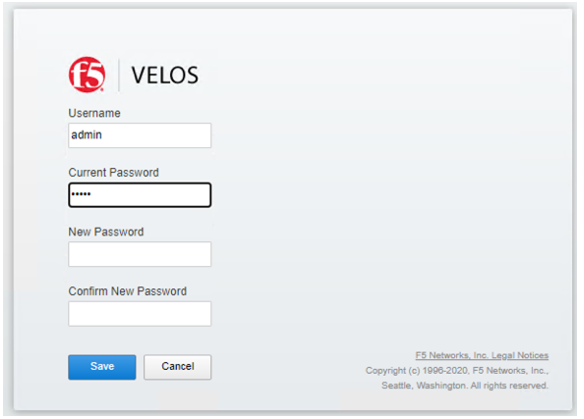

Chassis partitions are completely separate management entities that are managed outside of the system controllers but are still considered part of the F5OS platform layer. If you have properly setup a chassis partition and assigned an out-of-band management IP address, you will be able to access it via its own F5OS-C CLI, webUI, and API. The chassis partitions only have a single out-of-band IP address, and the system is resilient in that the single IP address should be reachable as long as one blade in the partition is active. There is no way to access the chassis partition via in-band networks, as the chassis partition does not have an option for in-band IP interfaces. At first login you will be prompted to change the default chassis partition password.
Chassis Partition Dashboard¶

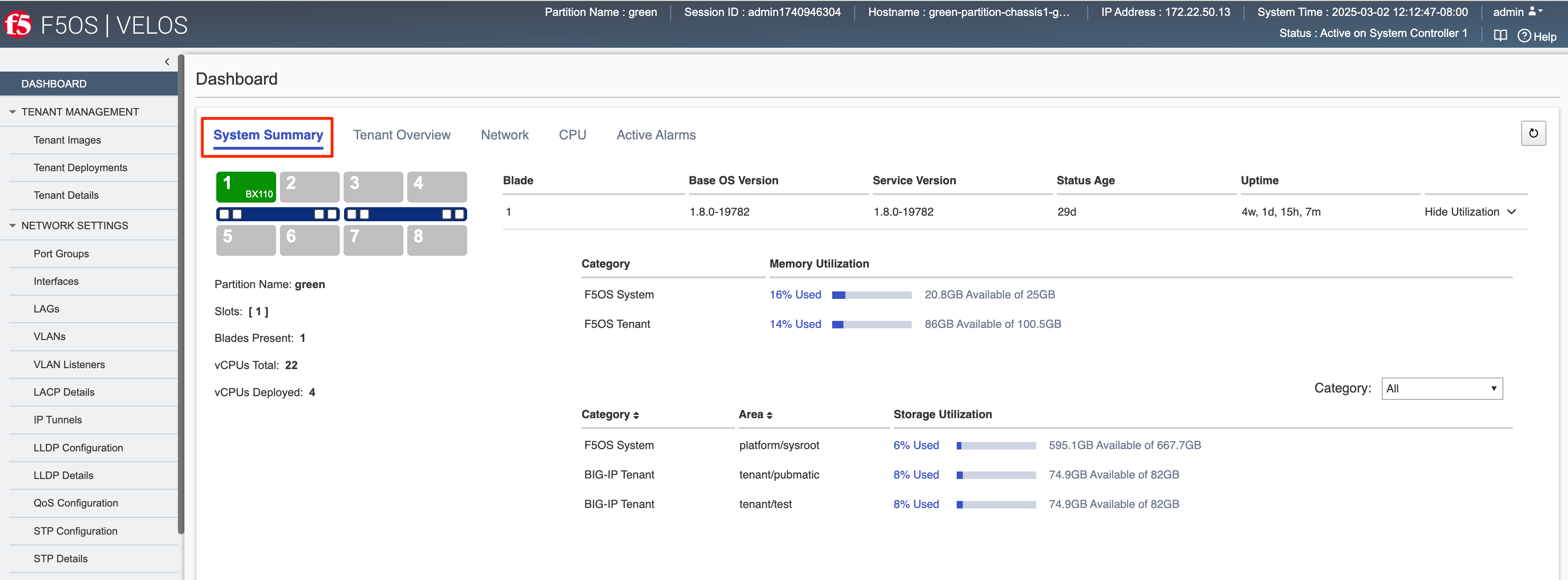

The chassis partition Dashboard will provide a visual system summary of the partition, and which slots are assigned to it. It will also list the total number of vCPUs available for multitenancy and how many are currently in use. There is also a tenant overview showing a quick summary of tenant status and basic parameters. Lastly it will display System Summary stats under the tab of that name.

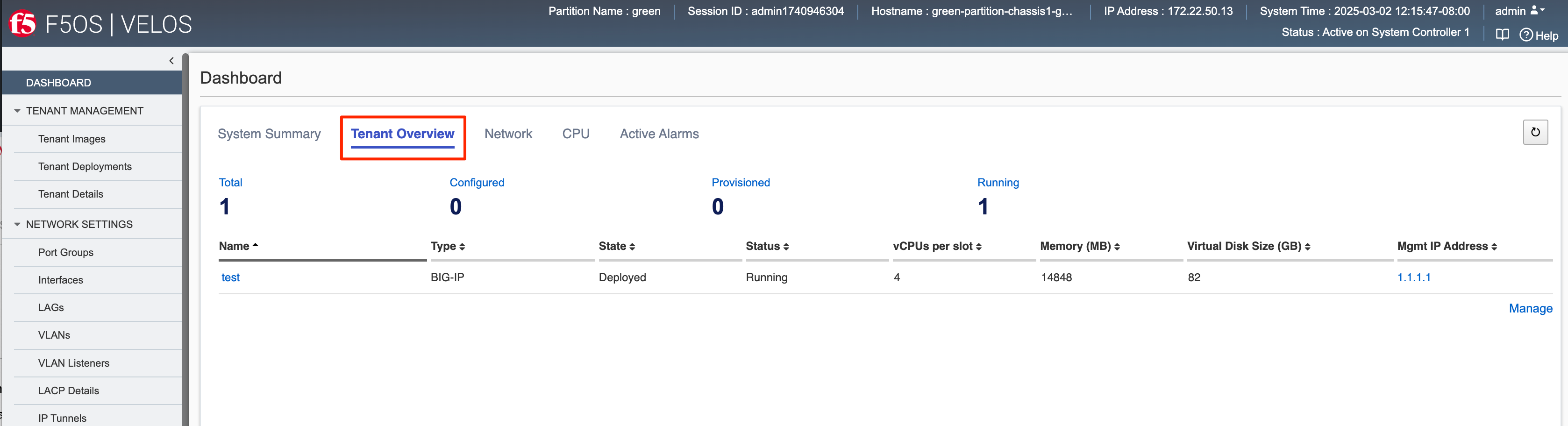

The Tenant tab will display all currently running tenants on the chassis partition you are connected to.

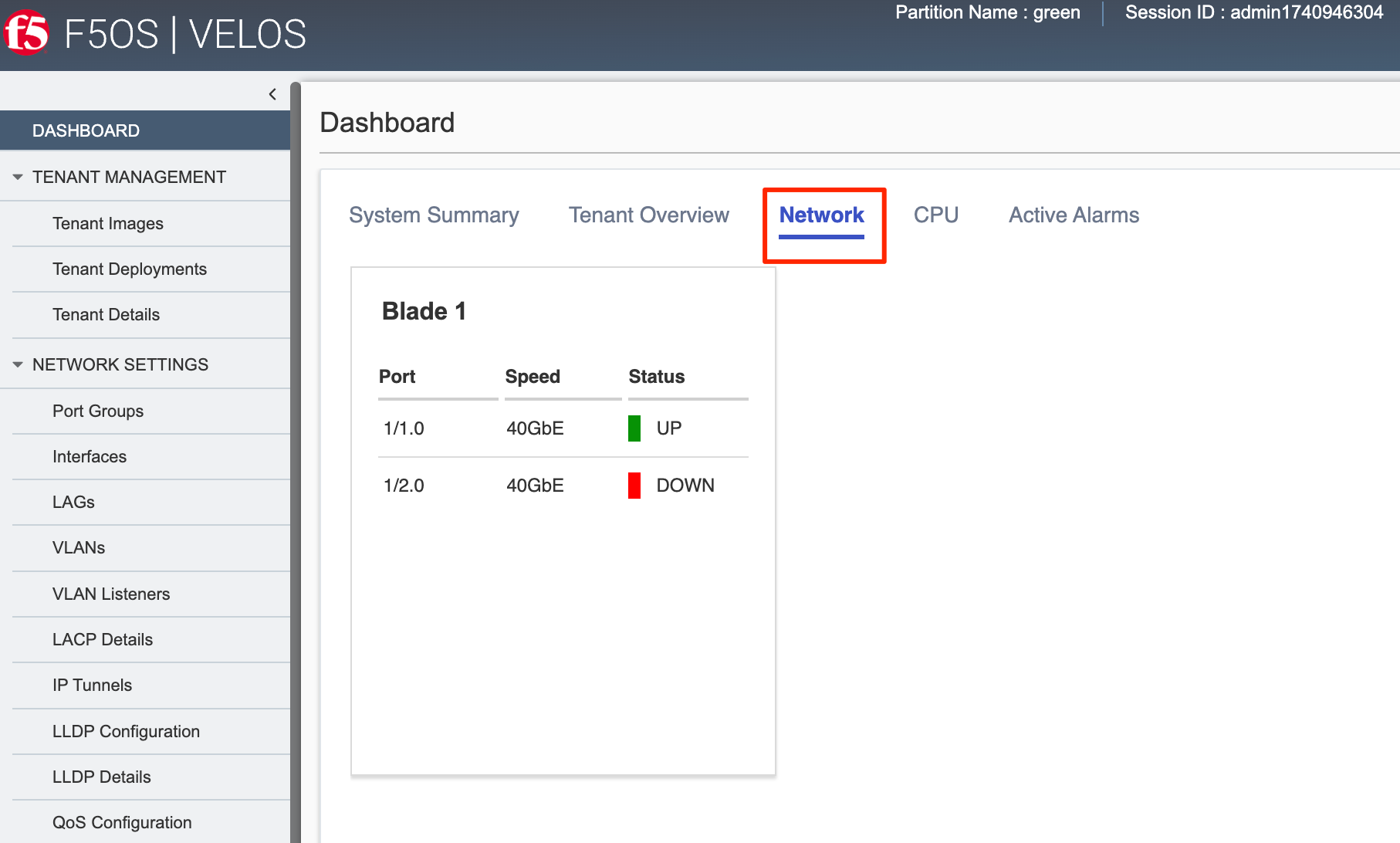

If you click on the Network tab, then each front panel port will be displayed, and it will be color coded red or green based on its current status.

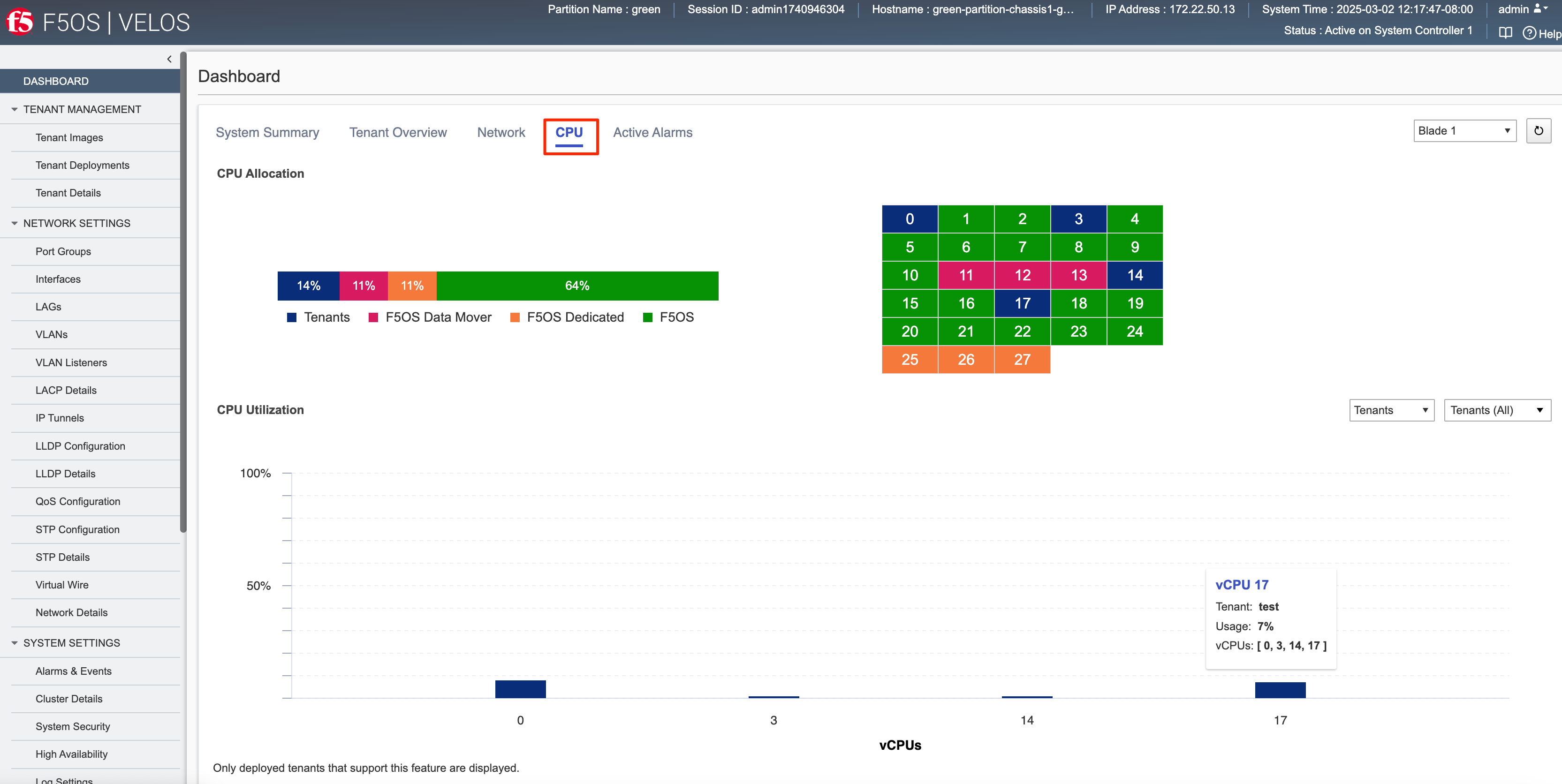

If you click on the CPU tab, then CPU utilization across different time periods will be displayed for each of the blades and for F5OS and tenants within this chassis partition. You can also see how the vCPUs in this chassis partition are assigned.

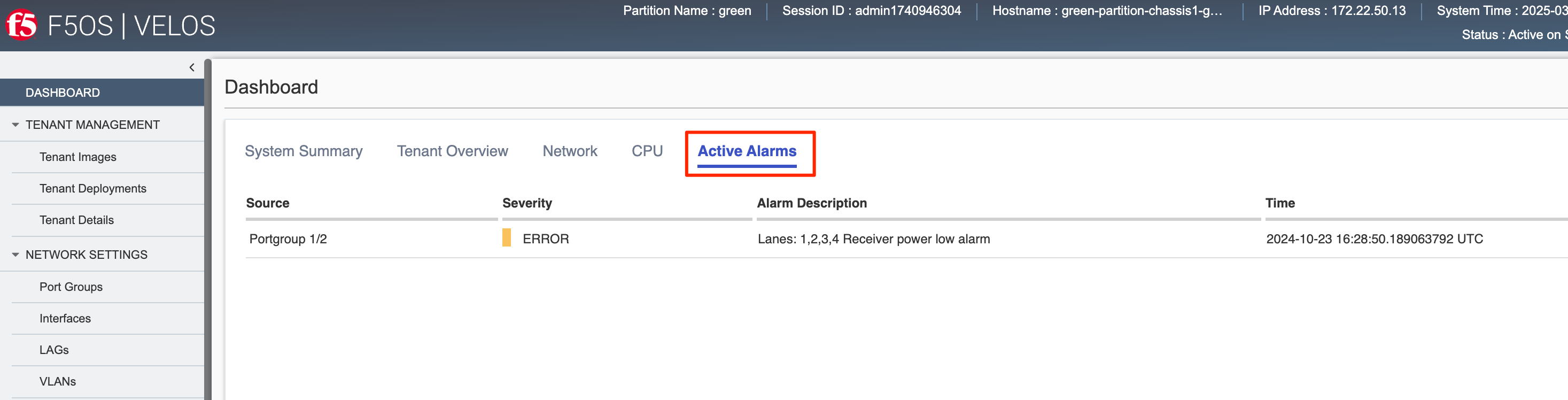

If there are any active alarms, they will be displayed on the Active Alarms page.
Chassis Partition Networking¶
Before configuring any tenant, you’ll need to setup networking for the chassis partition. All in-band networking is configured within the chassis partition layer, and all chassis partitions are completely isolated from each other. You cannot share any in-band networking internally between different chassis partitions.
Network Settings - > Port Groups¶
The portgroup component is used to control the mode of the physical port. This controls whether the port is bundled or unbundled, and the port speed. The term portgroup is used rather than simply “port” because some front panel ports may accept different types of optics. Depending on the portgroup mode value, a different FPGA version is loaded, and the speed of the port is adjusted accordingly. The user can modify the portgroup mode as needed through the F5OS CLI, webUI, or API.

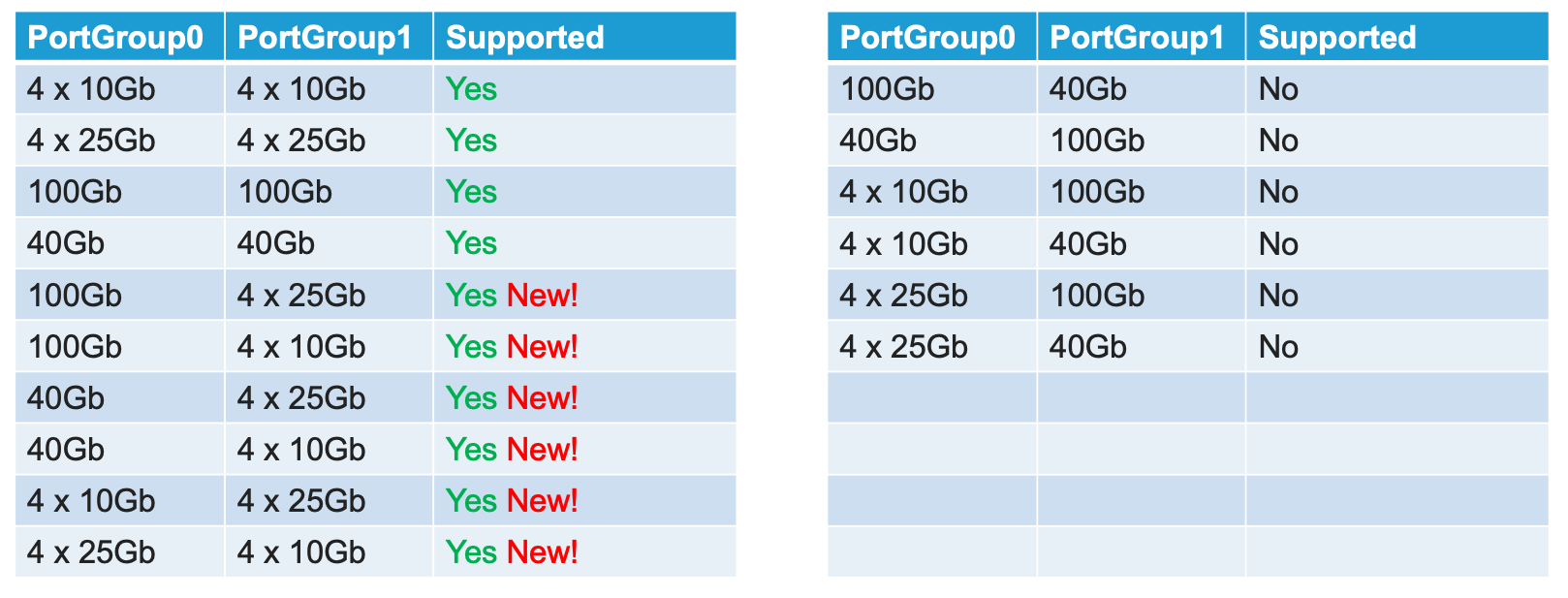

In releases prior to F5OS-C 1.5.1 both ports on a BX110 blade must be configured for the same mode, both ports must be either 100GB, 40GB, 4 x 25GB, or 4 x 10GB; there was no support for mixing modes on the same blade. You could have different options across different blades within the same chassis partition, but within a single blade, the ports had to be the same. F5OS-C 1.5.1 introduced more flexible options for port group configurations within the same blade. The table below shows the new heterogeneous port modes that were introduced in F5OS-C 1.5.1.

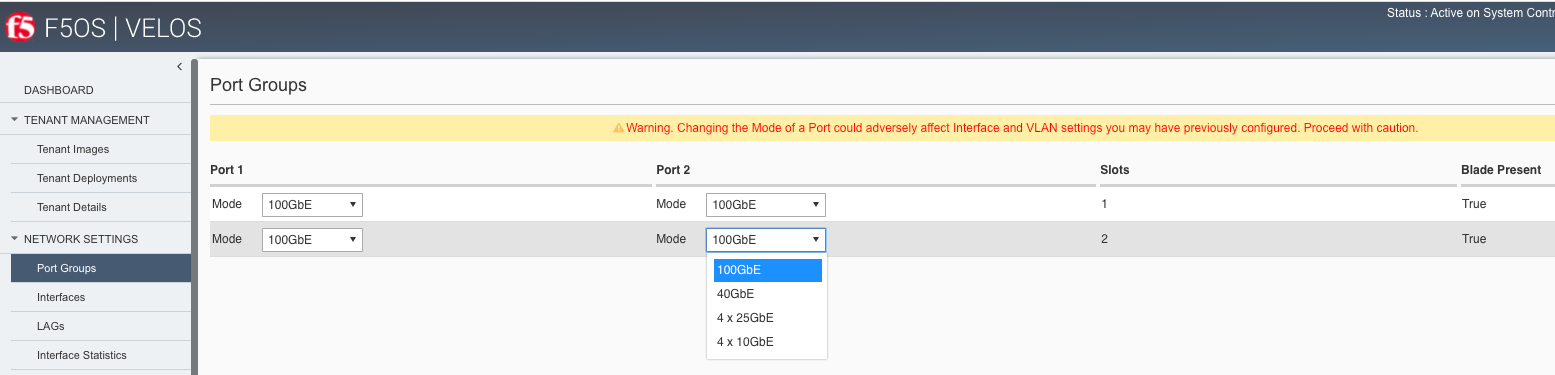

Below is an example of the chassis partition webUI Port Groups screen with BX110 blades. Note that any changes in configuration will require a reboot of the blade to load a new FPGA bitstream image.

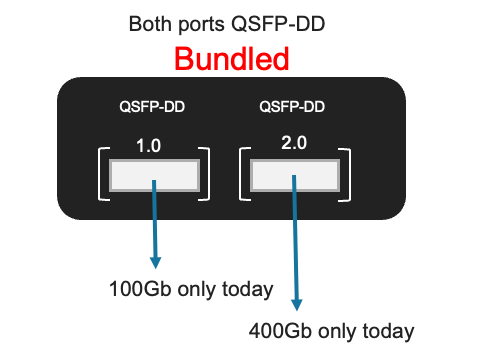

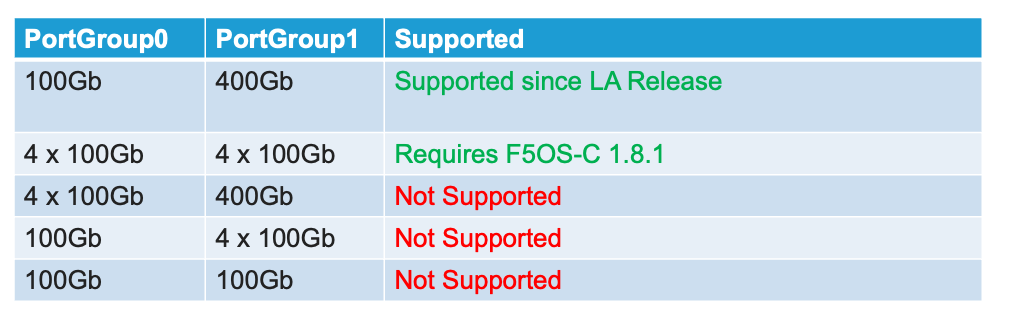

For the BX520 blade there are two physical ports (1.0 & 2.0). Port 1.0 is a QSFP-DD port, that supports either 100Gb optics or 4 x 100Gb (targeted to be generally available F5OS-C 1.8.1 release) connections with the proper optic and breakout cable. For the current release, 100Gb connectivity (SR-4 & LR-4) is supported, 4 x 100Gb support is targeted to be generally available in a the F5OS-C 1.8.1 release. The second port (2.0) is also a QSFP-DD port; however it supports 400Gb optics today (FR-4), and the option of 4 x 100Gb with the proper optic and breakout cables is targeted to be generally available in the F5OS-C 1.8.1 release.

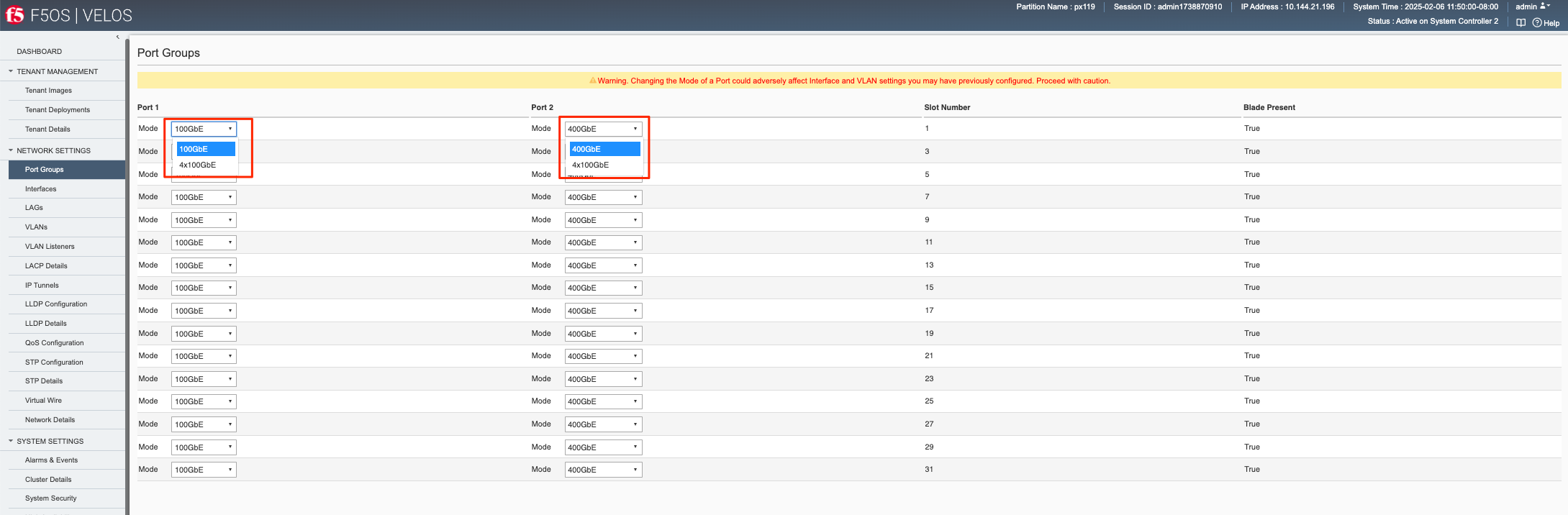

Below is an example of the chassis partition webUI Port Groups screen with BX520 blades. Note that any changes in configuration will require a reboot of the blade to load a new FPGA bitstream image. Port1 is currently hardcoded for 100Gb, and port2 is currently hard coded at 400gb. Breakout support for 4 x 100Gb is targeted to be generally available in F5OS-C 1.8.1.
Configuring PortGroups from the webUI¶

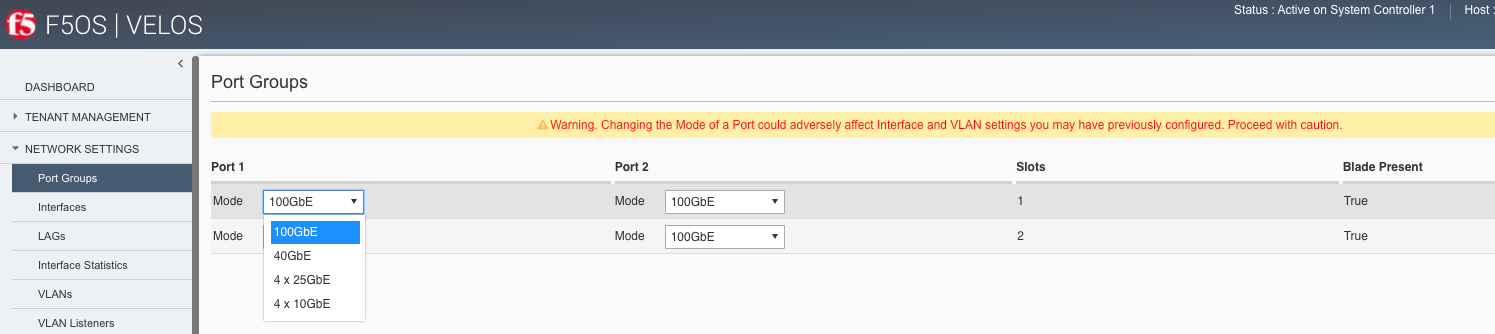

To configure Portgroups go to Network Settings > Port Groups in the chassis partition webUI. This should be configured before any Interface, VLAN, or LAG configuration as changing the portgroup mode will alter interface numbering on the blade. Note the warning at the top of the webUI page:
If you make a change the blade will be forced to reboot to load a new bitstream image into the FPGA.
Configuring PortGroups from the CLI¶
Portgroups can be configured from the chassis partition CLI using the portgroups command in config mode. The following command will set interface 1/1 for 100GB:
Production-1# config
Entering configuration mode terminal
Production-1(config)# portgroups portgroup 1/1 config mode MODE_100GB
You must commit for any changes to take affect:
Production-1(config)# commit
Possible options for mode on the BX110 blade are MODE_4x10GB, MODE_4x25GB, MODE_40GB, MODE_100GB. For the BX520 blade supported modes for port1 are MODE_100GB and MODE_4x100Gb and for port2: MODE_4x100GB and MODE_400Gb. You can optionally configure the portgroup name and ddm poll frequency. You can display the current configuration of the existing portgroups by running the CLI command show running-config portgroups:
Production-1# show running-config portgroups
portgroups portgroup 1/1
config name 1/1
config mode MODE_100GB
config ddm ddm-poll-frequency 30
!
portgroups portgroup 1/2
config name 1/2
config mode MODE_100GB
config ddm ddm-poll-frequency 30
!
portgroups portgroup 2/1
config name 2/1
config mode MODE_100GB
config ddm ddm-poll-frequency 30
!
portgroups portgroup 2/2
config name 2/2
config mode MODE_100GB
config ddm ddm-poll-frequency 30
!
Production-1#
Configuring PortGroups from the API¶
To list the current portgroup configuration issue the following API call:
GET https://{{velos_chassis1_chassis_partition1_ip}}:8888/restconf/data/f5-portgroup:portgroups
The output of the API call will be similar to the example below.
{
"f5-portgroup:portgroups": {
"portgroup": [
{
"portgroup_name": "1/1",
"config": {
"name": "1/1",
"mode": "MODE_100GB",
"f5-ddm:ddm": {
"ddm-poll-frequency": 30
}
},
"state": {
"vendor-name": "F5 NETWORKS INC.",
"vendor-oui": "009065",
"vendor-partnum": "OPT-0031 ",
"vendor-revision": "A0",
"vendor-serialnum": "X3CAU1J ",
"transmitter-technology": "850 nm VCSEL",
"media": "100GBASE-SR4",
"optic-state": "QUALIFIED",
"f5-ddm:ddm": {
"rx-pwr": {
"low-threshold": {
"alarm": "-14.0",
"warn": "-11.0"
},
"instant": {
"val-lane1": "-0.08",
"val-lane2": "-0.61",
"val-lane3": "-0.19",
"val-lane4": "-0.73"
},
"high-threshold": {
"alarm": "3.4",
"warn": "2.4"
}
},
"tx-pwr": {
"low-threshold": {
"alarm": "-10.0",
"warn": "-8.0"
},
"instant": {
"val-lane1": "-0.77",
"val-lane2": "-1.01",
"val-lane3": "-1.01",
"val-lane4": "-0.82"
},
"high-threshold": {
"alarm": "5.0",
"warn": "3.0"
}
},
"temp": {
"low-threshold": {
"alarm": "-5.0",
"warn": "0.0"
},
"instant": {
"val": "23.4609"
},
"high-threshold": {
"alarm": "75.0",
"warn": "70.0"
}
},
"bias": {
"low-threshold": {
"alarm": "0.003",
"warn": "0.005"
},
"instant": {
"val-lane1": "0.007526",
"val-lane2": "0.007484",
"val-lane3": "0.00752",
"val-lane4": "0.006914"
},
"high-threshold": {
"alarm": "0.013",
"warn": "0.011"
}
},
"vcc": {
"low-threshold": {
"alarm": "2.97",
"warn": "3.135"
},
"instant": {
"val": "3.2555"
},
"high-threshold": {
"alarm": "3.63",
"warn": "3.465"
}
}
}
}
},
{
"portgroup_name": "1/2",
"config": {
"name": "1/2",
"mode": "MODE_100GB",
"f5-ddm:ddm": {
"ddm-poll-frequency": 30
}
},
"state": {
"vendor-name": "F5 NETWORKS INC.",
....
Network Settings -> Interfaces¶

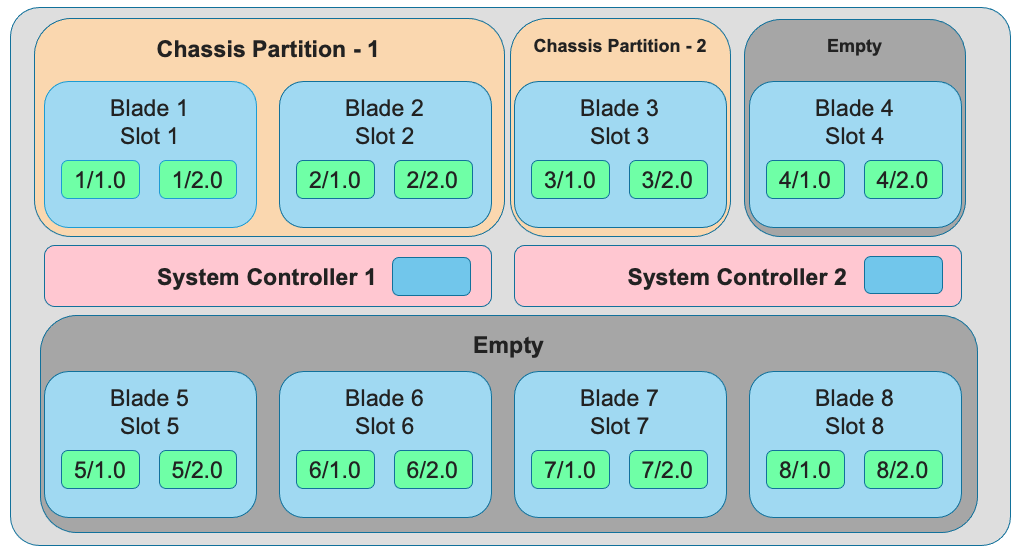

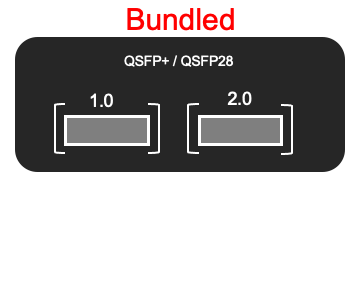

Interface numbering will vary depending on the current portgroup configuration. Interfaces will always be numbered by <blade#>/<port#>. The number of ports on a blade will change depending on if the portgroup is configured as bundled, or unbundled. If the ports are bundled then ports will be 1/1.0 and 1/2.0 for slot 1, and 2/1.0 and 2/2.0 for slot 2.

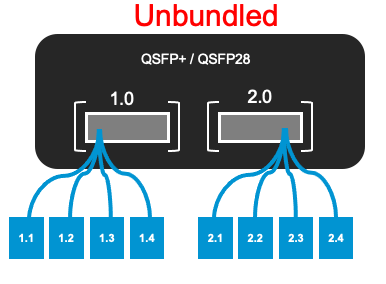

If ports are unbundled, then the port numbering will be 1/1.1, 1/1.2, 1/1.3, and 1/1.4 for the first physical port and 1/2.1, 1/2.2, 1/2.3, and 1/2.4 for the second physical port. Breakout cables will be needed to support the unbundled 25Gb, or 10Gb configurations. Even when multiple chassis partitions are used, the port numbering will stay consistent starting with the blade number. Below is an example of BX110 blade port numbering when all interfaces are bundled.

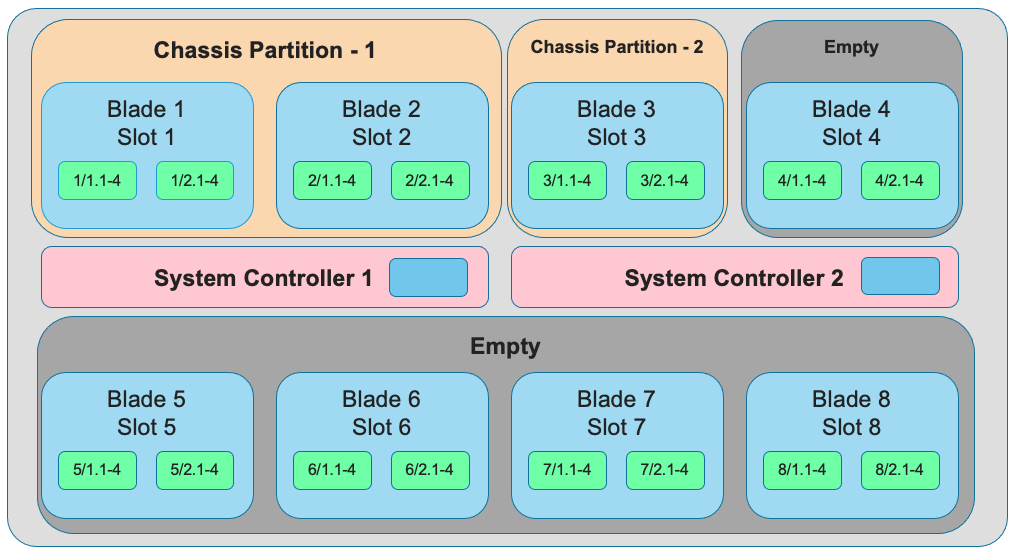

Below is an example of BX110 port numbering when all interfaces are unbundled.

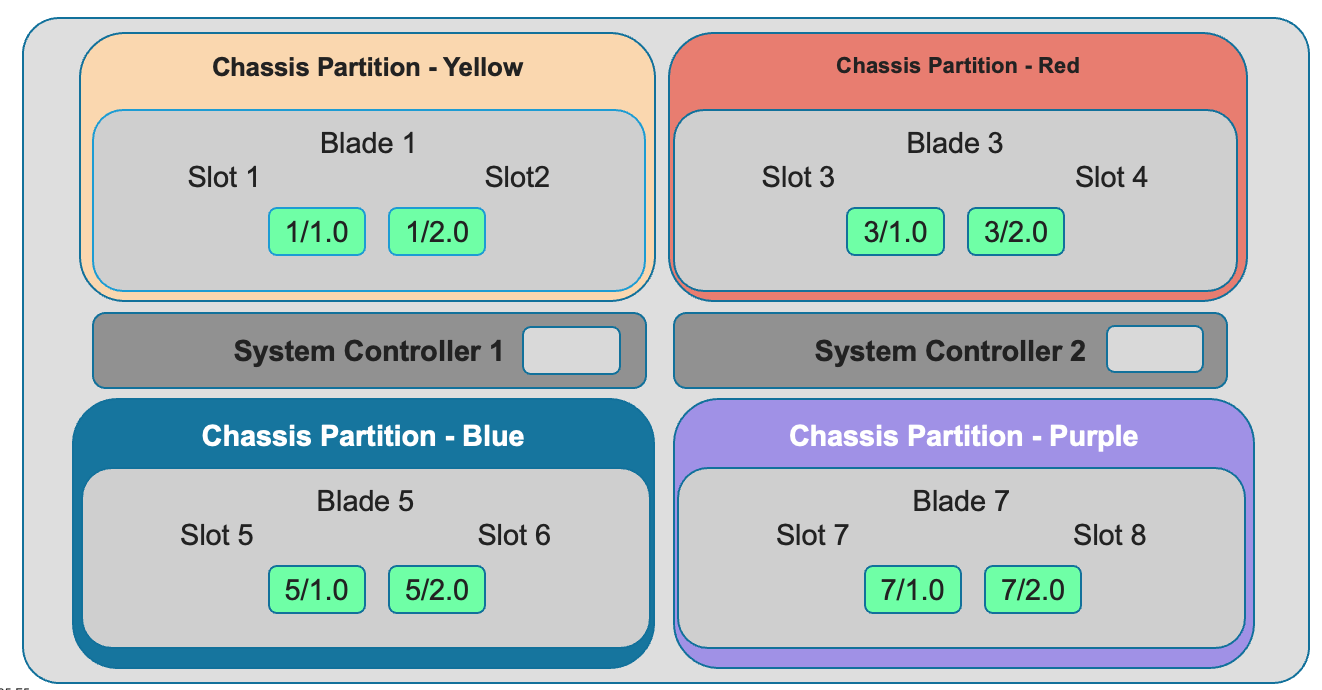

For the BX520 blades interface numbering is different because the BX520 blade takes up two slots. The slot reference for the blade will always be the first of the two slots where the blade is inserted, which will always be an odd number. If the ports are bundled, then ports will be 1/1.0 and 1/2.0 for a blade that occupies slot 1 and slot 2, and 3/1.0 and 3/2.0 for a blade that occupies slots 3 and 4. Below is an example of four BX520 blades within the CX410 chassis and their interface numbering when all ports are bundled.

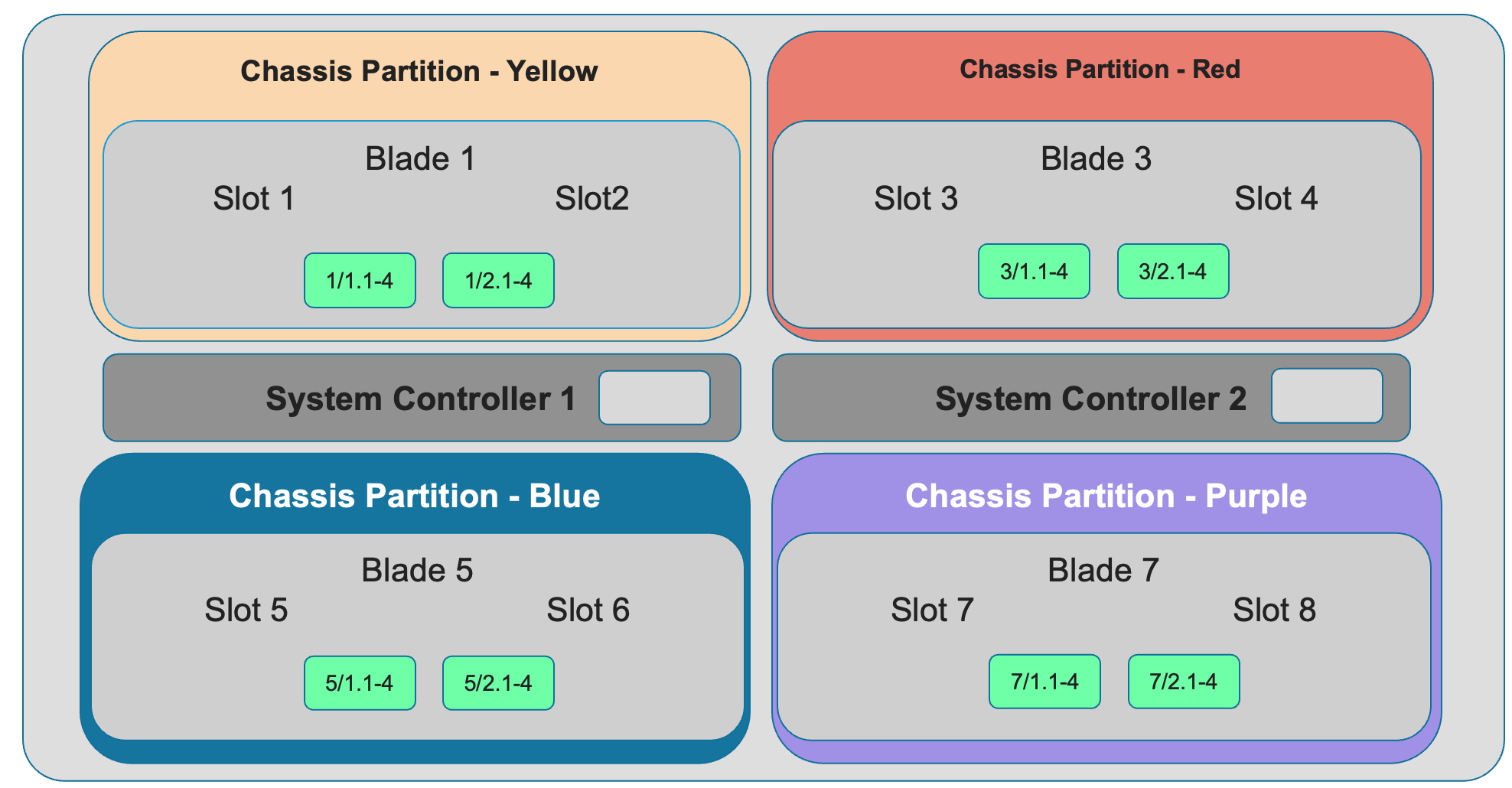

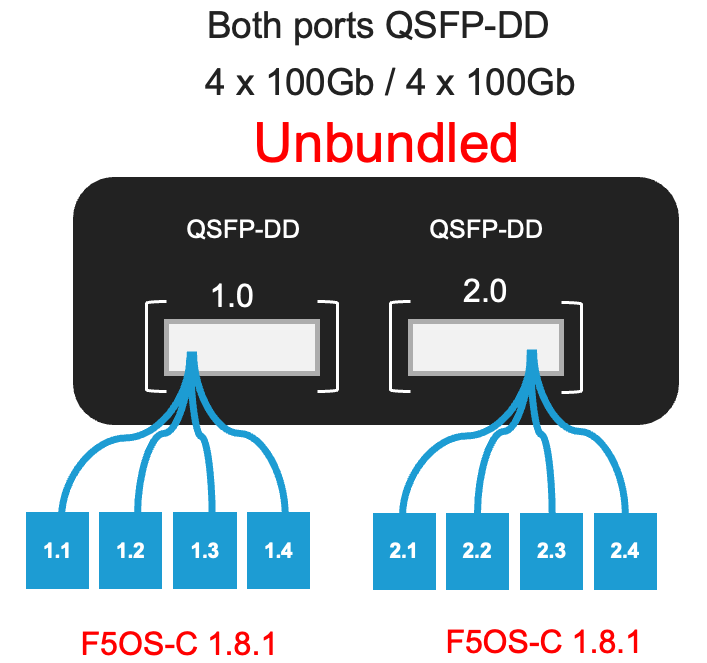

Below is an example of BX520 port numbering when all interfaces are unbundled into 4 x 100gb interfaces.
Configuring Interfaces from the webUI¶

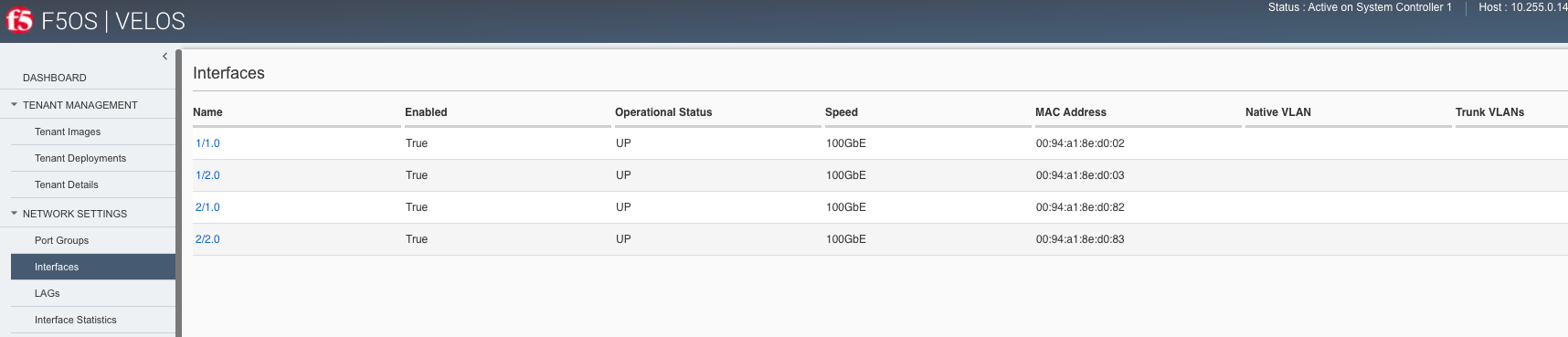

Within the chassis partition webUI the physical ports of all blades within that partition will be visible by going to Network Settings > Interfaces page. If there are other chassis partitions in the VELOS system, then those ports will only be seen within their own chassis partition. In the example below this VELOS system has 3 BX110 blades installed, but only two are part of this chassis partition, so you will not see ports from the 3rd blade unless you connect directly to the other chassis partition.

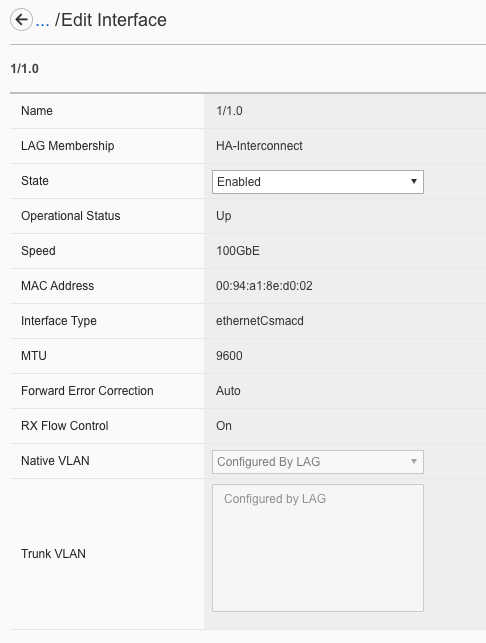

You can click on any interface to view its settings or edit them. You can currently change the interface State via the webUI or the Native VLAN (untagged) and Trunk VLANs (tagged) as long as the interface is not part of a LAG. If the interface is part of the LAG, then the VLAN configuration is done within the LAG rather than the interface.
Note
F5 rSeries systems and F5 VELOS systems only support Forward Error Correction (FEC) CL108 or compatible on 25G interfaces. Peer network devices must be configured with this FEC mode (also known as RS_IEEE_FEC or RS_FEC_IEEE). For more information see the article below.
K000138830: Troubleshooting port groups and interfaces on F5 rSeries and F5 VELOS systems
Configuring Interfaces from the CLI¶
Interfaces can be configured in the chassis partition CLI. As mentioned previously, portgroups should be configured for their desired state before configuring any interfaces as the interface numbering may change. In the CLI, enter config mode and then specify the interface you want to configure. If the interface is going to be part of a LAG, then most of the configuration is done within the LAG. Use the command show running-config interfaces to see the current configuration:
Production-1# show running-config interfaces
interfaces interface 1/1.0
config name 1/1.0
config type ethernetCsmacd
config enabled
config tpid TPID_0X8100
ethernet config aggregate-id ha
!
interfaces interface 1/2.0
config name 1/2.0
config type ethernetCsmacd
config enabled
config tpid TPID_0X8100
ethernet config aggregate-id Arista
!
interfaces interface 2/1.0
config name 2/1.0
config type ethernetCsmacd
config enabled
config tpid TPID_0X8100
ethernet config aggregate-id Arista
!
interfaces interface 2/2.0
config name 2/2.0
config type ethernetCsmacd
config enabled
config tpid TPID_0X8100
ethernet config aggregate-id ha
!
interfaces interface Arista
config name Arista
config type ieee8023adLag
config tpid TPID_0X8100
aggregation config lag-type LACP
aggregation config distribution-hash src-dst-ipport
aggregation switched-vlan config trunk-vlans [ 444 555 ]
!
interfaces interface ha
config name ha
config type ieee8023adLag
config tpid TPID_0X8100
aggregation config lag-type LACP
aggregation config distribution-hash src-dst-ipport
aggregation switched-vlan config trunk-vlans [ 500 ]
!
To make any changes you will need to enter config mode and then enter the interface to make changes. Be sure to commit any changes as they don’t take effect until the commit is issued.
Production-1# config
Entering configuration mode terminal
Production-1(config)# interfaces interface 1/1.0
Production-1(config-interface-1/1.0)# ethernet switched-vlan config trunk-vlans 500
Production-1(config-interface-1/1.0)# commit
Note
F5 rSeries systems and F5 VELOS systems only support Forward Error Correction (FEC) CL108 or compatible on 25G interfaces. Peer network devices must be configured with this FEC mode (also known as RS_IEEE_FEC or RS_FEC_IEEE). For more information see the article below.
K000138830: Troubleshooting port groups and interfaces on F5 rSeries and F5 VELOS systems
Configuring Interfaces from the API¶
The following API command will list all the current interfaces within the current chassis partition with their current configuration and status:
GET https://{{velos_chassis1_chassis_partition2_ip}}:8888/restconf/data/openconfig-interfaces:interfaces
The output of the API call will be similar to the example below.
{
"openconfig-interfaces:interfaces": {
"interface": [
{
"name": "3/1.0",
"config": {
"name": "3/1.0",
"type": "iana-if-type:ethernetCsmacd",
"enabled": true,
"openconfig-vlan:tpid": "openconfig-vlan-types:TPID_0X8100"
},
"state": {
"name": "3/1.0",
"type": "iana-if-type:ethernetCsmacd",
"mtu": 9600,
"enabled": true,
"oper-status": "UP",
"counters": {
"in-octets": "0",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "0",
"in-multicast-pkts": "0",
"in-discards": "0",
"in-errors": "0",
"in-fcs-errors": "0",
"out-octets": "2820",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "30",
"out-discards": "0",
"out-errors": "0"
},
"f5-interface:forward-error-correction": "auto",
"f5-lacp:lacp_state": "LACP_DEFAULTED"
},
"openconfig-if-ethernet:ethernet": {
"state": {
"port-speed": "openconfig-if-ethernet:SPEED_100GB",
"hw-mac-address": "00:94:a1:8e:d1:00",
"counters": {
"in-mac-control-frames": "0",
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-control-frames": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
},
"f5-if-ethernet:flow-control": {
"rx": "on"
}
},
"openconfig-vlan:switched-vlan": {
"config": {
"trunk-vlans": [
500
]
}
}
}
},
{
"name": "3/2.0",
"config": {
"name": "3/2.0",
"type": "iana-if-type:ethernetCsmacd",
"enabled": true,
"openconfig-vlan:tpid": "openconfig-vlan-types:TPID_0X8100"
},
"state": {
"name": "3/2.0",
"type": "iana-if-type:ethernetCsmacd",
"mtu": 9600,
"enabled": true,
"oper-status": "UP",
"counters": {
"in-octets": "62245397142",
"in-unicast-pkts": "152194827",
"in-broadcast-pkts": "62238",
"in-multicast-pkts": "297616",
"in-discards": "18882",
"in-errors": "0",
"in-fcs-errors": "0",
"out-octets": "61962689001",
"out-unicast-pkts": "167540438",
"out-broadcast-pkts": "855",
"out-multicast-pkts": "60",
"out-discards": "0",
"out-errors": "0"
},
"f5-interface:forward-error-correction": "auto",
"f5-lacp:lacp_state": "LACP_DEFAULTED"
},
"openconfig-if-ethernet:ethernet": {
"state": {
"port-speed": "openconfig-if-ethernet:SPEED_100GB",
"hw-mac-address": "00:94:a1:8e:d1:01",
"counters": {
"in-mac-control-frames": "0",
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-control-frames": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
},
"f5-if-ethernet:flow-control": {
"rx": "on"
}
},
"openconfig-vlan:switched-vlan": {
"config": {
"trunk-vlans": [
444,
555
]
}
}
}
}
]
}
}
To configure interfaces (that are not part of a LAG), use the following PATCH API call. In the example below, VLANs are being assigned to the physical interfaces.
PATCH https://{{velos_chassis1_chassis_partition2_ip}}:8888/restconf/data/openconfig-interfaces:interfaces
Enter the following into the body of the API request.
{
"openconfig-interfaces:interfaces": {
"interface": [
{
"name": "3/1.0",
"openconfig-if-ethernet:ethernet": {
"openconfig-vlan:switched-vlan": {
"config": {
"trunk-vlans": [
500
]
}
}
}
},
{
"name": "3/2.0",
"openconfig-if-ethernet:ethernet": {
"openconfig-vlan:switched-vlan": {
"config": {
"trunk-vlans": [
444,
555
]
}
}
}
}
]
}
}
Note
F5 rSeries systems and F5 VELOS systems only support Forward Error Correction (FEC) CL108 or compatible on 25G interfaces. Peer network devices must be configured with this FEC mode (also known as RS_IEEE_FEC or RS_FEC_IEEE). For more information see the article below.
K000138830: Troubleshooting port groups and interfaces on F5 rSeries and F5 VELOS systems
Network Settings -> VLANs¶
All in-band networking including VLANs are configured in the VELOS chassis partition layer, and just like vCMP guests inherit VLANs, VLANs will be inherited by VELOS tenants. This allows administrators to assign the VLANs that are authorized for use by the tenant at the chassis partition layer, and then within the tenant there is no ability to configure lower-level networking like interfaces, LAG’s and VLANs.
VELOS supports both tagged (802.1Q) and untagged VLAN interfaces externally. VLANs can be configured from the CLI, webUI, or API.
Note: 802.1Q-in-Q (double VLAN tagging) is not currently supported on the VELOS platform.
Configuring VLANs from the webUI¶

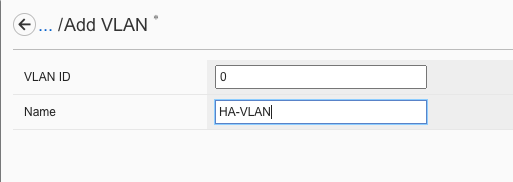

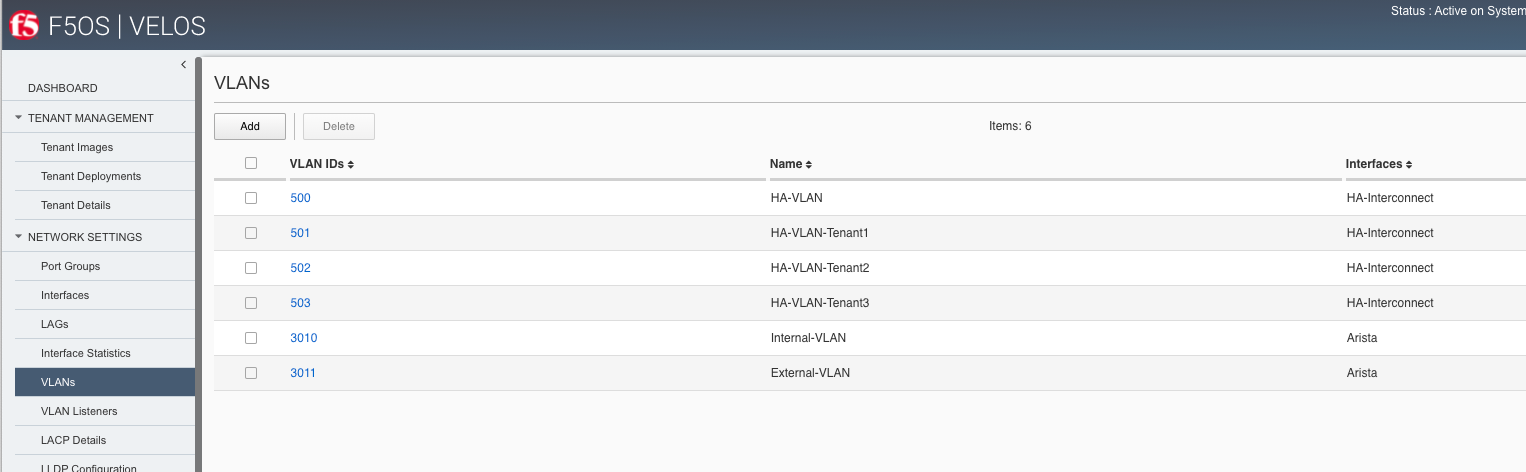

VLANs can be created in the chassis partition webUI under Network Settings > VLANs. VLANs are not shared across chassis partitions, and each partition must configure its own set of VLANs. When adding a new VLAN you will define a Name and a VLAN ID. When you assign this VLAN to an interface or LAG you will determine if you want it to be untagged by configuring it as a Native VLAN or tagged by adding it as a Trunked VLAN.
Configuring VLANs from the CLI¶
VLANs can be configured within the chassis partition CLI. Once VLANs are created they can either be assigned to a physical interfaces or LAGs within the chassis partition. VLANs must be given a name and a VLAN ID. You can choose if a VLAN is tagged or untagged within the physical interface or LAG configuration.
To show the current configured VLANs and their options use the command show running-config vlans.
Production-1# show running-config vlans
vlans vlan 500
config name HA-VLAN
!
vlans vlan 501
config name HA-VLAN-Tenant1
!
vlans vlan 502
config name HA-VLAN-Tenant2
!
vlans vlan 503
config name HA-VLAN-Tenant3
!
vlans vlan 3010
config name Internal-VLAN
!
vlans vlan 3011
config name External-VLAN
!
You can also see configured state of VLANs by running the show vlans command:
Production-1# show vlans
VLAN
ID INTERFACE
-----------------------
500 HA-Interconnect
501 HA-Interconnect
502 HA-Interconnect
503 HA-Interconnect
3010 Arista
3011 Arista
There are a few other VLAN related commands to show the configuration and running state of vlan-listeners. The command show running-config vlan-listeners will show the current configuration. A VLAN listener is created for each VLAN and is responsible for rebroadcasting traffic within the VLAN.
NOTE: For Shared VLANs amongst different tenants, the VLAN must be tied to an external interface or LAG in order for the VLAN listener to be created.
Production-1# show running-config vlan-listeners
vlan-listeners vlan-listener Arista 444
config entry-type RBCAST-LISTENER
config owner rbcast
config ifh-fields ndi-id 4095
config ifh-fields svc 5
config ifh-fields vtc 32
config ifh-fields sep 15
config ifh-fields mirroring disabled
config service-ids [ 8 10 ]
!
vlan-listeners vlan-listener Arista 555
config entry-type RBCAST-LISTENER
config owner rbcast
config ifh-fields ndi-id 4095
config ifh-fields svc 5
config ifh-fields vtc 32
config ifh-fields sep 15
config ifh-fields mirroring disabled
config service-ids [ 8 10 ]
!
vlan-listeners vlan-listener ha 500
config entry-type RBCAST-LISTENER
config owner rbcast
config ifh-fields ndi-id 4095
config ifh-fields svc 5
config ifh-fields vtc 32
config ifh-fields sep 15
config ifh-fields mirroring disabled
config service-ids [ 8 10 ]
!
The show vlan-listeners command will show the current state:
Production-1# show vlan-listeners
NDI SERVICE
INTERFACE VLAN ENTRY TYPE OWNER ID SVC VTC SEP DMS DID CMDS MIRRORING IDS
----------------------------------------------------------------------------------------------------------
Arista 444 RBCAST-LISTENER rbcast 4095 5 32 15 - - - disabled [ 8 9 ]
Arista 555 RBCAST-LISTENER rbcast 4095 5 32 15 - - - disabled [ 8 9 ]
HA-Interconnect 500 VLAN-LISTENER tenant2 4095 9 - 15 - - - disabled -
HA-Interconnect 501 VLAN-LISTENER tenant1 4095 8 - 15 - - - disabled -
Configuring VLANs from the API¶
To configure VLANs use the following API command and JSON body. This will configure multiple VLANs along with their VLAN IDs. After the VLANs are created you will be able to assign then to either interfaces or LAGs.
PATCH https://{{velos_chassis1_chassis_partition1_ip}}:8888/restconf/data/
Enter the following in the body of the API request.
{
"openconfig-vlan:vlans": {
"vlan": [
{
"vlan-id": "3010",
"config": {
"vlan-id": 3010,
"name": "Internal-VLAN"
}
},
{
"vlan-id": "3011",
"config": {
"vlan-id": 3011,
"name": "External-VLAN"
}
},
{
"vlan-id": "500",
"config": {
"vlan-id": 500,
"name": "HA-VLAN"
}
},
{
"vlan-id": "501",
"config": {
"vlan-id": 501,
"name": "HA-VLAN-Tenant1"
}
},
{
"vlan-id": "502",
"config": {
"vlan-id": 502,
"name": "HA-VLAN-Tenant2"
}
},
{
"vlan-id": "503",
"config": {
"vlan-id": 503,
"name": "HA-VLAN-Tenant3"
}
}
]
}
}
The following command will list the configuration and status of all VLANs within the current chassis partition:
GET https://{{velos_chassis1_chassis_partition1_ip}}:8888/restconf/data/openconfig-vlan:vlans
The response will be similar to the example below.
{
"openconfig-vlan:vlans": {
"vlan": [
{
"vlan-id": 500,
"config": {
"vlan-id": 500,
"name": "HA-VLAN"
},
"members": {
"member": [
{
"state": {
"interface": "HA-Interconnect"
}
}
]
}
},
{
"vlan-id": 501,
"config": {
"vlan-id": 501,
"name": "HA-VLAN-Tenant1"
},
"members": {
"member": [
{
"state": {
"interface": "HA-Interconnect"
}
}
]
}
},
{
"vlan-id": 502,
"config": {
"vlan-id": 502,
"name": "HA-VLAN-Tenant2"
},
"members": {
"member": [
{
"state": {
"interface": "HA-Interconnect"
}
}
]
}
},
{
"vlan-id": 503,
"config": {
"vlan-id": 503,
"name": "HA-VLAN-Tenant3"
},
"members": {
"member": [
{
"state": {
"interface": "HA-Interconnect"
}
}
]
}
},
{
"vlan-id": 3010,
"config": {
"vlan-id": 3010,
"name": "Internal-VLAN"
},
"members": {
"member": [
{
"state": {
"interface": "Arista"
}
}
]
}
},
{
"vlan-id": 3011,
"config": {
"vlan-id": 3011,
"name": "External-VLAN"
},
"members": {
"member": [
{
"state": {
"interface": "Arista"
}
}
]
}
}
]
}
}
Network Settings -> LAGs¶
All in-band networking including LAGs are configured in the VELOS chassis partition layer. The admin will configure interfaces and/or LAGs, and they will assign VLANs to those physical interfaces. Tenants will then inherit the VLANs that are assigned to them when they are created. It is recommended to spread LAG members across blades for added redundancy.
Note
F5 rSeries systems and F5 VELOS systems only support Forward Error Correction (FEC) CL108 or compatible on 25G interfaces. Peer network devices must be configured with this FEC mode (also known as RS_IEEE_FEC or RS_FEC_IEEE). For more information see the article below.
K000138830: Troubleshooting port groups and interfaces on F5 rSeries and F5 VELOS systems
Configuring LAGs from the webUI¶

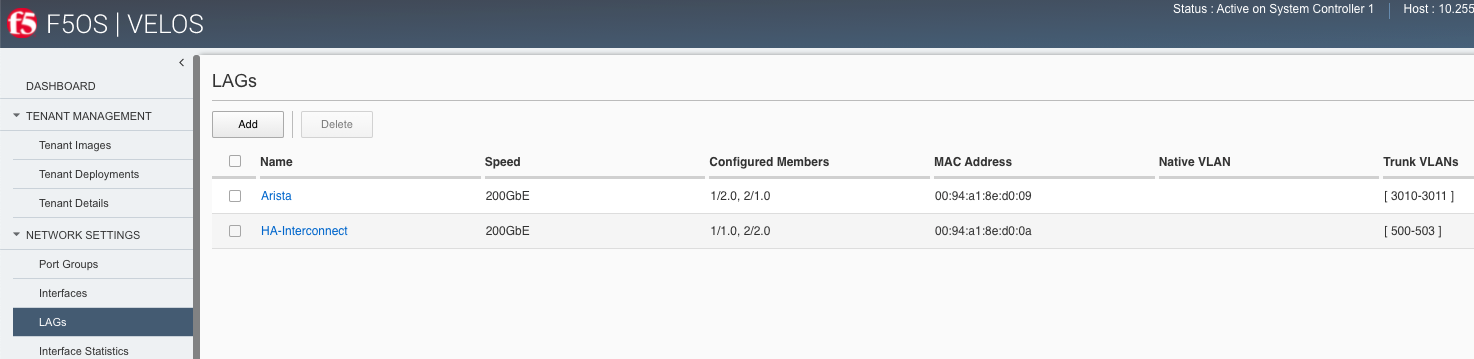

Link Aggregation Groups (LAGs) can be configured in the chassis partition webUI via the Network Settings > LAGs page:

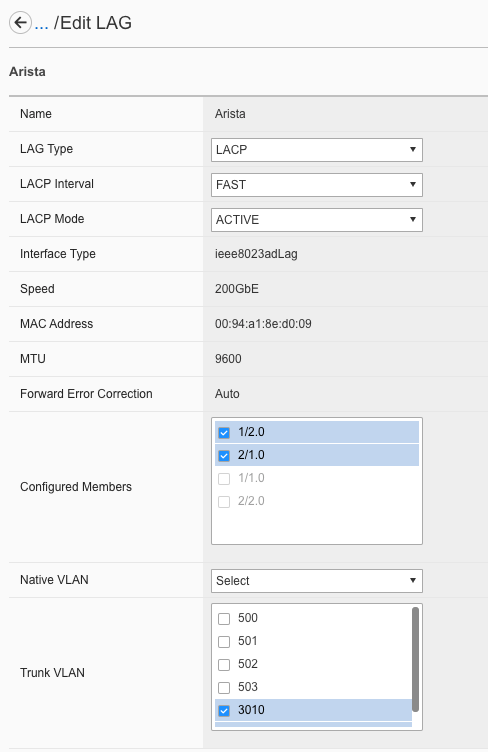

You can add a new LAG or edit an existing one. For LAG Type the options are LACP or STATIC. If you choose LACP, then you have additional options for LACP Interval (SLOW or FAST) and LACP Mode (ACTIVE or PASSIVE). LACP best practices should follow previous BIG-IP examples as outlined in the links below. Note in BIG-IP the term Trunks is used in place of LAG which is used in the F5OS layer in VELOS:
K1689: Overview of trunks on BIG-IP platforms
K13142: Configure the BIG-IP system to interface with Cisco virtual PortChannel
The following solution article provides guidance for setting up VELOS LAG interfaces and LACP with Cisco Nexus 9000 series switches:
K33431212: Configure LAGs with LACP between the VELOS system and Cisco Nexus 9000 series switches
Once you have configured the LAG Type and LACP options, you can add any physical interfaces within this chassis partition to be part of a LAG. Note you cannot add physical interfaces that reside in other chassis partitions as they are completely isolated from each other. Finally, you can configure the Native VLAN (for untagged VLAN), and what Trunked VLANs (tagged) you’d like to add to this LAG interface.
Configuring LAGs from the CLI¶
Within the webUI LAGs and LACP parameters are configured within the LAG webUI pages. In the CLI they are broken out into sperate areas. First enter config mode and then use the following lacp commands to configure the lacp interfaces:
Production-1# config
Entering configuration mode terminal
Production-1(config)# lacp interfaces interface Arista config name Arista
Production-1(config-interface-Arista)# config interval FAST
Production-1(config-interface-Arista)# config lacp-mode ACTIVE
Production-1(config-interface-Arista)# commit
Next configure the interface aggregation:
Production-1(config)# interfaces interface Arista aggregation config distribution-hash src-dst-ipport
Production-1(config-interface-Arista)# aggregation config lag-type LACP
Production-1(config-interface-Arista)# aggregation switched-vlan config trunk-vlans [ 3010 3011 ]
Production-1(config-interface-Arista)# commit
You can view the current interface aggregation configurations in the CLI by running the command show running-config interfaces interface aggregation command. This will show the current aggregation interfaces, lag-type, distribution hash, and VLANs assigned to each lag:
Production-1# show running-config interfaces interface aggregation
interfaces interface Arista
aggregation config lag-type LACP
aggregation config distribution-hash src-dst-ipport
aggregation switched-vlan config trunk-vlans [ 3010 3011 ]
!
interfaces interface HA-Interconnect
aggregation config lag-type LACP
aggregation config distribution-hash src-dst-ipport
aggregation switched-vlan config trunk-vlans [ 500 501 502 503 ]
!
Production-1#
Finally, you must configure interfaces to be part of the LAG. Below are examples of interface 1/1.0 and 2/2.0 being added to the aggregate-id HA-Interconnect, and interfaces 1/2.0 and 2/1.0 being added to the aggregate Arista.
Production-1# show running-config interfaces
interfaces interface 1/1.0
config type ethernetCsmacd
config enabled
ethernet config aggregate-id HA-Interconnect
!
interfaces interface 1/2.0
config type ethernetCsmacd
config enabled
ethernet config aggregate-id Arista
!
interfaces interface 2/1.0
config type ethernetCsmacd
config enabled
ethernet config aggregate-id Arista
!
interfaces interface 2/2.0
config type ethernetCsmacd
config enabled
ethernet config aggregate-id HA-Interconnect
!
interfaces interface Arista
config type ieee8023adLag
aggregation config lag-type LACP
aggregation config distribution-hash src-dst-ipport
aggregation switched-vlan config trunk-vlans [ 3010 3011 ]
!
interfaces interface HA-Interconnect
config type ieee8023adLag
aggregation config lag-type LACP
aggregation config distribution-hash src-dst-ipport
aggregation switched-vlan config trunk-vlans [ 500 501 502 503 ]
!
You can also view the current lacp configuration for each LAG by issuing the show running-config lacp CLI command. This will show all the LACP parameters such as the system priority, name, interval, and lacp-mode for each LAG.
Production-1# show running-config lacp
lacp config system-priority 32768
lacp interfaces interface Arista
config name Arista
config interval FAST
config lacp-mode ACTIVE
!
lacp interfaces interface HA-Interconnect
config name HA-Interconnect
config interval FAST
config lacp-mode ACTIVE
!
Production-1#
To see the status of the LACP interfaces run the command show lacp. It is best to widen your terminal screen as the output is dynamic and will display better on a wider terminal screen in more of a table format:
Production-1# show lacp
lacp state system-id-mac 00:94:a1:8e:d0:08
PARTNER LACP LACP LACP LACP LACP
LACP OPER PARTNER PORT PORT IN OUT RX TX UNKNOWN LACP
NAME NAME INTERVAL MODE SYSTEM ID MAC INTERFACE INTERFACE ACTIVITY TIMEOUT SYNCHRONIZATION AGGREGATABLE COLLECTING DISTRIBUTING SYSTEM ID KEY PARTNER ID KEY NUM NUM PKTS PKTS ERRORS ERRORS ERRORS ERRORS
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Arista Arista FAST ACTIVE 0:94:a1:8e:d0:8 1/2.0 - ACTIVE SHORT IN_SYNC true true true 0:94:a1:8e:d0:8 2 98:5d:82:1d:2c:a9 10 4352 125 713887 713949 0 0 0 0
2/1.0 - ACTIVE SHORT IN_SYNC true true true 0:94:a1:8e:d0:8 2 98:5d:82:1d:2c:a9 10 8320 129 713906 713948 0 0 0 0
HA-Interconnect HA-Interconnect FAST ACTIVE 0:94:a1:8e:d0:8 1/1.0 - ACTIVE SHORT IN_SYNC true true true 0:94:a1:8e:d0:8 3 0:94:a1:8e:58:28 3 4224 8448 714114 713959 0 0 0 0
2/2.0 - ACTIVE SHORT IN_SYNC true true true 0:94:a1:8e:d0:8 3 0:94:a1:8e:58:28 3 8448 4224 714155 713959 0 0 0 0
Production-1#
If you have shorter width terminal, then the output above may be condensed as seen below:
Production-1# show lacp
lacp state system-id-mac 00:94:a1:8e:d0:08
lacp interfaces interface Arista
state name Arista
state interval FAST
state lacp-mode ACTIVE
state system-id-mac 0:94:a1:8e:d0:8
members member 1/2.0
state activity ACTIVE
state timeout SHORT
state synchronization IN_SYNC
state aggregatable true
state collecting true
state distributing true
state system-id 0:94:a1:8e:d0:8
state oper-key 2
state partner-id 98:5d:82:1d:2c:a9
state partner-key 10
state port-num 4352
state partner-port-num 125
state counters lacp-in-pkts 714408
state counters lacp-out-pkts 714471
state counters lacp-rx-errors 0
state counters lacp-tx-errors 0
state counters lacp-unknown-errors 0
state counters lacp-errors 0
members member 2/1.0
state activity ACTIVE
state timeout SHORT
state synchronization IN_SYNC
state aggregatable true
state collecting true
state distributing true
state system-id 0:94:a1:8e:d0:8
state oper-key 2
state partner-id 98:5d:82:1d:2c:a9
state partner-key 10
state port-num 8320
state partner-port-num 129
state counters lacp-in-pkts 714428
state counters lacp-out-pkts 714469
state counters lacp-rx-errors 0
state counters lacp-tx-errors 0
state counters lacp-unknown-errors 0
state counters lacp-errors 0
lacp interfaces interface HA-Interconnect
state name HA-Interconnect
state interval FAST
state lacp-mode ACTIVE
state system-id-mac 0:94:a1:8e:d0:8
members member 1/1.0
state activity ACTIVE
state timeout SHORT
state synchronization IN_SYNC
state aggregatable true
state collecting true
state distributing true
state system-id 0:94:a1:8e:d0:8
state oper-key 3
state partner-id 0:94:a1:8e:58:28
state partner-key 3
state port-num 4224
state partner-port-num 8448
state counters lacp-in-pkts 714647
state counters lacp-out-pkts 714493
state counters lacp-rx-errors 0
state counters lacp-tx-errors 0
state counters lacp-unknown-errors 0
state counters lacp-errors 0
members member 2/2.0
state activity ACTIVE
state timeout SHORT
state synchronization IN_SYNC
state aggregatable true
state collecting true
state distributing true
state system-id 0:94:a1:8e:d0:8
state oper-key 3
state partner-id 0:94:a1:8e:58:28
state partner-key 3
state port-num 8448
state partner-port-num 4224
state counters lacp-in-pkts 714689
state counters lacp-out-pkts 714492
state counters lacp-rx-errors 0
state counters lacp-tx-errors 0
state counters lacp-unknown-errors 0
state counters lacp-errors 0
Production-1#
Configuring LAGs from the API¶
To create a LAG and add interfaces & proper LACP configuration will take a few different API calls. First a Link Aggregation Group (LAG) interface must be created. You will define a Name, specify the state, the LAG-type of LACP, and define which VLANs will use this LAG interface. In the Example below two LAG interfaces are being created (Arista & HA-Interconnect):
PATCH https://{{velos_chassis1_chassis_partition1_ip}}:8888/restconf/data/
Enter the following in the body of the API request.
{
"openconfig-interfaces:interfaces": {
"interface": [
{
"name": "Arista",
"config": {
"name": "Arista",
"type": "iana-if-type:ieee8023adLag",
"enabled": true
},
"openconfig-if-aggregate:aggregation": {
"config": {
"lag-type": "LACP",
"f5-if-aggregate:distribution-hash": "src-dst-ipport"
},
"openconfig-vlan:switched-vlan": {
"config": {
"trunk-vlans": [
3010,
3011
]
}
}
}
},
{
"name": "HA-Interconnect",
"config": {
"name": "HA-Interconnect",
"type": "iana-if-type:ieee8023adLag",
"enabled": true
},
"openconfig-if-aggregate:aggregation": {
"config": {
"lag-type": "LACP",
"f5-if-aggregate:distribution-hash": "src-dst-ipport"
},
"openconfig-vlan:switched-vlan": {
"config": {
"trunk-vlans": [
500,
501,
502,
503
]
}
}
}
}
]
}
}
The next step is to add physical interfaces into the LAG group. Interfaces will be added to the aggregate-id that was created in the previous step:
PATCH https://{{velos_chassis1_chassis_partition1_ip}}:8888/restconf/data/
Enter the following in the body of the API request.
{
"openconfig-interfaces:interfaces": {
"interface": [
{
"name": "1/2.0",
"config": {
"name": "1/2.0"
},
"openconfig-if-ethernet:ethernet": {
"config": {
"openconfig-if-aggregate:aggregate-id": "Arista"
}
}
},
{
"name": "2/1.0",
"config": {
"name": "2/1.0"
},
"openconfig-if-ethernet:ethernet": {
"config": {
"openconfig-if-aggregate:aggregate-id": "Arista"
}
}
},
{
"name": "1/1.0",
"config": {
"name": "1/1.0"
},
"openconfig-if-ethernet:ethernet": {
"config": {
"openconfig-if-aggregate:aggregate-id": "HA-Interconnect"
}
}
},
{
"name": "2/2.0",
"config": {
"name": "2/2.0"
},
"openconfig-if-ethernet:ethernet": {
"config": {
"openconfig-if-aggregate:aggregate-id": "HA-Interconnect"
}
}
}
]
}
}
The final step is adding LACP configuration for each LAG:
PATCH https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/
Enter the following in the body of the API request.
{
"ietf-restconf:data": {
"openconfig-lacp:lacp": {
"interfaces": {
"interface": [
{
"name": "Arista",
"config": {
"name": "Arista",
"interval": "FAST",
"lacp-mode": "ACTIVE"
}
},
{
"name": "HA-Interconnect",
"config": {
"name": "HA-Interconnect",
"interval": "FAST",
"lacp-mode": "ACTIVE"
}
}
]
}
}
}
}
To view the final LAG configuration via the API, use the following API call:
GET https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/openconfig-lacp:lacp
The output of the API call will be similar to the example below.
{
"openconfig-lacp:lacp": {
"config": {
"system-priority": 32768
},
"state": {
"f5-lacp:system-id-mac": "00:94:a1:8e:58:18"
},
"interfaces": {
"interface": [
{
"name": "Arista",
"config": {
"name": "Arista",
"interval": "FAST",
"lacp-mode": "ACTIVE"
},
"state": {
"name": "Arista",
"interval": "FAST",
"lacp-mode": "ACTIVE",
"system-id-mac": "0:94:a1:8e:58:18"
},
"members": {
"member": [
{
"interface": "1/2.0",
"state": {
"activity": "ACTIVE",
"timeout": "SHORT",
"synchronization": "IN_SYNC",
"aggregatable": true,
"collecting": true,
"distributing": true,
"system-id": "0:94:a1:8e:58:18",
"oper-key": 2,
"partner-id": "44:4c:a8:fc:cc:23",
"partner-key": 11,
"port-num": 4352,
"partner-port-num": 469,
"counters": {
"lacp-in-pkts": "2481",
"lacp-out-pkts": "2031",
"lacp-rx-errors": "0",
"lacp-tx-errors": "0",
"lacp-unknown-errors": "0",
"lacp-errors": "0"
}
}
},
{
"interface": "2/1.0",
"state": {
"activity": "ACTIVE",
"timeout": "SHORT",
"synchronization": "IN_SYNC",
"aggregatable": true,
"collecting": true,
"distributing": true,
"system-id": "0:94:a1:8e:58:18",
"oper-key": 2,
"partner-id": "44:4c:a8:fc:cc:23",
"partner-key": 11,
"port-num": 8320,
"partner-port-num": 457,
"counters": {
"lacp-in-pkts": "2498",
"lacp-out-pkts": "2031",
"lacp-rx-errors": "0",
"lacp-tx-errors": "0",
"lacp-unknown-errors": "0",
"lacp-errors": "0"
}
}
}
]
}
},
{
"name": "HA-Interconnect",
"config": {
"name": "HA-Interconnect",
"interval": "FAST",
"lacp-mode": "ACTIVE"
},
"state": {
"name": "HA-Interconnect",
"interval": "FAST",
"lacp-mode": "ACTIVE",
"system-id-mac": "0:94:a1:8e:58:18"
},
"members": {
"member": [
{
"interface": "1/1.0",
"state": {
"activity": "ACTIVE",
"timeout": "SHORT",
"synchronization": "IN_SYNC",
"aggregatable": true,
"collecting": true,
"distributing": true,
"system-id": "0:94:a1:8e:58:18",
"oper-key": 3,
"partner-id": "0:94:a1:8e:d0:18",
"partner-key": 3,
"port-num": 4224,
"partner-port-num": 8448,
"counters": {
"lacp-in-pkts": "2230",
"lacp-out-pkts": "2030",
"lacp-rx-errors": "0",
"lacp-tx-errors": "0",
"lacp-unknown-errors": "0",
"lacp-errors": "0"
}
}
},
{
"interface": "2/2.0",
"state": {
"activity": "ACTIVE",
"timeout": "SHORT",
"synchronization": "IN_SYNC",
"aggregatable": true,
"collecting": true,
"distributing": true,
"system-id": "0:94:a1:8e:58:18",
"oper-key": 3,
"partner-id": "0:94:a1:8e:d0:18",
"partner-key": 3,
"port-num": 8448,
"partner-port-num": 4224,
"counters": {
"lacp-in-pkts": "2236",
"lacp-out-pkts": "2030",
"lacp-rx-errors": "0",
"lacp-tx-errors": "0",
"lacp-unknown-errors": "0",
"lacp-errors": "0"
}
}
}
]
}
}
]
}
}
}
You can get more granular information down to the interface level using the following API command:
GET https://{{velos_chassis1_system_controller_ip}}:8888/restconf/data/openconfig-interfaces:interfaces
The output of the API call will be similar to the example below.
{
"openconfig-interfaces:interfaces": {
"interface": [
{
"name": "1/1.0",
"config": {
"name": "1/1.0",
"type": "iana-if-type:ethernetCsmacd",
"enabled": true
},
"state": {
"name": "1/1.0",
"type": "iana-if-type:ethernetCsmacd",
"mtu": 9600,
"enabled": true,
"oper-status": "UP",
"counters": {
"in-octets": "91534528",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "1",
"in-multicast-pkts": "715113",
"in-discards": "0",
"in-errors": "0",
"in-fcs-errors": "0",
"out-octets": "91515778",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "714971",
"out-discards": "0",
"out-errors": "0"
},
"f5-interface:forward-error-correction": "auto",
"f5-lacp:lacp_state": "LACP_UP"
},
"openconfig-if-ethernet:ethernet": {
"config": {
"openconfig-if-aggregate:aggregate-id": "HA-Interconnect"
},
"state": {
"port-speed": "openconfig-if-ethernet:SPEED_100GB",
"hw-mac-address": "00:94:a1:8e:d0:02",
"counters": {
"in-mac-control-frames": "0",
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-control-frames": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
},
"f5-if-ethernet:flow-control": {
"rx": "on"
}
}
}
},
{
"name": "1/2.0",
"config": {
"name": "1/2.0",
"type": "iana-if-type:ethernetCsmacd",
"enabled": true
},
"state": {
"name": "1/2.0",
"type": "iana-if-type:ethernetCsmacd",
"mtu": 9600,
"enabled": true,
"oper-status": "UP",
"counters": {
"in-octets": "124919687",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "1869",
"in-multicast-pkts": "956957",
"in-discards": "0",
"in-errors": "0",
"in-fcs-errors": "0",
"out-octets": "91513088",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "714946",
"out-discards": "0",
"out-errors": "0"
},
"f5-interface:forward-error-correction": "auto",
"f5-lacp:lacp_state": "LACP_UP"
},
"openconfig-if-ethernet:ethernet": {
"config": {
"openconfig-if-aggregate:aggregate-id": "Arista"
},
"state": {
"port-speed": "openconfig-if-ethernet:SPEED_100GB",
"hw-mac-address": "00:94:a1:8e:d0:03",
"counters": {
"in-mac-control-frames": "0",
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-control-frames": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
},
"f5-if-ethernet:flow-control": {
"rx": "on"
}
}
}
},
{
"name": "2/1.0",
"config": {
"name": "2/1.0",
"type": "iana-if-type:ethernetCsmacd",
"enabled": true
},
"state": {
"name": "2/1.0",
"type": "iana-if-type:ethernetCsmacd",
"mtu": 9600,
"enabled": true,
"oper-status": "UP",
"counters": {
"in-octets": "115515500",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "7873",
"in-multicast-pkts": "879353",
"in-discards": "0",
"in-errors": "0",
"in-fcs-errors": "0",
"out-octets": "91518344",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "715003",
"out-discards": "0",
"out-errors": "0"
},
"f5-interface:forward-error-correction": "auto",
"f5-lacp:lacp_state": "LACP_UP"
},
"openconfig-if-ethernet:ethernet": {
"config": {
"openconfig-if-aggregate:aggregate-id": "Arista"
},
"state": {
"port-speed": "openconfig-if-ethernet:SPEED_100GB",
"hw-mac-address": "00:94:a1:8e:d0:82",
"counters": {
"in-mac-control-frames": "0",
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-control-frames": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
},
"f5-if-ethernet:flow-control": {
"rx": "on"
}
}
}
},
{
"name": "2/2.0",
"config": {
"name": "2/2.0",
"type": "iana-if-type:ethernetCsmacd",
"enabled": true
},
"state": {
"name": "2/2.0",
"type": "iana-if-type:ethernetCsmacd",
"mtu": 9600,
"enabled": true,
"oper-status": "UP",
"counters": {
"in-octets": "136475840",
"in-unicast-pkts": "0",
"in-broadcast-pkts": "702127",
"in-multicast-pkts": "715154",
"in-discards": "0",
"in-errors": "0",
"in-fcs-errors": "0",
"out-octets": "91515522",
"out-unicast-pkts": "0",
"out-broadcast-pkts": "0",
"out-multicast-pkts": "714969",
"out-discards": "0",
"out-errors": "0"
},
"f5-interface:forward-error-correction": "auto",
"f5-lacp:lacp_state": "LACP_UP"
},
"openconfig-if-ethernet:ethernet": {
"config": {
"openconfig-if-aggregate:aggregate-id": "HA-Interconnect"
},
"state": {
"port-speed": "openconfig-if-ethernet:SPEED_100GB",
"hw-mac-address": "00:94:a1:8e:d0:83",
"counters": {
"in-mac-control-frames": "0",
"in-mac-pause-frames": "0",
"in-oversize-frames": "0",
"in-jabber-frames": "0",
"in-fragment-frames": "0",
"in-8021q-frames": "0",
"in-crc-errors": "0",
"out-mac-control-frames": "0",
"out-mac-pause-frames": "0",
"out-8021q-frames": "0"
},
"f5-if-ethernet:flow-control": {
"rx": "on"
}
}
}
},
{
"name": "Arista",
"config": {
"name": "Arista",
"type": "iana-if-type:ieee8023adLag",
"enabled": true
},
"state": {
"name": "Arista",
"type": "iana-if-type:ieee8023adLag",
"mtu": 9600,
"enabled": true,
"oper-status": "UP",
"f5-interface:forward-error-correction": "auto"
},
"openconfig-if-aggregate:aggregation": {
"config": {
"lag-type": "LACP",
"f5-if-aggregate:distribution-hash": "src-dst-ipport"
},
"state": {
"lag-type": "LACP",
"lag-speed": 200,
"f5-if-aggregate:distribution-hash": "src-dst-ipport",
"f5-if-aggregate:mac-address": "00:94:a1:8e:d0:09",
"f5-if-aggregate:lagid": 1
},
"openconfig-vlan:switched-vlan": {
"config": {
"trunk-vlans": [
3010,
3011
]
}
}
}
},
{
"name": "HA-Interconnect",
"config": {
"name": "HA-Interconnect",
"type": "iana-if-type:ieee8023adLag",
"enabled": true
},
"state": {
"name": "HA-Interconnect",
"type": "iana-if-type:ieee8023adLag",
"mtu": 9600,
"enabled": true,
"oper-status": "UP",
"f5-interface:forward-error-correction": "auto"
},
"openconfig-if-aggregate:aggregation": {
"config": {
"lag-type": "LACP",
"f5-if-aggregate:distribution-hash": "src-dst-ipport"
},
"state": {
"lag-type": "LACP",
"lag-speed": 200,
"f5-if-aggregate:distribution-hash": "src-dst-ipport",
"f5-if-aggregate:mac-address": "00:94:a1:8e:d0:0a",
"f5-if-aggregate:lagid": 2
},
"openconfig-vlan:switched-vlan": {
"config": {
"trunk-vlans": [
500,
501,
502,
503
]
}
}
}
}
]
}
}
