Monitoring rSeries¶
With the introduction of a new F5OS platform layer, anyone deploying rSeries will need to know the important things for them to monitor to ensure proper health and performance of the system. In addition to getting F5’s recommendation on what to monitor, administrators will require details on how to get access to that information.
Some admins may want CLI commands to monitor, or API calls to query the system, and others may prefer the webUI. Many customers also use SNMP to monitor and be alerted of system issues and events. For SNMP integrations F5 will provide specific SNMP OID’s that an admin can monitor, and what traps are available for alerting. The following sections will outline what sort of monitoring and alerting is available with the new F5OS layer in rSeries. Alerting/monitoring inside the tenants themselves does not change except at the lower network layers.
Accessing the F5OS API¶
The F5OS platform API’s for the rSeries appliances can be reached on port 8888. In this document we will use the Postman tool to access rSeries F5OS platform layer API’s. You can download the Postman tool at:
https://www.postman.com/downloads/
You may also use Curl to get API status. The following curl command is pointed at the F5OS IP address on port 8888. The example below is using basic authentication. You can request output in JSON by using the following Accept header:
$ curl -k https://<Appliance1-IP>:8888/restconf/yang-library-version --header 'Accept: application/yang-data+json' -u admin:<password>
Or you can alter the Accept header to receive output in XML format:
$ curl -k https://<Appliance1-IP>:8888/restconf/yang-library-version --header 'Accept: application/yang-data+xml' -u admin:<password>
Hardware and System Component Monitoring¶
Hardware and System Component Monitoring from the CLI¶
Show Components from the CLI¶
High level appliance status can be obtained by using the show components command, this will include all the subsystems:
r10900-1# show components
components component lcd
state serial-no sub0872g00du
state part-no "SUB-0872-02 REV 1"
state empty false
state mode standard
components component platform
fantray fan-stats fan-1-speed 16224
fantray fan-stats fan-2-speed 16268
fantray fan-stats fan-3-speed 16330
fantray fan-stats fan-4-speed 16251
fantray fan-stats fan-5-speed 16233
fantray fan-stats fan-6-speed 16286
fantray fan-stats fan-7-speed 16393
fantray fan-stats fan-8-speed 16224
fantray fan-stats fan-9-speed 16224
fantray fan-stats fan-10-speed 16268
fantray fan-stats fan-11-speed 16304
fantray fan-stats fan-12-speed 16357
state description r10900
state serial-no f5-xpdn-ngmu
state part-no "200-0413-02 REV 2"
state empty false
state tpm-integrity-status Valid
state memory total 270014504960
state memory available 23690534912
state memory free 7309426688
state memory used-percent 91
state memory platform-total 34219122688
state memory platform-used 10030964736
state memory platform-used-percent 29
state temperature current 29.7
state temperature average 30.2
state temperature minimum 29.2
state temperature maximum 31.3

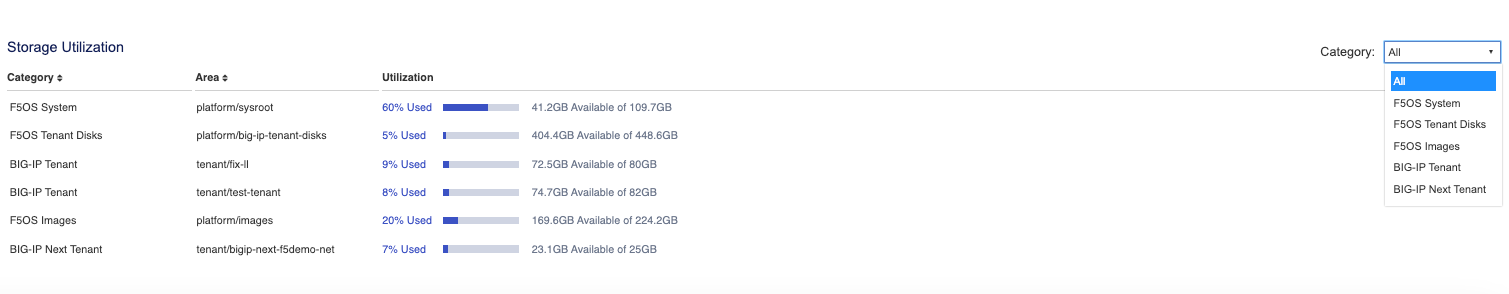

USED
AREA CATEGORY TOTAL FREE USED PERCENT
----------------------------------------------------------------------------------------------------
platform/sysroot F5OS System 117807665152 44114337792 67685408768 60
platform/big-ip-tenant-disks F5OS Tenant Disks 481671176192 426911313920 30268694528 6
tenant/fix-ll BIG-IP Tenant 0 0 8046321664 0
tenant/tenant1 BIG-IP Tenant 88046829568 80804179968 7242649600 8
tenant/tenant2 BIG-IP Tenant 152471339008 145266032640 7205306368 4
tenant/test-tenant BIG-IP Tenant 0 0 7834767360 0
platform/images F5OS Images 240700620800 179621085184 48829022208 21
tenant/bigip-next-f5demo-net BIG-IP Next Tenant 26830438400 24771969024 2058469376 7
UPDATE
NAME VALUE CONFIGURABLE STATUS
-------------------------------------------------------------------------------------
QAT0 Lewisburg C62X Crypto/Compression false -
QAT1 Lewisburg C62X Crypto/Compression false -
QAT2 Lewisburg C62X Crypto/Compression false -
QAT3 Lewisburg C62X Crypto/Compression false -
QAT4 Lewisburg C62X Crypto/Compression false -
QAT5 Lewisburg C62X Crypto/Compression false -
fw-version-bios 2.02.145.1 false none
fw-version-bios-me 4.4.4.603 false none
fw-version-cpld 02.0B.00 false none
fw-version-drive-nvme0 VDV10170 false none
fw-version-drive-nvme1 VDV10170 false none
fw-version-drive-u.2.slot1 VDV10184 false none
fw-version-drive-u.2.slot2 VDV10184 false none
fw-version-lcd-app 1.01.069.00.1 false none
fw-version-lcd-bootloader 1.01.027.00.1 false none
fw-version-lcd-ui 1.13.12 false none
fw-version-lop-app 2.00.357.0.1 false none
fw-version-lop-bootloader 1.02.062.0.1 false none
fw-version-sirr 1.1.72 false none
READ WRITE
DISK TOTAL READ READ LATENCY WRITE WRITE LATENCY
NAME MODEL VENDOR VERSION SERIAL NO SIZE TYPE IOPS IOPS MERGED READ BYTES MS IOPS MERGED WRITE BYTES MS
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
nvme0n1 INTEL SSDPE2KX010T8 Intel VDV10184 PHLJ1082028K1P0FGN 684.00GB nvme 0 6389572 6219783 750856005120 780538 150423059 148810905 1524410142208 19347042
nvme1n1 INTEL SSDPE2KX010T8 Intel VDV10184 PHLJ108203XB1P0FGN 684.00GB nvme 0 5879641 6157944 743701713408 730394 150423058 148810906 1524410142208 19650753
cpu state cpu-utilization thread cpu
cpu state cpu-utilization current 4
cpu state cpu-utilization five-second-avg 3
cpu state cpu-utilization one-minute-avg 3
cpu state cpu-utilization five-minute-avg 3
cpu state cpu-utilization used-by ""
CPU CORE THREAD
INDEX CACHESIZE CNT FREQ STEPPING CNT MODELNAME
----------------------------------------------------------------------------------------------------
0 36864(KB) 24 3099.902(MHz) 6 48 Intel(R) Xeon(R) Gold 6312U CPU @ 2.40GHz
FIVE ONE FIVE
THREAD SECOND MINUTE MINUTE
INDEX THREAD CURRENT AVG AVG AVG USED BY
------------------------------------------------------------------------
0 cpu0 0 0 1 1 F5OS Dedicated
1 cpu1 0 0 1 1 F5OS Dedicated
2 cpu2 0 0 1 1 F5OS Dedicated
3 cpu3 0 0 1 1 F5OS Dedicated
4 cpu4 0 0 1 1 F5OS Dedicated
5 cpu5 0 0 0 1 F5OS Dedicated
6 cpu6 3 3 5 4 F5OS
7 cpu7 0 0 0 1 bigip-next-f5demo-net
8 cpu8 6 5 4 4 F5OS
9 cpu9 0 0 1 1 bigip-next-f5demo-net
10 cpu10 5 3 4 4 F5OS
11 cpu11 1 4 4 5 fix-ll
12 cpu12 4 3 4 4 F5OS
13 cpu13 4 3 4 4 F5OS
14 cpu14 4 3 4 4 F5OS
15 cpu15 1 5 5 6 tenant1
16 cpu16 6 3 5 5 test-tenant
17 cpu17 5 4 4 5 fix-ll
18 cpu18 1 4 4 5 tenant1
19 cpu19 6 5 4 5 test-tenant
20 cpu20 3 3 4 4 F5OS
21 cpu21 3 3 4 4 F5OS
22 cpu22 3 4 4 4 F5OS
23 cpu23 7 7 5 5 F5OS
24 cpu24 1 1 1 1 F5OS Data Mover
25 cpu25 0 0 1 1 F5OS Data Mover
26 cpu26 0 1 1 1 F5OS Data Mover
27 cpu27 1 1 1 1 F5OS Data Mover
28 cpu28 0 1 1 1 F5OS Data Mover
29 cpu29 0 0 1 1 F5OS Data Mover
30 cpu30 7 6 6 6 F5OS
31 cpu31 0 0 0 1 bigip-next-f5demo-net
32 cpu32 4 5 6 6 F5OS
33 cpu33 0 0 0 1 bigip-next-f5demo-net
34 cpu34 1 3 5 6 F5OS
35 cpu35 1 4 5 6 fix-ll
36 cpu36 8 5 6 6 F5OS
37 cpu37 3 3 7 6 F5OS
38 cpu38 4 3 6 6 F5OS
39 cpu39 4 4 5 5 tenant1
40 cpu40 6 6 5 5 test-tenant
41 cpu41 1 4 4 5 fix-ll
42 cpu42 5 6 5 5 tenant1
43 cpu43 13 13 5 6 test-tenant
44 cpu44 3 2 6 6 F5OS
45 cpu45 9 5 8 7 F5OS
46 cpu46 1 3 5 6 F5OS
47 cpu47 55 23 8 7 F5OS
FPGA NUM NUM
INDEX VERSION ID SLOT DID DMS SEPS
-------------------------------------------
asw_0 71.5.1
atse_0 72.5.4 0 1 15 3 64
atse_1 72.5.4 1 1 63 3 64
nso_0 70.5.1
components component psu-1
psu-stats psu-power-in 526.0
psu-stats psu-power-out 514.0
psu-stats psu-current-in 2.578
psu-stats psu-current-out 42.875
psu-stats psu-voltage-in 205.0
psu-stats psu-voltage-out 12.0
psu-stats psu-temperature-1 36.0
psu-stats psu-temperature-2 42.0
psu-stats psu-temperature-3 46.0
psu-stats psu-fan-1-speed 11680
state serial-no FZ2104Q70036
state part-no PWR-0388-00
state empty false
components component psu-2
state serial-no "Not Available"
state part-no "Not Available"
state empty true
r10900-1#
Show Component State Only from the CLI¶
If you just want the state and not all the details:
r10900-1# show components component state
components component lcd
state serial-no sub0872g00du
state part-no "SUB-0872-02 REV 1"
state empty false
state mode standard
components component platform
state description r10900
state serial-no f5-xpdn-ngmu
state part-no "200-0413-02 REV 2"
state empty false
state tpm-integrity-status Valid
state memory total 270014504960
state memory available 23670415360
state memory free 7288745984
state memory used-percent 91
state memory platform-total 34219122688
state memory platform-used 10051108864
state memory platform-used-percent 29
state temperature current 29.9
state temperature average 30.2
state temperature minimum 29.2
state temperature maximum 31.3
USED
AREA CATEGORY TOTAL FREE USED PERCENT
----------------------------------------------------------------------------------------------------
platform/sysroot F5OS System 117807665152 44113956864 67685789696 60
platform/big-ip-tenant-disks F5OS Tenant Disks 481671176192 426911305728 30268702720 6
tenant/fix-ll BIG-IP Tenant 0 0 8046321664 0
tenant/tenant1 BIG-IP Tenant 88046829568 80804171776 7242657792 8
tenant/tenant2 BIG-IP Tenant 152471339008 145266032640 7205306368 4
tenant/test-tenant BIG-IP Tenant 0 0 7834767360 0
platform/images F5OS Images 240700620800 179621085184 48829022208 21
tenant/bigip-next-f5demo-net BIG-IP Next Tenant 26830438400 24771969024 2058469376 7
components component psu-1
state serial-no FZ2104Q70036
state part-no PWR-0388-00
state empty false
components component psu-2
state serial-no "Not Available"
state part-no "Not Available"
state empty true
r10900-1#
Show Component Properties from the CLI¶
This command shows the firmware version of the various subsystems:
r10900-1# show components component properties
UPDATE
NAME NAME VALUE CONFIGURABLE STATUS
-----------------------------------------------------------------------------------------------
platform QAT0 Lewisburg C62X Crypto/Compression false -
QAT1 Lewisburg C62X Crypto/Compression false -
QAT2 Lewisburg C62X Crypto/Compression false -
QAT3 Lewisburg C62X Crypto/Compression false -
QAT4 Lewisburg C62X Crypto/Compression false -
QAT5 Lewisburg C62X Crypto/Compression false -
fw-version-bios 2.02.145.1 false none
fw-version-bios-me 4.4.4.603 false none
fw-version-cpld 02.0B.00 false none
fw-version-drive-nvme0 VDV10170 false none
fw-version-drive-nvme1 VDV10170 false none
fw-version-drive-u.2.slot1 VDV10184 false none
fw-version-drive-u.2.slot2 VDV10184 false none
fw-version-lcd-app 1.01.069.00.1 false none
fw-version-lcd-bootloader 1.01.027.00.1 false none
fw-version-lcd-ui 1.13.12 false none
fw-version-lop-app 2.00.357.0.1 false none
fw-version-lop-bootloader 1.02.062.0.1 false none
fw-version-sirr 1.1.72 false none
r10900-1#
Show Power Supply Status from the CLI¶
Or you can view individual subsystems. High level power supply status can be obtained by using the show components component <psu-#> command:
r10900-1# show components component psu-1
components component psu-1
psu-stats psu-power-in 528.0
psu-stats psu-power-out 516.0
psu-stats psu-current-in 2.593
psu-stats psu-current-out 43.0
psu-stats psu-voltage-in 205.0
psu-stats psu-voltage-out 12.0
psu-stats psu-temperature-1 36.0
psu-stats psu-temperature-2 42.0
psu-stats psu-temperature-3 46.0
psu-stats psu-fan-1-speed 11552
state serial-no FZ2104Q70036
state part-no PWR-0388-00
state empty false
r10900-1#
High level power supply stats can be obtained by using the show components component psu-stats command:
r10900-1# show components component psu-stats
PSU PSU PSU PSU PSU PSU PSU PSU PSU PSU
POWER POWER CURRENT CURRENT VOLTAGE VOLTAGE TEMPERATURE TEMPERATURE TEMPERATURE FAN 1
NAME IN OUT IN OUT IN OUT 1 2 3 SPEED
-------------------------------------------------------------------------------------------------------
psu-1 530.0 518.0 2.593 42.75 205.0 12.0 36.0 41.0 46.0 12192
psu-2 - - - - - - - - - -
r10900-1#
Show LCD Status from the CLI¶
High level chassis LCD status can be obtained by using the show components component lcd command:
r10900-1# show components component lcd
components component lcd
state serial-no sub0872g00du
state part-no "SUB-0872-02 REV 1"
state empty false
state mode standard
r10900-1#

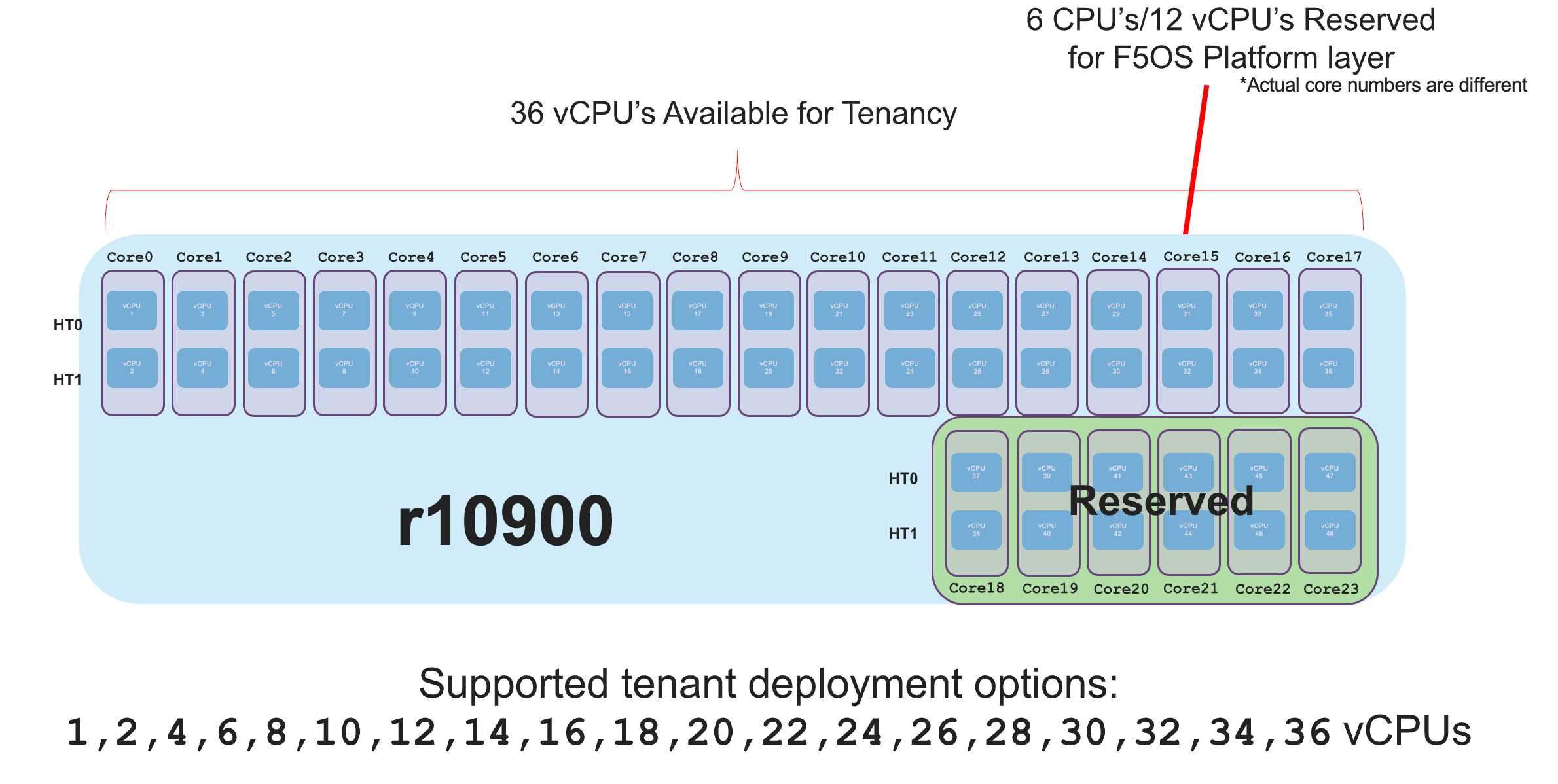

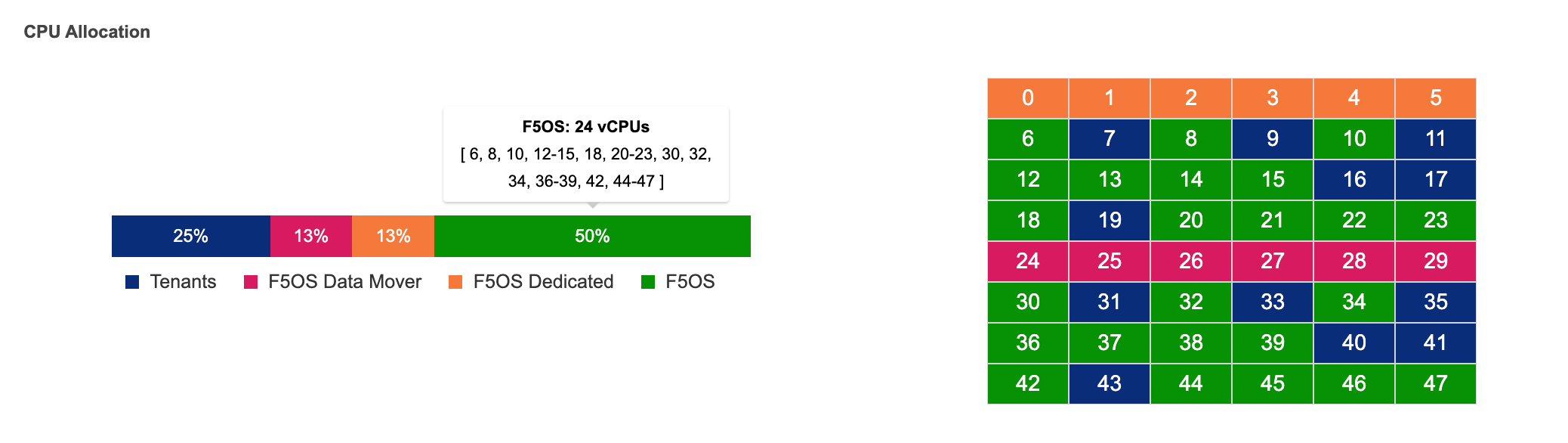

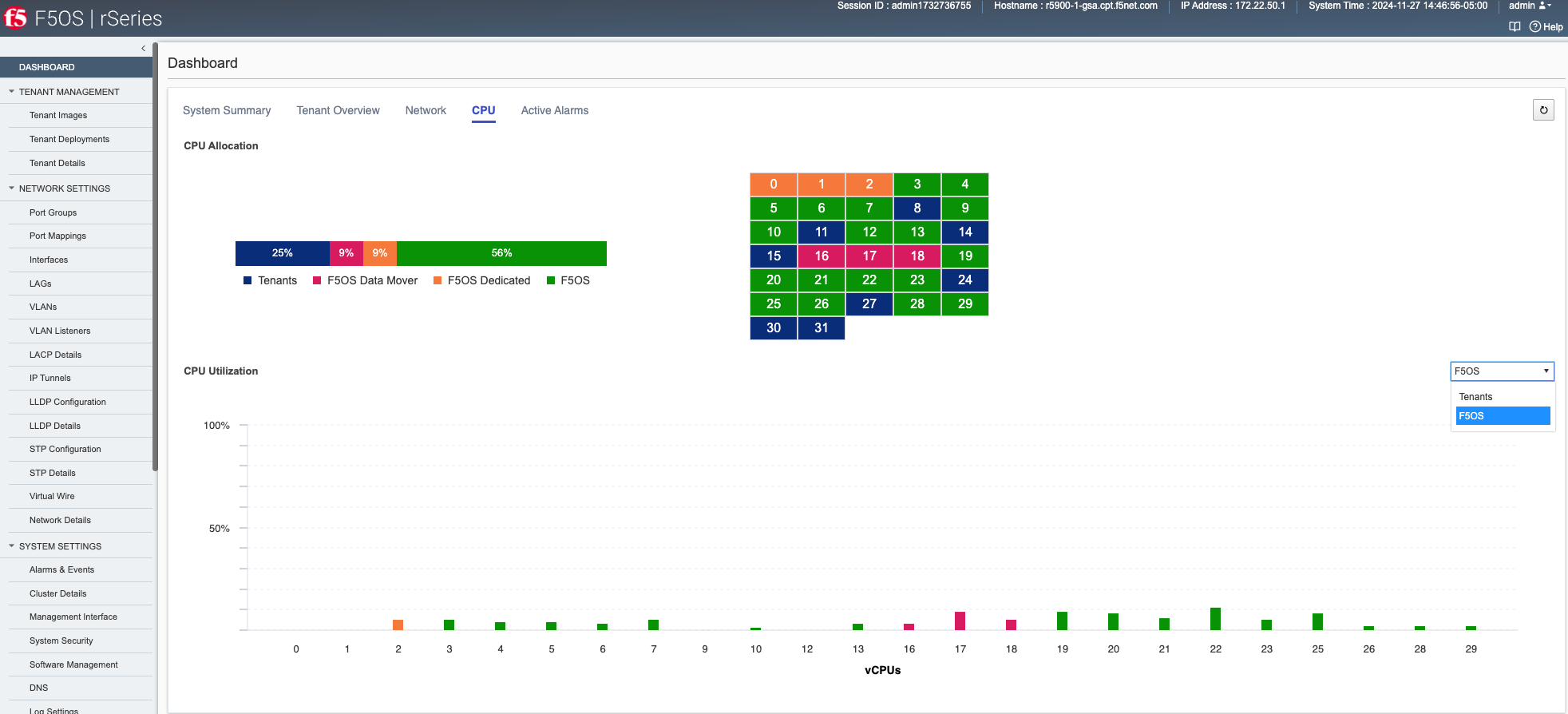

Show CPU Status from the CLI¶
You can view stats on the platform CPU and basic utilization with the command show components component cpu:
r10900-1# show components component cpu
components component platform
cpu state cpu-utilization thread cpu
cpu state cpu-utilization current 4
cpu state cpu-utilization five-second-avg 4
cpu state cpu-utilization one-minute-avg 3
cpu state cpu-utilization five-minute-avg 3
cpu state cpu-utilization used-by ""
CPU CORE THREAD
INDEX CACHESIZE CNT FREQ STEPPING CNT MODELNAME
----------------------------------------------------------------------------------------------------
0 36864(KB) 24 3099.902(MHz) 6 48 Intel(R) Xeon(R) Gold 6312U CPU @ 2.40GHz
FIVE ONE FIVE
THREAD SECOND MINUTE MINUTE
INDEX THREAD CURRENT AVG AVG AVG USED BY
------------------------------------------------------------------------
0 cpu0 0 0 1 1 F5OS Dedicated
1 cpu1 0 0 1 1 F5OS Dedicated
2 cpu2 0 0 1 1 F5OS Dedicated
3 cpu3 0 0 1 1 F5OS Dedicated
4 cpu4 0 0 1 1 F5OS Dedicated
5 cpu5 0 0 1 1 F5OS Dedicated
6 cpu6 3 4 4 4 F5OS
7 cpu7 0 0 0 1 bigip-next-f5demo-net
8 cpu8 4 5 5 4 F5OS
9 cpu9 0 0 1 1 bigip-next-f5demo-net
10 cpu10 4 3 4 4 F5OS
11 cpu11 5 5 4 5 fix-ll
12 cpu12 5 3 4 4 F5OS
13 cpu13 3 3 5 4 F5OS
14 cpu14 4 4 4 4 F5OS
15 cpu15 0 3 5 6 tenant1
16 cpu16 12 6 4 5 test-tenant
17 cpu17 4 5 5 5 fix-ll
18 cpu18 0 5 4 4 tenant1
19 cpu19 5 5 5 5 test-tenant
20 cpu20 4 4 4 4 F5OS
21 cpu21 4 3 4 4 F5OS
22 cpu22 4 4 5 4 F5OS
23 cpu23 3 3 4 4 F5OS
24 cpu24 1 1 1 1 F5OS Data Mover
25 cpu25 0 1 1 1 F5OS Data Mover
26 cpu26 0 1 1 1 F5OS Data Mover
27 cpu27 1 1 1 1 F5OS Data Mover
28 cpu28 0 1 1 1 F5OS Data Mover
29 cpu29 0 1 1 1 F5OS Data Mover
30 cpu30 6 7 6 6 F5OS
31 cpu31 0 0 1 1 bigip-next-f5demo-net
32 cpu32 20 12 8 6 F5OS
33 cpu33 0 0 1 1 bigip-next-f5demo-net
34 cpu34 15 11 6 6 F5OS
35 cpu35 1 3 6 5 fix-ll
36 cpu36 10 9 6 5 F5OS
37 cpu37 6 9 9 6 F5OS
38 cpu38 7 7 5 6 F5OS
39 cpu39 5 5 5 5 tenant1
40 cpu40 5 6 5 5 test-tenant
41 cpu41 2 9 4 5 fix-ll
42 cpu42 6 4 5 5 tenant1
43 cpu43 5 6 6 6 test-tenant
44 cpu44 6 7 5 6 F5OS
45 cpu45 3 7 7 7 F5OS
46 cpu46 21 9 6 6 F5OS
47 cpu47 11 7 7 7 F5OS
r10900-1#
Show Storage Status from the CLI¶
You can view stats on the storage subsystem:
r10900-1# show components component storage
READ WRITE
DISK TOTAL READ READ LATENCY WRITE WRITE LATENCY
NAME NAME MODEL VENDOR VERSION SERIAL NO SIZE TYPE IOPS IOPS MERGED READ BYTES MS IOPS MERGED WRITE BYTES MS
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
platform nvme0n1 INTEL SSDPE2KX010T8 Intel VDV10184 PHLJ1082028K1P0FGN 684.00GB nvme 0 6389655 6219783 750856602624 780548 150509104 148896707 1525266036736 19350347
nvme1n1 INTEL SSDPE2KX010T8 Intel VDV10184 PHLJ108203XB1P0FGN 684.00GB nvme 0 5879651 6157944 743701819904 730397 150509103 148896708 1525266036736 19654081
r10900-1#
Hardware and System Component Monitoring from the API¶
Appliance Component Status from the API¶
The overall appliance component status can be queried via the following API command:
GET https://{{rseries_appliance1_ip}}:8888/restconf/data/openconfig-platform:components
You should see output similar to the JSON output below.
{
"openconfig-platform:components": {
"component": [
{
"name": "lcd",
"config": {
"name": "lcd"
},
"state": {
"serial-no": "sub0872g00d5",
"empty": false
}
},
{
"name": "platform",
"config": {
"name": "platform"
},
"state": {
"description": "BIG-IP r5900",
"serial-no": "f5-vdvh-bfwi",
"part-no": "200-0411-02 REV 2",
"empty": false,
"f5-platform:tpm-integrity-status": "Valid",
"f5-platform:memory": {
"available": "6870933504",
"free": "1400750080",
"used-percent": 95
},
"f5-platform:temperature": {
"current": "31.0",
"average": "30.8",
"minimum": "29.9",
"maximum": "32.0"
}
},
"properties": {
"property": [
{
"name": "QAT0",
"config": {
"name": "QAT0"
},
"state": {
"value": "Lewisburg C62X Crypto/Compression",
"configurable": false
}
},
{
"name": "QAT1",
"config": {
"name": "QAT1"
},
"state": {
"value": "Lewisburg C62X Crypto/Compression",
"configurable": false
}
},
{
"name": "QAT2",
"config": {
"name": "QAT2"
},
"state": {
"value": "Lewisburg C62X Crypto/Compression",
"configurable": false
}
},
{
"name": "fw-version-bios",
"config": {
"name": "fw-version-bios"
},
"state": {
"value": "1.02.108.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-bios-me",
"config": {
"name": "fw-version-bios-me"
},
"state": {
"value": "4.4.4.58",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-cpld",
"config": {
"name": "fw-version-cpld"
},
"state": {
"value": "02.0A.00",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-drive-m.2.slot1",
"config": {
"name": "fw-version-drive-m.2.slot1"
},
"state": {
"value": "EDA7602Q",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-drive-nvme0",
"config": {
"name": "fw-version-drive-nvme0"
},
"state": {
"value": "EDA7602Q",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lcd-app",
"config": {
"name": "fw-version-lcd-app"
},
"state": {
"value": "1.01.057.00.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lcd-bootloader",
"config": {
"name": "fw-version-lcd-bootloader"
},
"state": {
"value": "1.01.027.00.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lcd-ui",
"config": {
"name": "fw-version-lcd-ui"
},
"state": {
"value": "1.5.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lop-app",
"config": {
"name": "fw-version-lop-app"
},
"state": {
"value": "1.00.214.0.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-lop-bootloader",
"config": {
"name": "fw-version-lop-bootloader"
},
"state": {
"value": "1.02.062.0.1",
"configurable": false,
"f5-platform:update-status": "none"
}
},
{
"name": "fw-version-sirr",
"config": {
"name": "fw-version-sirr"
},
"state": {
"value": "1.1.29",
"configurable": false,
"f5-platform:update-status": "none"
}
}
]
},
"storage": {
"state": {
"f5-platform:disks": {
"disk": [
{
"disk-name": "nvme0n1",
"state": {
"model": "SAMSUNG MZ1LB960HAJQ-00007",
"vendor": "Samsung",
"version": "EDA7602Q",
"serial-no": "S435NA0NA05748",
"size": "733.00GB",
"type": "nvme",
"disk-io": {
"total-iops": "10685",
"read-iops": "113950",
"read-merged": "100807",
"read-bytes": "5961474",
"read-latency-ms": "35349",
"write-iops": "27668",
"write-merged": "31954",
"write-bytes": "1462612",
"write-latency-ms": "34517"
}
}
}
]
}
}
},
"cpu": {
"state": {
"f5-platform:processors": {
"processor": [
{
"cpu-index": 0,
"state": {
"cachesize": "24576(KB)",
"core-cnt": "16",
"freq": "2899.951(MHz)",
"stepping": "6",
"thread-cnt": "32",
"modelname": "Intel(R) Xeon(R) Silver 4314 CPU @ 2.40GHz"
}
}
]
},
"f5-platform:cpu-utilization": {
"thread": "cpu",
"current": 1,
"five-second-avg": 2,
"one-minute-avg": 3,
"five-minute-avg": 3
},
"f5-platform:cpu-threads": {
"cpu-thread": [
{
"thread-index": 0,
"thread": "cpu0",
"current": 0,
"five-second-avg": 0,
"one-minute-avg": 1,
"five-minute-avg": 1
},
{
"thread-index": 1,
"thread": "cpu1",
"current": 0,
"five-second-avg": 0,
"one-minute-avg": 1,
"five-minute-avg": 1
},
{
"thread-index": 2,
"thread": "cpu2",
"current": 0,
"five-second-avg": 0,
"one-minute-avg": 1,
"five-minute-avg": 1
},
{
"thread-index": 3,
"thread": "cpu3",
"current": 0,
"five-second-avg": 1,
"one-minute-avg": 1,
"five-minute-avg": 1
},
{
"thread-index": 4,
"thread": "cpu4",
"current": 3,
"five-second-avg": 2,
"one-minute-avg": 4,
"five-minute-avg": 4
},
{
"thread-index": 5,
"thread": "cpu5",
"current": 0,
"five-second-avg": 1,
"one-minute-avg": 2,
"five-minute-avg": 1
},
{
"thread-index": 6,
"thread": "cpu6",
"current": 2,
"five-second-avg": 2,
"one-minute-avg": 3,
"five-minute-avg": 3
},
{
"thread-index": 7,
"thread": "cpu7",
"current": 2,
"five-second-avg": 2,
"one-minute-avg": 3,
"five-minute-avg": 3
},
{
"thread-index": 8,
"thread": "cpu8",
"current": 0,
"five-second-avg": 2,
"one-minute-avg": 3,
"five-minute-avg": 4
},
{
"thread-index": 9,
"thread": "cpu9",
"current": 1,
"five-second-avg": 2,
"one-minute-avg": 3,
"five-minute-avg": 3
},
{
"thread-index": 10,
"thread": "cpu10",
"current": 0,
"five-second-avg": 1,
"one-minute-avg": 3,
"five-minute-avg": 3
},
{
"thread-index": 11,
"thread": "cpu11",
"current": 1,
"five-second-avg": 4,
"one-minute-avg": 3,
"five-minute-avg": 4
},
{
"thread-index": 12,
"thread": "cpu12",
"current": 3,
"five-second-avg": 4,
"one-minute-avg": 4,
"five-minute-avg": 4
},
{
"thread-index": 13,
"thread": "cpu13",
"current": 1,
"five-second-avg": 2,
"one-minute-avg": 3,
"five-minute-avg": 3
},
{
"thread-index": 14,
"thread": "cpu14",
"current": 2,
"five-second-avg": 3,
"one-minute-avg": 3,
"five-minute-avg": 3
},
{
"thread-index": 15,
"thread": "cpu15",
"current": 3,
"five-second-avg": 9,
"one-minute-avg": 4,
"five-minute-avg": 3
},
{
"thread-index": 16,
"thread": "cpu16",
"current": 2,
"five-second-avg": 1,
"one-minute-avg": 1,
"five-minute-avg": 1
},
{
"thread-index": 17,
"thread": "cpu17",
"current": 0,
"five-second-avg": 1,
"one-minute-avg": 1,
"five-minute-avg": 1
},
{
"thread-index": 18,
"thread": "cpu18",
"current": 1,
"five-second-avg": 1,
"one-minute-avg": 1,
"five-minute-avg": 1
},
{
"thread-index": 19,
"thread": "cpu19",
"current": 3,
"five-second-avg": 4,
"one-minute-avg": 8,
"five-minute-avg": 8
},
{
"thread-index": 20,
"thread": "cpu20",
"current": 0,
"five-second-avg": 1,
"one-minute-avg": 2,
"five-minute-avg": 3
},
{
"thread-index": 21,
"thread": "cpu21",
"current": 6,
"five-second-avg": 5,
"one-minute-avg": 5,
"five-minute-avg": 5
},
{
"thread-index": 22,
"thread": "cpu22",
"current": 0,
"five-second-avg": 1,
"one-minute-avg": 2,
"five-minute-avg": 3
},
{
"thread-index": 23,
"thread": "cpu23",
"current": 3,
"five-second-avg": 2,
"one-minute-avg": 3,
"five-minute-avg": 3
},
{
"thread-index": 24,
"thread": "cpu24",
"current": 1,
"five-second-avg": 1,
"one-minute-avg": 4,
"five-minute-avg": 3
},
{
"thread-index": 25,
"thread": "cpu25",
"current": 1,
"five-second-avg": 2,
"one-minute-avg": 3,
"five-minute-avg": 3
},
{
"thread-index": 26,
"thread": "cpu26",
"current": 0,
"five-second-avg": 1,
"one-minute-avg": 2,
"five-minute-avg": 2
},
{
"thread-index": 27,
"thread": "cpu27",
"current": 0,
"five-second-avg": 1,
"one-minute-avg": 3,
"five-minute-avg": 3
},
{
"thread-index": 28,
"thread": "cpu28",
"current": 0,
"five-second-avg": 1,
"one-minute-avg": 4,
"five-minute-avg": 3
},
{
"thread-index": 29,
"thread": "cpu29",
"current": 0,
"five-second-avg": 10,
"one-minute-avg": 3,
"five-minute-avg": 3
},
{
"thread-index": 30,
"thread": "cpu30",
"current": 1,
"five-second-avg": 2,
"one-minute-avg": 4,
"five-minute-avg": 4
},
{
"thread-index": 31,
"thread": "cpu31",
"current": 0,
"five-second-avg": 1,
"one-minute-avg": 2,
"five-minute-avg": 3
}
]
}
}
},
"integrated-circuit": {
"state": {
"f5-platform:fpgas": {
"fpga": [
{
"fpga-index": "asw_0",
"state": {
"version": "71.2.7"
}
},
{
"fpga-index": "atse_0",
"state": {
"version": "72.2.5"
}
}
]
}
}
}
},
{
"name": "psu-1",
"config": {
"name": "psu-1"
},
"state": {
"serial-no": "S92031RC1991",
"part-no": "M1845",
"empty": false
},
"f5-fan-psu-stats:psu-stats": {
"psu-current-in": "1.718",
"psu-current-out": "26.375",
"psu-voltage-in": "204.5",
"psu-voltage-out": "12.062",
"psu-temperature-1": "38.0",
"psu-temperature-2": "48.0",
"psu-temperature-3": "54.0",
"psu-fan-1-speed": 9632
}
}
]
}
}
LCD Status from the API¶
The appliance LCD panel status can be queried via the following API command:
GET https://{{rseries_appliance1_ip}}:8888/restconf/data/openconfig-platform:components/component=lcd
You should see output similar to the JSON output below.
{
"openconfig-platform:component": [
{
"name": "lcd",
"config": {
"name": "lcd"
},
"state": {
"serial-no": "sub0872g00d5",
"empty": false
}
}
]
}
Power Supply Status from the API¶
The rSeries appliance may have 1 or 2 power supplies installed. Each can be queried via the following API command. Substitute psu-1, or psu-2 (for dual power systems) at the end of the API call:
GET https://{{rseries_appliance1_ip}}:8888/restconf/data/openconfig-platform:components/component=psu-1
You should see output similar to the JSON output below.
{
"openconfig-platform:component": [
{
"name": "psu-1",
"config": {
"name": "psu-1"
},
"state": {
"serial-no": "S92031RC1991",
"part-no": "M1845",
"empty": false
},
"f5-fan-psu-stats:psu-stats": {
"psu-current-in": "1.718",
"psu-current-out": "26.375",
"psu-voltage-in": "204.0",
"psu-voltage-out": "12.046",
"psu-temperature-1": "38.0",
"psu-temperature-2": "48.0",
"psu-temperature-3": "53.0",
"psu-fan-1-speed": 9600
}
}
]
}
Storage Status from the API¶
You may query the status of the disks within the rSeries appliance:
GET https://{{rseries_appliance1_ip}}:8888/restconf/data/openconfig-platform:components/component=platform/storage
You should see output similar to the JSON output below.
{
"openconfig-platform:storage": {
"state": {
"f5-platform:disks": {
"disk": [
{
"disk-name": "nvme0n1",
"state": {
"model": "SAMSUNG MZ1LB960HAJQ-00007",
"vendor": "Samsung",
"version": "EDA7602Q",
"serial-no": "S435NA0NA05748",
"size": "733.00GB",
"type": "nvme",
"disk-io": {
"total-iops": "10685",
"read-iops": "113950",
"read-merged": "100807",
"read-bytes": "5961474",
"read-latency-ms": "35349",
"write-iops": "27668",
"write-merged": "31954",
"write-bytes": "1462612",
"write-latency-ms": "34517"
}
}
}
]
}
}
}
}
CPU Status from the API¶
You can query the details about the CPUs within each rSeries device. Every CPU thread (vCPU) will display Current, 5 Seconds, 1 Minute, and 5 Minute utilization.
GET https://{{rseries_appliance1_ip}}:8888/restconf/data/openconfig-platform:components/component=platform/cpu
Below is the example output for CPU’s:
{
"openconfig-platform:cpu": {
"state": {
"f5-platform:processors": {
"processor": [
{
"cpu-index": 0,
"state": {
"cachesize": "24576(KB)",
"core-cnt": "16",
"freq": "2899.951(MHz)",
"stepping": "6",
"thread-cnt": "32",
"modelname": "Intel(R) Xeon(R) Silver 4314 CPU @ 2.40GHz"
}
}
]
},
"f5-platform:cpu-utilization": {
"thread": "cpu",
"current": 7,
"five-second-avg": 3,
"one-minute-avg": 3,
"five-minute-avg": 3
},
"f5-platform:cpu-threads": {
"cpu-thread": [
{
"thread-index": 0,
"thread": "cpu0",
"current": 0,
"five-second-avg": 0,
"one-minute-avg": 0,
"five-minute-avg": 1
},
{
"thread-index": 1,
"thread": "cpu1",
"current": 0,
"five-second-avg": 0,
"one-minute-avg": 0,
"five-minute-avg": 1
},
{
"thread-index": 2,
"thread": "cpu2",
"current": 0,
"five-second-avg": 0,
"one-minute-avg": 1,
"five-minute-avg": 1
},
{
"thread-index": 3,
"thread": "cpu3",
"current": 2,
"five-second-avg": 1,
"one-minute-avg": 1,
"five-minute-avg": 1
},
{
"thread-index": 4,
"thread": "cpu4",
"current": 5,
"five-second-avg": 3,
"one-minute-avg": 4,
"five-minute-avg": 3
},
{
"thread-index": 5,
"thread": "cpu5",
"current": 8,
"five-second-avg": 2,
"one-minute-avg": 1,
"five-minute-avg": 1
},
{
"thread-index": 6,
"thread": "cpu6",
"current": 3,
"five-second-avg": 2,
"one-minute-avg": 3,
"five-minute-avg": 3
},
{
"thread-index": 7,
"thread": "cpu7",
"current": 13,
"five-second-avg": 5,
"one-minute-avg": 4,
"five-minute-avg": 4
},
{
"thread-index": 8,
"thread": "cpu8",
"current": 7,
"five-second-avg": 4,
"one-minute-avg": 4,
"five-minute-avg": 4
},
{
"thread-index": 9,
"thread": "cpu9",
"current": 3,
"five-second-avg": 2,
"one-minute-avg": 3,
"five-minute-avg": 4
},
{
"thread-index": 10,
"thread": "cpu10",
"current": 7,
"five-second-avg": 3,
"one-minute-avg": 4,
"five-minute-avg": 3
},
{
"thread-index": 11,
"thread": "cpu11",
"current": 19,
"five-second-avg": 6,
"one-minute-avg": 4,
"five-minute-avg": 4
},
{
"thread-index": 12,
"thread": "cpu12",
"current": 5,
"five-second-avg": 2,
"one-minute-avg": 3,
"five-minute-avg": 3
},
{
"thread-index": 13,
"thread": "cpu13",
"current": 5,
"five-second-avg": 2,
"one-minute-avg": 4,
"five-minute-avg": 4
},
{
"thread-index": 14,
"thread": "cpu14",
"current": 16,
"five-second-avg": 6,
"one-minute-avg": 4,
"five-minute-avg": 4
},
{
"thread-index": 15,
"thread": "cpu15",
"current": 6,
"five-second-avg": 2,
"one-minute-avg": 3,
"five-minute-avg": 3
},
{
"thread-index": 16,
"thread": "cpu16",
"current": 2,
"five-second-avg": 1,
"one-minute-avg": 1,
"five-minute-avg": 2
},
{
"thread-index": 17,
"thread": "cpu17",
"current": 1,
"five-second-avg": 1,
"one-minute-avg": 1,
"five-minute-avg": 1
},
{
"thread-index": 18,
"thread": "cpu18",
"current": 1,
"five-second-avg": 1,
"one-minute-avg": 1,
"five-minute-avg": 1
},
{
"thread-index": 19,
"thread": "cpu19",
"current": 35,
"five-second-avg": 18,
"one-minute-avg": 8,
"five-minute-avg": 7
},
{
"thread-index": 20,
"thread": "cpu20",
"current": 2,
"five-second-avg": 1,
"one-minute-avg": 3,
"five-minute-avg": 3
},
{
"thread-index": 21,
"thread": "cpu21",
"current": 6,
"five-second-avg": 5,
"one-minute-avg": 5,
"five-minute-avg": 5
},
{
"thread-index": 22,
"thread": "cpu22",
"current": 4,
"five-second-avg": 1,
"one-minute-avg": 3,
"five-minute-avg": 3
},
{
"thread-index": 23,
"thread": "cpu23",
"current": 5,
"five-second-avg": 2,
"one-minute-avg": 7,
"five-minute-avg": 4
},
{
"thread-index": 24,
"thread": "cpu24",
"current": 21,
"five-second-avg": 8,
"one-minute-avg": 5,
"five-minute-avg": 3
},
{
"thread-index": 25,
"thread": "cpu25",
"current": 8,
"five-second-avg": 2,
"one-minute-avg": 3,
"five-minute-avg": 4
},
{
"thread-index": 26,
"thread": "cpu26",
"current": 4,
"five-second-avg": 1,
"one-minute-avg": 2,
"five-minute-avg": 3
},
{
"thread-index": 27,
"thread": "cpu27",
"current": 5,
"five-second-avg": 1,
"one-minute-avg": 3,
"five-minute-avg": 3
},
{
"thread-index": 28,
"thread": "cpu28",
"current": 4,
"five-second-avg": 1,
"one-minute-avg": 3,
"five-minute-avg": 3
},
{
"thread-index": 29,
"thread": "cpu29",
"current": 3,
"five-second-avg": 3,
"one-minute-avg": 3,
"five-minute-avg": 3
},
{
"thread-index": 30,
"thread": "cpu30",
"current": 2,
"five-second-avg": 1,
"one-minute-avg": 2,
"five-minute-avg": 3
},
{
"thread-index": 31,
"thread": "cpu31",
"current": 3,
"five-second-avg": 2,
"one-minute-avg": 3,
"five-minute-avg": 3
}
]
}
}
}
}
Temperature Status from the API¶
You can monitor the rSeries Appliance temperature. The output will display the Current, Average, Minimum, and Maximum temperatures.
GET https://{{Appliance1_IP}}:8888/restconf/data/openconfig-platform:components/component=platform/state/f5-platform:temperature
You should see output similar to the JSON output below.
{
"f5-platform:temperature": {
"current": "31.2",
"average": "30.9",
"minimum": "30.0",
"maximum": "32.0"
}
}
Memory Status from the API¶
The API call below shows the total system memory:
GET https://{{rseries_appliance1_ip}}:8888/restconf/data/openconfig-platform:components/component=platform/state/f5-platform:memory
You should see output similar to the JSON output below.
{
"f5-platform:memory": {
"available": "6863855616",
"free": "1378607104",
"used-percent": 95
}
}
Trusted Protection Module Status from the API¶
rSeries supports the Trusted Protection Module (TPM) to validate certain software has not been tampered with. You can query the last status check which is performed on boot:
GET https://{{rseries_appliance1_ip}}:8888/restconf/data/openconfig-platform:components/component=platform/state/f5-platform:tpm-integrity-status
You should see output similar to the JSON output below.
{
"f5-platform:tpm-integrity-status": "Valid"
}
Software Health and Status from the CLI¶
You can monitor the health of the underlying software and hardware using the following CLI commands.
F5 Cluster Status via CLI¶
This command will display the health of the underlying Kubernetes (K3S) cluster which powers the F5OS layer. They key is the last message at the bottom of the output K3S cluster is ready, this lets you know that the underlying K3S cluster is up running and healthy.
r10900-1# show cluster
cluster state
cluster disk-usage-threshold state warning-limit 85
cluster disk-usage-threshold state error-limit 90
cluster disk-usage-threshold state critical-limit 97
cluster disk-usage-threshold state growth-rate-limit 10
cluster disk-usage-threshold state interval 60
cluster nodes node node-1
state name node-1
state enabled true
state node-running-state running
state platform fpga-state FPGA_RDY
state platform dma-agent-state DMA_AGENT_RDY
state slot-number 1
state node-info creation-time 2024-02-29T17:25:40Z
state node-info cpu 36
state node-info pods 500
state node-info memory 263686040Ki
state node-info available-tenant-vcpu 20
state node-info available-tenant-memory 170912MB
state node-info available-tenant-disk 186GB
state node-info inaccessible-tenant-memory 0MB
state ready-info ready true
state ready-info last-transition-time 2024-08-01T16:22:49Z
state ready-info message "kubelet is posting ready status"
state out-of-disk-info out-of-disk false
state out-of-disk-info last-transition-time ""
state out-of-disk-info message ""
state disk-pressure-info disk-pressure false
state disk-pressure-info last-transition-time 2024-02-29T17:25:40Z
state disk-pressure-info message "kubelet has no disk pressure"
state tenant-memory tenant-reserved 243168968704
state tenant-memory tenant-configured 0
state tenant-memory tenant-provisioned 0
state tenant-memory tenant-deployed 15569256448
state tenant-memory tenant-configured-percent 0
state tenant-memory tenant-provisioned-percent 0
state tenant-memory tenant-deployed-percent 6
state rate-limiting enabled
state disk-usage used-percent 61
state disk-usage growth-rate 0
state disk-usage status in-range
DISK DATA DISK DATA
NAME VALUE
-------------------------
available 44112568320
capacity 117807665152
used 67687178240
ASLA ASLA ASLA SLA SLA SLA
TENANT NAME QAT DEVICE NAME BDF MIN USED UTIL MIN USED UTIL
----------------------------------------------------------------------------
fix-ll qat_dev_vf00pf00 53:01.0 2000 0 0 2000 0 0
qat_dev_vf00pf01 54:01.0 2000 0 0 2000 0 0
qat_dev_vf00pf02 55:01.0 2000 0 0 2000 0 0
qat_dev_vf00pf03 c5:01.0 2000 0 0 2000 0 0
qat_dev_vf00pf04 c6:01.0 2000 0 0 2000 0 0
qat_dev_vf00pf05 c7:01.0 2000 0 0 2000 0 0
tenant1 qat_dev_vf02pf00 53:01.2 2000 0 0 2000 0 0
qat_dev_vf02pf01 54:01.2 2000 0 0 2000 0 0
qat_dev_vf02pf02 55:01.2 2000 0 0 2000 0 0
qat_dev_vf02pf03 c5:01.2 2000 0 0 2000 0 0
qat_dev_vf02pf04 c6:01.2 2000 0 0 2000 0 0
qat_dev_vf02pf05 c7:01.2 2000 0 0 2000 0 0
test-tenant qat_dev_vf01pf00 53:01.1 2000 0 0 2000 0 0
qat_dev_vf01pf01 54:01.1 2000 0 0 2000 0 0
qat_dev_vf01pf02 55:01.1 2000 0 0 2000 0 0
qat_dev_vf01pf03 c5:01.1 2000 0 0 2000 0 0
qat_dev_vf01pf04 c6:01.1 2000 0 0 2000 0 0
qat_dev_vf01pf05 c7:01.1 2000 0 0 2000 0 0
NAMESPACE TYPE REASON OBJECT MESSAGE
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
default-tid-75 Warning FailedScheduling Pod/bigip-next-f5demo-net-f5-asec-ip-intelligence-5577b7489c-fdff9 0/1 nodes are available: 1 pod has unbound immediate PersistentVolumeClaims.
default-tid-75 Warning FailedScheduling Pod/bigip-next-f5demo-net-f5-cmsg-mq-7844f5b64d-xd8x8 0/1 nodes are available: 1 pod has unbound immediate PersistentVolumeClaims.
default-tid-75 Warning FailedScheduling Pod/bigip-next-f5demo-net-f5-mbip-post-install-hook-2ln8q 0/1 nodes are available: 1 pod has unbound immediate PersistentVolumeClaims.
default-tid-75 Warning FailedScheduling Pod/bigip-next-f5demo-net-f5-eesv-vault-758bbc5fb-x7cd7 0/1 nodes are available: 1 pod has unbound immediate PersistentVolumeClaims.
default-tid-75 Warning FailedScheduling Pod/bigip-next-f5demo-net-f5-asec-policy-compiler-5f7c684d85-s2q86 0/1 nodes are available: 1 pod has unbound immediate PersistentVolumeClaims.
default-tid-75 Warning FailedScheduling Pod/bigip-next-f5demo-net-f5-csm-icb-85fb7fccc4-f852q 0/1 nodes are available: 1 pod has unbound immediate PersistentVolumeClaims.
default Normal Created VirtualMachineInstance/fix-ll-1 VirtualMachineInstance defined.
default-tid-75 Warning FailedScheduling Pod/bigip-next-f5demo-net-f5-csm-bird-56fffb4dd4-bqblm 0/1 nodes are available: 1 pod has unbound immediate PersistentVolumeClaims.
default-tid-75 Warning FailedScheduling Pod/bigip-next-f5demo-net-data-store-fb68486d9-8pfmr 0/1 nodes are available: 1 pod has unbound immediate PersistentVolumeClaims.
default Normal Created VirtualMachineInstance/test-tenant-1 VirtualMachineInstance defined.
default-tid-75 Warning FailedScheduling Pod/bigip-next-f5demo-net-f5-eesv-licensing-f5f45499b-s5gtd 0/1 nodes are available: 1 pod has unbound immediate PersistentVolumeClaims.
default-tid-75 Warning FailedScheduling Pod/bigip-next-f5demo-net-f5-asec-clientside-js-obfuscator-557zchhf 0/1 nodes are available: 1 pod has unbound immediate PersistentVolumeClaims.
default-tid-75 Warning FailedScheduling Pod/bigip-next-f5demo-net-f5-asec-geo-location-kmlsb 0/1 nodes are available: 1 pod has unbound immediate PersistentVolumeClaims.
default-tid-75 Warning FailedScheduling Pod/bigip-next-f5demo-net-f5-appsvcs-77dd5549d8-jh2tp 0/1 nodes are available: 1 pod has unbound immediate PersistentVolumeClaims.
default-tid-75 Warning FailedScheduling Pod/bigip-next-f5demo-net-f5-toda-logpull-5859768d58-9hqvf 0/1 nodes are available: 1 pod has unbound immediate PersistentVolumeClaims.
default-tid-75 Warning FailedScheduling Pod/bigip-next-f5demo-net-f5-fcdn-sync-8598cf57d6-jkg7r 0/1 nodes are available: 1 pod has unbound immediate PersistentVolumeClaims.
default Normal Created VirtualMachineInstance/tenant1-1 VirtualMachineInstance defined.
default-tid-75 Warning FailedScheduling Pod/bigip-next-f5demo-net-f5-csm-qkview-6b84ccd599-tvxzd 0/1 nodes are available: 1 pod has unbound immediate PersistentVolumeClaims.
default-tid-75 Warning FailedScheduling Pod/bigip-next-f5demo-net-f5-toda-observer-5d74c88c88-zhhtf 0/1 nodes are available: 1 pod has unbound immediate PersistentVolumeClaims.
default-tid-75 Warning ProvisioningFailed PersistentVolumeClaim/bigip-next-f5demo-net-data-store storageclass.storage.k8s.io "bigip-next-f5demo-net-data-store-default-tid-75" not found
default-tid-75 Warning FailedScheduling Pod/bigip-next-f5demo-net-f5-onboarding-7d8dd97555-z8rdc 0/1 nodes are available: 1 pod has unbound immediate PersistentVolumeClaims.
default-tid-75 Warning FailedScheduling Pod/bigip-next-f5demo-net-f5-platform-agent-6bcff86d59-zqlbj 0/1 nodes are available: 1 pod has unbound immediate PersistentVolumeClaims.
default-tid-75 Warning FailedScheduling Pod/bigip-next-f5demo-net-f5-api-service-5bmzq 0/1 nodes are available: 1 pod has unbound immediate PersistentVolumeClaims.
default-tid-75 Warning FailedScheduling Pod/bigip-next-f5demo-net-f5-avcl-54f7b459cd-pck5x 0/1 nodes are available: 1 pod has unbound immediate PersistentVolumeClaims.
default-tid-75 Warning FailedScheduling Pod/bigip-next-f5demo-net-f5-toda-otel-collector-55fb999c76-tzx4c 0/1 nodes are available: 1 pod has unbound immediate PersistentVolumeClaims.
default-tid-75 Warning FailedScheduling Pod/bigip-next-f5demo-net-f5-dssm-78df8cd7ff-9dpg6 0/1 nodes are available: 1 pod has unbound immediate PersistentVolumeClaims.
default-tid-75 Warning FailedScheduling Pod/bigip-next-f5demo-net-f5-csm-api-engine-5db85b6594-rtkwg 0/1 nodes are available: 1 pod has unbound immediate PersistentVolumeClaims.
default-tid-75 Warning FailedScheduling Pod/bigip-next-f5demo-net-f5-toda-server-76866dbbcf-c9qgl 0/1 nodes are available: 1 pod has unbound immediate PersistentVolumeClaims.
default-tid-75 Warning FailedScheduling Pod/bigip-next-f5demo-net-f5-fsm-tmm-84c44c656d-p6qrm 0/1 nodes are available: 1 pod has unbound immediate PersistentVolumeClaims.
STAGE NAME STATUS TIMESTAMP VERSION DESCRIPTION
-----------------------------------------------------------------------------------------------------------------------
FlannelInstall done 2024-06-25 08:35:03-04:00 0.13.1 Flannel installation/verification is successful
MultusInstall done 2024-08-01 12:23:51-04:00 3.7.0 Multus installation/verification is successful
KubevirtInstall done 2024-08-01 12:23:54-04:00 2.9.1 Kubevirt installation/verification is successful
K3SClusterUpgrade done 2024-06-10 11:44:36-04:00 1.21.1.1.11.7 K3s RPM update is successful
K3SClusterInstall done 2024-02-29 12:26:11-05:00 1.21.1.1.11.2 K3s installation/verification is successful
clusterDeployment done 2024-08-01 12:25:44-04:00 Not Available Cluster deployment is successful
cluster cluster-status summary-status "K3S cluster is initialized and ready for use."
INDEX STATUS
---------------------------------------------------------------------------------------------------
0 2024-08-01 12:21:42.848688-04:00 - applianceMainEventLoop::Orchestration manager startup.
1 2024-08-01 12:21:43.109500-04:00 - Can now ping appliance-1.chassis.local (100.65.60.1).
2 2024-08-01 12:21:45.073224-04:00 - Successfully ssh'd to appliance 127.0.0.1.
3 2024-08-01 12:22:25.679918-04:00 - Appliance 1 is ready in k3s cluster.
4 2024-08-01 12:22:48.438588-04:00 - K3S cluster is ready.
5 2024-08-01 12:22:51.551943-04:00 - K3s IMAGE update is succeeded.
6 2024-08-03 21:27:49.352504-04:00 - Can NOT ping appliance-1.chassis.local (100.65.60.1).
7 2024-08-03 21:28:19.468686-04:00 - Can now ping appliance-1.chassis.local (100.65.60.1).
8 2024-08-06 08:19:06.845065-04:00 - Failed to ssh to 127.0.0.1.
9 2024-08-06 08:19:38.547020-04:00 - Successfully ssh'd to appliance 127.0.0.1.
r10900-1#
F5 DAG States via CLI¶
The command below displays the current DAG-states. DAG stands for Disaggregation, which is the process incoming connections go through to determine which TMM processor a connection should be sent to. There are various DAG algorithms that may be configured.
r10900-1# show dag-states
SDAG
COMMIT TENANT SDAG SDAG MIRROR
PUBLISHER PUBLISH TENANT COMMIT DAG INSTANCE TABLE MIRROR TABLE
TENANT NAME PUBLISHER INSTANCE TIME INSTANCE TIME VERSION IDS SDAG TABLE HASH TABLE HASH
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
bigip-next-f5demo-net dagc 1 1718391608 1 1718391608 16 [ 15 63 ] f 3f f 3f f 3f f 3f f 3f f 3f f 3f f 3f f 3f f 3f f 3f f 3f 36876 0
fix-ll dagd 1 1722529518 1 1722529518 16 [ 15 63 ] f 3f f 3f f 3f f 3f f 3f f 3f f 3f f 3f f 3f f 3f f 3f f 3f 36876 0
tenant1 dagd 1 1722868493 1 1722868493 16 [ 15 63 ] f 3f f 3f f 3f f 3f f 3f f 3f f 3f f 3f f 3f f 3f f 3f f 3f 36876 0
test-tenant dagd 1 1722529520 1 1722529520 16 [ 15 63 ] f 3f f 3f f 3f f 3f f 3f f 3f f 3f f 3f f 3f f 3f f 3f f 3f 36876 0
r10900-1#
Show FDB via CLI¶
The command below displays the Forwarding Database.
r10900-1# show fdb
SUB
MOD NDI
MAC ADDRESS VLAN TAG TYPE VLAN TAG TYPE VID ENTRY TYPE OWNER ID AGE ID SVC VTC SEP DMS DID CMDS MIRRORING INTERFACE
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------
00:94:a1:69:59:26 3010 tag_type_vid 3010 tag_type_vid 3010 L2-LISTENER bigip-next-f5demo-net 0 - 4095 64 - - - - 1 - -
00:94:a1:69:59:26 3011 tag_type_vid 3011 tag_type_vid 3011 L2-LISTENER bigip-next-f5demo-net 0 - 4095 64 - - - - 1 - -
00:94:a1:69:59:29 3010 tag_type_vid 3010 tag_type_vid 3010 L2-LISTENER fix-ll 0 - 4095 10 - - - - 1 - -
00:94:a1:69:59:29 3011 tag_type_vid 3011 tag_type_vid 3011 L2-LISTENER fix-ll 0 - 4095 10 - - - - 1 - -
00:94:a1:69:59:2b 3010 tag_type_vid 3010 tag_type_vid 3010 L2-LISTENER test-tenant 0 - 4095 11 - - - - 1 - -
00:94:a1:69:59:2b 3011 tag_type_vid 3011 tag_type_vid 3011 L2-LISTENER test-tenant 0 - 4095 11 - - - - 1 - -
00:94:a1:69:59:2d 3010 tag_type_vid 3010 tag_type_vid 3010 L2-LISTENER tenant1 0 - 4095 17 - - - - 1 - -
00:94:a1:69:59:2d 3011 tag_type_vid 3011 tag_type_vid 3011 L2-LISTENER tenant1 0 - 4095 17 - - - - 1 - -
r10900-1#
Show FPGA Tables via CLI¶
r10900-1# show fpga-tables
RX RX RX RX BAD BAD BAD BAD MIR MIR MIR MIR VMIL VMIL VMIL VMIL ITW ITW ITW HLDP
NMIL NMIL 0 NMIL NMIL NMIL 1 NMIL ROUTE ROUTE ROUTE ROUTE IFH IFH IFH IFH PKT PKT PKT PKT RX RX RX RX RX ITW RX RX TX NTX NTX HLDP
0 RX RX MD 0 TX 1 RX RX MD 1 TX TX DAG TX DAG TX DAG TX DAG TX DAG TX DAG TX DAG TX DAG TX DAG 0 1 2 3 CRC CRC CRC CRC DIS DIS DIS DIS BC BC BC BC BC BC MIR MIR MIR RUNT RUNT RUNT RUNT RUNT JABBER ERR ERR MGR NTX NTX MGR NTX
RUNT PARITY CONG RUNT PARITY CONG 0 DRP 0 DRP 0 DRP 1 DRP 1 DRP 1 DRP 2 DRP 2 DRP 2 DRP DROP DROP DROP DROP DROP DROP DROP DROP MIR MIR MIR MIR CONGESTION CONGESTION CONGESTION CONGESTION CONGESTION CONGESTION CONGESTION CONGESTION CONGESTION DROP DROP DROP DROP DROP DROP DROP DROP DROP MGR0 MGR1 DROP MGR0
SLOT NAME DROPS DROPS DROPS DROPS DROPS DROPS CNT 0 CNT 1 CNT 2 CNT 0 CNT 1 CNT 2 CNT 0 CNT 1 CNT 2 CNT CNT CNT CNT CNT 0 CNT 1 CNT 2 CNT 3 PORT 0 PORT 1 PORT 2 PORT 3 DROP 0 DROP 1 DROP 2 DROP HI 0 DROP HI 1 DROP HI 2 DROP 0 DROP 1 DROP 2 CNT 0 CNT 1 CNT 2 CNT 3 CNT CNT CNT CNT AGGR DROP DROP AGGR DROP
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1 nse_0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
1 nse_1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 25539 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
1 nse_2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
1 nse_3 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 34591 16560 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
RX
RX RX RX RX CTRL TX
RX RX RX DROP CTRL CTRL CTRL L2LS RX TX TX DROP
VLAN DROP DROP DROP BAD DFLT NLS L2LS DLF DROP DROP DROP BAD
SLOT NAME STP STATE PRIORITY DSCP DTD STD UTD VLAN DROP DROP DROP DROP STP STD UTD NTI
-----------------------------------------------------------------------------------------------------------------------------
1 1.0 forwarding disabled disabled 0 0 0 0 0 0 0 0 0 0 0 0
1 10.0 forwarding disabled disabled 0 0 0 0 0 0 0 0 0 0 0 0
1 11.0 forwarding disabled disabled 0 0 0 0 0 0 0 0 0 0 0 0
1 12.0 forwarding disabled disabled 0 0 0 0 0 0 0 0 0 0 0 0
1 13.0 forwarding disabled disabled 0 0 0 0 0 0 0 0 0 0 0 0
1 14.0 forwarding disabled disabled 0 0 0 0 0 0 0 0 0 0 0 0
1 15.0 forwarding disabled disabled 0 0 0 0 0 0 0 0 0 0 0 0
1 16.0 forwarding disabled disabled 0 0 0 0 0 0 0 0 0 0 0 0
1 17.0 forwarding disabled disabled 0 0 0 0 0 0 0 0 0 0 0 0
1 18.0 forwarding disabled disabled 0 0 0 0 0 0 0 0 0 0 0 0
1 19.0 forwarding disabled disabled 0 0 0 0 0 0 0 0 0 0 0 0
1 2.0 forwarding disabled disabled 0 0 0 0 0 0 0 0 0 0 0 0
1 20.0 forwarding disabled disabled 0 0 0 0 0 0 0 0 0 0 0 0
1 3.0 forwarding disabled disabled 0 0 0 0 0 0 0 0 0 0 0 0
1 4.0 forwarding disabled disabled 0 0 0 0 0 0 0 0 0 0 0 0
1 5.0 forwarding disabled disabled 0 0 0 0 0 0 0 0 0 0 0 0
1 6.0 forwarding disabled disabled 0 0 0 0 0 0 0 0 0 0 0 0
1 7.0 forwarding disabled disabled 0 0 0 0 0 0 0 0 0 0 0 0
1 8.0 forwarding disabled disabled 0 0 0 0 0 0 0 0 0 0 0 0
1 9.0 forwarding disabled disabled 0 0 0 0 0 0 0 0 0 0 0 0
1 nse_0.host20 disabled disabled 0 0 0 0 0 0 0 0 0 0 0 0
1 nse_2.host20 disabled disabled 0 0 0 0 0 0 0 0 0 0 0 0
RX
MCAST MCAST RX RX TX TX DST
TX RX TX RX RX RX RX RX RX RX RX TX TX TX TX TX TX TX TX MCAST MCAST RX MCAST MCAST TX DIS MIRROR MIRROR
RX PKT RX BYTE TX PKT TX BYTE OBUFF FULL FULL COS0 COS1 COS2 COS3 COS4 COS5 COS6 COS7 COS0 COS1 COS2 COS3 COS4 COS5 COS6 COS7 PKT BYTE MCAST PKT BYTE MCAST PKT PKTS BYTES
NAME CNT CNT CNT CNT DROPS DROPS DROPS DROPS DROPS DROPS DROPS DROPS DROPS DROPS DROPS DROPS DROPS DROPS DROPS DROPS DROPS DROPS DROPS CNT CNT DROPS CNT CNT DROPS CNT CNT CNT
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
port0_mod0 1446140 215862822 1347598 196868007 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 135 13860 0 397 67514 0 0 0 0
port1_mod0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
port2_mod3 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 262 53654 0 397 67514 0 0 0 0
port3_mod3 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
port4_mod4 0 0 34711 7142344 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
port5_mod5 0 0 38316 6587438 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 397 67514 0 0 0 0
port6_mod1 1347348 196842407 1372863 202107440 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
port7_mod2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 397 67514 0 0 0 0
r10900-1#
Show Port-Mappings via CLI¶
r10900-1# show port-mappings
NUM
CAPACITY ALLOCATED OVERSUBSCRIBE ALLOCATED MAX
NAME INDEX PIPELINE GROUP BW BW STATUS PORTS PORTS PORTS
-----------------------------------------------------------------------------------------------------------------------------
default-1 PIPELINE-1 PIPELINEGROUP-1 100 200 OVERSUBSCRIBED 5 16 [ 1.0 3.0 4.0 5.0 6.0 ]
PIPELINE-2 PIPELINEGROUP-1 100 200 OVERSUBSCRIBED 5 16 [ 10.0 2.0 7.0 8.0 9.0 ]
default-2 PIPELINE-3 PIPELINEGROUP-2 100 200 OVERSUBSCRIBED 5 16 [ 11.0 13.0 14.0 15.0 16.0 ]
PIPELINE-4 PIPELINEGROUP-2 100 185 OVERSUBSCRIBED 5 16 [ 12.0 17.0 18.0 19.0 20.0 ]
r10900-1#
Show Service-Instances via CLI¶
r10900-1# show service-instances
ATSE SUB TOTAL
SLOT INSTANCE MOD MOD TENANT SERVICE NUM DM NUM SVC DOS VLAN
TENANT NAME ID ID ID ID SERVICE TYPE ID IDS SEPS OFFSET DID SEPS GRP GRP TCO WP SP TP MSS TC WIN WSCALE SYNACKTTL SYNACKHOPLIMIT INDEX S1 S2 S3 S4 ID STATE
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
L2HostLearn 1 2145616534 0 0 ST_SYSTEM_SERVICE 0 [ 2 ] 1 0 15 2 1 - - - - - - - - - - - - - - - -
L2HostLearn 1 2145616535 3 0 ST_SYSTEM_SERVICE 0 [ 2 ] 1 0 63 2 1 - - - - - - - - - - - - - - - -
SwRbcaster-1 1 1236993455 0 0 ST_SYSTEM_SERVICE 0 [ 5 ] 1 0 15 1 3 - - - - - - - - - - - - - - - -
fix-ll 1 614204398 0 0 ST_TENANT_SERVICE 78 [ 8 10 ] 1 1 15 2 6 1 - - - - - - - - - - SECRET_IDX_TWO 2081180134 1972787202 137951967 3196618858
fix-ll 1 614204399 3 0 ST_TENANT_SERVICE 78 [ 8 10 ] 1 1 63 2 2 1 - - - - - - - - - - SECRET_IDX_TWO 2081180134 1972787202 137951967 3196618858
lacpd 1 1519468704 0 0 ST_SYSTEM_SERVICE 0 [ 1 ] 1 0 15 1 4 - - - - - - - - - - - - - - - -
lldpd 1 672042957 0 0 ST_SYSTEM_SERVICE 0 [ 4 ] 1 0 15 1 2 - - - - - - - - - - - - - - - -
stpd 1 1519468704 0 0 ST_SYSTEM_SERVICE 0 [ 3 ] 1 0 15 1 5 - - - - - - - - - - - - - - - -
tenant1 1 515380303 0 0 ST_TENANT_SERVICE 81 [ 15 17 ] 1 1 15 2 8 3 - - - - - - - - - - SECRET_IDX_ONE 3165290783 3340060162 800311922 2934689344
tenant1 1 515380304 3 0 ST_TENANT_SERVICE 81 [ 15 17 ] 1 0 63 2 4 3 - - - - - - - - - - SECRET_IDX_ONE 3165290783 3340060162 800311922 2934689344
test-tenant 1 614204398 0 0 ST_TENANT_SERVICE 79 [ 9 11 ] 1 2 15 2 7 2 - - - - - - - - - - SECRET_IDX_ONE 2502135663 1002484893 1104246011 3976888041
test-tenant 1 614204399 3 0 ST_TENANT_SERVICE 79 [ 9 11 ] 1 2 63 2 3 2 - - - - - - - - - - SECRET_IDX_ONE 2502135663 1002484893 1104246011 3976888041
r10900-1#
Show Service-Pods via CLI¶
r10900-1# show service-pods
SERVICE POD POD POD
SERVICE CLUSTER SLOT POD RESTART POD IMAGE
SERVICE NAME CLUSTER IP PORT ID STATUS COUNT STATE POD MESSAGE VERSION
----------------------------------------------------------------------------------------------------------------
coredns - - 1 true 0 Running Running Successfully 1.8.33
kube-flannel - - 1 true 0 Running Running Successfully 0.13.1
kube-multus - - 1 true 0 Running Running Successfully 3.7.0
lb-port-443 - - 1 true 0 Running Running Successfully v0.2.0
local-path-provisioner - - 1 true 0 Running Running Successfully v0.0.19
metrics-server 100.75.96.137 443 1 true 0 Running Running Successfully v0.3.6
pause - - 1 true 0 Running Running Successfully 3.1
virt-api 100.75.116.218 443 1 true 0 Running Running Successfully 2.9.1
virt-controller - - 1 true 0 Running Running Successfully 2.7.3
virt-handler - - 1 true 0 Running Running Successfully 2.9.1
virt-operator - - 1 true 0 Running Running Successfully 2.7.3
r10900-1#
Show Services via CLI¶
r10900-1# show services
USE USE SUB IPV6
SERVICE HASH FIELD FULL TUNNEL IP L4 HASH FIELD FULL TUNNEL IP L4 MOD PREFIX
ID ALG SELECT MASK MASK SELECT PROTO EXC ALG SELECT MASK MASK SELECT PROTO EXC PORT ADJUST TENANT NAME ID LENGTH
--------------------------------------------------------------------------------------------------------------------------------------------------------------
8 dagv2 port true outer false true dagv2 port true outer false true none fix-ll 0 128
9 dagv2 port true outer false true dagv2 port true outer false true none test-tenant 0 128
10 dagv2 port true outer false true dagv2 port true outer false true xor5mid-xor5low fix-ll 0 128
11 dagv2 port true outer false true dagv2 port true outer false true xor5mid-xor5low test-tenant 0 128
15 dagv2 port true outer false true dagv2 port true outer false true none tenant1 0 128
17 dagv2 port true outer false true dagv2 port true outer false true xor5mid-xor5low tenant1 0 128
64 dagv2 port true outer false true dagv2 port true outer false true none bigip-next-f5demo-net 0 128
r10900-1#
Show VLAN-Listeners via CLI¶
r5900-2# show vlan-listeners
NDI SERVICE
INTERFACE VLAN ENTRY TYPE OWNER ID SVC VTC SEP DMS DID CMDS MIRRORING IDS
--------------------------------------------------------------------------------------------------------
Arista 3010 VLAN-LISTENER tenant1 4095 8 - 15 - - - disabled -
Arista 3011 VLAN-LISTENER tenant1 4095 8 - 15 - - - disabled -
HA-Interconnect 500 VLAN-LISTENER tenant1 4095 8 - 15 - - - disabled -
r5900-2#
Software Health and Status from the webUI¶
The rSeries Dashboard will provide a visual system summary of the appliance, including System Summary, Tenant Overview, Network, CPU, and Active Alarms. It will also list the total number of vCPUs available for multitenancy and how many are currently in use. There is also a tenant overview showing a quick summary of tenant status and basic parameters. New in version F5OS-A 1.8.0 is more granular Memory Utilization and Storage Utilization Details.
More granular Memory Utilization is displayed showing how much memory is dedicated and in use by F5OS System vs. F5OS Tenants.
There is also more granularity showing Storage Utilization. In the below example, you can see that F5OS has utilized 60% of the 109.7GB of disk it has dedicated. You can also see that there is 448.6GB available for F5OS Tenant Disks (BIG-IP Tenant) virtual disks, and that currently only 5% is used. This is the space shared by all BIG-IP Tenants virtual disks. It is important to remember that TMOS based BIG-IP virtual disks utilize thin provisioning, so the TMOS tenant may think it has more storage but in reality, it is using much less capacity on the physical disk. You can see this by the BIG-IP Tenant utilizations. In the output below, there are two BIG-IP tenants (fix-ll & test-tenant). One has been allocated 80GB of disk while the other has been allocated 82GB of disk, however the actual size on disk is much lower (~5-7GB each). Lastly, there is a single BIG-IP Next tenant that has 25GB allocated to it but is currently utilizing 7% of that space.
Note
Storage utilization and allocation may be different on various rSeries platforms.

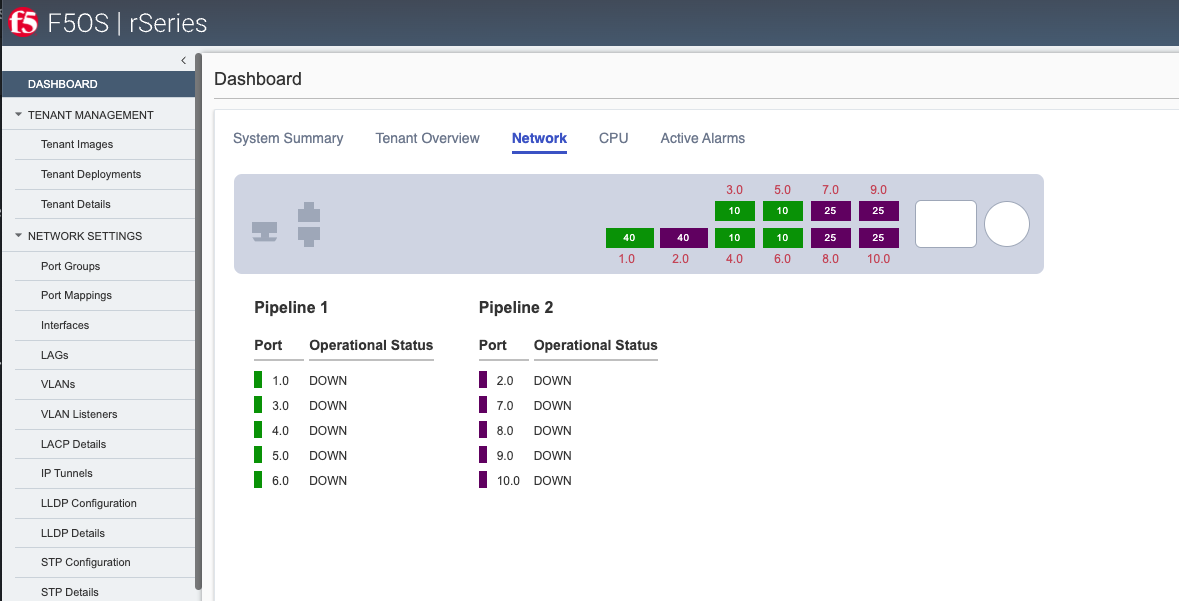

The Network tab will provide a visual representation of all networking ports on the system. Each port will be color coded Green for Up status, and Red for Down status. The current Pipeline mapping is also displayed, which shows the external port mapping to internal pipelines.
The CPU tab shows all the available CPUs in the system, along with their current utilization. It also displays what functionality is using the CPU. It could be Tenants, F5OS Data Mover, F5OS Dedicated or F5OS. The image below depicts an r10900 which has 12 vCPUs dedicated to the F5OS/Datamover functions.
For reference below is the architecture of the r10900. Note that there are 12 vCPUs dedicated to the F5OS/Datamover functions. Half of those vCPUs are dedicated for F5OS while the other half provide datamover functionality, which is the CPU to FPGA interconnect.
Currently 25% of the vCPUs are in use by tenants, and this leaves 50% of the CPU’s available for F5OS to use as needed.

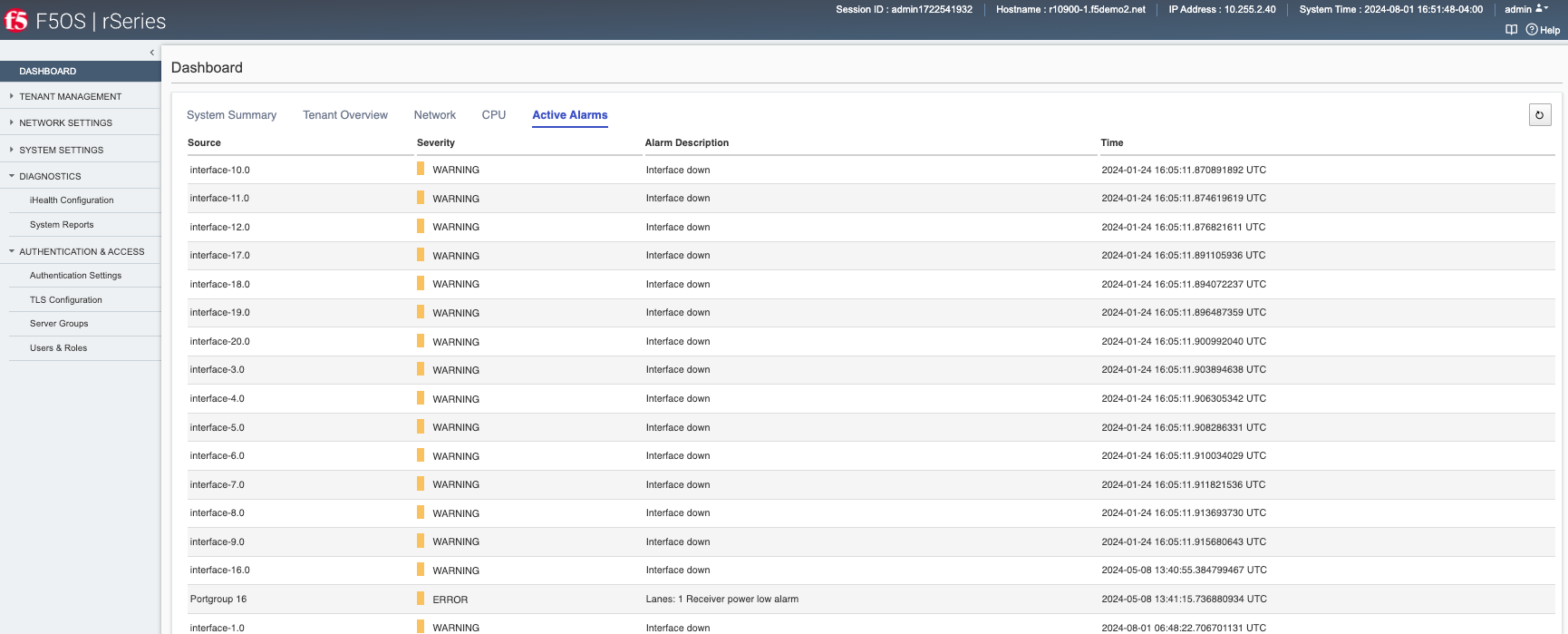

The Active Alarms tab will display any active alerts or alarms for the system.
Software Health and Status from the API¶
F5 Cluster Status via API¶
This command will display the health of the underlying Kubernetes (K3S) cluster which powers the F5OS layer. They key is the last message at the bottom of the output K3S cluster is ready, this lets you know that the underlying K3S cluster is up running and healthy.
GET https://{{rseries_appliance1_ip}}:8888/restconf/data/f5-cluster:cluster
The output will look similar to the JSON output below.
{
"f5-cluster:cluster": {
"nodes": {
"node": [
{
"name": "node-1",
"config": {
"name": "node-1",
"enabled": true
},
"state": {
"enabled": true,
"node-running-state": "running",
"platform": {
"fpga-state": "FPGA_RDY",
"dma-agent-state": "DMA_AGENT_RDY"
},
"node-info": {
"creation-time": "2021-09-30T22:22:29Z",
"cpu": 32,
"pods": 110,
"memory": "15730136Ki"
},
"ready-info": {
"ready": true,
"last-transition-time": "2022-01-17T10:17:36Z",
"message": "kubelet is posting ready status"
},
"out-of-disk-info": {
"last-transition-time": "",
"message": ""
},
"disk-pressure-info": {
"disk-pressure": false,
"last-transition-time": "2021-11-30T03:14:47Z",
"message": "kubelet has no disk pressure"
},
"disk-data": {
"stats": [
{
"disk-data-name": "available",
"disk-data-value": "56390660096"
},
{
"disk-data-name": "capacity",
"disk-data-value": "117493108736"
},
{
"disk-data-name": "used",
"disk-data-value": "55110467584"
}
]
},
"cryptos": {
"tenants": {
"tenant": [
{
"tenant-name": "tenant1",
"devices": {
"device": [
{
"qat-device-name": "qat_dev_vf00pf00",
"bdf": "53:01.0"
},
{
"qat-device-name": "qat_dev_vf00pf01",
"bdf": "54:01.0"
},
{
"qat-device-name": "qat_dev_vf00pf02",
"bdf": "55:01.0"
},
{
"qat-device-name": "qat_dev_vf01pf00",
"bdf": "53:01.1"
},
{
"qat-device-name": "qat_dev_vf01pf01",
"bdf": "54:01.1"
},
{
"qat-device-name": "qat_dev_vf01pf02",
"bdf": "55:01.1"
}
]
}
}
]
}
},
"f5-disk-usage-threshold:disk-usage": {
"used-percent": 50,
"growth-rate": 0,
"status": "in-range"
}
}
}
]
},
"f5-cluster-event-log:events": {
"event": [
{
"namespace": "default",
"type": "Normal",
"reason": "Created",
"object": "VirtualMachineInstance/tenant1-1",
"message": "VirtualMachineInstance defined."
}
]
},
"f5-cluster-status:install-status": {
"install-status": [
{
"stage-name": "K3SClusterInstall",
"status": "done",
"timestamp": "2021/09/30-22:22:30",
"version": "1.21.1.1.7.0"
},
{
"stage-name": "K3SClusterUpgrade",
"status": "done",
"timestamp": "2021/11/30-03:06:39",
"version": "1.21.1.1.8.3"
}
]
},
"f5-cluster-status:cluster-status": {
"cluster-status": [
{
"status": "2022-01-22 22:13:17.387346 - applianceMainEventLoop::Orchestration manager startup."
},
{
"status": "2022-01-22 22:13:17.392742 - Can now ping appliance-1.chassis.local (100.65.60.1)."
},
{
"status": "2022-01-22 22:13:17.798753 - Successfully ssh'd to appliance 127.0.0.1."
},
{
"status": "2022-01-22 22:13:23.293784 - Appliance 1 is ready in k3s cluster."
},
{
"status": "2022-01-22 22:13:23.293868 - K3S cluster is ready."
}
],
"summary-status": "K3S cluster is initialized and ready for use."
},
"f5-disk-usage-threshold:disk-usage-threshold": {
"state": {
"warning-limit": 85,
"error-limit": 90,
"critical-limit": 97,
"growth-rate-limit": 10,
"interval": 60
},
"config": {
"warning-limit": 85,
"error-limit": 90,
"critical-limit": 97,
"growth-rate-limit": 10,
"interval": 60
}
}
}
}
F5 Service Instances Status¶
This API call displays some of the software processes running within the F5OS platform layer for networking. You can see processes for lacpd, stpd,lldpd etc..
GET https://{{rseries_appliance1_ip}}:8888/restconf/data/f5-service-instances:service-instances
The output will look similar to the JSON output below.
{
"f5-service-instances:service-instances": {
"service-instance": [
{
"tenant-name": "L2HostLearn",
"slot-id": 1,
"instance-id": 713434935,
"atse-mod-id": 0,
"service-type": "ST_SYSTEM_SERVICE",
"tenant-id": 0,
"service-ids": [
2
],
"num-seps": 1,
"dm-offset": 0,
"did": 15,
"svc-grp": 1
},
{
"tenant-name": "SwRbcaster-1",
"slot-id": 1,
"instance-id": 4039786245,
"atse-mod-id": 0,
"service-type": "ST_SYSTEM_SERVICE",
"tenant-id": 0,
"service-ids": [
5
],
"num-seps": 1,
"dm-offset": 0,
"did": 15,
"svc-grp": 3
},
{
"tenant-name": "lacpd",
"slot-id": 1,
"instance-id": 19377286,
"atse-mod-id": 0,
"service-type": "ST_SYSTEM_SERVICE",
"tenant-id": 0,
"service-ids": [
1
],
"num-seps": 1,
"dm-offset": 2,
"did": 15,
"svc-grp": 5
},
{
"tenant-name": "lldpd",
"slot-id": 1,
"instance-id": 1795340596,
"atse-mod-id": 0,
"service-type": "ST_SYSTEM_SERVICE",
"tenant-id": 0,
"service-ids": [
4
],
"num-seps": 1,
"dm-offset": 0,
"did": 15,
"svc-grp": 2
},
{
"tenant-name": "stpd",
"slot-id": 1,
"instance-id": 19377286,
"atse-mod-id": 0,
"service-type": "ST_SYSTEM_SERVICE",
"tenant-id": 0,
"service-ids": [
3
],
"num-seps": 1,
"dm-offset": 1,
"did": 15,
"svc-grp": 4
},
{
"tenant-name": "tenant1",
"slot-id": 1,
"instance-id": 2829878451,
"atse-mod-id": 0,
"service-type": "ST_TENANT_SERVICE",
"tenant-id": 2,
"service-ids": [
8
],
"num-seps": 2,
"dm-offset": 1,
"did": 15,
"svc-grp": 6,
"dos-grp": 1,
"f5-tcp-syn-cookie:tcp-syn-cookie": {
"secret-info": {
"index": "SECRET_IDX_ZERO",
"s1": 482533104,
"s2": 833816436,
"s3": 3837806693,
"s4": 4163314411
}
}
}
]
}
}
F5 Services Status¶
GET https://{{rseries_appliance1_ip}}:8888/restconf/data/f5-services:services
The output will look similar to the JSON output below.
{
"f5-services:services": {
"service": [
{
"service_id": 8,
"tier1_dag_profile": {
"hash_alg": "dagv2",
"field_select": "port",
"full_mask": true,
"mask": "",
"tunnel_select": "outer",
"use_ip_proto": false
},
"tier2_dag_profile": {
"hash_alg": "dagv2",
"field_select": "port",
"full_mask": true,
"mask": "",
"tunnel_select": "outer",
"use_ip_proto": false
},
"tenant_name": "tenant1"
}
]
}
}
Layer2 FDB Status¶
This API call displays the Forwarding Database:
GET https://{{rseries_appliance1_ip}}:8888/restconf/data/f5-l2fdb:fdb
The output will look similar to the JSON output below.
{
"f5-l2fdb:fdb": {
"mac-table": {
"entries": {
"entry": [
{
"mac-address": "00:94:a1:69:35:14",
"vlan": 500,
"tag-type": "tag_type_vid",
"config": {
"mac-address": "00:94:a1:69:35:14",
"vlan": 500,
"tag-type": "tag_type_vid",
"vid": 500,
"entry-type": "L2-LISTENER",
"owner": "tenant1",
"ifh-fields": {
"ndi-id": 4095,
"svc": 8,
"cmds": 1,
"mirroring": "disabled"
}
},
"state": {
"vlan": 500,
"tag-type": "tag_type_vid",
"vid": 500,
"entry-type": "L2-LISTENER",
"owner": "tenant1",
"ifh-fields": {
"ndi-id": 4095,
"svc": 8,
"cmds": 1
}
}
},
{
"mac-address": "00:94:a1:69:35:14",
"vlan": 3010,
"tag-type": "tag_type_vid",
"config": {
"mac-address": "00:94:a1:69:35:14",
"vlan": 3010,
"tag-type": "tag_type_vid",
"vid": 3010,
"entry-type": "L2-LISTENER",
"owner": "tenant1",
"ifh-fields": {
"ndi-id": 4095,
"svc": 8,
"cmds": 1,
"mirroring": "disabled"
}
},
"state": {
"vlan": 3010,
"tag-type": "tag_type_vid",
"vid": 3010,
"entry-type": "L2-LISTENER",
"owner": "tenant1",
"ifh-fields": {
"ndi-id": 4095,
"svc": 8,
"cmds": 1
}
}
},
{
"mac-address": "00:94:a1:69:35:14",
"vlan": 3011,
"tag-type": "tag_type_vid",
"config": {
"mac-address": "00:94:a1:69:35:14",
"vlan": 3011,
"tag-type": "tag_type_vid",
"vid": 3011,
"entry-type": "L2-LISTENER",
"owner": "tenant1",
"ifh-fields": {
"ndi-id": 4095,
"svc": 8,
"cmds": 1,
"mirroring": "disabled"
}
},
"state": {
"vlan": 3011,
"tag-type": "tag_type_vid",
"vid": 3011,
"entry-type": "L2-LISTENER",
"owner": "tenant1",
"ifh-fields": {
"ndi-id": 4095,
"svc": 8,
"cmds": 1
}
}
}
]
}
}
}
}
F5 Service-Pods Status¶
The following API call displays the service-pods running inside the F5OS layer:
GET https://{{Appliance1_IP}}:8888/restconf/data/f5-service-pod:service-pods
The output will look similar to the JSON output below.
{
"f5-service-pod:service-pods": {
"service-pod": [
{
"service-name": "compute",
"service-cluster-ip": "",
"service-cluster-port": "0",
"pod-slot-id": 1,
"pod-status": "true",
"pod-restart-count": 0,
"pod-state": "Running",
"pod-message": "Running Successfully",
"pod-image-version": "2.4.6"
},
{
"service-name": "coredns",
"service-cluster-ip": "",
"service-cluster-port": "0",
"pod-slot-id": 1,
"pod-status": "true",
"pod-restart-count": 8,
"pod-state": "Running",
"pod-message": "Running Successfully",
"pod-image-version": "1.8.3"
},
{
"service-name": "kube-flannel",
"service-cluster-ip": "",
"service-cluster-port": "0",
"pod-slot-id": 1,
"pod-status": "true",
"pod-restart-count": 8,
"pod-state": "Running",
"pod-message": "Running Successfully",
"pod-image-version": "0.13.0"
},
{
"service-name": "kube-multus",
"service-cluster-ip": "",
"service-cluster-port": "0",
"pod-slot-id": 1,
"pod-status": "true",
"pod-restart-count": 8,
"pod-state": "Running",
"pod-message": "Running Successfully",
"pod-image-version": "3.6.0"
},
{
"service-name": "lb-port-443",
"service-cluster-ip": "",
"service-cluster-port": "0",
"pod-slot-id": 1,
"pod-status": "true",
"pod-restart-count": 8,
"pod-state": "Running",
"pod-message": "Running Successfully",
"pod-image-version": "v0.2.0"
},
{
"service-name": "local-path-provisioner",
"service-cluster-ip": "",
"service-cluster-port": "0",
"pod-slot-id": 1,
"pod-status": "true",
"pod-restart-count": 11,
"pod-state": "Running",
"pod-message": "Running Successfully",
"pod-image-version": "v0.0.19"
},
{
"service-name": "metrics-server",
"service-cluster-ip": "100.75.29.109",
"service-cluster-port": "443",
"pod-slot-id": 1,
"pod-status": "true",
"pod-restart-count": 8,
"pod-state": "Running",
"pod-message": "Running Successfully",
"pod-image-version": "v0.3.6"
},
{
"service-name": "pause",
"service-cluster-ip": "",
"service-cluster-port": "0",
"pod-slot-id": 1,
"pod-status": "true",
"pod-restart-count": 8,
"pod-state": "Running",
"pod-message": "Running Successfully",
"pod-image-version": "3.1"
},
{
"service-name": "traefik-ingress-lb",
"service-cluster-ip": "",
"service-cluster-port": "0",
"pod-slot-id": 1,
"pod-status": "true",
"pod-restart-count": 8,
"pod-state": "Running",
"pod-message": "Running Successfully",
"pod-image-version": "2.4.8"
},
{
"service-name": "virt-api",
"service-cluster-ip": "100.75.241.212",
"service-cluster-port": "443",
"pod-slot-id": 1,
"pod-status": "true",
"pod-restart-count": 8,
"pod-state": "Running",
"pod-message": "Running Successfully",
"pod-image-version": "2.4.6"
},
{
"service-name": "virt-controller",
"service-cluster-ip": "",
"service-cluster-port": "0",
"pod-slot-id": 1,
"pod-status": "true",
"pod-restart-count": 8,
"pod-state": "Running",
"pod-message": "Running Successfully",
"pod-image-version": "2.4.6"
},
{
"service-name": "virt-handler",
"service-cluster-ip": "",
"service-cluster-port": "0",
"pod-slot-id": 1,
"pod-status": "true",
"pod-restart-count": 8,
"pod-state": "Running",
"pod-message": "Running Successfully",
"pod-image-version": "2.4.6"
},
{
"service-name": "virt-operator",
"service-cluster-ip": "",
"service-cluster-port": "0",
"pod-slot-id": 1,
"pod-status": "true",
"pod-restart-count": 11,
"pod-state": "Running",
"pod-message": "Running Successfully",
"pod-image-version": "2.4.6"
}
]
}
}
System Health¶
The following API call displays the details used to feed the overall system health. Note this API call will return a lot of status details:
GET https://{{rseries_appliance1_ip}}:8888/restconf/data/openconfig-system:system/f5-system-health:health
The output will look similar to the JSON output below.
{
"f5-system-health:health": {
"components": {
"component": [
{
"name": "appliance",
"hardware": [
{
"key": "appliance/hardware/cpu",
"state": {
"name": "CPU",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "cpu:core:temperature",
"description": "CPU core temperature (C)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "cpu:state:fatal-error-fault",
"description": "Fatal error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "cpu:state:fivr-fault",
"description": "FIVR Fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "cpu:state:hw-correctable-error-fault",
"description": "Hardware correctable error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "cpu:state:internal-error-fault",
"description": "internal unrecoverable error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "cpu:state:machine-check-error",
"description": "Machine check error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "cpu:state:non-fatal-error-fault",
"description": "Non-fatal error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "cpu:state:processor-hot-fault",
"description": "Processor hot Fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "cpu:state:thermal-trip-fault",
"description": "Thermal Trip Fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "rasdaemon:extlog:invalid-address",
"description": "RAS Extlog invalid address event",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "rasdaemon:extlog:master-abort",
"description": "RAS Extlog master abort event",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "rasdaemon:extlog:memory-sparing",
"description": "RAS Extlog memory sparing event",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "rasdaemon:extlog:mirror-broken",
"description": "RAS Extlog mirror broken event",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "rasdaemon:extlog:multi-bit-ecc",
"description": "RAS Extlog mullti-bit ECC event",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "rasdaemon:extlog:multi-symbol-chipkill-ecc",
"description": "RAS Extlog multi-symbol chipkill ECC event",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "rasdaemon:extlog:no-error",
"description": "RAS Extlog no error event",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "rasdaemon:extlog:parity-error",
"description": "RAS Extlog parity error event",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "rasdaemon:extlog:physical-memory-map-out-event",
"description": "RAS Extlog physical memory map-out event",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "rasdaemon:extlog:scrub-corrected-error",
"description": "RAS Extlog scrub corrected error",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "rasdaemon:extlog:scrub-uncorrected-error",
"description": "RAS Extlog scrub uncorrected error",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "rasdaemon:extlog:single-bit-ecc",
"description": "RAS Extlog single-bit ECC event",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "rasdaemon:extlog:single-symbol-chipkill-ecc",
"description": "RAS Extlog single-symbol chipkill ECC event",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "rasdaemon:extlog:target-abort",
"description": "RAS Extlog target abort event",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "rasdaemon:extlog:unknown",
"description": "RAS Extlog unknown event",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "rasdaemon:extlog:unknown-type",
"description": "RAS Extlog unknown type",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "rasdaemon:extlog:watchdog-timeout",
"description": "RAS Extlog watchdog timeout event",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "rasdaemon:mce:address-command-error",
"description": "RAS MCE address/Command error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "rasdaemon:mce:generic-undefined-request",
"description": "RAS MCE generic undefined request",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "rasdaemon:mce:memory-read-error",
"description": "RAS MCE memory read error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "rasdaemon:mce:memory-scrubbing-error",
"description": "RAS MCE memory scrubbing error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "rasdaemon:mce:memory-write-error",
"description": "RAS MCE memory write error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "rasdaemon:mce:processor-temp-throttling",
"description": "RAS MCE processor temperature throttling",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "rasdaemon:mce:unknown-event",
"description": "RAS MCE unknown error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "v6h:cpu-fault:msmi-bit",
"description": "MSMI fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:power-domain:cpu:0p6v-vttabcd",
"description": "CPU_0P6V_VTT_ABCD power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:cpu:0p6v-vttefgh",
"description": "CPU_0P6V_VTT_EFGH power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:cpu:0p85v-pvsa",
"description": "CPU_0P85V_PVSA power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:cpu:1p0v-pvccana",
"description": "CPU_1P0V_PVCCANA power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:cpu:1p0v-pvccio",
"description": "CPU_1P0V_PVCCIO power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:cpu:1p2v-vddqabcd",
"description": "CPU_1P2V_VDDQ_ABCD power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:cpu:1p2v-vddqefgh",
"description": "CPU_1P2V_VDDQ_EFGH power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:cpu:1p8v-cpu",
"description": "CPU_1P8V_CPU power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:cpu:1p8v-pvccin",
"description": "CPU_1P8V_PVCCIN power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:cpu:2p5v-vppabcd",
"description": "CPU_2P5V_VPP_ABCD power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:cpu:2p5v-vppefgh",
"description": "CPU_2P5V_VPP_EFGH power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:thermal-fault:cpu:mem-hot",
"description": "CPU_MEMHOT thermal fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:52Z"
},
{
"name": "v6h:thermal-fault:cpu:mem-trip",
"description": "CPU_MEMTRIP thermal fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:thermal-fault:pch:hot",
"description": "PCH_HOT thermal fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:thermal-fault:pch:vnn-vr-hot",
"description": "PCH_VNN_VR_HOT thermal fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:thermal-fault:pvccin-vr-hot",
"description": "PVCCIN_VR_HOT thermal fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:thermal-fault:vcciosa-vr-hot",
"description": "VCCIOSA_VR_HOT thermal fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/hardware/cpu/pcie",
"state": {
"name": "PCIe BUS",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "rasdaemon:aer:correctable:advisory-non-fatal",
"description": "RAS AER 'Advisory Non-Fatal' correctable error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "rasdaemon:aer:correctable:bad-dllp",
"description": "RAS AER 'Bad DLLP' correctable error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "rasdaemon:aer:correctable:bad-tlp",
"description": "RAS AER 'Bad TLP' correctable error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "rasdaemon:aer:correctable:receiver-error",
"description": "RAS AER 'Receiver Error' correctable error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "rasdaemon:aer:correctable:replay-num-rollover",
"description": "RAS AER 'RELAY_NUM Rollover' correctable error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "rasdaemon:aer:correctable:replay-timer-timeout",
"description": "RAS AER 'Replay Timer Timeout' correctable error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "rasdaemon:aer:uncorrectable:completer-abort",
"description": "RAS AER 'Completer Abort' uncorrectable error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "rasdaemon:aer:uncorrectable:completion-timeout",
"description": "RAS AER 'Completion Timeout' uncorrectable error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "rasdaemon:aer:uncorrectable:data-link-protocol",
"description": "RAS AER 'Data Link Protocol' uncorrectable error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "rasdaemon:aer:uncorrectable:ecrc",
"description": "RAS AER 'ECRC' uncorrectable error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "rasdaemon:aer:uncorrectable:flow-control-protocol",
"description": "RAS AER 'Flow Control Protocol' uncorrectable error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "rasdaemon:aer:uncorrectable:malformed-tlp",
"description": "RAS AER 'Malformed TLP' uncorrectable error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "rasdaemon:aer:uncorrectable:poisoned-tlp",
"description": "RAS AER 'Poisoned TLP' uncorrectable error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "rasdaemon:aer:uncorrectable:receiver-overflow",
"description": "RAS AER 'Receiver Overflow' uncorrectable error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "rasdaemon:aer:uncorrectable:unexpected-completion",
"description": "RAS AER 'Unexpected Completion' uncorrectable error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "rasdaemon:aer:uncorrectable:unsupported-request",
"description": "RAS AER 'Unsupported Request' uncorrectable error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "rasdaemon:aer:unknown-event",
"description": "RAS AER 'unknown' error",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
}
]
}
},
{
"key": "appliance/hardware/drives",
"state": {
"name": "Drives",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "drives:capacity",
"description": "Drive Capacity",
"health": "ok",
"severity": "info",
"value": "50",
"updatedAt": "2022-01-24T05:00:04Z"
},
{
"name": "drives:disk-usage-growth-rate",
"description": "Drive capacity Growth Rate",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:00:04Z"
}
]
}
},
{
"key": "appliance/hardware/fpga/asw",
"state": {
"name": "FPGA ASW",
"health": "ok",
"severity": "notice"
},
"attributes": {
"attribute": [
{
"name": "fpga:version",
"description": "FPGA bitfile version",
"health": "ok",
"severity": "info",
"value": "71.2.7.0",
"updatedAt": "2022-01-22T22:14:08Z"
},
{
"name": "v6h:power-domain:asw:0p9v-vcc",
"description": "ASW_0P9V_VCC power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:asw:0p9v-vcceram",
"description": "ASW_0P9V_VCCERAM power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:asw:1p12v-vccrgxb",
"description": "ASW_1P12V_VCCRGXB power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:asw:1p12v-vcctgxb",
"description": "ASW_1P12V_VCCTGXB power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:asw:1p1v-vcchgxe",
"description": "ASW_1P1V_VCCHGXE power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:asw:1p8v",
"description": "ASW_1P8V power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:asw:1p8v-vccpt",
"description": "ASW_1P8V_VCCPT power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:asw:2p4v",
"description": "ASW_2P4V power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:asw:2p5v",
"description": "ASW_2P5V power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:asw:3p0v",
"description": "ASW_3P0V power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:device:asw-opt",
"description": "ASW_OPT power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:thermal-fault:asw:hot",
"description": "ASW_HOT thermal fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:thermal-fault:asw:therm-trip",
"description": "ASW_THERMTRIP thermal fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/hardware/fpga/asw/ports/1.0",
"state": {
"name": "Port 1.0",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "interface:link-status",
"description": "Link status",
"health": "ok",
"severity": "info",
"value": "UP",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:fcs-error-rate",
"description": "FCS errors in rate",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:fcs-errors-in",
"description": "FCS errors in",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-byte-rate",
"description": "RX rate (B/s)",
"health": "ok",
"severity": "info",
"value": "293.666667",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-crc-error-rate",
"description": "Eth Rx CRC error rate",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-crc-errors",
"description": "Eth RX CRC errors",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-pkt-rate",
"description": "RX packet rate (pkt/s) (pkt/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:total-errors-in",
"description": "Total error frames RX",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:total-errors-out",
"description": "Total error frames TX",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:tx-byte-rate",
"description": "TX rate (B/s)",
"health": "ok",
"severity": "info",
"value": "4.266667",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:tx-pkt-rate",
"description": "TX packet rate (pkt/s) (pkt/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
}
]
}
},
{
"key": "appliance/hardware/fpga/asw/ports/10.0",
"state": {
"name": "Port 10.0",
"health": "ok",
"severity": "notice"
},
"attributes": {
"attribute": [
{
"name": "interface:link-status",
"description": "Link status",
"health": "ok",
"severity": "notice",
"value": "DOWN",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:fcs-error-rate",
"description": "FCS errors in rate",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:fcs-errors-in",
"description": "FCS errors in",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-byte-rate",
"description": "RX rate (B/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-crc-error-rate",
"description": "Eth Rx CRC error rate",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-crc-errors",
"description": "Eth RX CRC errors",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-pkt-rate",
"description": "RX packet rate (pkt/s) (pkt/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:total-errors-in",
"description": "Total error frames RX",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:total-errors-out",
"description": "Total error frames TX",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:tx-byte-rate",
"description": "TX rate (B/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:tx-pkt-rate",
"description": "TX packet rate (pkt/s) (pkt/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
}
]
}
},
{
"key": "appliance/hardware/fpga/asw/ports/2.0",
"state": {
"name": "Port 2.0",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "interface:link-status",
"description": "Link status",
"health": "ok",
"severity": "info",
"value": "UP",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:fcs-error-rate",
"description": "FCS errors in rate",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:fcs-errors-in",
"description": "FCS errors in",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-byte-rate",
"description": "RX rate (B/s)",
"health": "ok",
"severity": "info",
"value": "417.033333",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-crc-error-rate",
"description": "Eth Rx CRC error rate",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-crc-errors",
"description": "Eth RX CRC errors",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-pkt-rate",
"description": "RX packet rate (pkt/s) (pkt/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:total-errors-in",
"description": "Total error frames RX",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:total-errors-out",
"description": "Total error frames TX",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:tx-byte-rate",
"description": "TX rate (B/s)",
"health": "ok",
"severity": "info",
"value": "4.266667",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:tx-pkt-rate",
"description": "TX packet rate (pkt/s) (pkt/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
}
]
}
},
{
"key": "appliance/hardware/fpga/asw/ports/3.0",
"state": {
"name": "Port 3.0",
"health": "ok",
"severity": "notice"
},
"attributes": {
"attribute": [
{
"name": "interface:link-status",
"description": "Link status",
"health": "ok",
"severity": "notice",
"value": "DOWN",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:fcs-error-rate",
"description": "FCS errors in rate",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:fcs-errors-in",
"description": "FCS errors in",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-byte-rate",
"description": "RX rate (B/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-crc-error-rate",
"description": "Eth Rx CRC error rate",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-crc-errors",
"description": "Eth RX CRC errors",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-pkt-rate",
"description": "RX packet rate (pkt/s) (pkt/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:total-errors-in",
"description": "Total error frames RX",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:total-errors-out",
"description": "Total error frames TX",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:tx-byte-rate",
"description": "TX rate (B/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:tx-pkt-rate",
"description": "TX packet rate (pkt/s) (pkt/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
}
]
}
},
{
"key": "appliance/hardware/fpga/asw/ports/4.0",
"state": {
"name": "Port 4.0",
"health": "ok",
"severity": "notice"
},
"attributes": {
"attribute": [
{
"name": "interface:link-status",
"description": "Link status",
"health": "ok",
"severity": "notice",
"value": "DOWN",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:fcs-error-rate",
"description": "FCS errors in rate",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:fcs-errors-in",
"description": "FCS errors in",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-byte-rate",
"description": "RX rate (B/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-crc-error-rate",
"description": "Eth Rx CRC error rate",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-crc-errors",
"description": "Eth RX CRC errors",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-pkt-rate",
"description": "RX packet rate (pkt/s) (pkt/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:total-errors-in",
"description": "Total error frames RX",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:total-errors-out",
"description": "Total error frames TX",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:tx-byte-rate",
"description": "TX rate (B/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:tx-pkt-rate",
"description": "TX packet rate (pkt/s) (pkt/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
}
]
}
},
{
"key": "appliance/hardware/fpga/asw/ports/5.0",
"state": {
"name": "Port 5.0",
"health": "ok",
"severity": "notice"
},
"attributes": {
"attribute": [
{
"name": "interface:link-status",
"description": "Link status",
"health": "ok",
"severity": "notice",
"value": "DOWN",
"updatedAt": "2022-01-24T05:32:16Z"
},
{
"name": "interface:port:fcs-error-rate",
"description": "FCS errors in rate",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:fcs-errors-in",
"description": "FCS errors in",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-byte-rate",
"description": "RX rate (B/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-crc-error-rate",
"description": "Eth Rx CRC error rate",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-crc-errors",
"description": "Eth RX CRC errors",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-pkt-rate",
"description": "RX packet rate (pkt/s) (pkt/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:total-errors-in",
"description": "Total error frames RX",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:total-errors-out",
"description": "Total error frames TX",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:tx-byte-rate",
"description": "TX rate (B/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:tx-pkt-rate",
"description": "TX packet rate (pkt/s) (pkt/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
}
]
}
},
{
"key": "appliance/hardware/fpga/asw/ports/6.0",
"state": {
"name": "Port 6.0",
"health": "ok",
"severity": "notice"
},
"attributes": {
"attribute": [
{
"name": "interface:link-status",
"description": "Link status",
"health": "ok",
"severity": "notice",
"value": "DOWN",
"updatedAt": "2022-01-24T05:32:16Z"
},
{
"name": "interface:port:fcs-error-rate",
"description": "FCS errors in rate",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:fcs-errors-in",
"description": "FCS errors in",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-byte-rate",
"description": "RX rate (B/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-crc-error-rate",
"description": "Eth Rx CRC error rate",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-crc-errors",
"description": "Eth RX CRC errors",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-pkt-rate",
"description": "RX packet rate (pkt/s) (pkt/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:total-errors-in",
"description": "Total error frames RX",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:total-errors-out",
"description": "Total error frames TX",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:tx-byte-rate",
"description": "TX rate (B/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:tx-pkt-rate",
"description": "TX packet rate (pkt/s) (pkt/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
}
]
}
},
{
"key": "appliance/hardware/fpga/asw/ports/7.0",
"state": {
"name": "Port 7.0",
"health": "ok",
"severity": "notice"
},
"attributes": {
"attribute": [
{
"name": "interface:link-status",
"description": "Link status",
"health": "ok",
"severity": "notice",
"value": "DOWN",
"updatedAt": "2022-01-24T05:32:16Z"
},
{
"name": "interface:port:fcs-error-rate",
"description": "FCS errors in rate",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:fcs-errors-in",
"description": "FCS errors in",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-byte-rate",
"description": "RX rate (B/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-crc-error-rate",
"description": "Eth Rx CRC error rate",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-crc-errors",
"description": "Eth RX CRC errors",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-pkt-rate",
"description": "RX packet rate (pkt/s) (pkt/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:total-errors-in",
"description": "Total error frames RX",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:total-errors-out",
"description": "Total error frames TX",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:tx-byte-rate",
"description": "TX rate (B/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:tx-pkt-rate",
"description": "TX packet rate (pkt/s) (pkt/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
}
]
}
},
{
"key": "appliance/hardware/fpga/asw/ports/8.0",
"state": {
"name": "Port 8.0",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "interface:link-status",
"description": "Link status",
"health": "ok",
"severity": "info",
"value": "UP",
"updatedAt": "2022-01-24T05:32:16Z"
},
{
"name": "interface:port:fcs-error-rate",
"description": "FCS errors in rate",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:fcs-errors-in",
"description": "FCS errors in",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-byte-rate",
"description": "RX rate (B/s)",
"health": "ok",
"severity": "info",
"value": "130.133333",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-crc-error-rate",
"description": "Eth Rx CRC error rate",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-crc-errors",
"description": "Eth RX CRC errors",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-pkt-rate",
"description": "RX packet rate (pkt/s) (pkt/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:total-errors-in",
"description": "Total error frames RX",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:total-errors-out",
"description": "Total error frames TX",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:tx-byte-rate",
"description": "TX rate (B/s)",
"health": "ok",
"severity": "info",
"value": "130.133333",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:tx-pkt-rate",
"description": "TX packet rate (pkt/s) (pkt/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
}
]
}
},
{
"key": "appliance/hardware/fpga/asw/ports/9.0",
"state": {
"name": "Port 9.0",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "interface:link-status",
"description": "Link status",
"health": "ok",
"severity": "info",
"value": "UP",
"updatedAt": "2022-01-24T05:32:16Z"
},
{
"name": "interface:port:fcs-error-rate",
"description": "FCS errors in rate",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:fcs-errors-in",
"description": "FCS errors in",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-byte-rate",
"description": "RX rate (B/s)",
"health": "ok",
"severity": "info",
"value": "130.133333",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-crc-error-rate",
"description": "Eth Rx CRC error rate",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-crc-errors",
"description": "Eth RX CRC errors",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:rx-pkt-rate",
"description": "RX packet rate (pkt/s) (pkt/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:total-errors-in",
"description": "Total error frames RX",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:total-errors-out",
"description": "Total error frames TX",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:tx-byte-rate",
"description": "TX rate (B/s)",
"health": "ok",
"severity": "info",
"value": "130.133333",
"updatedAt": "2022-01-24T05:32:14Z"
},
{
"name": "interface:port:tx-pkt-rate",
"description": "TX packet rate (pkt/s) (pkt/s)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:14Z"
}
]
}
},
{
"key": "appliance/hardware/fpga/atse0",
"state": {
"name": "FPGA ATSE-0",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "fpga:version",
"description": "FPGA bitfile version",
"health": "ok",
"severity": "info",
"value": "72.2.5.0",
"updatedAt": "2022-01-22T22:14:08Z"
},
{
"name": "interface:port:speed",
"description": "Port Speed",
"health": "ok",
"severity": "info",
"value": "100",
"updatedAt": "2022-01-22T22:14:08Z"
},
{
"name": "v6h:power-domain:atse1:0p95v-bwe",
"description": "ATSE1_0P95V_BWE power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:atse1:0p9v-vcc",
"description": "ATSE1_0P9V_VCC power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:atse1:0p9v-vcceram",
"description": "ATSE1_0P9V_VCCERAM power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:atse1:1p12v-vccrgxb",
"description": "ATSE1_1P12V_VCCRGXB power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:atse1:1p12v-vcctgxb",
"description": "ATSE1_1P12V_VCCTGXB power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:atse1:1p2v",
"description": "ATSE1_1P2V power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:atse1:1p5v-bwe",
"description": "ATSE1_1P5V_BWE power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:atse1:1p8v",
"description": "ATSE1_1P8V power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:atse1:2p4v",
"description": "ATSE1_2P4V power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:atse1:2p5v",
"description": "ATSE1_2P5V power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:power-domain:atse1:3p0v",
"description": "ATSE1_3P0V power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "v6h:thermal-fault:atse1:hot",
"description": "ATSE1_HOT thermal fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:thermal-fault:atse1:therm-trip",
"description": "ATSE1_THERMTRIP thermal fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/hardware/lop",
"state": {
"name": "LOP",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "lop:cpld:gpio-fault",
"description": "CPLD GPIO fault",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lop:fan-control-fault",
"description": "Fan control fault",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lop:fan-speed:below-minimum-rpm",
"description": "Fan speed below minimum RPM",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lop:fan-speed:sensor-fault",
"description": "Fan speed sensor fault",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lop:fantray-hotswap-fault",
"description": "Fantray hot-swap controller fault",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lop:fit:forced-bad-health",
"description": "LOP FIT forced bad health",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lop:i2c:1:cpld-eeprom-ack-fault",
"description": "I2C-1 CPLD EEPROM ack fault",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lop:i2c:1:hdc2010-inlet-ack-fault",
"description": "I2C-1 HDC2010 inlet ack fault",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lop:i2c:1:max31730-asw-diode013-ack-fault",
"description": "I2C-1 MAX31730 ASW diode 0,1,3 ack fault",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lop:i2c:1:max31730-asw-diode46-ack-fault",
"description": "I2C-1 MAX31730 ASW diode 4,6 ack fault",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lop:i2c:1:max31730-atse1-ack-fault",
"description": "I2C-1 MAX31730 ATSE1 ack fault",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lop:i2c:1:max31730-atse1-or-bwe1-ack-fault",
"description": "I2C-1 MAX31730 ATSE1/BWE1 ack fault",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lop:i2c:1:pel-eeprom-ack-fault",
"description": "I2C-1 PEL EEPROM ack fault",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lop:i2c:1:platform-eeprom-ack-fault",
"description": "I2C-1 Platform EEPROM ack fault",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lop:i2c:1:stuck-bus-fault",
"description": "I2C-1 Stuck bus fault",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lop:i2c:2:stuck-bus-fault",
"description": "I2C-2 stuck bus fault",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lop:i2c:3:stuck-bus-fault",
"description": "I2C-3 stuck bus fault",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lop:i2c:3:tmp421-outlet-ack-fault",
"description": "I2C-3 TMP421 outlet ack fault",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lop:i2c:4:stuck-bus-fault",
"description": "I2C-4 stuck bus fault",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lop:i2c:psu1-fault",
"description": "PSU 1 I2C fault",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lop:i2c:psu2-fault",
"description": "PSU 2 I2C fault",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lop:microcontroller:rev-id-fault",
"description": "Microcontroller Revision ID Fault",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lop:nc-si-rmii:failure",
"description": "LOP NC-SI / RMII Failure",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lop:post",
"description": "LOP POST",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "v6h:sensor:temperature:aswdie0",
"description": "ASW_DIE_0 (C)",
"health": "ok",
"severity": "info",
"value": "46.9",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:sensor:temperature:aswdie1",
"description": "ASW_DIE_1 (C)",
"health": "ok",
"severity": "info",
"value": "46.9",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:sensor:temperature:aswdie3",
"description": "ASW_DIE_3 (C)",
"health": "ok",
"severity": "info",
"value": "48.5",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:sensor:temperature:aswdie4",
"description": "ASW_DIE_4 (C)",
"health": "ok",
"severity": "info",
"value": "47.2",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:sensor:temperature:aswdie6",
"description": "ASW_DIE_6 (C)",
"health": "ok",
"severity": "info",
"value": "47.6",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:sensor:temperature:atse1die0",
"description": "ATSE1_DIE_0 (C)",
"health": "ok",
"severity": "info",
"value": "49.7",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:sensor:temperature:atse1die1",
"description": "ATSE1_DIE_1 (C)",
"health": "ok",
"severity": "info",
"value": "53.6",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:sensor:temperature:atse1die3",
"description": "ATSE1_DIE_3 (C)",
"health": "ok",
"severity": "info",
"value": "52",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:sensor:temperature:atse1die4",
"description": "ATSE1_DIE_4 (C)",
"health": "ok",
"severity": "info",
"value": "53.3",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:sensor:temperature:atse1die6",
"description": "ATSE1_DIE_6 (C)",
"health": "ok",
"severity": "info",
"value": "53.7",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:sensor:temperature:bwe1die",
"description": "BWE1_DIE (C)",
"health": "ok",
"severity": "info",
"value": "52.3",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:sensor:temperature:cpu",
"description": "CPU (C)",
"health": "ok",
"severity": "info",
"value": "53",
"updatedAt": "2022-01-17T10:17:56Z"
},
{
"name": "v6h:sensor:temperature:cputctldelta",
"description": "CPU_TCTL_DELTA (C)",
"health": "ok",
"severity": "info",
"value": "-38",
"updatedAt": "2022-01-17T10:17:56Z"
},
{
"name": "v6h:sensor:temperature:inlet",
"description": "INLET (C)",
"health": "ok",
"severity": "info",
"value": "30.7",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:sensor:temperature:outlet",
"description": "OUTLET (C)",
"health": "ok",
"severity": "info",
"value": "36",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:sensor:voltage:0p6vvttabcd",
"description": "0P6V_VTT_ABCD (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:0p6vvttefgh",
"description": "0P6V_VTT_EFGH (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:0p85vcpupvsa",
"description": "0P85V_CPU_PVSA (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:0p95vbwe1",
"description": "0P95V_BWE1 (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:0p9vvccasw",
"description": "0P9V_VCC_ASW (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:0p9vvccatse1",
"description": "0P9V_VCC_ATSE1 (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:0p9vvcceramasw",
"description": "0P9V_VCCERAM_ASW (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:0p9vvcceramatse1",
"description": "0P9V_VCCERAM_ATSE1 (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:12p0v",
"description": "12P0V (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:12p0vstby",
"description": "12P0V_STBY (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:1p05vpch",
"description": "1P05V_PCH (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:1p0vcpupvccana",
"description": "1P0V_CPU_PVCCANA (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:1p0vcpupvccio",
"description": "1P0V_CPU_VCCIO (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:1p0vvnnpch",
"description": "1P0V_VNN_PCH (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:1p12vvccrgxbasw",
"description": "1P12V_VCCRGXB_ASW (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:1p12vvccrgxbatse1",
"description": "1P12V_VCCRGXB_ATSE1 (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:1p12vvcctgxbasw",
"description": "1P12V_VCCTGXB_ASW (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:1p12vvcctgxbatse1",
"description": "1P12V_VCCTGXB_ATSE1 (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:1p1vvcchgxeasw",
"description": "1P1V_VCCH_GXE_ASW (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:1p2vatse1",
"description": "1P2V_ATSE1 (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:1p2vsb",
"description": "1P2VSB (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:1p2vvddqabcd",
"description": "1P2V_VDDQ_ABCD (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:1p2vvddqefgh",
"description": "1P2V_VDDQ_EFGH (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:1p5vbwe1",
"description": "1P5V_BWE1 (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:1p8vasw",
"description": "1P8V_ASW (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:1p8vatse1",
"description": "1P8V_ATSE1 (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:1p8vcpu",
"description": "1P8V_CPU (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:1p8vcpuvccin",
"description": "1P8V_CPU_VCCIN (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:1p8vpch",
"description": "1P8V_PCH (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:1p8vsb",
"description": "1P8VSB (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:1p8vvccptasw",
"description": "1P8V_VCCPT_ASW (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:2p4vasw",
"description": "2P4V_ASW (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:2p4vatse1",
"description": "2P4V_ATSE1 (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:2p5vasw",
"description": "2P5V_ASW (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:2p5vatse1",
"description": "2P5V_ATSE1 (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:2p5vcpuvppabcd",
"description": "2P5V_CPU_VPP_ABCD (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:2p5vstby",
"description": "2P5V_STBY (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:2p5vvppefgh",
"description": "2P5V_VPP_EFGH (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:3p0vasw",
"description": "3P0V_ASW (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:3p0vatse1",
"description": "3P0V_ATSE1 (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:3p3v",
"description": "3P3V (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:3p3voptasw",
"description": "3P3V_OPT_ASW (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:3p3vpch",
"description": "3P3V_PCH (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:3p3vstby",
"description": "3P3V_STBY (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:5p0v",
"description": "5P0V (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
},
{
"name": "v6h:sensor:voltage:5p0vstby",
"description": "5P0V_STBY (V)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:14Z"
}
]
}
},
{
"key": "appliance/hardware/memory",
"state": {
"name": "Memory",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "memory:sensor:temperature",
"description": "Memory DIMM temperature (C)",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "rasdaemon:mc:corrected:event",
"description": "RAS Daemon MC corrected event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "rasdaemon:mc:fatal:event",
"description": "RAS Daemon MC fatal event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "rasdaemon:mc:uncorrected:event",
"description": "RAS Daemon MC uncorrected event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:28:38Z"
},
{
"name": "v6h:thermal-fault:vddq-abcd-vr-hot",
"description": "VDDQ_ABCD_VR_HOT thermal fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:thermal-fault:vddq-efgh-vr-hot",
"description": "VDDQ_EFGH_VR_HOT thermal fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/hardware/optics",
"state": {
"name": "Optics",
"health": "ok",
"severity": "info"
}
},
{
"key": "appliance/hardware/optics/optic1",
"state": {
"name": "Optic 1.0",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "optics:rx-power:alarm-warning-stats",
"description": "Latched RX-Power alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:44Z"
},
{
"name": "optics:rx1-power",
"description": "RX power, channel 1",
"health": "ok",
"severity": "info",
"value": "0.32",
"updatedAt": "2022-01-24T05:27:44Z"
},
{
"name": "optics:rx2-power",
"description": "RX power, channel 2",
"health": "ok",
"severity": "info",
"value": "0.32",
"updatedAt": "2022-01-24T05:27:44Z"
},
{
"name": "optics:rx3-power",
"description": "RX power, channel 3",
"health": "ok",
"severity": "info",
"value": "0.32",
"updatedAt": "2022-01-24T05:27:44Z"
},
{
"name": "optics:rx4-power",
"description": "RX power, channel 4",
"health": "ok",
"severity": "info",
"value": "0.32",
"updatedAt": "2022-01-24T05:27:44Z"
},
{
"name": "optics:temperature",
"description": "Temperature (C)",
"health": "ok",
"severity": "info",
"value": "34",
"updatedAt": "2022-01-24T05:27:44Z"
},
{
"name": "optics:temperature:alarm-warning-stats",
"description": "Latched temperature alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:44Z"
},
{
"name": "optics:tx-bias:alarm-warning-stats",
"description": "Latched Tx-Bias alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:44Z"
},
{
"name": "optics:tx-fault",
"description": "TX Fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:44Z"
},
{
"name": "optics:tx-power:alarm-warning-stats",
"description": "Latched TX-Power alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:44Z"
},
{
"name": "optics:tx-rx-los",
"description": "TX RX LOS",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:44Z"
},
{
"name": "optics:tx1-bias",
"description": "TX bias, channel 1",
"health": "ok",
"severity": "info",
"value": "0.006012",
"updatedAt": "2022-01-24T05:27:44Z"
},
{
"name": "optics:tx1-power",
"description": "TX power, channel 1",
"health": "ok",
"severity": "info",
"value": "-0.24",
"updatedAt": "2022-01-24T05:27:44Z"
},
{
"name": "optics:tx2-bias",
"description": "TX bias, channel 2",
"health": "ok",
"severity": "info",
"value": "0.006006",
"updatedAt": "2022-01-24T05:27:44Z"
},
{
"name": "optics:tx2-power",
"description": "TX power, channel 2",
"health": "ok",
"severity": "info",
"value": "-0.24",
"updatedAt": "2022-01-24T05:27:44Z"
},
{
"name": "optics:tx3-bias",
"description": "TX bias, channel 3",
"health": "ok",
"severity": "info",
"value": "0.005998",
"updatedAt": "2022-01-24T05:27:44Z"
},
{
"name": "optics:tx3-power",
"description": "TX power, channel 3",
"health": "ok",
"severity": "info",
"value": "-0.25",
"updatedAt": "2022-01-24T05:27:44Z"
},
{
"name": "optics:tx4-bias",
"description": "TX bias, channel 4",
"health": "ok",
"severity": "info",
"value": "0.005992",
"updatedAt": "2022-01-24T05:27:44Z"
},
{
"name": "optics:tx4-power",
"description": "TX power, channel 4",
"health": "ok",
"severity": "info",
"value": "-0.25",
"updatedAt": "2022-01-24T05:27:44Z"
},
{
"name": "optics:voltage",
"description": "Voltage (V)",
"health": "ok",
"severity": "info",
"value": "3.278",
"updatedAt": "2022-01-24T05:27:44Z"
},
{
"name": "optics:voltage:alarm-warning-stats",
"description": "Latched voltage alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:44Z"
}
]
}
},
{
"key": "appliance/hardware/optics/optic10",
"state": {
"name": "Optic 10.0",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "optics:rx-power:alarm-warning-stats",
"description": "Latched RX-Power alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:rx1-power",
"description": "RX power, channel 1",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:rx2-power",
"description": "RX power, channel 2",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:rx3-power",
"description": "RX power, channel 3",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:rx4-power",
"description": "RX power, channel 4",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:temperature",
"description": "Temperature (C)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:temperature:alarm-warning-stats",
"description": "Latched temperature alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx-bias:alarm-warning-stats",
"description": "Latched Tx-Bias alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx-fault",
"description": "TX Fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx-power:alarm-warning-stats",
"description": "Latched TX-Power alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx-rx-los",
"description": "TX RX LOS",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx1-bias",
"description": "TX bias, channel 1",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx1-power",
"description": "TX power, channel 1",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx2-bias",
"description": "TX bias, channel 2",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx2-power",
"description": "TX power, channel 2",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx3-bias",
"description": "TX bias, channel 3",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx3-power",
"description": "TX power, channel 3",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx4-bias",
"description": "TX bias, channel 4",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx4-power",
"description": "TX power, channel 4",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:voltage",
"description": "Voltage (V)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:voltage:alarm-warning-stats",
"description": "Latched voltage alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
}
]
}
},
{
"key": "appliance/hardware/optics/optic2",
"state": {
"name": "Optic 2.0",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "optics:rx-power:alarm-warning-stats",
"description": "Latched RX-Power alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:rx1-power",
"description": "RX power, channel 1",
"health": "ok",
"severity": "info",
"value": "1.89",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:rx2-power",
"description": "RX power, channel 2",
"health": "ok",
"severity": "info",
"value": "2",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:rx3-power",
"description": "RX power, channel 3",
"health": "ok",
"severity": "info",
"value": "2.07",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:rx4-power",
"description": "RX power, channel 4",
"health": "ok",
"severity": "info",
"value": "1.83",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:temperature",
"description": "Temperature (C)",
"health": "ok",
"severity": "info",
"value": "36.9453",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:temperature:alarm-warning-stats",
"description": "Latched temperature alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx-bias:alarm-warning-stats",
"description": "Latched Tx-Bias alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx-fault",
"description": "TX Fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx-power:alarm-warning-stats",
"description": "Latched TX-Power alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx-rx-los",
"description": "TX RX LOS",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx1-bias",
"description": "TX bias, channel 1",
"health": "ok",
"severity": "info",
"value": "0.006168",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx1-power",
"description": "TX power, channel 1",
"health": "ok",
"severity": "info",
"value": "2.55",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx2-bias",
"description": "TX bias, channel 2",
"health": "ok",
"severity": "info",
"value": "0.006358",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx2-power",
"description": "TX power, channel 2",
"health": "ok",
"severity": "info",
"value": "2.61",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx3-bias",
"description": "TX bias, channel 3",
"health": "ok",
"severity": "info",
"value": "0.006232",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx3-power",
"description": "TX power, channel 3",
"health": "ok",
"severity": "info",
"value": "2.51",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx4-bias",
"description": "TX bias, channel 4",
"health": "ok",
"severity": "info",
"value": "0.006168",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx4-power",
"description": "TX power, channel 4",
"health": "ok",
"severity": "info",
"value": "2.47",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:voltage",
"description": "Voltage (V)",
"health": "ok",
"severity": "info",
"value": "3.3157",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:voltage:alarm-warning-stats",
"description": "Latched voltage alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:46Z"
}
]
}
},
{
"key": "appliance/hardware/optics/optic3",
"state": {
"name": "Optic 3.0",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "optics:rx-power:alarm-warning-stats",
"description": "Latched RX-Power alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:rx1-power",
"description": "RX power, channel 1",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:rx2-power",
"description": "RX power, channel 2",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:rx3-power",
"description": "RX power, channel 3",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:rx4-power",
"description": "RX power, channel 4",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:temperature",
"description": "Temperature (C)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:temperature:alarm-warning-stats",
"description": "Latched temperature alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx-bias:alarm-warning-stats",
"description": "Latched Tx-Bias alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx-fault",
"description": "TX Fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx-power:alarm-warning-stats",
"description": "Latched TX-Power alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx-rx-los",
"description": "TX RX LOS",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx1-bias",
"description": "TX bias, channel 1",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx1-power",
"description": "TX power, channel 1",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx2-bias",
"description": "TX bias, channel 2",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx2-power",
"description": "TX power, channel 2",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx3-bias",
"description": "TX bias, channel 3",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx3-power",
"description": "TX power, channel 3",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx4-bias",
"description": "TX bias, channel 4",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx4-power",
"description": "TX power, channel 4",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:voltage",
"description": "Voltage (V)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:voltage:alarm-warning-stats",
"description": "Latched voltage alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
}
]
}
},
{
"key": "appliance/hardware/optics/optic4",
"state": {
"name": "Optic 4.0",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "optics:rx-power:alarm-warning-stats",
"description": "Latched RX-Power alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:rx1-power",
"description": "RX power, channel 1",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:rx2-power",
"description": "RX power, channel 2",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:rx3-power",
"description": "RX power, channel 3",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:rx4-power",
"description": "RX power, channel 4",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:temperature",
"description": "Temperature (C)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:temperature:alarm-warning-stats",
"description": "Latched temperature alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx-bias:alarm-warning-stats",
"description": "Latched Tx-Bias alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx-fault",
"description": "TX Fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx-power:alarm-warning-stats",
"description": "Latched TX-Power alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx-rx-los",
"description": "TX RX LOS",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx1-bias",
"description": "TX bias, channel 1",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx1-power",
"description": "TX power, channel 1",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx2-bias",
"description": "TX bias, channel 2",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx2-power",
"description": "TX power, channel 2",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx3-bias",
"description": "TX bias, channel 3",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx3-power",
"description": "TX power, channel 3",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx4-bias",
"description": "TX bias, channel 4",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx4-power",
"description": "TX power, channel 4",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:voltage",
"description": "Voltage (V)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:voltage:alarm-warning-stats",
"description": "Latched voltage alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
}
]
}
},
{
"key": "appliance/hardware/optics/optic5",
"state": {
"name": "Optic 5.0",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "optics:rx-power:alarm-warning-stats",
"description": "Latched RX-Power alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:rx1-power",
"description": "RX power, channel 1",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:rx2-power",
"description": "RX power, channel 2",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:rx3-power",
"description": "RX power, channel 3",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:rx4-power",
"description": "RX power, channel 4",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:temperature",
"description": "Temperature (C)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:temperature:alarm-warning-stats",
"description": "Latched temperature alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx-bias:alarm-warning-stats",
"description": "Latched Tx-Bias alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx-fault",
"description": "TX Fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx-power:alarm-warning-stats",
"description": "Latched TX-Power alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx-rx-los",
"description": "TX RX LOS",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx1-bias",
"description": "TX bias, channel 1",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx1-power",
"description": "TX power, channel 1",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx2-bias",
"description": "TX bias, channel 2",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx2-power",
"description": "TX power, channel 2",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx3-bias",
"description": "TX bias, channel 3",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx3-power",
"description": "TX power, channel 3",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx4-bias",
"description": "TX bias, channel 4",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx4-power",
"description": "TX power, channel 4",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:voltage",
"description": "Voltage (V)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:voltage:alarm-warning-stats",
"description": "Latched voltage alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
}
]
}
},
{
"key": "appliance/hardware/optics/optic6",
"state": {
"name": "Optic 6.0",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "optics:rx-power:alarm-warning-stats",
"description": "Latched RX-Power alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:rx1-power",
"description": "RX power, channel 1",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:rx2-power",
"description": "RX power, channel 2",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:rx3-power",
"description": "RX power, channel 3",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:rx4-power",
"description": "RX power, channel 4",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:temperature",
"description": "Temperature (C)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:temperature:alarm-warning-stats",
"description": "Latched temperature alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx-bias:alarm-warning-stats",
"description": "Latched Tx-Bias alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx-fault",
"description": "TX Fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx-power:alarm-warning-stats",
"description": "Latched TX-Power alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx-rx-los",
"description": "TX RX LOS",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx1-bias",
"description": "TX bias, channel 1",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx1-power",
"description": "TX power, channel 1",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx2-bias",
"description": "TX bias, channel 2",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx2-power",
"description": "TX power, channel 2",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx3-bias",
"description": "TX bias, channel 3",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx3-power",
"description": "TX power, channel 3",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx4-bias",
"description": "TX bias, channel 4",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx4-power",
"description": "TX power, channel 4",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:voltage",
"description": "Voltage (V)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:voltage:alarm-warning-stats",
"description": "Latched voltage alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
}
]
}
},
{
"key": "appliance/hardware/optics/optic7",
"state": {
"name": "Optic 7.0",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "optics:rx-power:alarm-warning-stats",
"description": "Latched RX-Power alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:rx1-power",
"description": "RX power, channel 1",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:rx2-power",
"description": "RX power, channel 2",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:rx3-power",
"description": "RX power, channel 3",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:rx4-power",
"description": "RX power, channel 4",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:temperature",
"description": "Temperature (C)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:temperature:alarm-warning-stats",
"description": "Latched temperature alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx-bias:alarm-warning-stats",
"description": "Latched Tx-Bias alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx-fault",
"description": "TX Fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx-power:alarm-warning-stats",
"description": "Latched TX-Power alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx-rx-los",
"description": "TX RX LOS",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx1-bias",
"description": "TX bias, channel 1",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx1-power",
"description": "TX power, channel 1",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx2-bias",
"description": "TX bias, channel 2",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx2-power",
"description": "TX power, channel 2",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx3-bias",
"description": "TX bias, channel 3",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx3-power",
"description": "TX power, channel 3",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx4-bias",
"description": "TX bias, channel 4",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:tx4-power",
"description": "TX power, channel 4",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:voltage",
"description": "Voltage (V)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "optics:voltage:alarm-warning-stats",
"description": "Latched voltage alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
}
]
}
},
{
"key": "appliance/hardware/optics/optic8",
"state": {
"name": "Optic 8.0",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "optics:rx-power:alarm-warning-stats",
"description": "Latched RX-Power alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:rx1-power",
"description": "RX power, channel 1",
"health": "ok",
"severity": "info",
"value": "-1.18",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:rx2-power",
"description": "RX power, channel 2",
"health": "ok",
"severity": "info",
"value": "-10000",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:rx3-power",
"description": "RX power, channel 3",
"health": "ok",
"severity": "info",
"value": "-10000",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:rx4-power",
"description": "RX power, channel 4",
"health": "ok",
"severity": "info",
"value": "-10000",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:temperature",
"description": "Temperature (C)",
"health": "ok",
"severity": "info",
"value": "37.2421",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:temperature:alarm-warning-stats",
"description": "Latched temperature alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx-bias:alarm-warning-stats",
"description": "Latched Tx-Bias alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx-fault",
"description": "TX Fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx-power:alarm-warning-stats",
"description": "Latched TX-Power alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx-rx-los",
"description": "TX RX LOS",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx1-bias",
"description": "TX bias, channel 1",
"health": "ok",
"severity": "info",
"value": "0.00801",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx1-power",
"description": "TX power, channel 1",
"health": "ok",
"severity": "info",
"value": "-0.7",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx2-bias",
"description": "TX bias, channel 2",
"health": "ok",
"severity": "info",
"value": "4294.967295",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx2-power",
"description": "TX power, channel 2",
"health": "ok",
"severity": "info",
"value": "-10000",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx3-bias",
"description": "TX bias, channel 3",
"health": "ok",
"severity": "info",
"value": "4294.967295",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx3-power",
"description": "TX power, channel 3",
"health": "ok",
"severity": "info",
"value": "-10000",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx4-bias",
"description": "TX bias, channel 4",
"health": "ok",
"severity": "info",
"value": "4294.967295",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx4-power",
"description": "TX power, channel 4",
"health": "ok",
"severity": "info",
"value": "-10000",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:voltage",
"description": "Voltage (V)",
"health": "ok",
"severity": "info",
"value": "3.3483",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:voltage:alarm-warning-stats",
"description": "Latched voltage alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:46Z"
}
]
}
},
{
"key": "appliance/hardware/optics/optic9",
"state": {
"name": "Optic 9.0",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "optics:rx-power:alarm-warning-stats",
"description": "Latched RX-Power alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:rx1-power",
"description": "RX power, channel 1",
"health": "ok",
"severity": "info",
"value": "-0.46",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:rx2-power",
"description": "RX power, channel 2",
"health": "ok",
"severity": "info",
"value": "-10000",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:rx3-power",
"description": "RX power, channel 3",
"health": "ok",
"severity": "info",
"value": "-10000",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:rx4-power",
"description": "RX power, channel 4",
"health": "ok",
"severity": "info",
"value": "-10000",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:temperature",
"description": "Temperature (C)",
"health": "ok",
"severity": "info",
"value": "33.9726",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:temperature:alarm-warning-stats",
"description": "Latched temperature alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx-bias:alarm-warning-stats",
"description": "Latched Tx-Bias alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx-fault",
"description": "TX Fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx-power:alarm-warning-stats",
"description": "Latched TX-Power alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx-rx-los",
"description": "TX RX LOS",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx1-bias",
"description": "TX bias, channel 1",
"health": "ok",
"severity": "info",
"value": "0.008022",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx1-power",
"description": "TX power, channel 1",
"health": "ok",
"severity": "info",
"value": "-0.82",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx2-bias",
"description": "TX bias, channel 2",
"health": "ok",
"severity": "info",
"value": "4294.967295",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx2-power",
"description": "TX power, channel 2",
"health": "ok",
"severity": "info",
"value": "-10000",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx3-bias",
"description": "TX bias, channel 3",
"health": "ok",
"severity": "info",
"value": "4294.967295",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx3-power",
"description": "TX power, channel 3",
"health": "ok",
"severity": "info",
"value": "-10000",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx4-bias",
"description": "TX bias, channel 4",
"health": "ok",
"severity": "info",
"value": "4294.967295",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:tx4-power",
"description": "TX power, channel 4",
"health": "ok",
"severity": "info",
"value": "-10000",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:voltage",
"description": "Voltage (V)",
"health": "ok",
"severity": "info",
"value": "3.3885",
"updatedAt": "2022-01-24T05:27:46Z"
},
{
"name": "optics:voltage:alarm-warning-stats",
"description": "Latched voltage alarm warning stats",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:27:46Z"
}
]
}
},
{
"key": "appliance/hardware/psu",
"state": {
"name": "PSU Subsystem",
"health": "ok",
"severity": "notice"
},
"attributes": {
"attribute": [
{
"name": "psu:mismatch",
"description": "PSU Configuration Mismatch",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:13Z"
}
]
}
},
{
"key": "appliance/hardware/qat",
"state": {
"name": "QAT",
"health": "ok",
"severity": "info"
}
},
{
"key": "appliance/hardware/tpm",
"state": {
"name": "TPM",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "tpm:health",
"description": "TPM Self test",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:13Z"
}
]
}
}
],
"services": [
{
"key": "appliance/services/alert-service",
"state": {
"name": "alert-service",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:component:version",
"description": "Service component version",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:file-watcher-error",
"description": "Service file watcher error",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:message-error",
"description": "Service health monitor error",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:message-error-count",
"description": "Service health monitor error count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:overall-health",
"description": "Service reported overall health",
"health": "ok",
"severity": "info",
"value": "Ok",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:ready",
"description": "Service ready status",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-count",
"description": "Service total restart count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-last-hour",
"description": "Service restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:startup-timestamp",
"description": "Service startup timestamp",
"health": "ok",
"severity": "info",
"value": "2022-01-22T22:13:15.120535997Z",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:version",
"description": "Service version",
"health": "ok",
"severity": "info",
"value": "3.7.1",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/services/appliance_orchestration_manager",
"state": {
"name": "appliance_orchestration_manager",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "service:component:version",
"description": "Service component version",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "service:file-watcher-error",
"description": "Service file watcher error",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "service:message-error",
"description": "Service health monitor error",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:40Z"
},
{
"name": "service:message-error-count",
"description": "Service health monitor error count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:37Z"
},
{
"name": "service:overall-health",
"description": "Service reported overall health",
"health": "ok",
"severity": "info",
"value": "Ok",
"updatedAt": "2022-01-22T22:13:40Z"
},
{
"name": "service:ready",
"description": "Service ready status",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:40Z"
},
{
"name": "service:restart-count",
"description": "Service total restart count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-last-hour",
"description": "Service restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-11-13T17:36:55Z"
},
{
"name": "service:startup-timestamp",
"description": "Service startup timestamp",
"health": "ok",
"severity": "info",
"value": "2022-01-22T22:13:17.385769125Z",
"updatedAt": "2022-01-22T22:13:40Z"
},
{
"name": "service:version",
"description": "Service version",
"health": "ok",
"severity": "info",
"value": "1.26.4",
"updatedAt": "2022-01-22T22:13:40Z"
}
]
}
},
{
"key": "appliance/services/authentication-mgr",
"state": {
"name": "authentication-mgr",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:42Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:42Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-12-08T19:43:32Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
},
{
"name": "service:component:version",
"description": "Service component version",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:40Z"
},
{
"name": "service:message-error",
"description": "Service health monitor error",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-24T05:32:06Z"
},
{
"name": "service:message-error-count",
"description": "Service health monitor error count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-10-05T17:43:21Z"
},
{
"name": "service:overall-health",
"description": "Service reported overall health",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:ready",
"description": "Service ready status",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:32:06Z"
},
{
"name": "service:restart-count",
"description": "Service total restart count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-last-hour",
"description": "Service restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:startup-timestamp",
"description": "Service startup timestamp",
"health": "ok",
"severity": "info",
"value": "2022-01-22T22:13:14.377017935Z",
"updatedAt": "2022-01-24T05:32:06Z"
},
{
"name": "service:version",
"description": "Service version",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-24T05:32:06Z"
}
]
}
},
{
"key": "appliance/services/authentication-mgr/service",
"state": {
"name": "Authentication Primary Service",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "Authentication:state",
"description": "Authentication Service State",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:32:06Z"
}
]
}
},
{
"key": "appliance/services/confd-key-migration-mgr",
"state": {
"name": "confd-key-migration-mgr",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:10Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:10Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:38Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
},
{
"name": "service:component:version",
"description": "Service component version",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "service:file-watcher-error",
"description": "Service file watcher error",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "service:message-error",
"description": "Service health monitor error",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:message-error-count",
"description": "Service health monitor error count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "service:overall-health",
"description": "Service reported overall health",
"health": "ok",
"severity": "info",
"value": "Ok",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:ready",
"description": "Service ready status",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-count",
"description": "Service total restart count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-last-hour",
"description": "Service restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "service:startup-timestamp",
"description": "Service startup timestamp",
"health": "ok",
"severity": "info",
"value": "2022-01-22T22:13:14.377019329Z",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:version",
"description": "Service version",
"health": "ok",
"severity": "info",
"value": "1.8.0~appliance_main.2021_11_10_06_46_48.S49e94298",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/services/diag-agent",
"state": {
"name": "diag-agent",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:20Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:20Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:38Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
},
{
"name": "service:component:version",
"description": "Service component version",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:file-watcher-error",
"description": "Service file watcher error",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:message-error",
"description": "Service health monitor error",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:message-error-count",
"description": "Service health monitor error count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:overall-health",
"description": "Service reported overall health",
"health": "ok",
"severity": "info",
"value": "Ok",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:ready",
"description": "Service ready status",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-count",
"description": "Service total restart count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-last-hour",
"description": "Service restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:startup-timestamp",
"description": "Service startup timestamp",
"health": "ok",
"severity": "info",
"value": "2022-01-22T22:13:15.19396659Z",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:version",
"description": "Service version",
"health": "ok",
"severity": "info",
"value": "1.45.10-f5os-a-1-0-0-candidate.2021-12-01-13-21-23.Sf53d3ed8",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/services/diag-agent/alert-manager",
"state": {
"name": "alert-manager",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "alert-manager:alarm-maintainer",
"description": "Diag-agent is able to initialize the alarm maintainer",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "alert-manager:lop",
"description": "Diag-agent is able to initialize the LOP alert manager",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "alert-manager:lop:alert-handler:analog",
"description": "Diag-agent is able to initialize the analog LOP alert handler",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "alert-manager:lop:alert-handler:binary",
"description": "Diag-agent is able to initialize the binary LOP alert handler",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "alert-manager:platform:alarm-handler",
"description": "Diag-agent is able to initialize the platform alarm handler",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "alert-manager:platform:alarm-manager",
"description": "Diag-agent is able to initialize the platform alarm manager",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/services/diag-agent/confd-bridge",
"state": {
"name": "confd-bridge",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "confd-bridge:connection",
"description": "Diag-agent is able to communicate with Confd",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/services/diag-agent/publisher",
"state": {
"name": "publisher",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "publisher:push-endpoint",
"description": "Diag-agent is able to push & publish events over zmq interface",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/services/diag-agent/service",
"state": {
"name": "service",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "service:hal:connection",
"description": "Diag-agent is able to communicate with platform-hal",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:monitor:connection",
"description": "Diag-agent is able to communicate with monitor agent",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:monitor:connection:firmware",
"description": "Diag-agent is able initialize monitoring of firmware events",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/services/dma-agent",
"state": {
"name": "dma-agent",
"health": "ok",
"severity": "notice"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:18Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:18Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
},
{
"name": "service:component:version",
"description": "Service component version",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:file-watcher-error",
"description": "Service file watcher error",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:message-error",
"description": "Service health monitor error",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:14:06Z"
},
{
"name": "service:message-error-count",
"description": "Service health monitor error count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:43:13Z"
},
{
"name": "service:overall-health",
"description": "Service reported overall health",
"health": "ok",
"severity": "info",
"value": "Ok",
"updatedAt": "2022-01-22T22:14:06Z"
},
{
"name": "service:ready",
"description": "Service ready status",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:14:06Z"
},
{
"name": "service:restart-count",
"description": "Service total restart count",
"health": "ok",
"severity": "notice",
"value": "1",
"updatedAt": "2022-01-22T22:14:06Z"
},
{
"name": "service:restart-last-hour",
"description": "Service restart count in the last hour",
"health": "ok",
"severity": "notice",
"value": "1",
"updatedAt": "2022-01-22T22:14:06Z"
},
{
"name": "service:startup-timestamp",
"description": "Service startup timestamp",
"health": "ok",
"severity": "info",
"value": "2022-01-22T22:14:06.221466574Z",
"updatedAt": "2022-01-22T22:14:06Z"
},
{
"name": "service:version",
"description": "Service version",
"health": "ok",
"severity": "info",
"value": "7.5.8",
"updatedAt": "2022-01-22T22:14:06Z"
}
]
}
},
{
"key": "appliance/services/fips-service",
"state": {
"name": "fips-service",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:16Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:16Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:38Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/firmware",
"state": {
"name": "firmware",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:31Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:31Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:20Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:31Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:31Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:20Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:31Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:31Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:31Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:31Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/firmware-fpga",
"state": {
"name": "firmware-fpga",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:26Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:26Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/http-server",
"state": {
"name": "http-server",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:02Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:02Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
},
{
"name": "service:component:version",
"description": "Service component version",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:message-error",
"description": "Service health monitor error",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:message-error-count",
"description": "Service health monitor error count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:overall-health",
"description": "Service reported overall health",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:ready",
"description": "Service ready status",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-count",
"description": "Service total restart count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-last-hour",
"description": "Service restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:startup-timestamp",
"description": "Service startup timestamp",
"health": "ok",
"severity": "info",
"value": "2022-01-22T22:13:38.716460039Z",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:version",
"description": "Service version",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/services/http-server/connections",
"state": {
"name": "Active Connections",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "http:connections:active",
"description": "Number of active connections",
"health": "ok",
"severity": "info",
"value": "1",
"updatedAt": "2022-01-24T05:32:10Z"
},
{
"name": "http:connections:idle",
"description": "Number of idle connections",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:32:10Z"
}
]
}
},
{
"key": "appliance/services/http-server/mpm",
"state": {
"name": "MPM Block",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "http:mpm:active-servers",
"description": "Number of active servers",
"health": "ok",
"severity": "info",
"value": "10",
"updatedAt": "2022-01-24T05:32:10Z"
}
]
}
},
{
"key": "appliance/services/http-server/server",
"state": {
"name": "HTTP Server Status",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "http:server:bytes",
"description": "Total number of bytes",
"health": "ok",
"severity": "info",
"value": "183623028",
"updatedAt": "2022-01-24T05:32:08Z"
},
{
"name": "http:server:connections",
"description": "Total number of connections",
"health": "ok",
"severity": "info",
"value": "4166",
"updatedAt": "2022-01-24T05:32:08Z"
},
{
"name": "http:server:uptime",
"description": "Server uptime in seconds (S)",
"health": "ok",
"severity": "info",
"value": "112733",
"updatedAt": "2022-01-24T05:32:08Z"
}
]
}
},
{
"key": "appliance/services/ihealth-service",
"state": {
"name": "ihealth-service",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:44:35Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:24Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:24Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:38Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-10-21T16:16:48Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/lcd-webserver",
"state": {
"name": "lcd-webserver",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-12-08T19:43:32Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:46Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:46Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:38Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-11-30T03:09:43Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/line-dma-agent",
"state": {
"name": "line-dma-agent",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:22Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:22Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
},
{
"name": "service:component:version",
"description": "Service component version",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:file-watcher-error",
"description": "Service file watcher error",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:message-error",
"description": "Service health monitor error",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:14:08Z"
},
{
"name": "service:message-error-count",
"description": "Service health monitor error count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:43:12Z"
},
{
"name": "service:overall-health",
"description": "Service reported overall health",
"health": "ok",
"severity": "info",
"value": "Ok",
"updatedAt": "2022-01-22T22:14:08Z"
},
{
"name": "service:ready",
"description": "Service ready status",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:14:08Z"
},
{
"name": "service:restart-count",
"description": "Service total restart count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-last-hour",
"description": "Service restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-14T19:10:53Z"
},
{
"name": "service:startup-timestamp",
"description": "Service startup timestamp",
"health": "ok",
"severity": "info",
"value": "2022-01-22T22:14:06.954557346Z",
"updatedAt": "2022-01-22T22:14:08Z"
},
{
"name": "service:version",
"description": "Service version",
"health": "ok",
"severity": "info",
"value": "1.3.27",
"updatedAt": "2022-01-22T22:14:08Z"
}
]
}
},
{
"key": "appliance/services/lopd",
"state": {
"name": "lopd",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:12Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:12Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
},
{
"name": "service:component:version",
"description": "Service component version",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:file-watcher-error",
"description": "Service file watcher error",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:message-error",
"description": "Service health monitor error",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:message-error-count",
"description": "Service health monitor error count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:overall-health",
"description": "Service reported overall health",
"health": "ok",
"severity": "info",
"value": "Ok",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:ready",
"description": "Service ready status",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-count",
"description": "Service total restart count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-last-hour",
"description": "Service restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-11-30T03:05:26Z"
},
{
"name": "service:startup-timestamp",
"description": "Service startup timestamp",
"health": "ok",
"severity": "info",
"value": "2022-01-22T22:13:23.930446439Z",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:version",
"description": "Service version",
"health": "ok",
"severity": "info",
"value": "2.2.1",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/services/name-service-ldap",
"state": {
"name": "name-service-ldap",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:24Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:24Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:38Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/optics-mgr",
"state": {
"name": "optics-mgr",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:38Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:38Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:38Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/platform-diag",
"state": {
"name": "platform-diag",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:06Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:06Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
},
{
"name": "service:component:version",
"description": "Service component version",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:file-watcher-error",
"description": "Service file watcher error",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:message-error",
"description": "Service health monitor error",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:message-error-count",
"description": "Service health monitor error count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:overall-health",
"description": "Service reported overall health",
"health": "ok",
"severity": "info",
"value": "Ok",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:ready",
"description": "Service ready status",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-count",
"description": "Service total restart count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-last-hour",
"description": "Service restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:startup-timestamp",
"description": "Service startup timestamp",
"health": "ok",
"severity": "info",
"value": "2022-01-22T22:13:13.660793178Z",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:version",
"description": "Service version",
"health": "ok",
"severity": "info",
"value": "1.2.197",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/services/platform-diag/service",
"state": {
"name": "service",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "f5sw:service",
"description": "F5 Software SDK",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "fpgamgr:service",
"description": "FPGA Manager",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/services/platform-fwu",
"state": {
"name": "platform-fwu",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:07Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:07Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
},
{
"name": "service:component:version",
"description": "Service component version",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:file-watcher-error",
"description": "Service file watcher error",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:message-error",
"description": "Service health monitor error",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:message-error-count",
"description": "Service health monitor error count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:overall-health",
"description": "Service reported overall health",
"health": "ok",
"severity": "info",
"value": "Ok",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:ready",
"description": "Service ready status",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-count",
"description": "Service total restart count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-last-hour",
"description": "Service restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:startup-timestamp",
"description": "Service startup timestamp",
"health": "ok",
"severity": "info",
"value": "2022-01-22T22:13:14.550073349Z",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:version",
"description": "Service version",
"health": "ok",
"severity": "info",
"value": "0.0.0",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/services/platform-fwu/service",
"state": {
"name": "service",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "bios:recovery:image",
"description": "FWU was able to execute creation of BIOS recovery image",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "hal:connection",
"description": "FWU is able to communicate with HAL using ZMQ",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/services/platform-hal",
"state": {
"name": "platform-hal",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:35Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:35Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
},
{
"name": "service:component:version",
"description": "Service component version",
"health": "ok",
"severity": "info",
"value": "1.0",
"updatedAt": "2022-01-22T22:13:40Z"
},
{
"name": "service:message-error",
"description": "Service health monitor error",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-24T05:32:06Z"
},
{
"name": "service:message-error-count",
"description": "Service health monitor error count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-11-30T03:09:40Z"
},
{
"name": "service:overall-health",
"description": "Service reported overall health",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:ready",
"description": "Service ready status",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:32:06Z"
},
{
"name": "service:restart-count",
"description": "Service total restart count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-last-hour",
"description": "Service restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:startup-timestamp",
"description": "Service startup timestamp",
"health": "ok",
"severity": "info",
"value": "2022-01-22T22:13:24.156131057Z",
"updatedAt": "2022-01-24T05:32:06Z"
},
{
"name": "service:version",
"description": "Service version",
"health": "ok",
"severity": "info",
"value": "1.14.54",
"updatedAt": "2022-01-24T05:32:06Z"
}
]
}
},
{
"key": "appliance/services/platform-hal/lopd",
"state": {
"name": "LOPd Service",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "lopd:network:port",
"description": "LOPd Port",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:32:06Z"
},
{
"name": "lopd:usb:device",
"description": "LOP USB Device",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:32:06Z"
}
]
}
},
{
"key": "appliance/services/platform-monitor",
"state": {
"name": "platform-monitor",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:16Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:16Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
},
{
"name": "service:component:version",
"description": "Service component version",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:file-watcher-error",
"description": "Service file watcher error",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:message-error",
"description": "Service health monitor error",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:message-error-count",
"description": "Service health monitor error count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:overall-health",
"description": "Service reported overall health",
"health": "ok",
"severity": "info",
"value": "Ok",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:ready",
"description": "Service ready status",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-count",
"description": "Service total restart count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-last-hour",
"description": "Service restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:startup-timestamp",
"description": "Service startup timestamp",
"health": "ok",
"severity": "info",
"value": "2022-01-22T22:13:14.45812303Z",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:version",
"description": "Service version",
"health": "ok",
"severity": "info",
"value": "1.17.11",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/services/platform-monitor/service",
"state": {
"name": "service",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "hal:connection",
"description": "Monitor is able to communicate with HAL",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/services/platform-stats",
"state": {
"name": "platform-stats",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:44:35Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:44Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:44Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
},
{
"name": "service:component:version",
"description": "Service component version",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:file-watcher-error",
"description": "Service file watcher error",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:message-error",
"description": "Service health monitor error",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:message-error-count",
"description": "Service health monitor error count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:overall-health",
"description": "Service reported overall health",
"health": "ok",
"severity": "info",
"value": "Ok",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:ready",
"description": "Service ready status",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-count",
"description": "Service total restart count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-last-hour",
"description": "Service restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:startup-timestamp",
"description": "Service startup timestamp",
"health": "ok",
"severity": "info",
"value": "2022-01-22T22:13:14.115696097Z",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:version",
"description": "Service version",
"health": "ok",
"severity": "info",
"value": "1.6.5",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/services/platform-stats/service",
"state": {
"name": "service",
"health": "ok",
"severity": "info"
}
},
{
"key": "appliance/services/qat-support-pod",
"state": {
"name": "qat-support-pod",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:44:35Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:50Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:50Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/qkviewd",
"state": {
"name": "qkviewd",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:40Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:40Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:38Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/snmp-trapd",
"state": {
"name": "snmp-trapd",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:18Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:18Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-10-06T22:37:03Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/snmpd",
"state": {
"name": "snmpd",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:08Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:08Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-10-21T16:16:48Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/stream-generator",
"state": {
"name": "stream-generator",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:52Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:52Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:38Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/swdiag-agent",
"state": {
"name": "swdiag-agent",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:44:35Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:50Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:50Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/system-common",
"state": {
"name": "system-common",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:27:54Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:27:54Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:38Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/system-vconsole",
"state": {
"name": "system-vconsole",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:27:46Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:27:46Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/system_L2",
"state": {
"name": "system_L2",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:27:52Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:27:52Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
},
{
"name": "service:component:version",
"description": "Service component version",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "service:file-watcher-error",
"description": "Service file watcher error",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "service:message-error",
"description": "Service health monitor error",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:message-error-count",
"description": "Service health monitor error count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "service:overall-health",
"description": "Service reported overall health",
"health": "ok",
"severity": "info",
"value": "Ok",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:ready",
"description": "Service ready status",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-count",
"description": "Service total restart count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-last-hour",
"description": "Service restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-11-30T03:04:20Z"
},
{
"name": "service:startup-timestamp",
"description": "Service startup timestamp",
"health": "ok",
"severity": "info",
"value": "2022-01-22T22:13:27.484382666Z",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:version",
"description": "Service version",
"health": "ok",
"severity": "info",
"value": "4.3.0~vanquish_master.2021_11_17_17_45_19.S5a9a5c6a",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/services/system_TPOB",
"state": {
"name": "system_TPOB",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:08Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:08Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:38Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/system_api_svc_gateway",
"state": {
"name": "system_api_svc_gateway",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:10Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:10Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:38Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
},
{
"name": "service:component:version",
"description": "Service component version",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "service:file-watcher-error",
"description": "Service file watcher error",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "service:message-error",
"description": "Service health monitor error",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:message-error-count",
"description": "Service health monitor error count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "service:overall-health",
"description": "Service reported overall health",
"health": "ok",
"severity": "info",
"value": "Ok",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:ready",
"description": "Service ready status",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-count",
"description": "Service total restart count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-last-hour",
"description": "Service restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "service:startup-timestamp",
"description": "Service startup timestamp",
"health": "ok",
"severity": "info",
"value": "2022-01-22T22:13:27.679595169Z",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:version",
"description": "Service version",
"health": "ok",
"severity": "info",
"value": "4.6.0~vanquish_master.2021_11_15_09_08_18.S722a9889",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/services/system_confgen",
"state": {
"name": "system_confgen",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:24Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:31Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:31Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:24Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:38Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/system_control",
"state": {
"name": "system_control",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:30Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:30Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/system_dagd",
"state": {
"name": "system_dagd",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:27:44Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:27:44Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:38Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/system_datapath_cp_proxy",
"state": {
"name": "system_datapath_cp_proxy",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:34Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:34Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/system_fpga",
"state": {
"name": "system_fpga",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-10-21T16:10:45Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T19:58:46Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T19:58:46Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-10-21T16:10:45Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
},
{
"name": "service:component:version",
"description": "Service component version",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:16:56Z"
},
{
"name": "service:message-error",
"description": "Service health monitor error",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-24T05:32:04Z"
},
{
"name": "service:message-error-count",
"description": "Service health monitor error count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:15:14Z"
},
{
"name": "service:overall-health",
"description": "Service reported overall health",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:ready",
"description": "Service ready status",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:32:04Z"
},
{
"name": "service:restart-count",
"description": "Service total restart count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-last-hour",
"description": "Service restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:startup-timestamp",
"description": "Service startup timestamp",
"health": "ok",
"severity": "info",
"value": "2022-01-22T22:13:27.545222779Z",
"updatedAt": "2022-01-24T05:32:04Z"
},
{
"name": "service:version",
"description": "Service version",
"health": "ok",
"severity": "info",
"value": "11.0.0~vanquish_master.2021_11_23_15_08_20.S5585f4c3",
"updatedAt": "2022-01-24T05:32:04Z"
}
]
}
},
{
"key": "appliance/services/system_fpga/asw",
"state": {
"name": "FPGA ASW",
"health": "ok",
"severity": "info"
}
},
{
"key": "appliance/services/system_fpga/atse/0",
"state": {
"name": "FPGA ATSE 0",
"health": "ok",
"severity": "info"
}
},
{
"key": "appliance/services/system_fpga/service",
"state": {
"name": "FPGA Mgr Service",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "fpga-mgr:attached",
"description": "FPGA Mgr Attached State",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:32:04Z"
},
{
"name": "fpga-mgr:ready",
"description": "FPGA Mgr Ready State",
"health": "ok",
"severity": "info",
"value": "1",
"updatedAt": "2022-01-24T05:32:04Z"
}
]
}
},
{
"key": "appliance/services/system_host_config",
"state": {
"name": "system_host_config",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:18Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:18Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/system_image_agent",
"state": {
"name": "system_image_agent",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:12Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:12Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:38Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-10-21T16:16:48Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/system_lacpd",
"state": {
"name": "system_lacpd",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:20Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:20Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:38Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/system_lacpd_proxy",
"state": {
"name": "system_lacpd_proxy",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:05:44Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:00Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:00Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-11-08T18:58:12Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:05:46Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/system_latest_vers",
"state": {
"name": "system_latest_vers",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:22Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:22Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/system_license_service",
"state": {
"name": "system_license_service",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:27:58Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:27:58Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:38Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/system_lldpd",
"state": {
"name": "system_lldpd",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:44:35Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:27:48Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:27:48Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:44:35Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/system_manager",
"state": {
"name": "system_manager",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:06Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:06Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
},
{
"name": "service:component:version",
"description": "Service component version",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:file-watcher-error",
"description": "Service file watcher error",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:message-error",
"description": "Service health monitor error",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:message-error-count",
"description": "Service health monitor error count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:overall-health",
"description": "Service reported overall health",
"health": "ok",
"severity": "info",
"value": "Ok",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:ready",
"description": "Service ready status",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-count",
"description": "Service total restart count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-last-hour",
"description": "Service restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:startup-timestamp",
"description": "Service startup timestamp",
"health": "ok",
"severity": "info",
"value": "2022-01-22T22:13:14.598833746Z",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:version",
"description": "Service version",
"health": "ok",
"severity": "info",
"value": "6.6.3",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/services/system_network_manager",
"state": {
"name": "system_network_manager",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:27:50Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:27:50Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:38Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/system_platform-mgr",
"state": {
"name": "system_platform-mgr",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:32Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:32Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:38Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/system_platform-stats-bridge",
"state": {
"name": "system_platform-stats-bridge",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:14Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:14Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/system_rsyslogd",
"state": {
"name": "system_rsyslogd",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:14Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:14Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/system_stpd",
"state": {
"name": "system_stpd",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:26Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:26Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:38Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/system_sw_rbcast",
"state": {
"name": "system_sw_rbcast",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:28Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:28Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:38Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/system_tmstat_merged",
"state": {
"name": "system_tmstat_merged",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:44:35Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:06Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:06Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/system_tmstat_zmq",
"state": {
"name": "system_tmstat_zmq",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:56Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:56Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
},
{
"name": "service:component:version",
"description": "Service component version",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:file-watcher-error",
"description": "Service file watcher error",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:message-error",
"description": "Service health monitor error",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:message-error-count",
"description": "Service health monitor error count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:overall-health",
"description": "Service reported overall health",
"health": "ok",
"severity": "info",
"value": "Ok",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:ready",
"description": "Service ready status",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-count",
"description": "Service total restart count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-last-hour",
"description": "Service restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:29Z"
},
{
"name": "service:startup-timestamp",
"description": "Service startup timestamp",
"health": "ok",
"severity": "info",
"value": "2022-01-22T22:13:14.377584638Z",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:version",
"description": "Service version",
"health": "ok",
"severity": "info",
"value": "1.17.3",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/services/system_user_manager",
"state": {
"name": "system_user_manager",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:27:56Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:27:56Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
},
{
"name": "service:component:version",
"description": "Service component version",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "service:file-watcher-error",
"description": "Service file watcher error",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "service:message-error",
"description": "Service health monitor error",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:message-error-count",
"description": "Service health monitor error count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "service:overall-health",
"description": "Service reported overall health",
"health": "ok",
"severity": "info",
"value": "Ok",
"updatedAt": "2022-01-22T22:13:39Z"
},
{
"name": "service:ready",
"description": "Service ready status",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-count",
"description": "Service total restart count",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "service:restart-last-hour",
"description": "Service restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-11-30T03:04:20Z"
},
{
"name": "service:startup-timestamp",
"description": "Service startup timestamp",
"health": "ok",
"severity": "info",
"value": "2022-01-22T22:13:26.86219364Z",
"updatedAt": "2022-01-22T22:13:39Z"
},
{
"name": "service:version",
"description": "Service version",
"health": "ok",
"severity": "info",
"value": "1.1.21~prerelease_van_hyd_dev.2021_10_29_05_14_21.Sde68096e",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/services/system_velocity_rsyslogd",
"state": {
"name": "system_velocity_rsyslogd",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:00Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:00Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/tcpdumpd_manager",
"state": {
"name": "tcpdumpd_manager",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-10-18T20:53:44Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-10-18T20:53:44Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:36Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-10-18T20:53:44Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-10-18T20:53:44Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:28:36Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:38Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-10-18T20:53:44Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-10-18T20:53:44Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-10-18T20:53:44Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/upgrade-service",
"state": {
"name": "upgrade-service",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:10Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:10Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:38Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-15T06:01:01Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/utils-agent",
"state": {
"name": "utils-agent",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:58Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:58Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:38Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
},
{
"key": "appliance/services/vanquish-webUI",
"state": {
"name": "vanquish-webUI",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:28Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:30:28Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:39Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
}
],
"firmware": [
{
"key": "appliance/firmware/bios",
"state": {
"name": "BIOS",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "bios:missing-boot-device",
"description": "Missing Boot Device",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "bios:tpm-provisioning-failed",
"description": "TPM Provisioning Failed",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "bios:tpm-randomization-failed",
"description": "TPM Randomization Failed",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "firmware:action-after-update",
"description": "Action required after firmware update",
"health": "ok",
"severity": "info",
"value": "hostPowerCycle",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "firmware:update-required",
"description": "Firmware update required",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "firmware:update-status",
"description": "Firmware update status",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "firmware:version",
"description": "Firmware version",
"health": "ok",
"severity": "info",
"value": "1.02.108.1",
"updatedAt": "2022-01-22T22:13:37Z"
}
]
}
},
{
"key": "appliance/firmware/bios/me",
"state": {
"name": "BIOS ME",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "firmware:action-after-update",
"description": "Action required after firmware update",
"health": "ok",
"severity": "info",
"value": "hostPowerCycle",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "firmware:update-required",
"description": "Firmware update required",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "firmware:update-status",
"description": "Firmware update status",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "firmware:version",
"description": "Firmware version",
"health": "ok",
"severity": "info",
"value": "4.4.4.58",
"updatedAt": "2022-01-22T22:13:37Z"
}
]
}
},
{
"key": "appliance/firmware/cpld",
"state": {
"name": "CPLD",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "cpld:register:magic-byte-check",
"description": "CPLD register magic byte",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-09-24T20:42:13Z"
},
{
"name": "firmware:action-after-update",
"description": "Action required after firmware update",
"health": "ok",
"severity": "info",
"value": "cpldReload",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "firmware:update-required",
"description": "Firmware update required",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "firmware:update-status",
"description": "Firmware update status",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "firmware:version",
"description": "Firmware version",
"health": "ok",
"severity": "info",
"value": "02.0A.00",
"updatedAt": "2022-01-22T22:13:37Z"
}
]
}
},
{
"key": "appliance/firmware/drives",
"state": {
"name": "Drives",
"health": "ok",
"severity": "info"
}
},
{
"key": "appliance/firmware/drives/m.2-slot1",
"state": {
"name": "Drive NVME in Slot1",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "firmware:action-after-update",
"description": "Action required after firmware update",
"health": "ok",
"severity": "info",
"value": "none",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "firmware:update-required",
"description": "Firmware update required",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "firmware:update-status",
"description": "Firmware update status",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "firmware:version",
"description": "Firmware version",
"health": "ok",
"severity": "info",
"value": "EDA7602Q",
"updatedAt": "2022-01-22T22:13:37Z"
}
]
}
},
{
"key": "appliance/firmware/fpga/asw",
"state": {
"name": "FPGA asw",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "firmware:update-status",
"description": "Firmware update status",
"health": "ok",
"severity": "info",
"value": "complete",
"updatedAt": "2022-01-22T22:14:02Z"
},
{
"name": "firmware:version",
"description": "Firmware version",
"health": "ok",
"severity": "info",
"value": "71.2.7.00",
"updatedAt": "2022-01-22T22:14:02Z"
}
]
}
},
{
"key": "appliance/firmware/fpga/atse0",
"state": {
"name": "FPGA atse0",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "firmware:update-status",
"description": "Firmware update status",
"health": "ok",
"severity": "info",
"value": "complete",
"updatedAt": "2022-01-22T22:13:46Z"
},
{
"name": "firmware:version",
"description": "Firmware version",
"health": "ok",
"severity": "info",
"value": "72.2.5.00",
"updatedAt": "2022-01-22T22:13:46Z"
}
]
}
},
{
"key": "appliance/firmware/lcd",
"state": {
"name": "LCD Application",
"health": "ok",
"severity": "info"
}
},
{
"key": "appliance/firmware/lcd/app",
"state": {
"name": "LCD app",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "firmware:action-after-update",
"description": "Action required after firmware update",
"health": "ok",
"severity": "info",
"value": "none",
"updatedAt": "2021-11-30T03:19:16Z"
},
{
"name": "firmware:update-required",
"description": "Firmware update required",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2021-11-30T03:19:15Z"
},
{
"name": "firmware:update-status",
"description": "Firmware update status",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "firmware:version",
"description": "Firmware version",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-11-30T03:19:16Z"
}
]
}
},
{
"key": "appliance/firmware/lcd/bootloader",
"state": {
"name": "LCD bootloader",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "firmware:action-after-update",
"description": "Action required after firmware update",
"health": "ok",
"severity": "info",
"value": "none",
"updatedAt": "2021-11-30T03:04:15Z"
},
{
"name": "firmware:update-required",
"description": "Firmware update required",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2021-11-30T03:04:15Z"
},
{
"name": "firmware:update-status",
"description": "Firmware update status",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "firmware:version",
"description": "Firmware version",
"health": "ok",
"severity": "info",
"value": "1.01.027.00.1",
"updatedAt": "2021-11-30T03:04:15Z"
}
]
}
},
{
"key": "appliance/firmware/lop/bootloader",
"state": {
"name": "LOP Bootloader",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "firmware:action-after-update",
"description": "Action required after firmware update",
"health": "ok",
"severity": "info",
"value": "none",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "firmware:update-required",
"description": "Firmware update required",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "firmware:update-status",
"description": "Firmware update status",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "firmware:version",
"description": "Firmware version",
"health": "ok",
"severity": "info",
"value": "1.02.062.0.1",
"updatedAt": "2022-01-22T22:13:37Z"
}
]
}
},
{
"key": "appliance/firmware/lop/lop-app",
"state": {
"name": "LOP Application",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "firmware:action-after-update",
"description": "Action required after firmware update",
"health": "ok",
"severity": "info",
"value": "none",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "firmware:update-required",
"description": "Firmware update required",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "firmware:update-status",
"description": "Firmware update status",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "firmware:version",
"description": "Firmware version",
"health": "ok",
"severity": "info",
"value": "1.00.214.0.1",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "lop-app:firmware-diag:arm-exception",
"description": "ARM exception",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "lop-app:firmware-diag:heap-low",
"description": "Heap running low",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "lop-app:firmware-diag:task-stack-warning",
"description": "Task stack usage warning",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "lop-app:firmware-diag:wd-timer-warning",
"description": "Watchdog timer warning",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
},
{
"key": "appliance/firmware/tpm/sirr",
"state": {
"name": "TPM SIRR",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "firmware:action-after-update",
"description": "Action required after firmware update",
"health": "ok",
"severity": "info",
"value": "none",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "firmware:update-required",
"description": "Firmware update required",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "firmware:update-status",
"description": "Firmware update status",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "firmware:version",
"description": "Firmware version",
"health": "ok",
"severity": "info",
"value": "1.1.29",
"updatedAt": "2022-01-22T22:13:37Z"
}
]
}
}
]
},
{
"name": "drive-slot-1",
"hardware": [
{
"key": "appliance/hardware/drives/m.2-slot1",
"state": {
"name": "Drive NVME in Slot1",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "drives:nvme:name",
"description": "Drive NVME logical name",
"health": "ok",
"severity": "info",
"value": "nvme0",
"updatedAt": "2022-01-22T22:13:43Z"
},
{
"name": "drives:smart:nvme:attr:available-spare",
"description": "Available Spare",
"health": "ok",
"severity": "info",
"value": "100",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "drives:smart:nvme:attr:critical-warning:available-spare",
"description": "SMART Attribute Critical Warning - Available Spare",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "drives:smart:nvme:attr:critical-warning:media-or-internal-errors",
"description": "SMART Attribute Critical Warning - Media Errors",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "drives:smart:nvme:attr:critical-warning:read-only-mode",
"description": "SMART Attribute Critical Warning - Read-Only Mode",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "drives:smart:nvme:attr:critical-warning:temperature",
"description": "SMART Attribute Critical Warning - Temperature",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "drives:smart:nvme:attr:critical-warning:volatile-memory-backup",
"description": "SMART Attribute Critical Warning - Volatile Memory",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "drives:smart:nvme:attr:media-errors",
"description": "SMART Attribute Media Errors",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "drives:smart:nvme:attr:percentage-used",
"description": "Percentage Used (%)",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "drives:smart:nvme:attr:temperature",
"description": "Temperature (C)",
"health": "ok",
"severity": "info",
"value": "47",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "module:present",
"description": "Module present status",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:power-domain:device:ssd1",
"description": "Drive NVME power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
}
],
"firmware": [
{
"key": "appliance/firmware/drives/m.2-slot1",
"state": {
"name": "Drive NVME in Slot1",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "firmware:action-after-update",
"description": "Action required after firmware update",
"health": "ok",
"severity": "info",
"value": "none",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "firmware:update-required",
"description": "Firmware update required",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-22T22:13:37Z"
},
{
"name": "firmware:update-status",
"description": "Firmware update status",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "firmware:version",
"description": "Firmware version",
"health": "ok",
"severity": "info",
"value": "EDA7602Q",
"updatedAt": "2022-01-22T22:13:37Z"
}
]
}
}
]
},
{
"name": "fantray",
"hardware": [
{
"key": "appliance/hardware/fantray",
"state": {
"name": "Fan Tray",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "module:present",
"description": "Module present status",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:power-domain:device:fans",
"description": "FANS power fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:sensor:speed:fan1",
"description": "Fan 1 (RPM)",
"health": "ok",
"severity": "info",
"value": "16295",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:sensor:speed:fan2",
"description": "Fan 2 (RPM)",
"health": "ok",
"severity": "info",
"value": "16260",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:sensor:speed:fan3",
"description": "Fan 3 (RPM)",
"health": "ok",
"severity": "info",
"value": "16224",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:sensor:speed:fan4",
"description": "Fan 4 (RPM)",
"health": "ok",
"severity": "info",
"value": "16242",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:sensor:speed:fan5",
"description": "Fan 5 (RPM)",
"health": "ok",
"severity": "info",
"value": "16224",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:sensor:speed:fan6",
"description": "Fan 6 (RPM)",
"health": "ok",
"severity": "info",
"value": "16402",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:sensor:speed:fan7",
"description": "Fan 7 (RPM)",
"health": "ok",
"severity": "info",
"value": "16322",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "v6h:sensor:speed:fan8",
"description": "Fan 8 (RPM)",
"health": "ok",
"severity": "info",
"value": "16330",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
}
]
},
{
"name": "lcd",
"hardware": [
{
"key": "appliance/hardware/lcd",
"state": {
"name": "LCD",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "lcd:health",
"description": "LCD Health Monitor",
"health": "ok",
"severity": "info",
"value": "1",
"updatedAt": "2022-01-24T05:32:16Z"
},
{
"name": "lcd:sensor:11vcore",
"description": "1.1V Core (V)",
"health": "ok",
"severity": "info",
"value": "1.096436",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lcd:sensor:11vmpu",
"description": "1.1V MPU (V)",
"health": "ok",
"severity": "info",
"value": "1.095996",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lcd:sensor:135vddr3",
"description": "1.35V DDR3 (V)",
"health": "ok",
"severity": "info",
"value": "1.352197",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lcd:sensor:18v0",
"description": "1.8V 1 (V)",
"health": "ok",
"severity": "info",
"value": "1.794727",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lcd:sensor:33v",
"description": "3.3V (V)",
"health": "ok",
"severity": "info",
"value": "3.314355",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lcd:sensor:33vlcd",
"description": "3.3V LCD (V)",
"health": "ok",
"severity": "info",
"value": "3.295898",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lcd:sensor:5v",
"description": "5V (V)",
"health": "ok",
"severity": "info",
"value": "4.960986",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "lcd:sensor:temperature",
"description": "LCD Temperature (C)",
"health": "ok",
"severity": "info",
"value": "33.689933",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "module:communication-error",
"description": "Module communication error",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-24T05:32:16Z"
},
{
"name": "module:present",
"description": "Module present status",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:13:38Z"
}
]
}
}
],
"services": [
{
"key": "appliance/services/lcd-webserver",
"state": {
"name": "lcd-webserver",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "container:event:attach",
"description": "Container attach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:die",
"description": "Container die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-12-08T19:43:32Z"
},
{
"name": "container:event:exec-create",
"description": "Container exec create event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:46Z"
},
{
"name": "container:event:exec-detach",
"description": "Container exec detach event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-die",
"description": "Container exec die event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:exec-start",
"description": "Container exec start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-18T01:29:46Z"
},
{
"name": "container:event:kill",
"description": "Container kill event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:10:38Z"
},
{
"name": "container:event:restart",
"description": "Container restart event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "container:event:restart-last-hour",
"description": "Container restart count in the last hour",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:start",
"description": "Container start event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-09-24T20:42:30Z"
},
{
"name": "container:event:stop",
"description": "Container stop event",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2021-11-30T03:09:43Z"
},
{
"name": "container:running",
"description": "Container running",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-24T05:31:38Z"
}
]
}
}
],
"firmware": [
{
"key": "appliance/firmware/lcd",
"state": {
"name": "LCD Application",
"health": "ok",
"severity": "info"
}
},
{
"key": "appliance/firmware/lcd/app",
"state": {
"name": "LCD app",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "firmware:action-after-update",
"description": "Action required after firmware update",
"health": "ok",
"severity": "info",
"value": "none",
"updatedAt": "2021-11-30T03:19:16Z"
},
{
"name": "firmware:update-required",
"description": "Firmware update required",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2021-11-30T03:19:15Z"
},
{
"name": "firmware:update-status",
"description": "Firmware update status",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "firmware:version",
"description": "Firmware version",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2021-11-30T03:19:16Z"
}
]
}
},
{
"key": "appliance/firmware/lcd/bootloader",
"state": {
"name": "LCD bootloader",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "firmware:action-after-update",
"description": "Action required after firmware update",
"health": "ok",
"severity": "info",
"value": "none",
"updatedAt": "2021-11-30T03:04:15Z"
},
{
"name": "firmware:update-required",
"description": "Firmware update required",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2021-11-30T03:04:15Z"
},
{
"name": "firmware:update-status",
"description": "Firmware update status",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:25Z"
},
{
"name": "firmware:version",
"description": "Firmware version",
"health": "ok",
"severity": "info",
"value": "1.01.027.00.1",
"updatedAt": "2021-11-30T03:04:15Z"
}
]
}
}
]
},
{
"name": "psu-1",
"hardware": [
{
"key": "appliance/hardware/psu/psu1",
"state": {
"name": "psu-1",
"health": "ok",
"severity": "info"
},
"attributes": {
"attribute": [
{
"name": "module:communication-error",
"description": "Module communication error",
"health": "ok",
"severity": "info",
"value": "false",
"updatedAt": "2022-01-22T22:13:40Z"
},
{
"name": "psu:sensor:current-in",
"description": "PSU Current In (A)",
"health": "ok",
"severity": "info",
"value": "1.75",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "psu:sensor:current-out",
"description": "PSU Current Out (A)",
"health": "ok",
"severity": "info",
"value": "27.812",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "psu:sensor:fan1-speed",
"description": "PSU Fan 1 Speed (RPM)",
"health": "ok",
"severity": "info",
"value": "9600",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "psu:sensor:power-in",
"description": "PSU Power In (W)",
"health": "ok",
"severity": "info",
"value": "340",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "psu:sensor:power-out",
"description": "PSU Power Out (W)",
"health": "ok",
"severity": "info",
"value": "333",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "psu:sensor:temperature1",
"description": "PSU Temperature 1 (C)",
"health": "ok",
"severity": "info",
"value": "38",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "psu:sensor:temperature2",
"description": "PSU Temperature 2 (C)",
"health": "ok",
"severity": "info",
"value": "49",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "psu:sensor:temperature3",
"description": "PSU Temperature 3 (C)",
"health": "ok",
"severity": "info",
"value": "54",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "psu:sensor:voltage-in",
"description": "PSU Voltage In (V)",
"health": "ok",
"severity": "info",
"value": "204",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "psu:sensor:voltage-out",
"description": "PSU Voltage Out (V)",
"health": "ok",
"severity": "info",
"value": "12.062",
"updatedAt": "2022-01-24T05:00:06Z"
},
{
"name": "psu:state:input-over-current-fault",
"description": "PSU Input Over Current Fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:14:09Z"
},
{
"name": "psu:state:input-over-current-warning",
"description": "PSU Input Over Current Warning",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:14:09Z"
},
{
"name": "psu:state:input-over-power-warning",
"description": "PSU Input Over Power Warning",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:14:09Z"
},
{
"name": "psu:state:input-over-voltage-fault",
"description": "PSU Input Over Voltage Fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:14:09Z"
},
{
"name": "psu:state:input-over-voltage-warning",
"description": "PSU Input Over Voltage Warning",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:14:09Z"
},
{
"name": "psu:state:input-under-voltage-fault",
"description": "PSU Input Under Voltage Fault",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:14:09Z"
},
{
"name": "psu:state:input-under-voltage-warning",
"description": "PSU Input Under Voltage Warning",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:14:09Z"
},
{
"name": "psu:state:input-unit-off-for-low-input-voltage",
"description": "PSU Input Unit Off For Low Input Voltage",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:14:09Z"
},
{
"name": "psu:status:input-ok",
"description": "PSU Status Input OK",
"health": "ok",
"severity": "info",
"value": "1",
"updatedAt": "2022-01-22T22:14:09Z"
},
{
"name": "psu:status:output-ok",
"description": "PSU Status Output OK",
"health": "ok",
"severity": "info",
"value": "1",
"updatedAt": "2022-01-22T22:14:09Z"
},
{
"name": "psu:status:present",
"description": "PSU Status Present",
"health": "ok",
"severity": "info",
"value": "true",
"updatedAt": "2022-01-22T22:14:09Z"
},
{
"name": "psu:status:smb-alert",
"description": "PSU Status SMB Alert",
"health": "ok",
"severity": "info",
"value": "",
"updatedAt": "2022-01-22T22:13:38Z"
},
{
"name": "psu:status:unsupported",
"description": "PSU Status Unsupported",
"health": "ok",
"severity": "info",
"value": "0",
"updatedAt": "2022-01-22T22:14:09Z"
}
]
}
}
]
}
]
}
}
}
